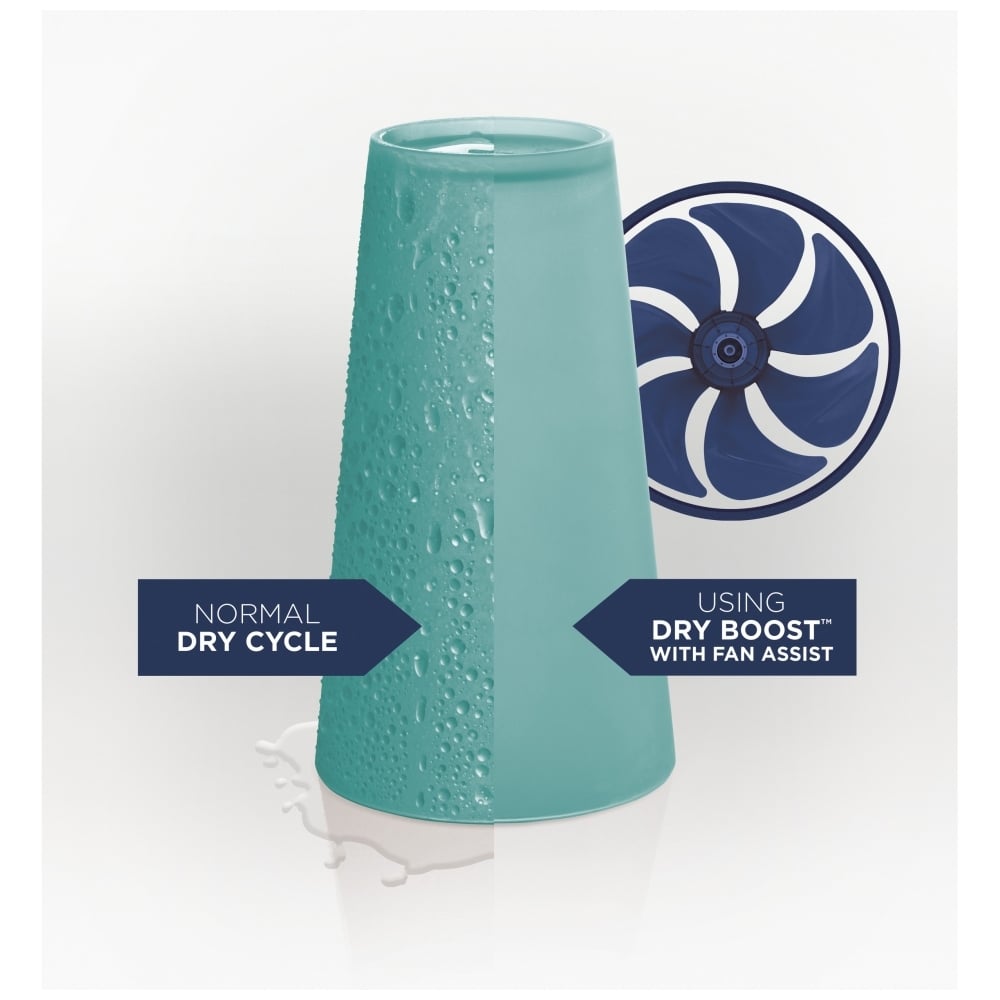

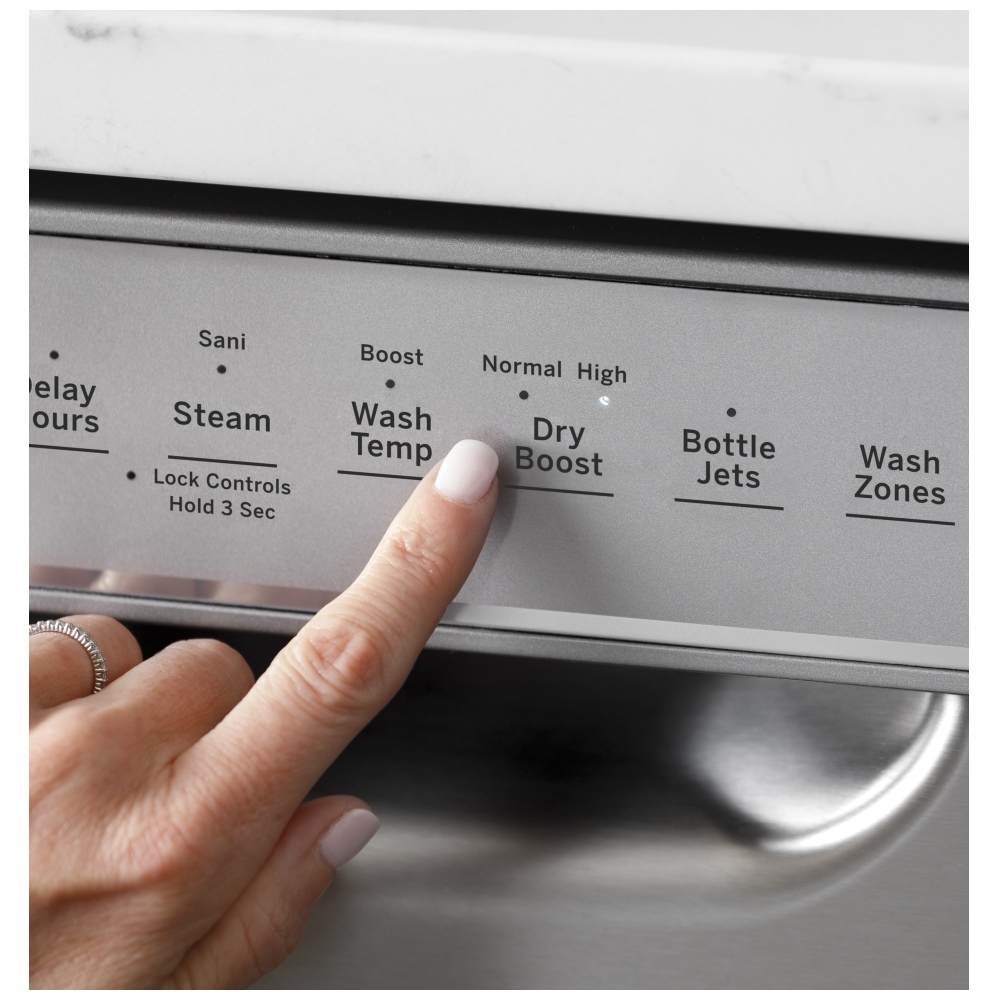

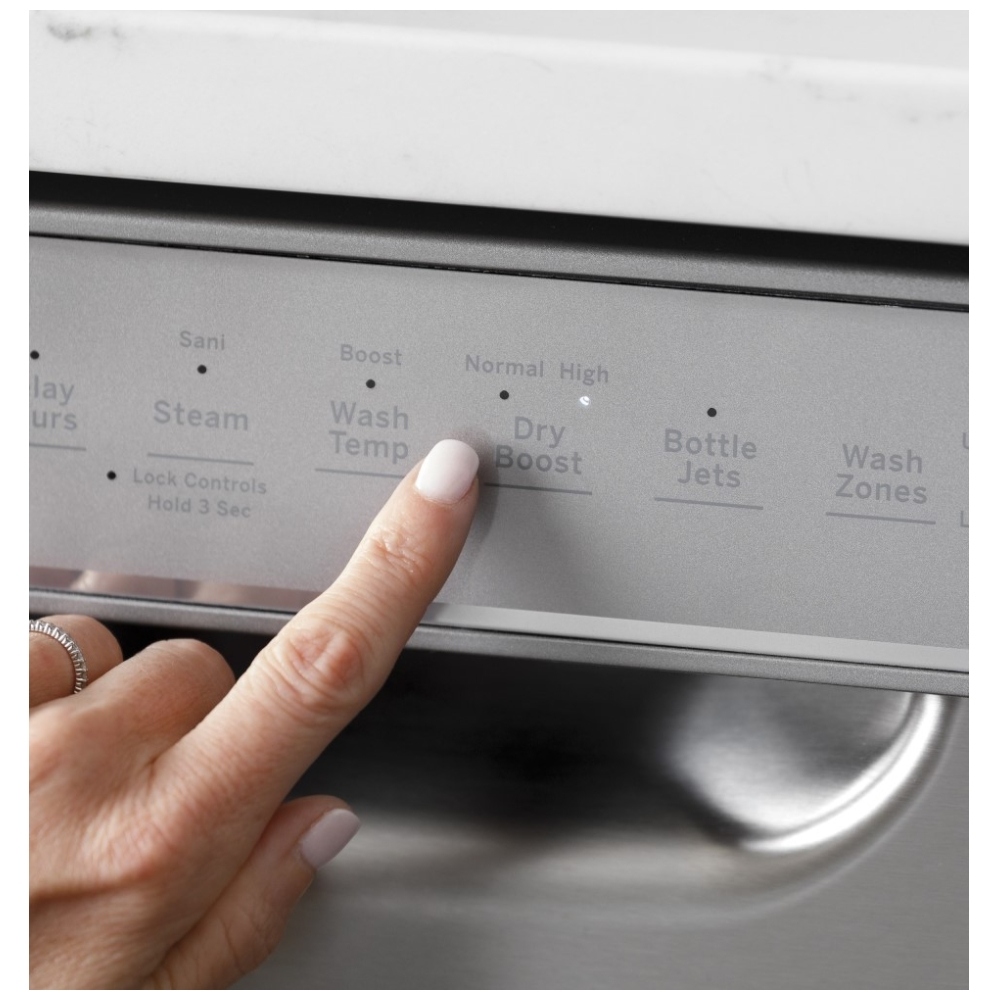

- Dry Boost with Fan Assist gets hard-to-dry items like plastics up to 3 times drier than heated dry cycles using a fan that pulls moist air out, resulting in table ready dishes

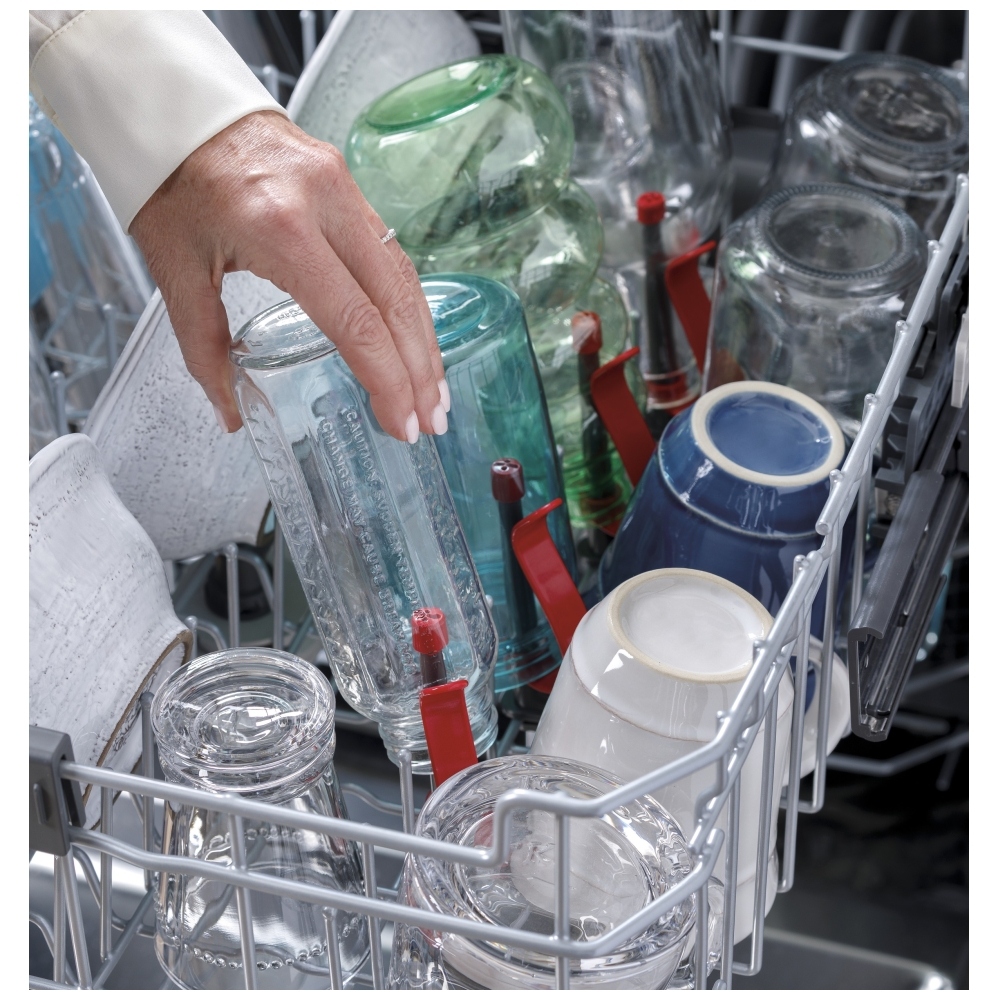

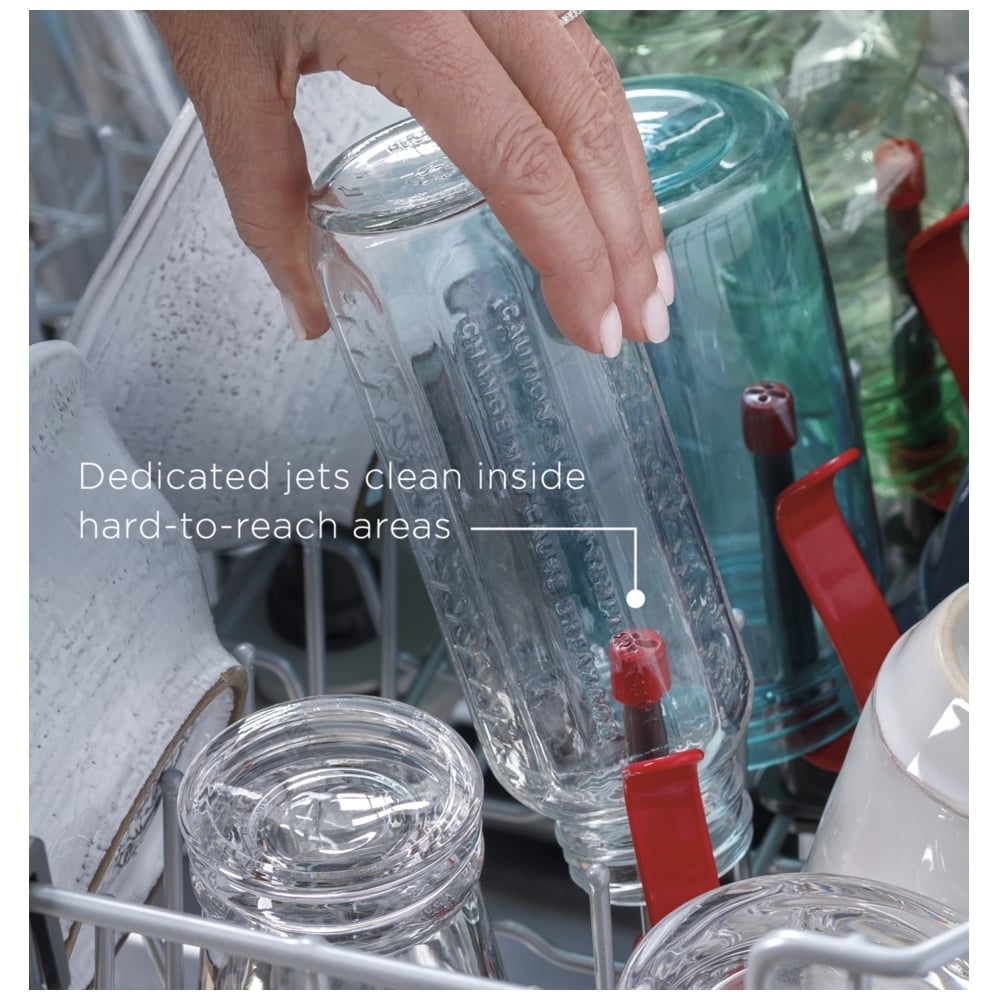

- This dishwasher with bottle jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the four bottle wash jets direct water and detergent inside to effectively wash hard-to-reach areas

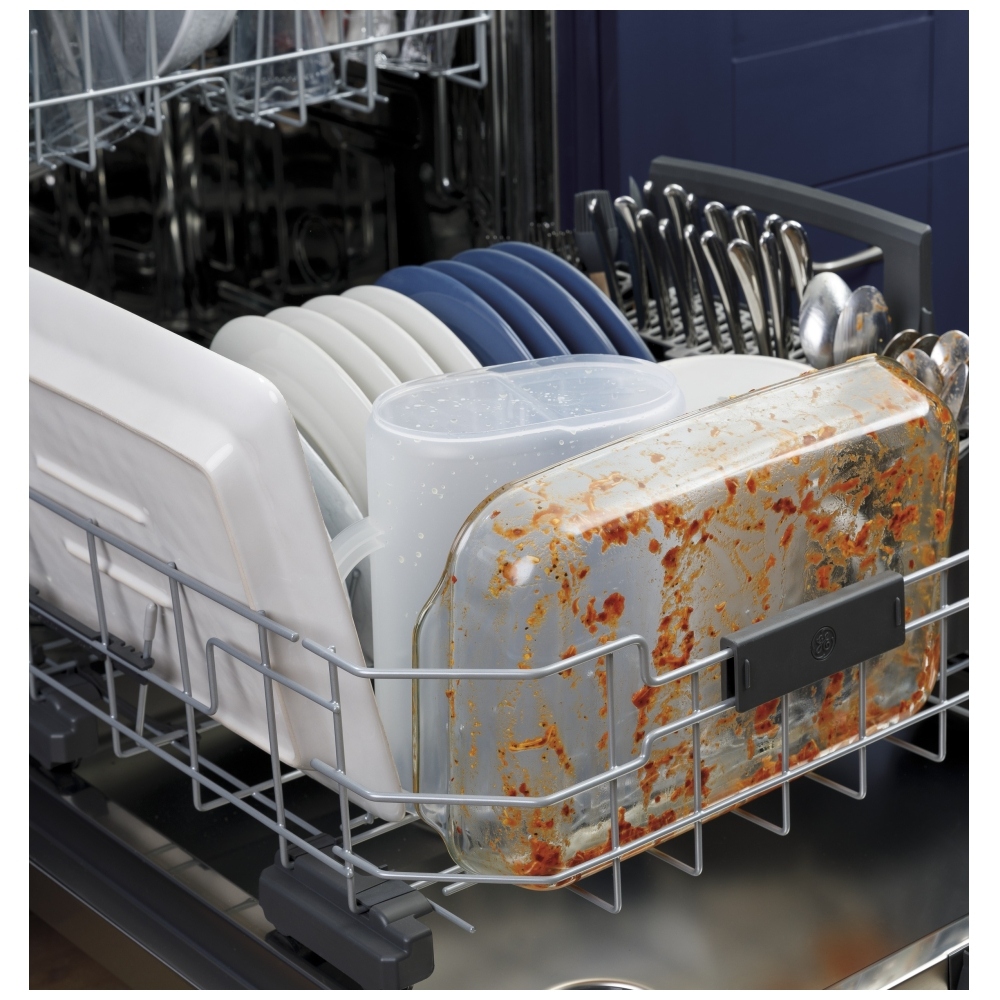

- Get a complete wash with no pre-rinse, thanks to a variety of wash cycles that provide a powerful clean. No matter how many dishes you load or how dirty they are, rest assured you'll get spotless results every time
- This dishwasher features Active Flood Protect, which prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached
- American made, this dishwasher is durable, long-lasting and dependable. Its consistent performance will give you totally clean and dry dishes with every cycle

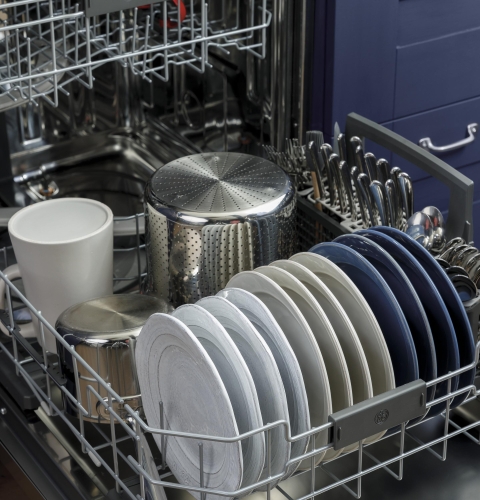

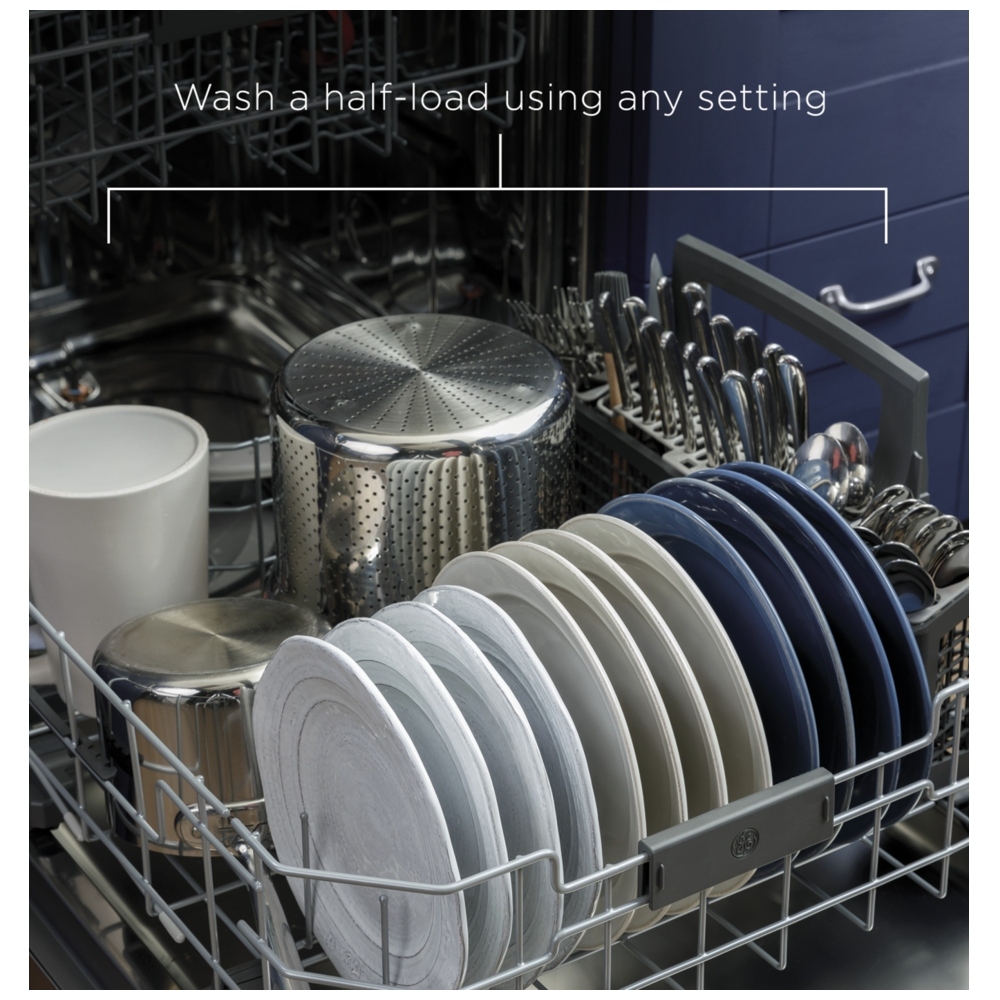

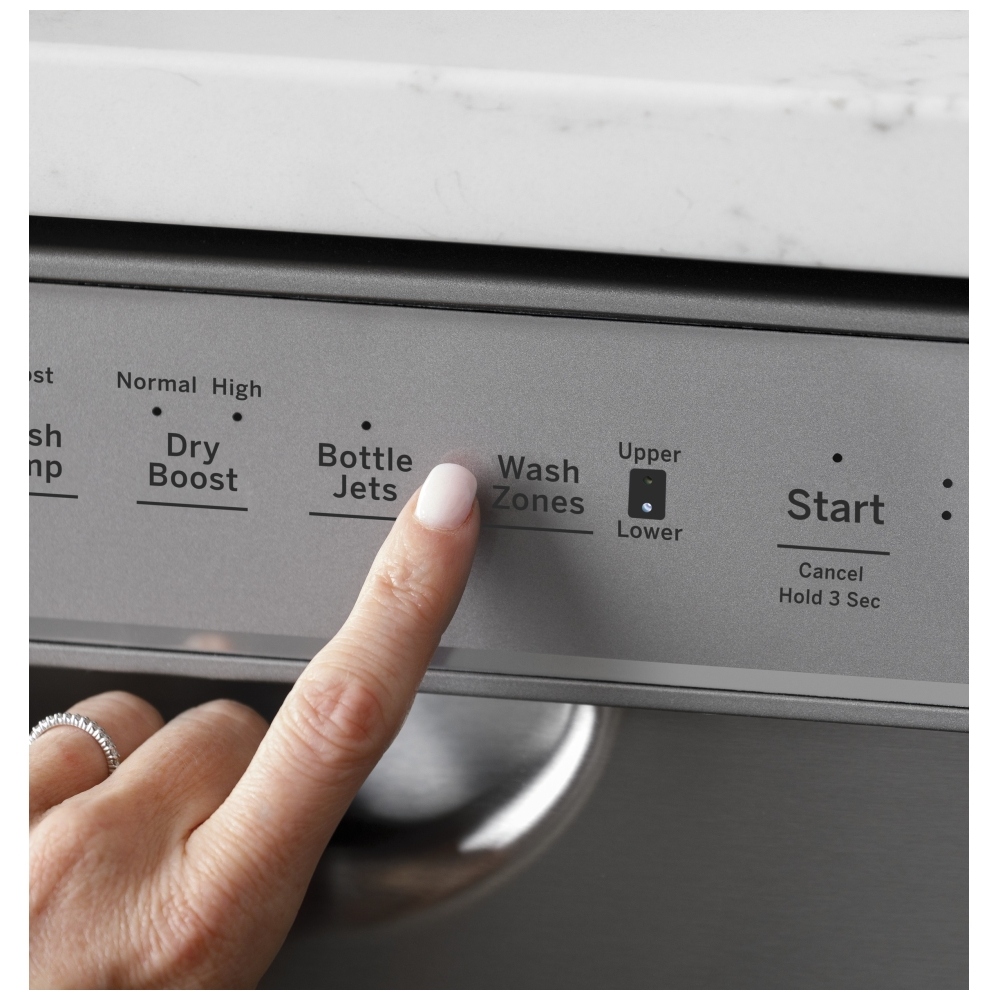

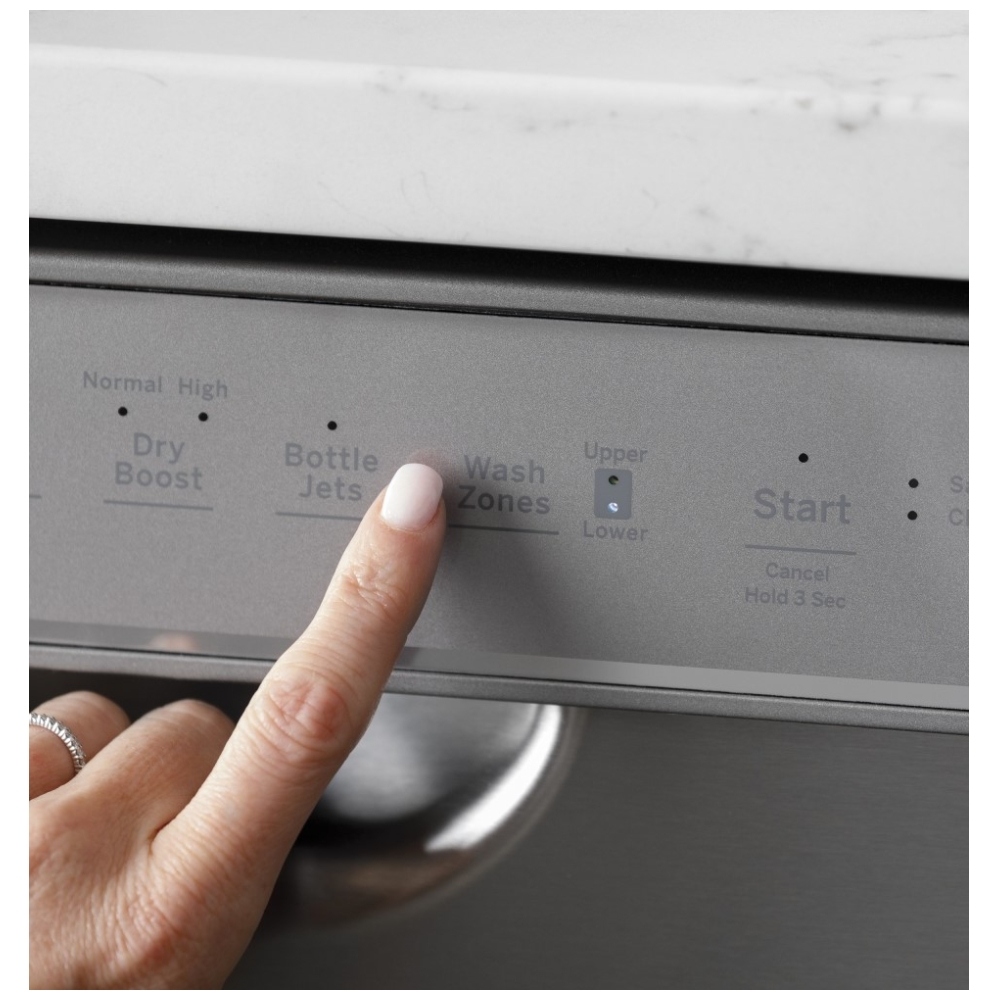

- Wash a true half load in the upper or lower rack whenever you need to, instead of waiting on a full load. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy

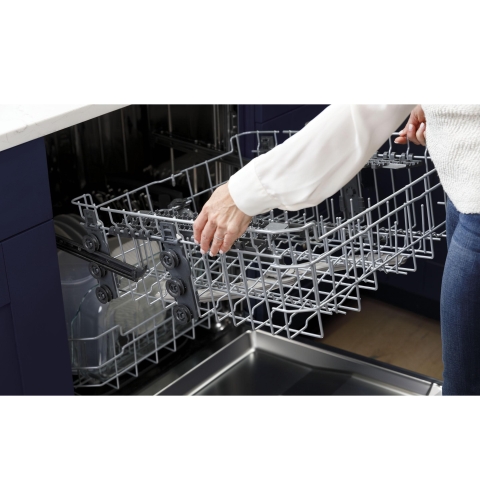

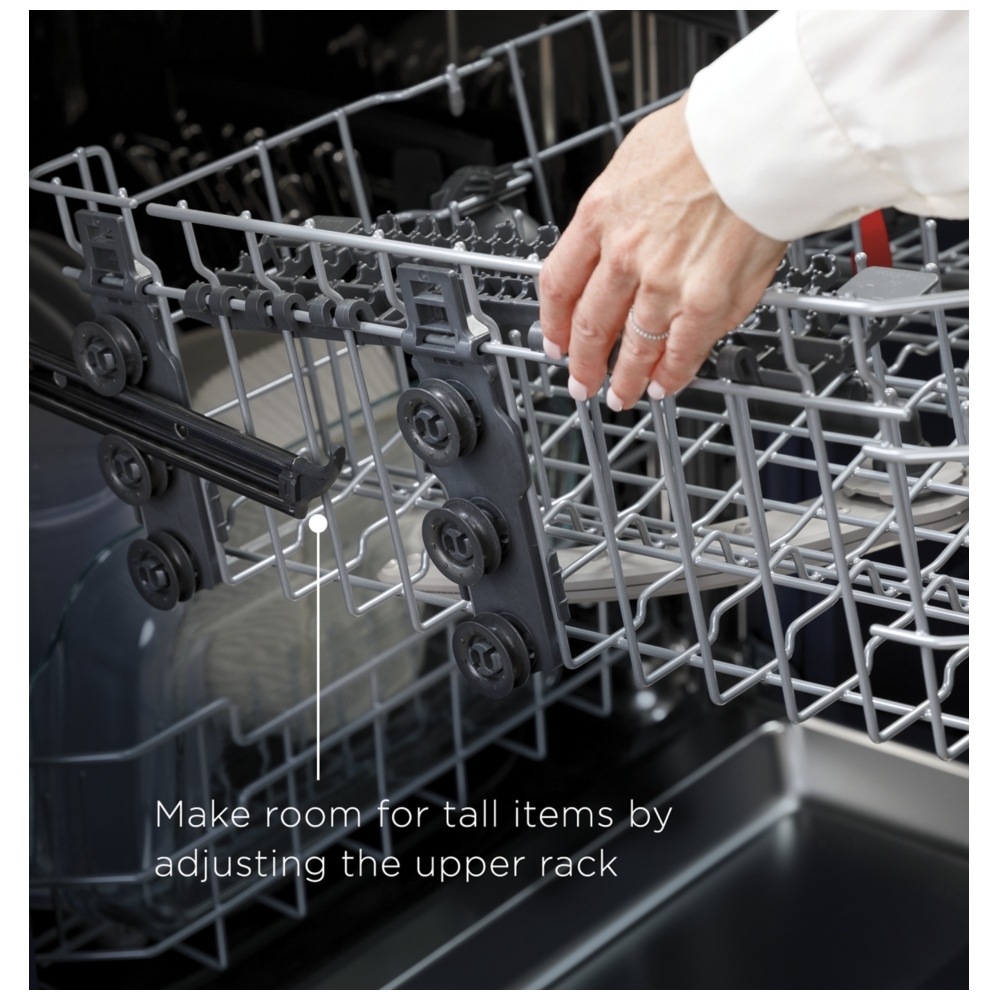

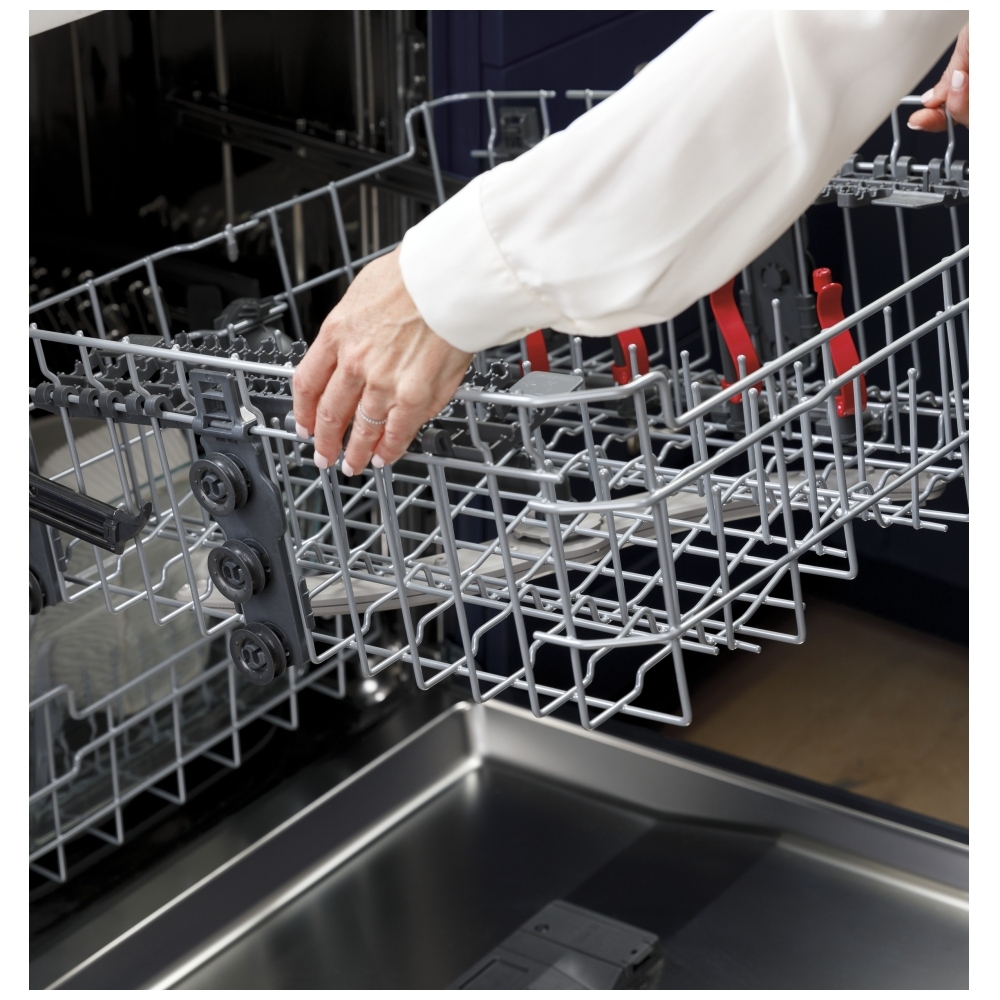

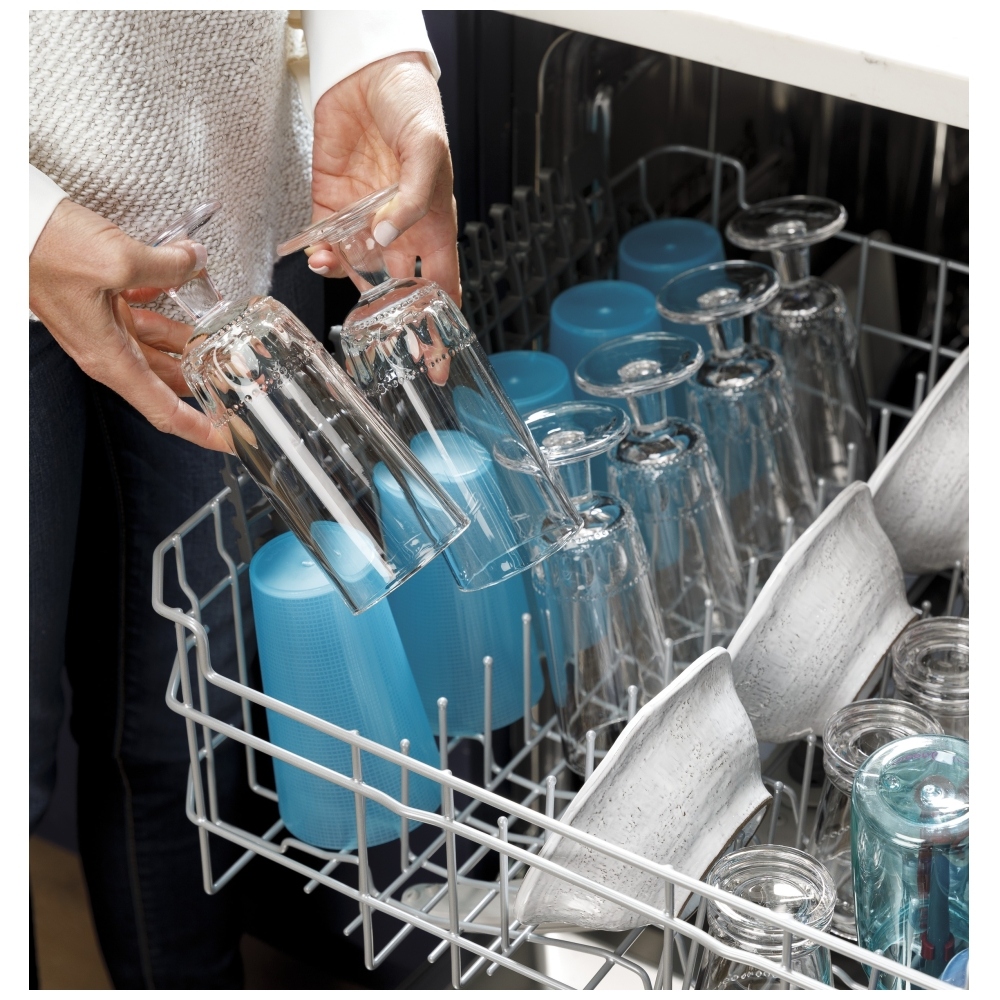

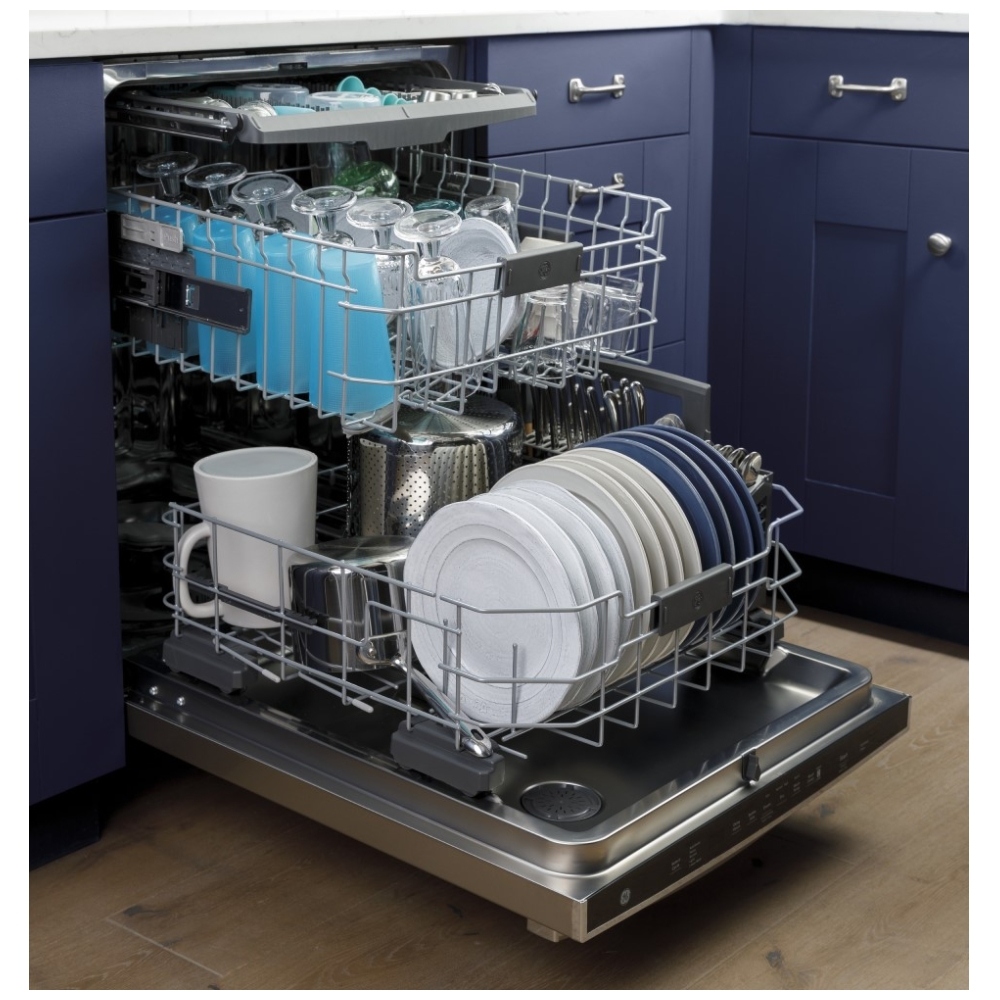

- Enjoy a dishwasher with flexible loading with an adjustable upper rack. Easily move it up or down to fit bottles, large platters and other items as tall as 10.5"

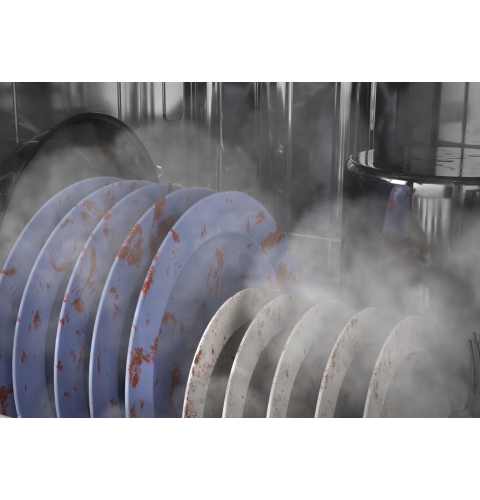

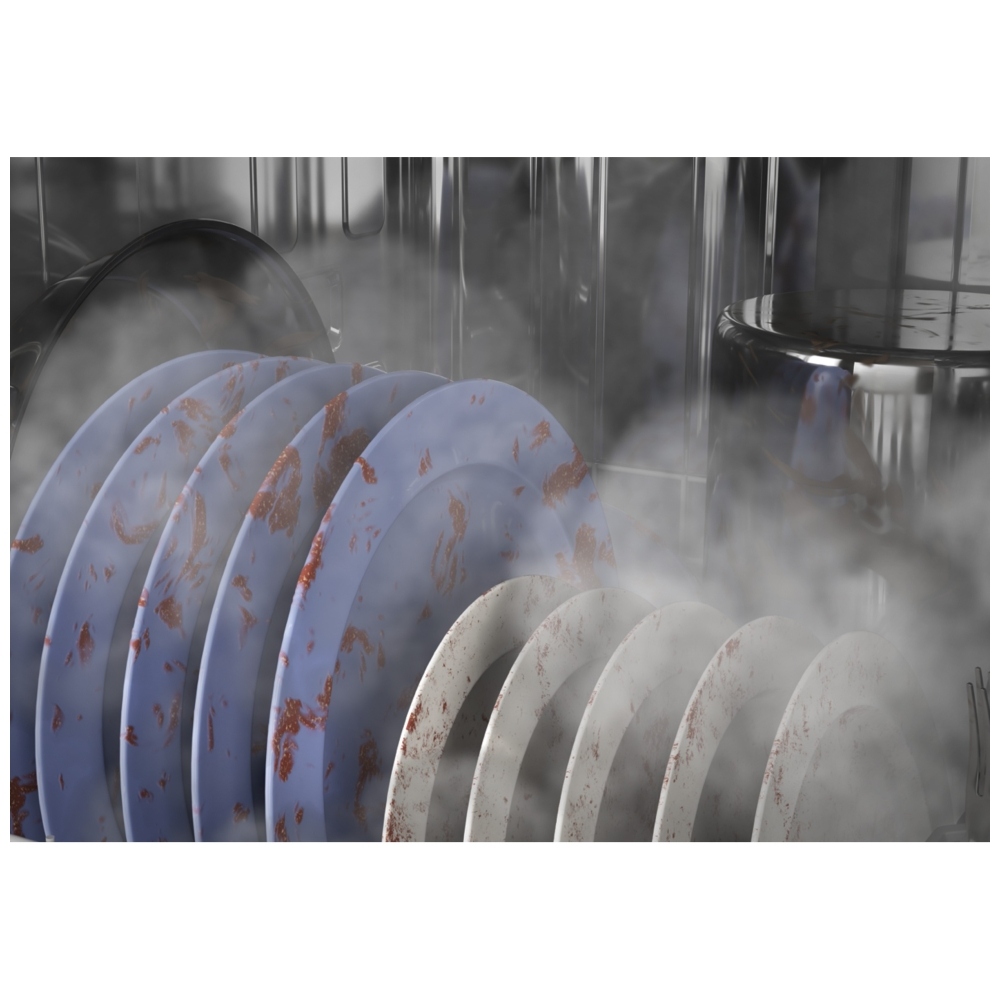

- Save time with a steam and sanitize option that loosens tough soils before the wash cycle begins, so you get a complete wash with no pre-rinsing or soaking necessary. Plus, a sanitization cycle reduces 99.999% of bacteria on dishes

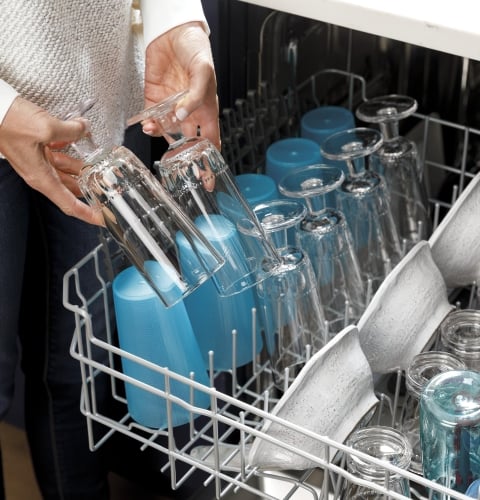

- This one-hour wash cycle provides a quick, quality clean. Unload spotless plates, glasses, pots and pans without waiting hours for the dishwasher to finish
- This energy efficient dishwasher has an AutoSense Cycle that detects the soil level and amount of dishes, then automatically adjusts wash settings for the ultimate clean
- The Piranha Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate at 3,600 RPM to pulverize food particles and an anti-jamming design make sure wash arms stay unclogged

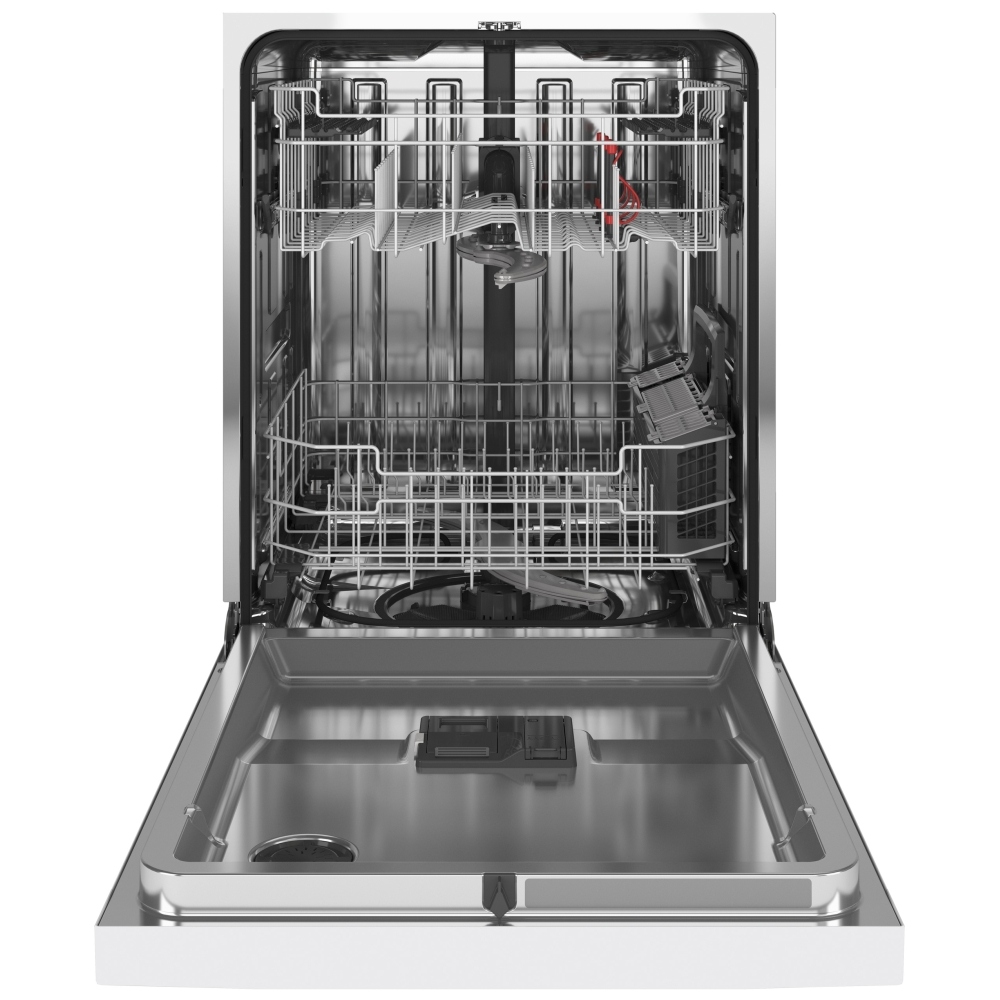

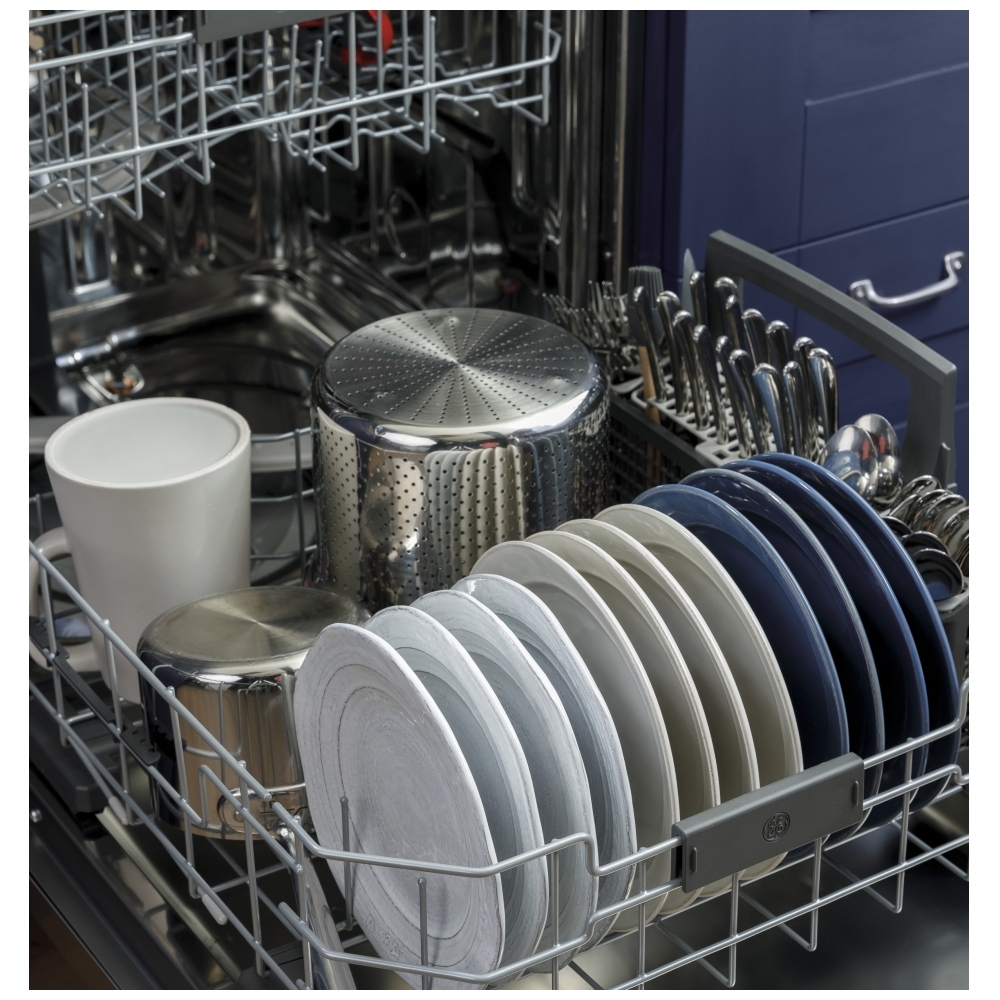

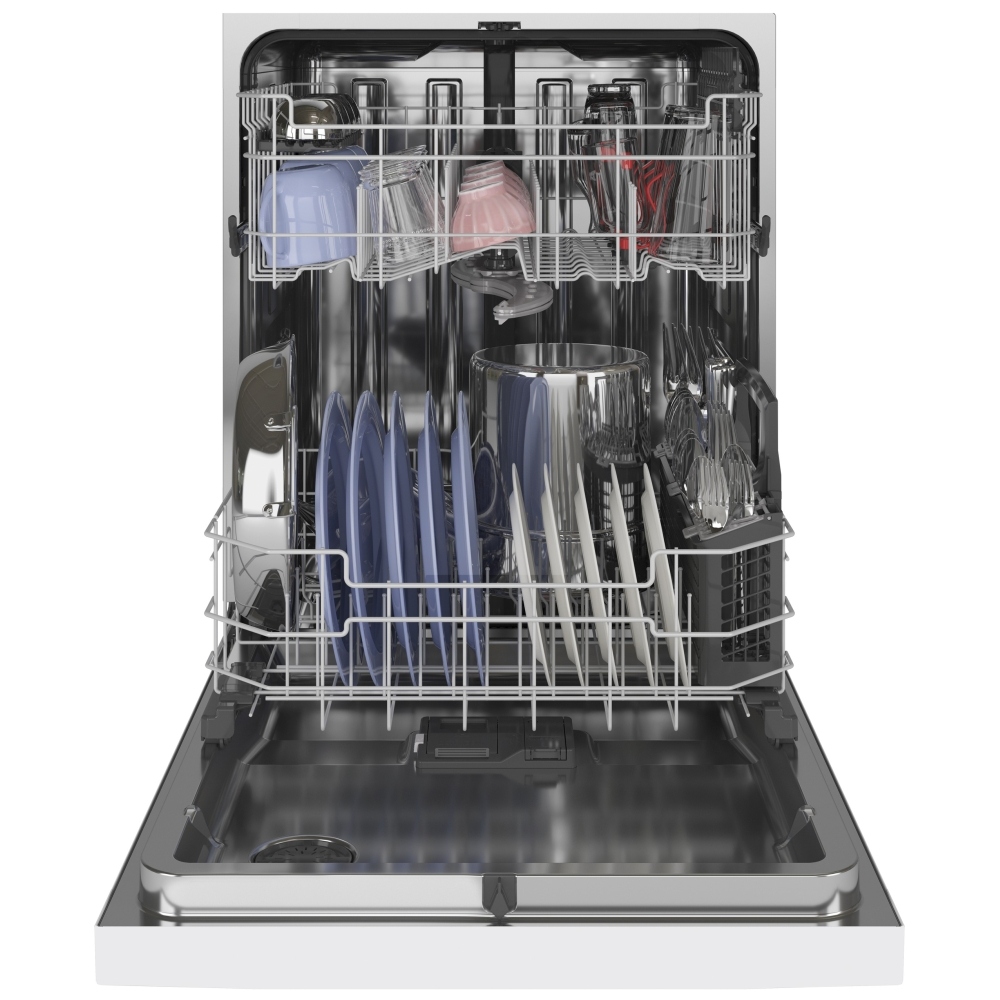

- This extra large capacity dishwasher has enough space for 16 place settings and large dishware, making cleanup easy after large gatherings
- This quiet dishwasher offers powerful, reliable performance without making unwanted noise in the kitchen
- Turn your appliance into a smart dishwasher with a WiFi adapter (sold separately). Simply attach it and start using the SmartHQ app to control and monitor your unit remotely. You can even reorder detergent
Manufacturer's Warranty: 1 year

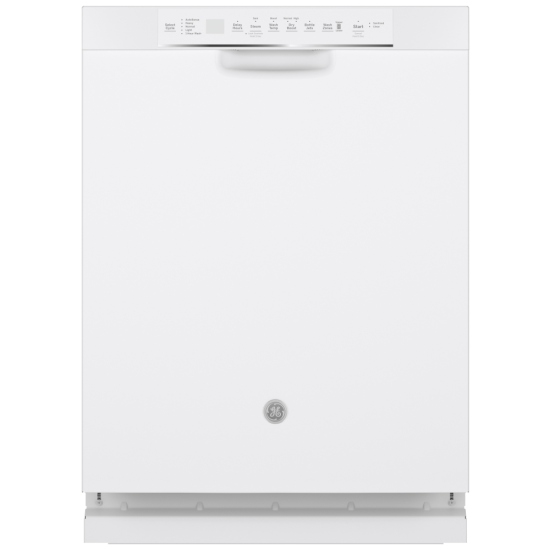

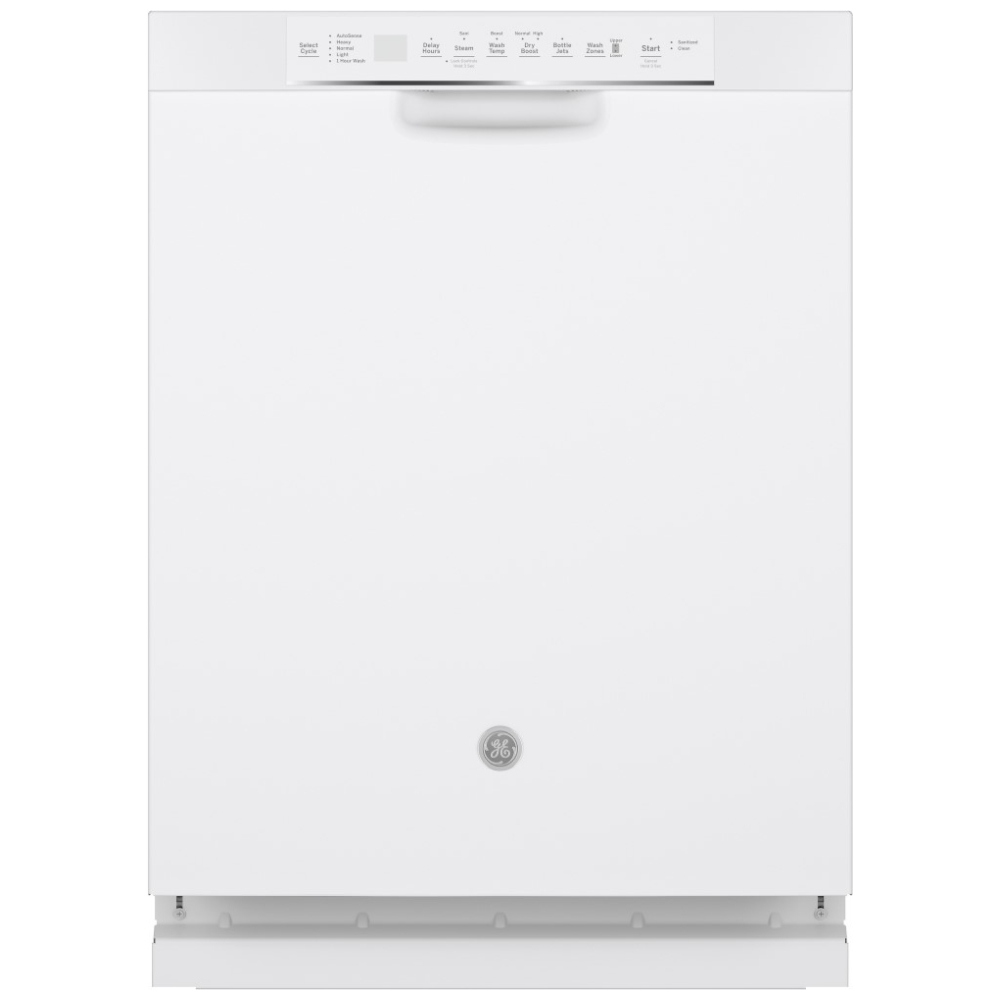

Canadian model: GDF645SGNWW




| FILTER | |
| App Filter - Cabinet Width | Dish Traditional 24 in. |
| App Filter - Stainless Steel Interior | Yes |
| App Filter - Product Type | Dish Built-In Front Control |
| App Filter - WiFi Connect | Optional |
| App Filter - Food Disposer | Yes |
| App Filter - Bottle Wash | Yes |
| APPEARANCE | |
| Handle | Recessed |
| Installation | Built-Up Floor Capable Flush Cabinet Installation Side Installation or Top Installation Included |
| Handle Color | White |
| Door Style | Long Door |
| Door Appearance | Full-length door |
| Color Appearance | White |
| POWER / RATINGS | |
| Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
| Calrod Heater Watts | 800/500 |
| Volts/Hertz/Amps | 120V; 60Hz; 6.6A |
| WARRANTY | |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| ECONOMICAL / QUIET | |
| Door Insulation | Insulation Mastic |
| Quiet Package | 48 dBA |
| Outer Wrap | Bitumen Full-wrap Blanket |
| Motor Type | Single Speed |
| Quiet Features | Quiet Water Valve Sealed Toe Kick Tub Collar Trim |
| WEIGHTS & DIMENSIONS | |
| Height w/ Legs Retracted - Minimum Height | 33.375 in |
| Overall Depth | 24 in |
| Cabinet Width | 24 in |
| Net Weight | 99 lb |
| Overall Width | 23.75 in |
| Approximate Shipping Weight | 112 lb |
| Overall Height | 34 in |
| Height w/Legs Extended - Maximum Height | 34.625 in |
| FEATURES | |
| Wash System | 3-Level 600 Series |
| Sensor | Clean Sensor |
| Lower Rack | Ball-Tip Tines |
| Tub Type | Tall Tub |
| Leveling System | 4 Leveling Legs |
| OU Certified | No |
| Additional Protection | Active Flood Protect |
| Number of Place Settings | 16 |
| Dishwasher Options | Bottle Jets Child Lock Delay Start 1-12 Hr. Dry Boost™ Heated Dry Sabbath Mode Sani (Certified to NSF Standard 184) Start/Reset Steam PreWash Wash TempBoost Wash Zone Lower Only Wash Zone Upper Only |
| Latch | Center Pull |
| Number of Options | 11 |
| Style | Built-In Front Control |
| Water Filtration System | 100% Filtration with Piranha Hard Food Disposer and Removable Filter |
| Rack Features | 1 Piece Silverware Basket with 3 Cell Covers 2 Utility Shelves with Stem Safe - Upper Adjustable Upper Rack Ball-Tipped Tines |
| Racking Material | Nylon |
| Dishwasher Cycles | 1 Hour Wash AutoSense Heavy Wash Light Wash Normal Wash |
| Rack Color | Silver |
| Dispenser | Rinse Aid with Indicator and Adjustment |
| WiFi Connect | Optional (Requires part no. PBX23W00Y0) |

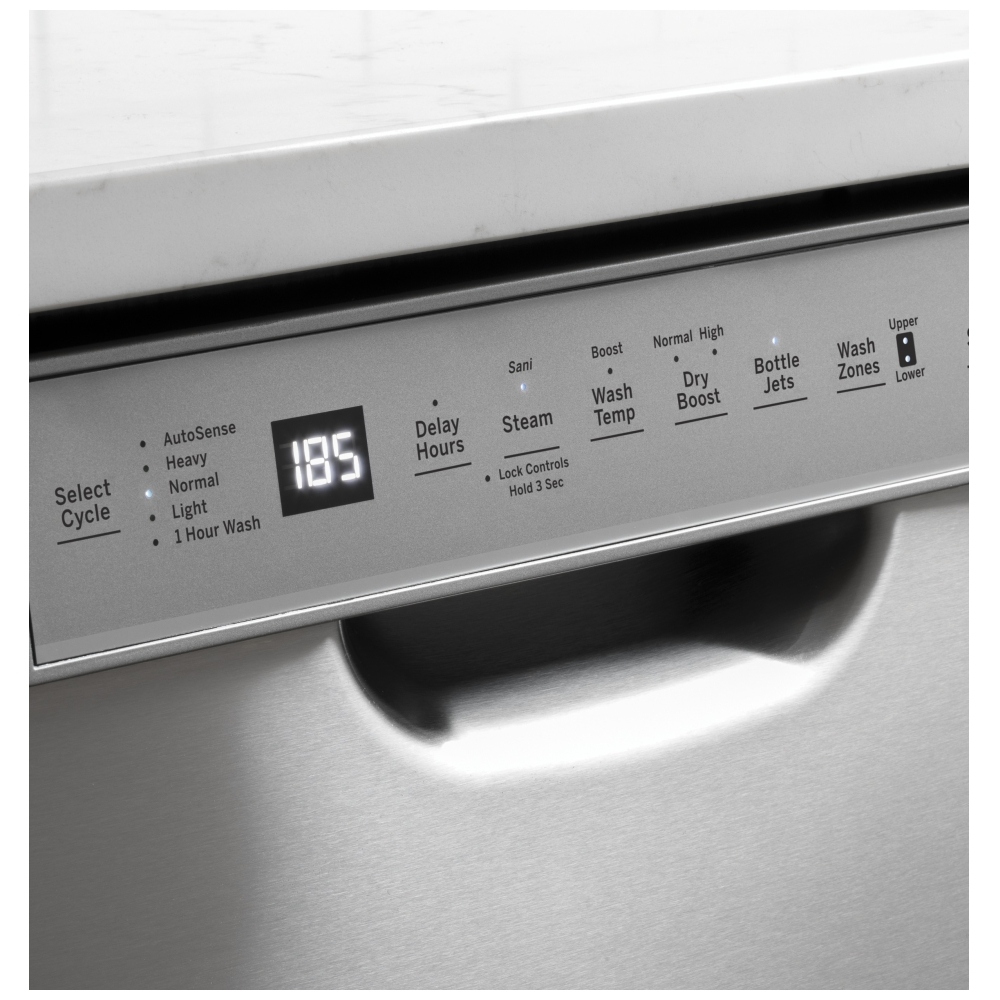

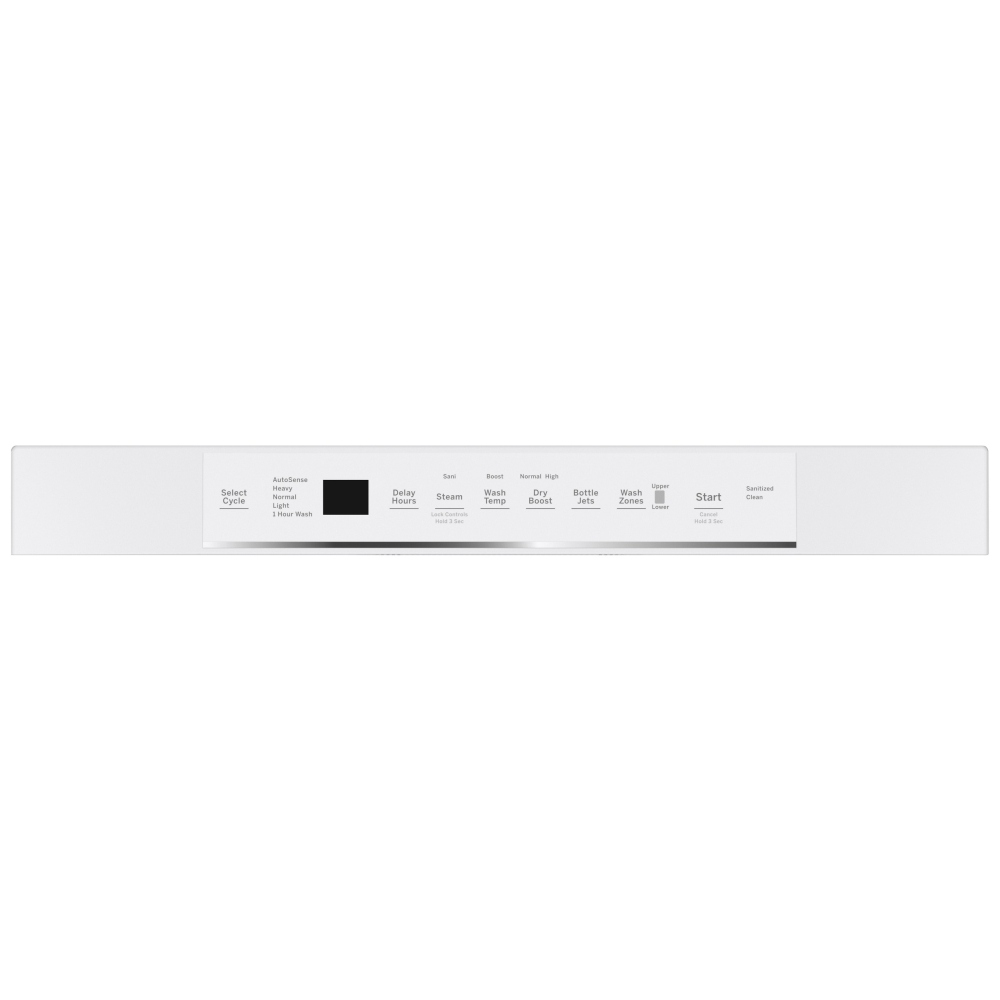

| Control Type | 8 Touchpads Clean Touch Controls Front Controls |
| Dishwasher Drying Features | Dry Boost™ Fan Assist Dry Heated Dry - On/Off Multi-Wattage Wash & Dry Element |
| Wash Arms | 3 Wash Levels Lower Middle Upper |
| Wash System Features | Automatic HotStart Automatic Temperature Control Bottle Jets (4) Drain Pump Dual Pumps and Motors Piranha™ Hard Food Disposer with removable filter |
| Exterior Style | Traditional |
| Upper Rack | 2 Stem Safe Shelves Ball-Tip Tines Height Adjustable Removable |
| Dishwasher Control Features | 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators Audible End-of-Cycle Signal Control Lock Last Cycle Memory Start/Reset Pad |
| Number of Cycles | 5 |
| Tub and Door Liner | Stainless Steel |
| Sabbath Mode | Yes |
| Showroom Power Mode | Yes |
