Appearance
Backguard Type	Steel, White
Colour Appearance	White on White
Easy Level System	4 Leveling Legs
Handle Style	White, high gloss
Other Colours Available	Black/Stainless
Oven Door Type	White Glass
Textured Steel Side Panels	White
Window	New GE Large Viewing Window
Capacity
Oven Capacity	5.0
Features
6 Pass Broil Element	3800 watt
6 Pass Hidden Bake Element	2850 watt
6" Heating Element	2 ribbon (1500 watt)
6"/9" Dual Heating Element with PowerBoil™	1 ribbon (3000 watt)
Audible pre-heat signal	Yes
Auto Oven Shut-Off with Override	Yes
Auto Self-Clean	Yes
Automatic Oven Timer (Time Bake)	Yes
Automatic Self-Clean Oven Door Lock	Yes
Certified Sabbath Mode	Yes
Clock & Kitchen Timer	Yes
Control Lock Capability	Yes
Convection Bake and Roast	Yes
Convection fan element	1200 W
Cooktop Type	Smoothtop
Delay Bake Option (Time Bake)	Yes
Delay Oven Start	Yes
Delay Self-Clean	Yes
Digipad	Yes
Dishwasher Safe Knobs	Yes
Dual 9"/12" Heating Elements	1 ribbon (2500/3000 watt)
Dual Element Bake	Yes
Electronic Oven Control	Yes
Fuel Type	Electric
Glass-Ceramic Cooktop	Patterned White on Black Glass
Hi / Low Broil	Yes
Hidden Bake Element	Yes
Hot Surface	1
Infinite Heat Controls	Yes
One-Piece Upswept Cooktop	Porcelain Enamel
Outlets	None
Oven Interior Light	Yes
Oven Rack Positions	6
Oven Racks	2 Chrome
Oven Shelves	2 chrome
Oven Temperature Display	Digitemp
Oven Type / Cleaning	Convection Self-Clean
QuickSet Controls	QuickSet V
Removable Full-Width Storage Drawer	Yes
Six-Pass Power Bake Element	Yes
Start Pad	Yes
Surface Unit On	3
Total Indicator Lights	5
TrueTemp™ System	Yes
Warming Zone	6" ribbon element, 120 watts
Power & Ratings
Amps @ 240V/208V	40
EnerGuide Rating (kWh/year)	538
KW Rating at 208V	10.1
KW Rating at 240V	13.4
Warranty
Limited 1-year	Entire Appliance; In Home; Parts & Labour
Weights & Dimensions
Approximate Shipping Weight (lbs.)	205
Depth with Door Open (in.)	46 1/4
Overall Depth (in.)	26 1/4
Overall Depth Including Handle (in.)	27 3/4
Overall Height (in.)	47-3/4
Overall Width (in.)	29-7/8

Colour / Finish	White
Style	Free standing
Surface Type	Smoothtop
Assembled Width (In Inches)	30.000000
Energy Star Compliant	No
Assembled Depth (In Inches)	27.75 In.
Assembled Height (In Inches)	47.75
Assembled Weight (In LBS)	200.00 Lbs.
Bridge Element	No
Clock	Yes
Continuous Grates	N/A
Convection	Yes
Delay Start	Yes
Digital Display	Yes
Digital Temperature Display	Yes
Drawer	Warming
Element 1 (In.)	6
Element 2 (In.)	6
Element 3 (In.)	6/9
Element 4 (In.)	9/12
Element 5 (In.)	N/A
Fuel Type	Electric
Grate Material	N/A
Griddle Option	No
Handle Color	White
Hot Surface Indicator Light	Yes

Labour	1 year
Number of Burners/Elements	4
Number of Oven Racks	2
Number of Ovens	1
Oven Control Type	Touchpad
Parts	1 year
Primary Oven Capacity (cu. ft.)	5 ft³
Range Control Type	Knobs
Self Cleaning	Yes
Simmer Element	No
Viewing Window	Yes
Warming Zone	Yes
Country of Origin	Mexico
CSA Certified	Yes
Item Depth	27.75 In.
Item Height	47.75 In.
Item Weight	200 Lbs.
Item Width	30 In.

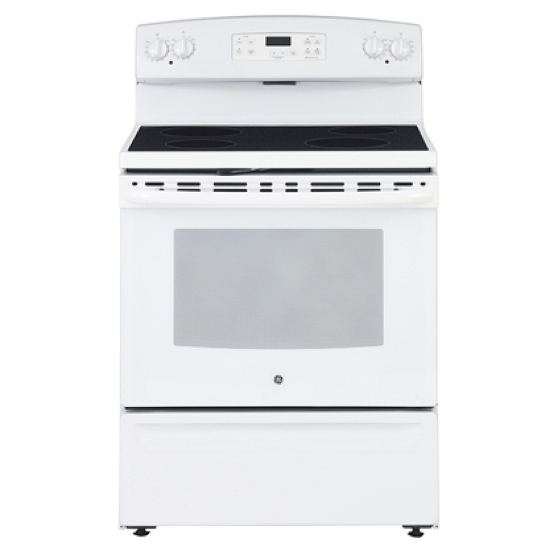

GE JCB860DFWW

GE JCB860DFWW

GE JCB860DFWW Electric Range, 5 cu. ft. Capacity, 30 inch Exterior Width, Convection, 4 Burners, Storage Drawer, Self Clean, White colour
