Appearance
Backguard Type	Steel, White
Colour Appearance	White on White
Easy Level System	4 Leveling Legs
Handle Style	White, high gloss
Other Colours Available	BB; SS
Oven Door Type	White Glass
Textured Steel Side Panels	White
Window	New GE Large Viewing Window
Capacity
Oven Capacity	5.0
Features
6 Pass Broil Element	3800 watt
6 Pass Hidden Bake Element	2850 watt
6" Heating Element	1 ribbon (1500 watts)
7" Heating Element	2 ribbon (1800 Watt)
Audible pre-heat signal	Yes
Auto Oven Shut-Off with Override	Yes
Auto Self-Clean	Yes
Automatic Oven Timer (Time Bake)	Yes
Automatic Self-Clean Oven Door Lock	Yes
Bridge Element	1 (800 watt)
C° or F° Programmable	Yes
Certified Sabbath Mode	Yes
Clock & Kitchen Timer	Yes
Control Lock Capability	Yes
Convection Conversion	Yes
Convection Element	1200 W
Cooktop Type	Smoothtop
Delay Bake Option (Time Bake)	Yes
Delay Oven Start	Yes
Delay Self-Clean	Yes
Digipad	Yes
Dishwasher Safe Knobs	Yes
Dual 9"/12" Heating Elements	1950 / 3000 Watt
Dual Element Bake	Yes
Electronic Oven Control	Yes
Fuel Type	Electric
Glass-Ceramic Cooktop	Patterned Black on Black Glass
Hi / Low Broil	Yes
Hot Surface	1
Improved Broil (3800 W)	Yes
Infinite Heat Controls	Yes
Melt and Simmer Setting	Yes
One-Piece Upswept Cooktop	Porcelain Enamel
Outlets	None
Oven Interior Light	Automatic
Oven Rack Positions	6
Oven Shelves	2 Heavy Duty Self-Clean
Oven Temperature Display	Digitemp
Oven Type / Cleaning	Convection Self-Clean
QuickSet Controls	QuickSet V
Self-Clean Cool Down Time Display	Yes
Start Pad	Yes
Surface Unit On	5
Total Indicator Lights	6
TrueTemp™ System	Yes
Warm Drawer Element	450 W
Warming Drawer	150° - 220°
Warming Drawer Feature - Infinite Control	Yes
Warming Zone	6" ribbon element, 120 watts
Power & Ratings
Amps @ 240V/208V	40
EnerGuide Rating (kWh/year)	528
KW Rating at 208V	10.0
KW Rating at 240V	13.3
Warranty
Full 1 Year	Entire Appliance; In Home; Parts & Labour
Weights & Dimensions
Approximate Shipping Weight (lbs.)	215
Depth with Door Open (in.)	46-3/4
Overall Depth (in.)	25-3/8
Overall Depth Including Handle (in.)	27 3/4
Overall Height (in.)	47-3/4
Overall Width (in.)	29-7/8

Capacity
Oven Capacity	5.0
Controls
Control Lock Capability	Yes
Audible pre-heat signal	Yes
Auto Self-Clean	Yes
Automatic Oven Timer (Time Bake)	Yes
Certified Sabbath Mode	Yes
Clock & Kitchen Timer	Yes
Convection Bake	Yes
Convection Conversion	Yes
Convection Roast	Yes
C° or F° Programmable	Yes
Delay Bake Option (Time Bake)	Yes
Delay Oven Start	Yes
Delay Self-Clean	Yes
Electronic Oven Control	Yes
Hi / Low Broil	Yes
Oven Temperature Display	Digitemp
QuickSet Controls	QuickSet V
Self-Clean Cool Down Time Display	Yes
Start Pad	Yes
Steam Clean	Yes
TrueTemp TM System	Yes
Features
6 Pass Broil Element	3800 watt
6 Pass Hidden Bake Element	2850 watt
Auto Oven Shut-Off with Override	Yes
Automatic Self-Clean Oven Door Lock	Yes
Cooktop Type	Smoothtop
Dishwasher Safe Knobs	Yes
Dual Element Bake	Yes
Fuel Type	Electric
Glass-Ceramic Cooktop	Patterned Black on Black Glass
Improved Broil (3800 W)	Yes
Melt and Simmer Setting	Yes
Oven Interior Light	Automatic
Oven Rack Positions	6
Oven Shelves	2 Heavy Duty Self-Clean
Oven Type / Cleaning	Convection Self-Clean
6" Heating Element	1 ribbon (1500 watts)
7" Heating Element	2 ribbon (1800 Watt)
Bridge Element	1 (800 watt)
Convection Element	2500 W
Dual 9"/12" Heating Elements	1950 / 3000 Watt
Infinite Heat Controls	Yes
Warm Drawer Element	450 W
Warming Zone	6" ribbon element, 120 watts
Outlets	1
Removable Full-Width Storage Drawer	Yes, & Warming Drawer
One-Piece Upswept Cooktop	Porcelain Enamel
Warming Drawer	150° - 220°
Warming Drawer Feature - Infinite Control	Yes
Indicator Lights
Hot Surface	1
Surface Unit On	5
Total Indicator Lights	6
Oven Controls
Digipad	Yes
Appearance
Backguard Type	Steel, Black
Colour Appearance	Black on Black
Easy Level System	4 Leveling Legs
Handle Style	Black, high gloss
Other Colours Available	White/Stainless
Oven Door Type	Black Glass
Textured Steel Side Panels	Black
Window	New GE Large Viewing Window
Weights & Dimensions
Approximate Shipping Weight (lbs.)	215
Depth with Door Open (in.)	46-3/4
Overall Depth (in.)	25-3/8
Overall Depth Including Handle (in.)	27 3/4
Overall Height (in.)	47-3/4
Overall Width (in.)	29-7/8
Electrical Requirements
Amps @ 240V/208V	40
KW Rating at 208V	10.0
KW Rating at 240V	13.3
EnerGuide Rating
EnerGuide Rating (kWh/year)	528

GE JCB870DFWW

GE JCB870DFWW

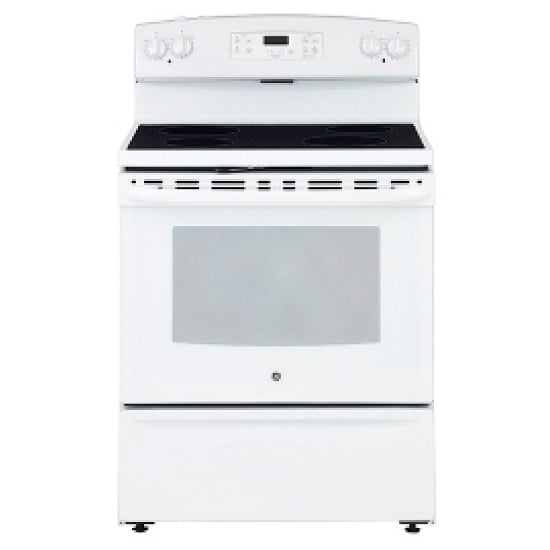

GE JCB870DFWW Electric Range, 5 cu. ft. Capacity, 30 inch Exterior Width, Convection, 5 Burners, Warming Drawer, Self Clean, White colour
