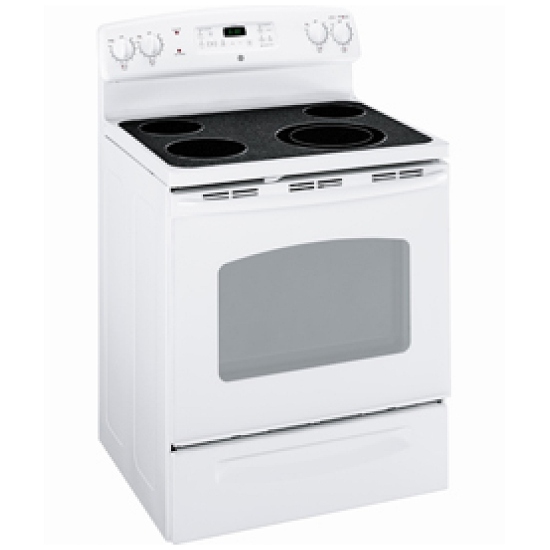

JCBP66DPWW GE Electric Range 30 inch Canada Parts - Sale! Best Price, Reviews and Specs

GE JCBP66DPWW Freestanding Electric Range, 30in, 5.0 cu.ft, with Glass-Ceramic Cooktop, True Temp System, Dual Element Bake and Certified Sabbath Mode

Glass-Ceramic Cooktop - The cooktop is made with a specially engineered ceramic glass that has an amazing resistance to both stains and impact.

True TempTM System - GE's TrueTemp System "manages" oven temperatures to ensure accurate, consistent heating and total cooking performance. The SmartLogic electronic control, with platinum sensor, constantly monitors the oven's performance to ensure more precise temperature management

Big Hearth-Shaped Window - Features an enhanced shape to add an elegant appearance and make viewing trouble-free.

Certified Sabbath Mode - Allows consumers to keep cooked foods warm on the Jewish Sabbath and Jewish holidays

Dual Element Bake - Alternates the upper broiling element and the lower baking element for even heating and optimal baking results.

Manufacturer's Warranty: 1 year

Canadian model: JCBP66DPWW

Specs

Capacity
Oven Capacity	5.0
Controls
Certified Sabbath Mode	Yes
Clock & Kitchen Timer	Yes
Delay Bake Option (Time Bake)	Yes
Delay Self-Clean	Yes
Electronic Oven Control	Yes
Hi / Low Broil	Yes
Oven Temperature Display	Digital
QuickSet Controls	QuickSet IV
TrueTemp TM System	Yes
Features
6 Pass Bake Element	3410 watt
6 Pass Broil Element	3800 watt
Cooktop Type	Smoothtop
Dual Element Bake	Yes
Fuel Type	Electric
Glass-Ceramic Cooktop	Patterned White on Black Glass
Improved Broil (3800 W)	Yes
Melt and Simmer Setting	Yes
Oven Interior Light	Yes
Oven Rack Positions	6
Oven Shelves	2
Oven Type / Cleaning	Self-Clean
6" Heating Element	2 ribbon (1500 watt)
8" Heating Element	1 ribbon (2000 watt)
Dual 9"/12" Heating Elements	1 ribbon (2500/3000 watt)
Infinite Heat Controls	Yes
Outlets	1
Removable Full-Width Storage Drawer	White
One-Piece Upswept Cooktop	Porcelain Enamel
Indicator Lights
Hot Surface	1
Surface Unit On	1
Total Indicator Lights	2
Appearance
Backguard Type	Steel, White
Colour Appearance	White on White
Easy Level System	4 Leveling Legs
Handle Style	White, high gloss
Other Colours Available	Black/Stainless
Oven Door Type	White Glass
Textured Steel Side Panels	White
Window	Big Hearth-Shaped
Weights & Dimensions
Approximate Shipping Weight (lbs.)	182
Depth with Door Open (in.)	46-3/4
Overall Depth (in.)	25-3/8
Overall Depth Including Handle (in.)	27 3/4
Overall Height (in.)	47-3/4
Overall Width (in.)	29-7/8
Electrical Requirements
Amps @ 240V/208V	40
KW Rating at 208V	8.7
KW Rating at 240V	11.7
EnerGuide Rating
EnerGuide Rating (kWh/year)	503
Warranty
Full 1 Year	Entire Appliance; In Home; Parts & Labour

Capacity
Oven Capacity	5.0
Controls
Certified Sabbath Mode	Yes
Clock & Kitchen Timer	Yes
Delay Bake Option (Time Bake)	Yes
Delay Self-Clean	Yes
Electronic Oven Control	Yes
Hi / Low Broil	Yes
Oven Temperature Display	Digital
QuickSet Controls	QuickSet IV
TrueTemp^TM System	Yes
Features
6 Pass Bake Element	3410 watt
6 Pass Broil Element	3800 watt
Cooktop Type	Smoothtop
Dual Element Bake	Yes
Fuel Type	Electric
Glass-Ceramic Cooktop	Patterned Black on Black Glass
Improved Broil (3800 W)	Yes
Melt and Simmer Setting	Yes
Oven Interior Light	Yes
Oven Rack Positions	6
Oven Shelves	2
Oven Type / Cleaning	Self-Clean
6" Heating Element	2 ribbon (1500 watt)
8" Heating Element	1 ribbon (2000 watt)
Dual 9"/12" Heating Elements	1 ribbon (2500/3000 watt)
Infinite Heat Controls	Yes
Outlets	1
Removable Full-Width Storage Drawer	Black
One-Piece Upswept Cooktop	Porcelain Enamel
Indicator Lights
Hot Surface	1
Surface Unit On	1
Total Indicator Lights	2
Appearance
Backguard Type	Steel, Black
Colour Appearance	Black on Black
Easy Level System	4 Leveling Legs
Handle Style	Black, high gloss
Other Colours Available	White/Stainless
Oven Door Type	Black Glass
Textured Steel Side Panels	Black
Window	Big Hearth-Shaped
Weights & Dimensions
Approximate Shipping Weight (lbs.)	182
Depth with Door Open (in.)	46-3/4
Overall Depth (in.)	25-3/8
Overall Depth Including Handle (in.)	27 3/4
Overall Height (in.)	47-3/4
Overall Width (in.)	29-7/8
Electrical Requirements
Amps @ 240V/208V	40
KW Rating at 208V	8.7
KW Rating at 240V	11.7
EnerGuide Rating
EnerGuide Rating (kWh/year)	503
Warranty
Full 1 Year	Entire Appliance; In Home; Parts & Labour

Manuals

GE & Profile Electric Range 2024

GE & Profile Gas Range 2024

Download Warranty/Use and Care (JCBP66DPWW-warranty-use-and-care-canada.pdf)

Download Installation Information (JCBP66DPWW-installation-information-canada.pdf)

Download Anti-Tip Bracket Installation (JCBP66DPWW-anti-tip-bracket-installation-canada.pdf)
