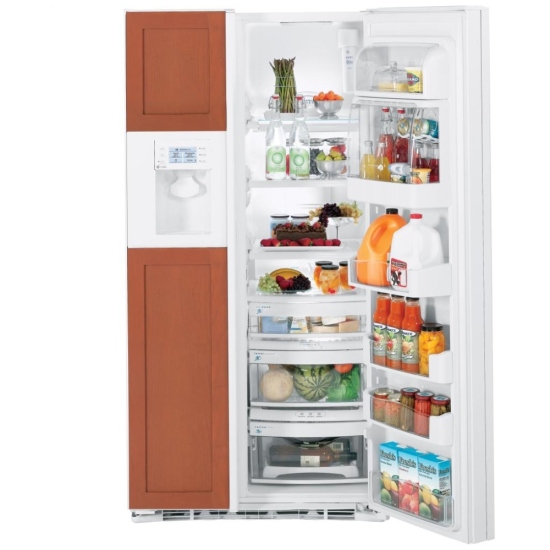

PSJC5YGXWV GE Side by Side Refrigerator 24.6 cu. ft. Canada Parts

Get the most out of your kitchen with the sleek built-in appearance of GE and GE Profile counter-depth refrigerators. The ingenious design offers a built-in look without the built-in expense. By maximizing available space and fitting flush with surrounding cabinetry, these refrigerators blend in seamlessly with any kitchen without taking up extra room.

The signature ClimateKeeper2 system keeps food garden fresh longer, while protecting ice from odor transfer, with its unique dual-evaporator system. The Integrated Dispenser with LED Lighting, PreciseFill & UltraFlow100 Illuminates the dispenser and pours water in accurate increments or up to 100 ounces per minute. With color LCD controls and touch screen it is easy to control all the functions of the refrigerator with just a touch. The QuickFreeze Setting provides faster, fresher freezing to maintain the flavor and quality of meats.

• Counter-Depth Design

• ClimateKeeper2™ System

• Color LCD Controls with Touch Screen

• LED Lighting

• Dispenser with LED Lighting, PreciseFill & UltraFlow100

• QuickFreeze Setting

• CustomCool™ Technology

• Slide 'n Store™ Full-Extension Freezer Baskets

• Quick Ice™ Option

• TurboCool™ Setting

• Integrated Ice™ System

• Tilt-Out Freezer Door Bins

• Integrated Shelf Support System

• Adjustable ClearLook™ Door Bins

• Adjustable Slide-Out, Spillproof Glass Shelves

Manufacturer's Warranty: 1 year

Canadian model: PSJC5YGXWV

Specs

CAPACITY
Total Capacity (cubic feet)	24.6 cu ft
Shelf Area	20.6 sq ft
Fresh Food Capacity	15.28 cu ft
Freezer Capacity	9.32 cu ft
FEATURES
Fresh Food Door Features	Dairy Compartment Snugger Clips - 1
Exterior Style	Free-Standing
Beverage Feature	Electronic Beverage Center
Defrost Type	FrostGuard
Freezer Door Bins	3 Tilt-Out (2 Adjustable)
Fresh Food Cabinet Shelves	3 Total - Glass
Fresh Food Features	Integrated Shelf Support System Interior Lighting - GE Reveal® Interior Lighting - LED
Freezer Cabinet Shelves	2 Wire
Fresh Food Door Bins	4 Total ClearLook 3 Adjustable 1 with Gallon Storage
Leveling System	4 Point Front Adjustable
Freezer Features	Interior Lighting - GE Reveal® Quick Freeze Integrated Ice Storage Bin
Top Drawer	Adjustable Temperature
Fresh Food Cabinet Drawers	Freshness Center 3-Stack drawer system
Icemaker	Integrated Ice System
Temperature Management System	ClimateKeeper2 Dual Evaporator
Middle Drawer	Adjustable Humidity
Freezer Storage Baskets	4 Slide-Out (3 Full-Extension, 1 Quick-Freeze)
Bottom Drawer	CustomCool; Full Extension
Dispenser	Cubes; Crushed Ice & Chilled Water
Water Filtration	GE Water Filtration 1 Year MSWF Filter change indicator
Dispenser Features	Child Lock LED Dispenser Light Precise Fill Quick Ice UltraFlow100 Door Alarm
Fresh Food Cabinet Shelf Features	3 Adjustable 1QuickSpace Shelf 2 Slide-Out 2 Spill Proof
Temperature Management Features	TurboCool Setting 5 Electronic Sensors Multiflow Air System
Control Type	External Electronic Temperature Controls 4.3" Color LCD Actual Temperature Display
ECONOMICAL / QUIET
AutoEnergy Saver	Yes
Quiet Package	Premium Quiet Design
NeverClean Condensor	Yes
APPEARANCE
Easy to Remove Door Gaskets	Yes
Counter-Depth Design	Yes
Textured Steel Case	Color Matched
Low Profile Door Hinge	Yes
Handle	Color-Matched Full-Length Visor
Exterior Design	Squared Doors Door Panels Required
Color Appearance	White
Dispenser Color	White
WEIGHTS & DIMENSIONS
Approximate Shipping Weight	424 lb
Net Weight (lbs.)	394 lb
Overall Width	35 3/4 in
Width w/Door Open 90 Degrees Incl. Handle (in.)	39-3/8
Width w/Door Open 90 Degrees Less Handle (in.)	36
Side Air Clearances (in.)	1/8
Overall Height	72 1/8 in
Top Air Clearances (in.)	1
Depth with Door Open 90° (in.)	46
Depth Without Handle (in.)	27-1/2
Height to Top of Case (in.)	71-5/8
Back Air Clearances (in.)	1/2
Overall Depth	28 3/4 in
Case Depth Without Door (in.)	23-7/8
POWER / RATINGS
Volts/Hertz/Amps	120V ; 60Hz ; 15A
ACCESSORIES
Optional Bisque Collar Trim	TRM25BISCC
WARRANTY
Warranty Notes	See written warranty for full details
Labor Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Parts Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system

Manuals

GE & Profile Fridge 2024

Quick Specs (PSJC5YGXWV-quick-specs-canada.pdf)

Use and Care Manual (PSJC5YGXWV-use-and-care-manual-canada.pdf)

Installation Instructions (PSJC5YGXWV-installation-instructions-canada.pdf)

Energy Guide (PSJC5YGXWV-energy-guide-canada.pdf)
