Description & Features

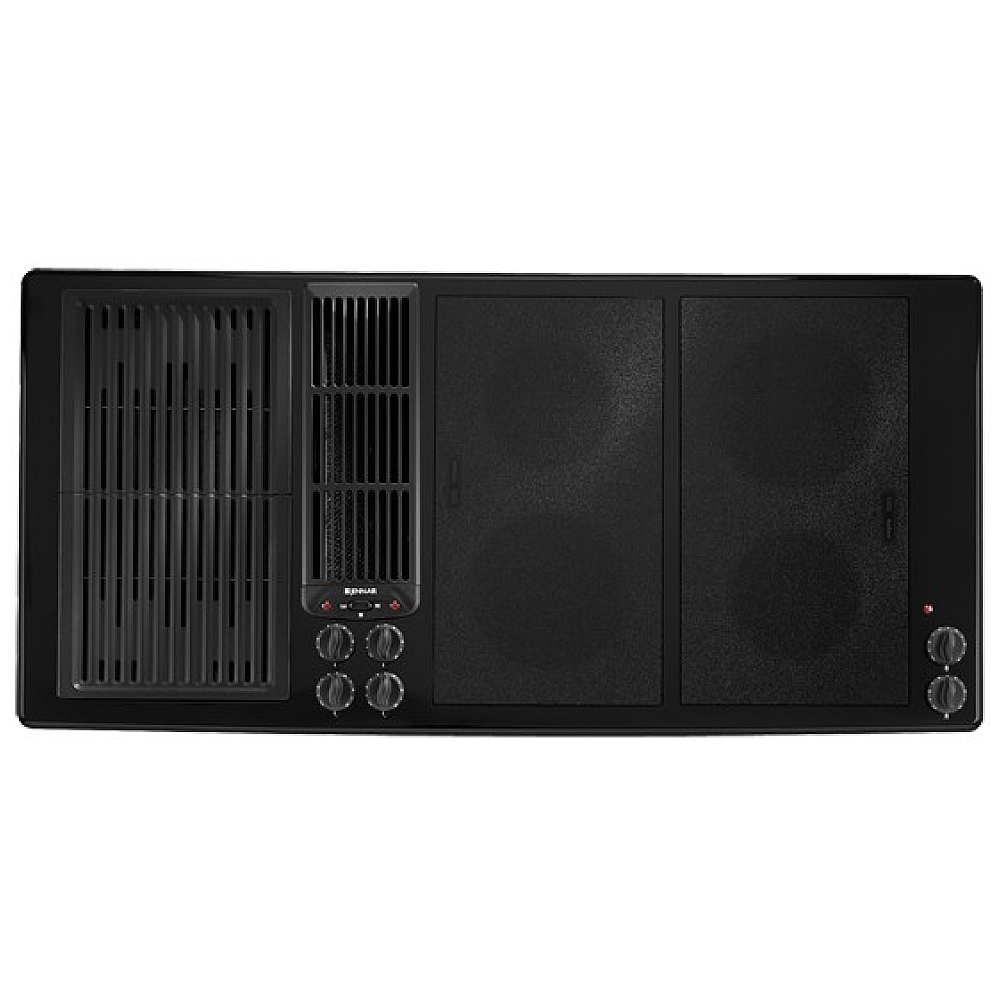

45" Modular Electric Downdraft Cooktop with Grill Assembly and Two-Speed Ventilation Fan

  • Comes with grill assembly and two open bays.
  • Open bays accept halogen, radiant or coil element cartridges.

Overview
This large Jenn-Air® luxury modular electric downdraft cooktop offers the flexibility to reconfigure the cooking surface to suit your preferred cooking style, as well as the ability to grill indoors. It features Designer Line styling and a built-in ventilation system that clears the air without a hood.

Specifications
Configuration and Overview
  • Cooktop Type: Downdraft
  • Size: 45
  • Surface Material: Porcelain Coated Steel
  • Burner or Element Style: Radiant
  • Number of Burners: 2
  • Number of Open Bays: 2 Cartridges Sold Separately
  • Installs Over Built-In Oven: No
  • ADA Compliant: No
  • Fuel Type: Electric

Controls
  • Digital Display: No
  • Downdraft Vent: Yes
  • Hot Surface Indicator Light: No

Cooktop Features
  • Left Front Power: 1900W
  • Left Front Type: Grill
  • Left Rear Power: 1900W
  • Left Rear Type: Grill

Dimensions
  • Depth: 21 3/4
  • Height: 13 13/16
  • Width: 45
  • Cutout Depth: 21
  • Cutout Width: 43 1/4


  • Modular Design
  • Modular cartridges allow you to reconfigure this cooktop to suit your cooking preferences. An additional grill assembly, radiant or coil element cartridge can be purchased.
  • Downdraft Ventilation with Two-Speed Fan
  • This powerful ventilation system captures smoke and odors right at the surface as you cook, clearing the air beautifully without a hood
  • Interchangeable Grills, Cartridges and Accessories (Sold Separately)
  • These additional cartridges and accessories allow you to easily reconfigure the cooktop to suit your cooking preferences. Options include grill assembly, griddle and radiant or coil elements.
  • Grill Assembly with 1,900-Watt Element and Removable Porcelain Liner Pan
  • Independent temperature control on each half of the grill allows you to cook smaller amounts of food or cook on both sides at different temperatures simultaneously.
  • Ships with Two Open Bays
  • Two open bays offer you the flexibility to configure the cooktop to suit your cooking style. You can select optional grill assemblies or radiant or coil element cartridges.
  • Indoor Grilling Capability (Left Bay)
  • This modular cooktop's left side, and an additional bay, are designed to accommodate grill modules, giving you the option for indoor grilling.
  • Countertop or Island/Peninsula Installation without Overhead Ventilation Hood
  • Because it features a built-in downdraft ventilation system and doesn't require a hood, this cooktop offers exceptional design flexibility.
  • Color-Coordinating Knobs
  • This luxury cooktop's color-coordinating knobs match the cooking surface for a streamlined look.
  • Three "On" Indicator Lights
  • Three "on" indicator lights signal that the cooktop power is activated.
  • Excalibur® Nonstick Grill Grate Finish
  • A finish on Jenn-Air® grill grates that produces superior release capabilities through a four-step manufacturing process. It keeps food from sticking to the grill, making grilling and cleanup easy.
  • Porcelain-Enamel/Stainless Steel Surface
  • This surface transfers heat efficiently and is highly durable, with a subtle sheen that's easy to maintain.
  • 325 CFM Rating
  • This luxury Designer Line modular electric downdraft cooktop's ventilation system operates at up to 325 CFM to quickly remove smoke, steam and cooking odors.

  • Removable, porcelain dishwasher-safe grill liner pan makes clean-up easy.
  • Infinite control settings provide pinpoint temperature control for gourmet cooks.
  • Excalibur(R) nonstick grill grate finish ensures that food won't stick to surface.
  • Two-speed ventilation fan adjusts quickly to your needs.
  • "On" indicator light for each bay shows which surface is in use.
  • Available in black or white.
  • Grilling capacity in left and center bays provides maximum versatility for grilling indoors.
  • Comes with grill assembly and two open bays.
  • Open bays accept halogen, radiant or coil element cartridges.
  • Modular design enables you to express your cooking creativity with ease.
  • Accepts optional accessories for cooking versatility.
  • Countertop or island/peninsula installation is easy, thanks to downdraft design.
  • Downdraft ventilation captures smoke, steam and cooking odors at the cooking surface.

Manufacturer's Warranty: 2 years

Canadian model: JED8345ADB

Canadian UPC: 719881098371

EAN: 0719881098371

Specs
External Dimensions
Depth 21 3/4
Height 13 13/16
Width 45
Cutout Depth 21
Cutout Width 43 1/4
Key Features
Modular Design - Modular cartridges allow you to reconfigure this cooktop to suit your cooking preferences. An additional grill assembly, radiant or coil element cartridge can be purchased.
Downdraft Ventilation with Two-Speed Fan - This powerful ventilation system captures smoke and odors right at the surface as you cook, clearing the air beautifully without a hood
Interchangeable Grills, Cartridges and Accessories (Sold Separately) - These additional cartridges and accessories allow you to easily reconfigure the cooktop to suit your cooking preferences. Options include grill assembly, griddle and radiant or coil elements.
Grill Assembly with 1,900-Watt Element and Removable Porcelain Liner Pan - Independent temperature control on each half of the grill allows you to cook smaller amounts of food or cook on both sides at different temperatures simultaneously.
Ships with Two Open Bays - Two open bays offer you the flexibility to configure the cooktop to suit your cooking style. You can select optional grill assemblies or radiant or coil element cartridges.
Indoor Grilling Capability (Left Bay) - This modular cooktop's left side, and an additional bay, are designed to accommodate grill modules, giving you the option for indoor grilling.
Countertop or Island/Peninsula Installation without Overhead Ventilation Hood - Because it features a built-in downdraft ventilation system and doesn't require a hood, this cooktop offers exceptional design flexibility.
Color-Coordinating Knobs - This luxury cooktop's color-coordinating knobs match the cooking surface for a streamlined look.
Three "On" Indicator Lights - Three "on" indicator lights signal that the cooktop power is activated.
Excalibur® Nonstick Grill Grate Finish - A finish on Jenn-Air® grill grates that produces superior release capabilities through a four-step manufacturing process. It keeps food from sticking to the grill, making grilling and cleanup easy.
Porcelain-Enamel/Stainless Steel Surface - This surface transfers heat efficiently and is highly durable, with a subtle sheen that's easy to maintain.
325 CFM Rating - This luxury Designer Line modular electric downdraft cooktop's ventilation system operates at up to 325 CFM to quickly remove smoke, steam and cooking odors.
Specifications
Configuration and Overview
Cooktop Type Downdraft
Fuel Type Electric
Size 45
Installs Over Built-In Oven No
Number of Open Bays 2 Cartridges Sold Separately
Burner or Element Style Radiant
Cooktop Surface Material Porcelain Coated Steel
Number of Cooking Element-Burners 2
ADA Compliant No
Amperage 50 Amps
Cooktop Features
Left Front Element-Burner Power 1900W
Left Front Element-Burner Type Grill
Left Rear Element-Burner Power 1900W
Left Rear Element-Burner Type Grill
Controls
Digital Display No
Downdraft Vent Yes
Hot Surface Indicator Light No
Control Type Knobs
