Gas Range Connection $189
(Includes Disconnecting Old Gas Unit)
JennAir
Bonus Induction Ready Cookware Set
JennAir
Buy 1 Save 10%; Buy 2 or 3 Save 15%
Buy 4 or more Save 20%
Save additional $250 on select units
JennAir JGC8430CDS
Discontinued
>> View 2020 JennAir Parts & Accessories Guide << >> View 2020 JennAir Parts & Accessories Guide <<
Step up to JennAir JGD3430GS for an extra $1,872
ADJ5D4
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $58.50 for 18 months
Ratings & Reviews
ADJ5D4
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $58.50 for 18 months
Description & Features



The Jenn-Air JGC8430DCS gas cooktop features four sealed burners, including a 15,000 BTU ultra-heat output burner and a 5,000 BTU burner that can be reduced to an ultra-low 650 BTU heat output, providing home chefs with cooking precise they need to create delicious home-cooked meals. As a safety bonus, if the flame would accidentally be blown out by a draft, the automatic re-ignition switch will relight the burners for you.

The 30-inch Jenn-Air JGC8430CDS gas cooktop installs nicely over a 30-inch electric Jenn-Air single oven. Its durable stainless steel cooking surface with black porcelain-on-cast-iron continuous grates enhances your kitchen with a heavy-duty premium look. This versatile cooktop features four sealed burners with Smart Port designed burners provide you with precision cooking.

The porcelain coating on the cast-iron grates allows the greats to withstand high-heat temperatures. These porcelain coated continuous grates crisscross, creating a grid that allows you slide heavy pots and pans across the cooktop.

Jenn-Air’s Smart Port burner design features ports cut at upward angles to ensure even flame distribution. To protect the elements and the ports, the burners are covered with porcelain seals, preventing spills and food particles from clogging the burner elements.

The cooktop setup:
Left front burner: 650 – 5,000 BTU heat output
Left rear burner: 1,300 – 10,500 BTU heat output
Right front burner: 2,000 – 15,000 BTU heat output
Right rear burner: 1,300 – 9,200 BTU heat output

The ultra-low heat 5,000 BTU output burner offers up to 5,000 BTU heating power, making it perfect for everyday cooking. To provide you with the tools you need to carry out gentle heat cooking techniques such as melting butter or chocolate, this burner can be turned to a low 650 BTU heat output.

This Jenn-Air’s versatile right rear burner offers a range of power ideal for a variety of cooking techniques like sautéing, braising, and pan frying.

The high-heat 10,500 BTU left rear burner is perfect for high-heat cooking techniques. For ultra-high heat cooking methods, you can use the right front burner offers a 15,000 BTU heat output, making it perfect for searing and rapid boils.

To enhance you cooking experience, the Jenn-Air JGC8430CDS cooktop features infinite burner control settings. These cooking surface controls allows you to select the ideal heat output ranging from low to high.

Each of the four burners is equipped with an electronic ignition. When you turn the heavy-weight stainless steel knobs to the heat output you want, a small electronic spark ignites the gas, producing your cooking flame.

As a convenient safety feature, this cooktop features an automatic electronic re-ignition. This re-ignition system guarantees a continuous flame through the use of sensors. If a draft would accidentally blow out the flame, the sensor system will alert the ignition so the burner can be re-ignited automatically.

When it comes to purchasing the best-performing 30-inch gas cooktop for your kitchen, there is no better choice than the Jenn-Air JGC8430DCS. This cooktop offers home cooks the ultimate cooking versatility with its four sealed burners offering a heat output ranging from an ultra-low 650 BTU to an ultra-high 15,000 BTU heat output.



Product description created exclusively for Canadian Appliance Source. All rights reserved.

Four sealed burners, including a 15,000 BTU ultra-high output burner and a 5,000 BTU burner that reduces to an ultra-low 650 BTUs, provide cooks the heat control needed for recipes requiring precise temperatures. Smart Port burner design ensures flame ports line up in between the grate fingers, directs the flame up toward the cookware and reduces the chance of grate discoloration and crazing.

Overview
This Jenn-Air® luxury gas cooktop features four burners, including a powerful 15,000 BTU ultra-high output burner and a lower-heat 5,000 BTU burner, which provides more gentle heat.

Specifications
Configuration and Overview
  • Cooktop Type: Standard
  • Size: 30
  • Fuel Type: Gas
  • Cooktop Surface Finish: None
  • Surface Material: Stainless/Porcelain Coated Steel
  • Burner or Element Style: Gas Burner
  • Number of Burners: 4
  • Number of Open Bays: NA
  • Installs Over Built-In Oven: Yes

Cooktop Features
  • Left Front Power: 5000 BTU
  • Left Front Type: Sealed Burner
  • Left Rear Power: 10500 BTU
  • Left Rear Type: Sealed Burner
  • Center Rear Power: NA
  • Center Rear Type: NA
  • Center Front Size: NA
  • Center Front Power: NA
  • Center Front Type: NA
  • Right Front Power: 15000 BTU
  • Right Front Type: Sealed Burner
  • Right Rear Power: 9200 BTU
  • Right Rear Type: Sealed Burner

Dimensions
  • Depth: 21 3/4
  • Height: 4 1/2
  • Width: 30
  • Cutout Depth: 20 5/8
  • Cutout Height: 0
  • Cutout Width: 28 3/4

Style and Extras
  • Controls: Knobs
  • Control Lockout: No
  • Digital Display: No
  • Downdraft Vent: No
  • Heating Element On Indicator Light: No
  • Hot Surface Indicator Light: No
  • Keep Warm Setting: No
  • Power Boost: No
  • Precise Power: No
  • Sensor Boil: No
  • Simmer: No

  • Signature Features
  • Electronic Ignition and Flame-Sensing™ Re-ignition
  • Smart Port Burner Design
  • 15,000 BTU Ultra-High Output Burner
  • Control Features
  • Infinite Burner Control Settings
  • Heavyweight Stainless Finish Knobs
  • Cooking Surface Features
  • Convertible to LP
  • May Be Installed Over 30" Electric Single Oven
  • 10,500 BTU Burner
  • 5,000 BTU Ultra-Low Output Burner
  • 9,200 BTU Burner
  • 4 Fixed Sealed Burners
  • Exterior Design Features
  • Porcelain-Enamel/Stainless Steel Surface
  • Porcelain-on-Cast-Iron Continuous Grates



Burners



  • Ultra low-output simmer burner
  • Electronic ignition with Flame-Sensing™ reignition
  • Large ultra high-output 15,000 BTU burner
  • Sealed Burners: 5
  • Smart Port Burner Design

Controls



  • Infinite Burner Control Settings
  • Controls are located at front right and left sides
  • Brushed stainless finish control knobs.

Flexibility



  • Different burner sizes
  • Accepts Optional Wok Accessory: Model #A0142
  • Continuous burner grate design

Installation



  • May be installed above Jenn-Air® 30" (76.2cm) electric single wall oven.
  • Convertible to LP Gas

Exterior



  • Porcelain enamel surface
  • Stainless steel surface
  • Color coordinated burner grates
  • Curved burner grates
  • Porcelain-on-cast iron burner grates
  • Brushed stainless finish control knobs.

Specifications



  • Approximate Shipping Weight: 48lbs/22kgs

Manufacturer's Warranty: 2 years

Canadian model: JGC8430CDS

Specs
Burner Detail
Burner Type Sealed
Ignition Type Electronic
Left Front Brnr High LP (BTU) 4000
Left Front Brnr High Nat (BTU) 5000
Left Front Brnr Low Nat (BTU) 650
Left Rear Brnr High Nat (BTU) 10500
Left Rear Burner High LP (BTU) 8500
Left Rear Burner Low Nat (BTU) 1300
Number of Burners 4
Removable Burner Caps Yes
Right Front Brnr High LP (BTU) 14000
Right Front Brnr High Na (BTU) 15000
Right Front Brnr Low Nat (BTU) 2000
Right Rear Brnr High LP (BTU) 9100
Right Rear Brnr High Nat (BTU) 9200
Right Rear Brnr Low Nat (BTU) 1300
Cooking Surface Controls
Color Stainless
Location Split
Material Heavy Weight
Removable Knobs Yes
Type (Switch/Rotation Degrees) Knobs
Cooktop Specs
Cooktop Material Porcelain-Enamel / Stainless Steel
Cooktop Type Frameless
Gas Specifications
LP Gas Convertible Yes
Grate Detail
Grate Color Black
Grate Material Porcelain on Cast Iron
Grate Type Continuous
Number of Grates 2
Model
Fuel Type Natural Gas
Manuals
>> View 2020 JennAir Parts & Accessories Guide << >> View 2020 JennAir Parts & Accessories Guide <<
Video
JGC8430CDS
Reviews
Rebates
Warranty
Financing
Install
Delivery and installation services are available from CAS
(Includes washers, dryers, and more.)
Click here for more details.
Custom advanced installation services (after delivery)
(Gas connections, ventilation, dishwashers, etc.)
Offered by Quick Contractors®
 1-877-694-3909
To book service online, please visit quicktask.com/cas
Delivery

Videos

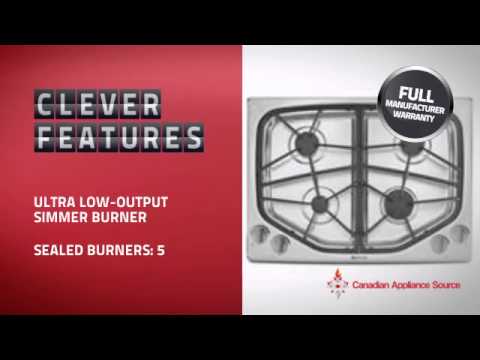

JennAir JGC8430CDS Live Demonstration Video
