MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).
Save $600 when you buy 3 items. | ||
Save $800 when you buy 4 items. | ||
Save $1,200 when you buy 5 items. |
- Provides more versatility for high and low temperature cooking techniques. Even-Heat™ Technology maintains a constant supply of power and delivers a range of simmer settings.
- Lets you use different cookware sizes at one location. When using large, 12-inch cookware the entire element surface is used. For smaller cookware, you ll use only the 9-inch inner element.
- Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
- Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.

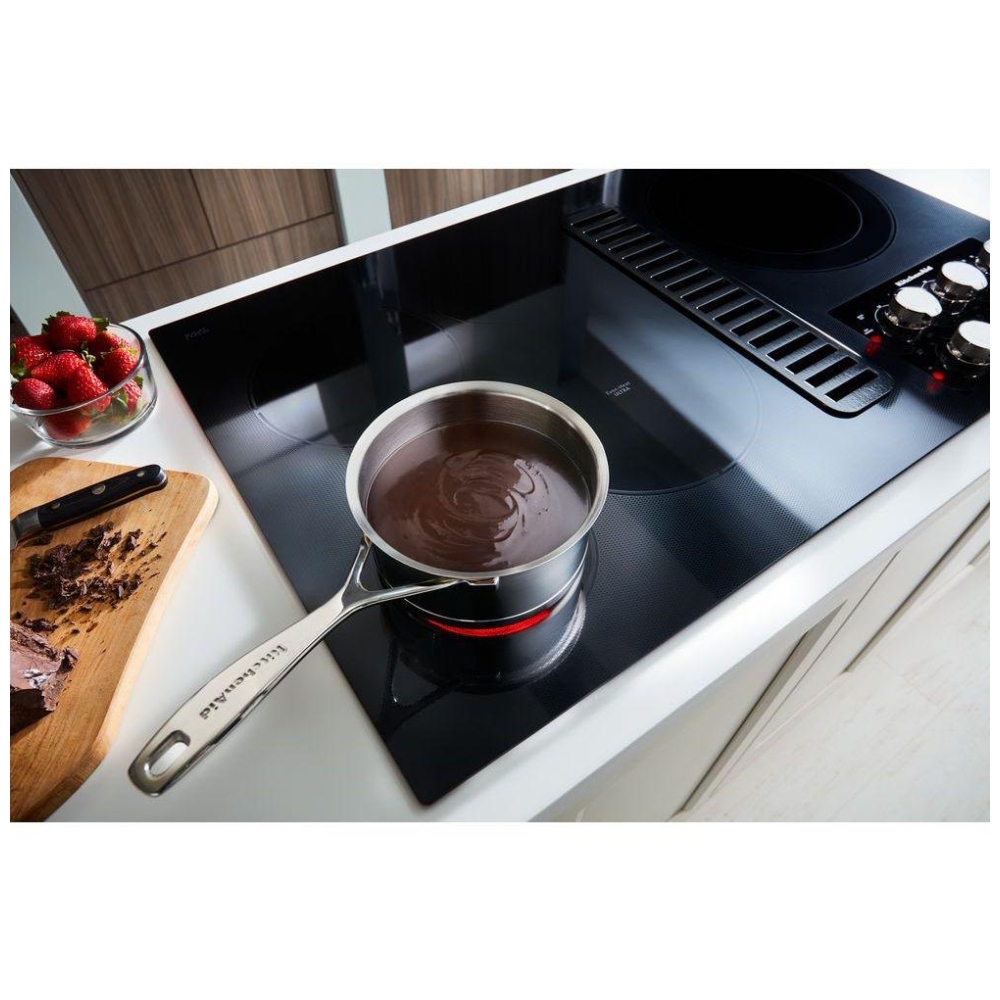

- Combines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
- Can reach a power output of up to 1200 watts to handle your daily cooking needs.
- Efficiently heats a commonly used pan size and can reach a power output of up to 1800 watts for every day use.
- Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
- Protects the cooktop surface from scratches, helping keep it looking pristine even with frequent use.
- Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
- Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
- Provides a clear indication that lets you know if any cooking surface is on or still hot.
- Lets you know at a glance when an element is on.
- Comes in saturated colors with stainless steel control knobs for a sophisticated, easy-to-clean appearance.
- Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
Manufacturer's Warranty: 1 year
UPC: 883049415932
EAN: 0883049415932
Certifications | |
Ada Compliant | No |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Right Side |

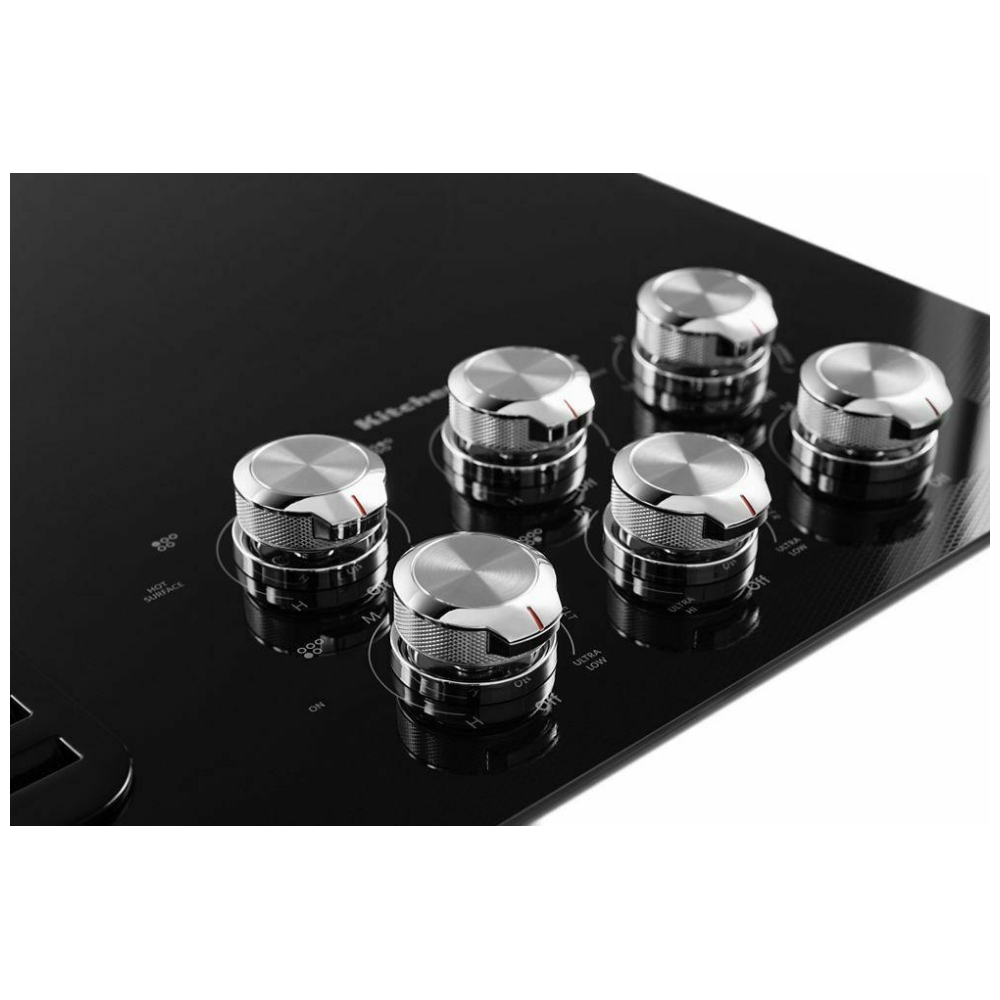

Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Ceramic Glass |
Digital Display | No |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Fuel Type | Electric |
Installs Over Built-in Oven | No |
Lp Convertible | No |
Number of Vent Speeds | 3 |
Power Outage Compatible | No |
Dimensions | |
Product Height | 3.625 |
Cutout Depth | 21.125 |
Carton Height | 23.78 |
Gross Weight | 70 |
Carton Depth | 26.38 |
Carton Width | 41.5 |
Cutout Width | 34.563 |
Product Depth | 22.0625 |
Net Weight | 57 |
Product Width | 36.3125 |
Electrical | |
Power Cord Included | No |
Element/burner Details | |
Center Front Element-burner Power | 3,200W |
Center Front Element-burner Size | 10in. |
Center Front Element-burner Type | Even-Heat™ Ultra |
Center Rear Element-burner Power | 1,200W |
Center Rear Element-burner Size | 6in. |
Center Rear Element-burner Type | Single |
Cooktop Element Style | Radiant |
Cooktop Type | Downdraft |
Left Front Element-burner Power | 1,300W |
Left Front Element-burner Size | 6in. |
Left Front Element-burner Type | Even-Heat™ |
Left Rear Element-burner Power | 1,800W |
Left Rear Element-burner Size | 8in. |
Left Rear Element-burner Type | Single |
Number of Cooking Element-burners | 5 |
Power Boost | No |
Right Rear Element-burner Power | 3,000W |
Right Rear Element-burner Size | 12in./9in. |
Right Rear Element-burner Type | Dual-Stacked Burner |
Exterior Details | |
Knob Color | Color Coordinated |
Knob Type | Metal |
Ventilation Details | |
Cfm Motor Class | 300 |
Downdraft Vent | Yes |
Dimensions | |
---|---|
Carton Depth | 26 7/16 |
Carton Height | 23 13/16 |
Carton Width | 41 1/2 |
Gross Weight | 70 |
Net Weight | 57.0 |
Certifications | |
Prop 65 | Standard |
ADA Compliant | No |
UL | UL |
Configuration and Overview | |
Cooktop Type | Downdraft |
Fuel Type | Electric |
Size (IN,inches) | 36 |
Installs Over Built-In Oven | No |
LP Convertible | No |
Power Boost | No |
Cooktop Details | |
Hot Surface Indicator Light | Yes |
Cooktop Element Style | Radiant |
Cooktop Surface Material | Ceramic Glass |
Automatic Pan Detection | No |
Downdraft Vent | Yes |
Heating Element On Indicator Light | Yes |
Cooktop Surface Color | Black |
Number of Cooking Element-Burners | 5 |
Center Rear Element-Burner Power | 1200W |
Left Front Element-Burner Size | 6" |
Center Rear Element-Burner Size | 6" |
Left Rear Element-Burner Size | 8" |
Number of Open Bays | NA |
Left Front Element-Burner Power | 1300W |
Center Front Element-Burner Power | 3200W |
Center Front Element-Burner Size | 10" |
Center Front Element-Burner Type | Even-Heat™ Ultra |
Center Rear Element-Burner Type | Single |
Left Front Element-Burner Type | Even-Heat™ |
Left Rear Element-Burner Power | 1800W |
Left Rear Element-Burner Type | Single |
Right Rear Element-Burner Power | 3000W |
Right Rear Element-Burner Size | 12"/9" |
Right Rear Element-Burner Type | Dual |
Controls | |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Knob Color | Color Coordinated |
Knob Type | Metal |
Control Location | Right Side |
Appearance | |
Digital Display | No |
Features | |
Selection | DownDraft |
Power Outage Compatible | No |
Ventilation System | |
CFM Motor Class | 300 |
Number of Speeds | 3 |
Electrical | |
Amps | 40 |
Power Cord Included | No |
Volts | 220 |
Hz | 60 |
Refinement | |
Style | Cooktops |
Energy | |
Annual Energy Usage [kWh] | 258 |
Refinements | |
KAD Cooktop | Cookshield Finish,Downdraft Ventilation,Even-Heat Melt Burner |
