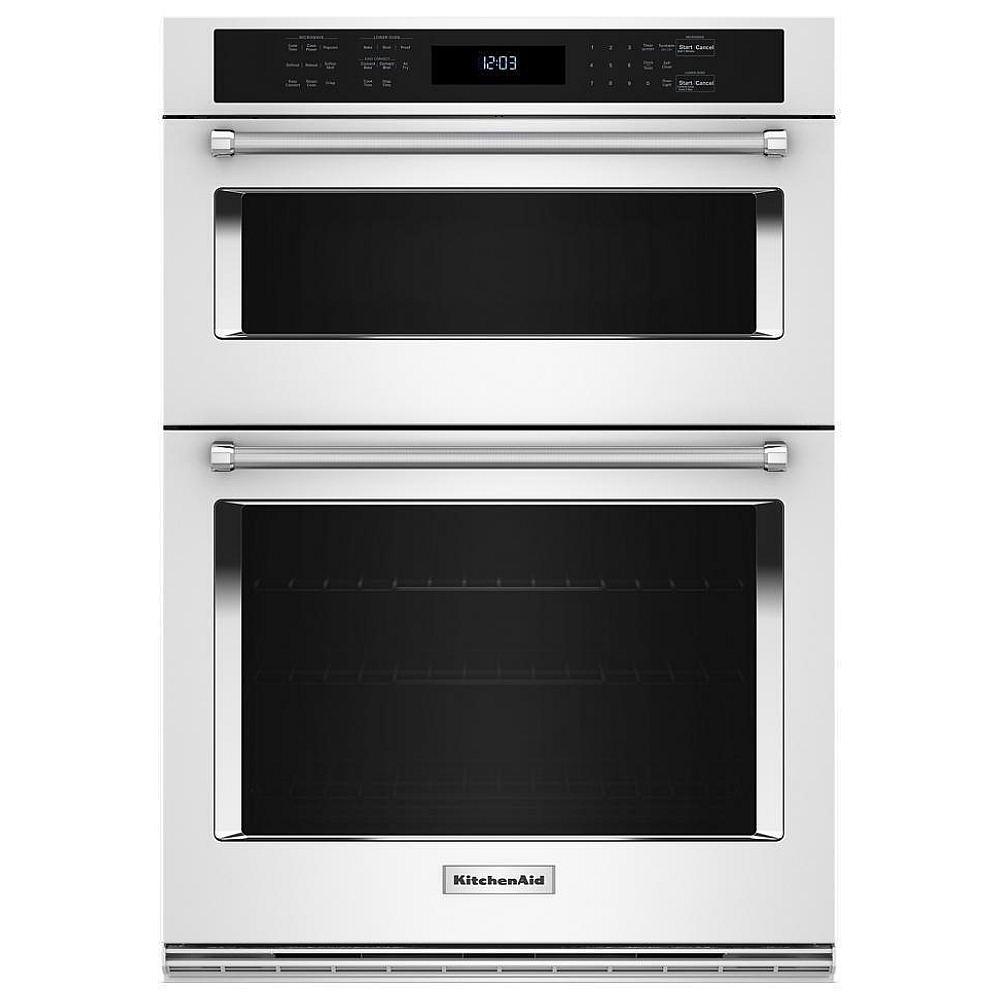

KitchenAid KOEC530PWH
Discontinued
Replaced by KOEC730SWH
>> View & Compare KitchenAid Built In Cooking Line Up << >> View & Compare KitchenAid Built In Cooking Line Up <<
>> View & Compare KitchenAid Wall Oven Line Up << >> View & Compare KitchenAid Wall Oven Line Up <<
AFQX4M
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Replaced by KOEC730SWH
Ratings & Reviews
AFQX4M
When will I get this?

Description & Features
Get the crisp you crave, right from your oven. KitchenAid® Combination Microwave Wall Ovens with Air Fry Mode circulate hot air around the included basket to cook with less oil.* Microwave convection cooking turns the microwave into a second oven for small batch bakes like cookies, madeleines and cakes. *When compared to deep frying.

  • 1.4 Cu. Ft. Microwave Oven Capacity
  • Comfortably fits a variety of dishes with enough height for a mixing bowl and width for a 9" x 13" casserole dish.
  • 4,000-Watt Broil Element
  • Uses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.
  • 5.0 Cu. Ft. Oven Capacity
  • Provides room to cook multiple dishes, so you can cook a whole turkey or roast and sides all at once.
  • Air Fry Mode
  • Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.*

    *When compared to deep frying.

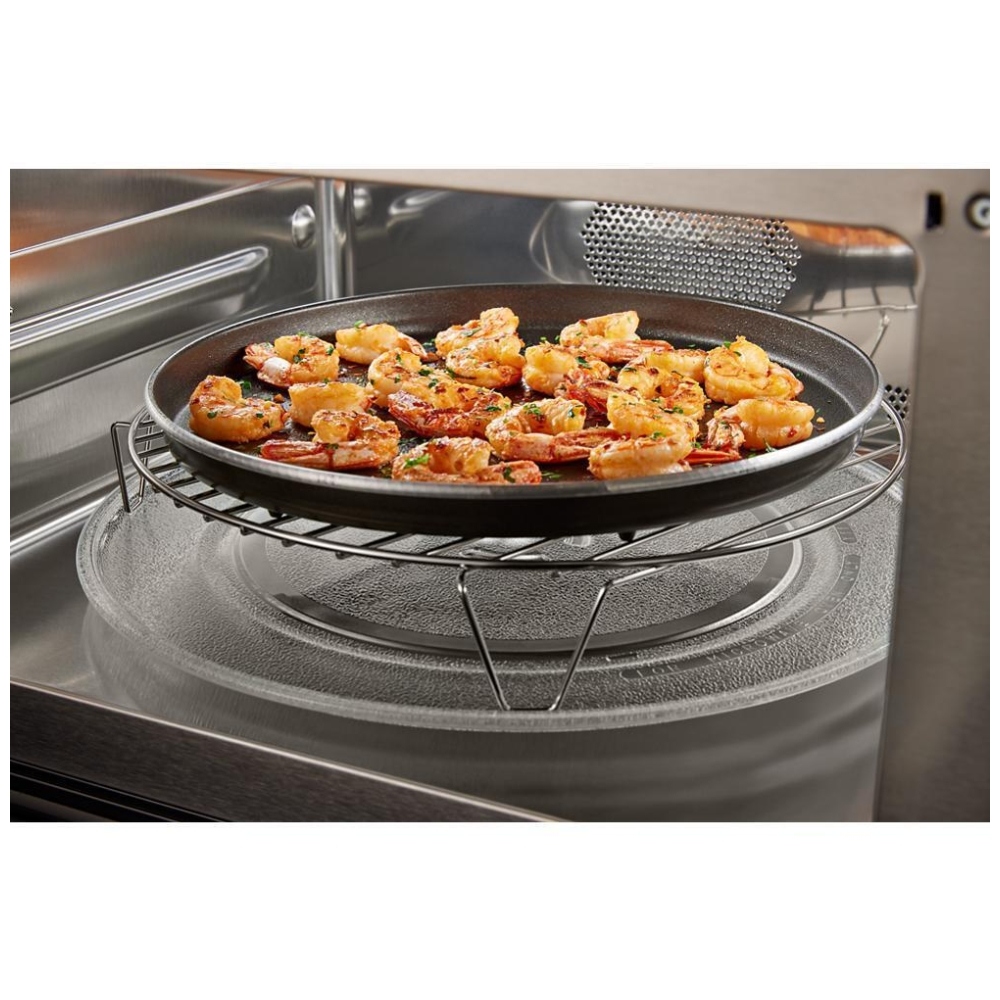

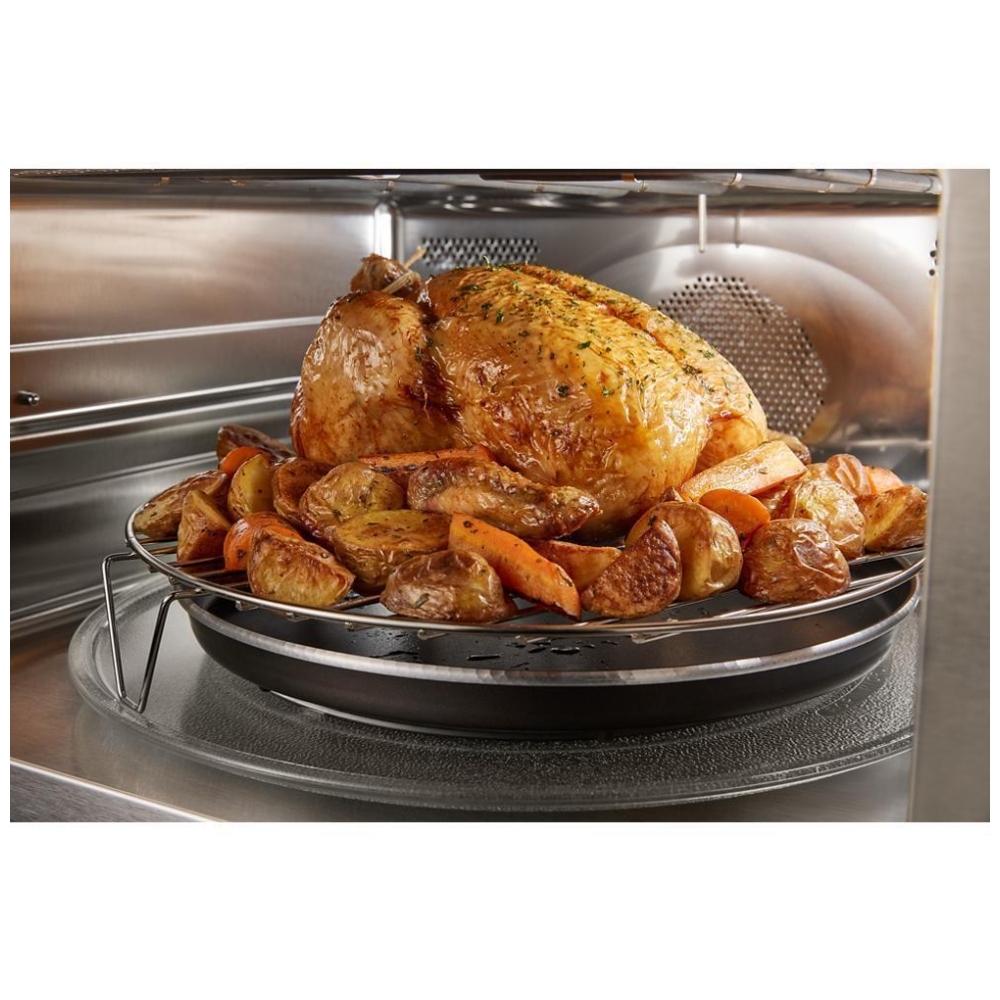

  • CrispWave™ Technology
  • Uses microwave power to heat the included crisper pan and a 1600-watt element in the top of the microwave to brown and broil, allowing you to grill meats, crisp pizza, fry bacon and more, right in the microwave.
  • Dishwasher-Safe Air Fry Basket
  • Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
  • EasyConvect™ Conversion System
  • Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
  • Even-Heat™ Preheat
  • Raises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.

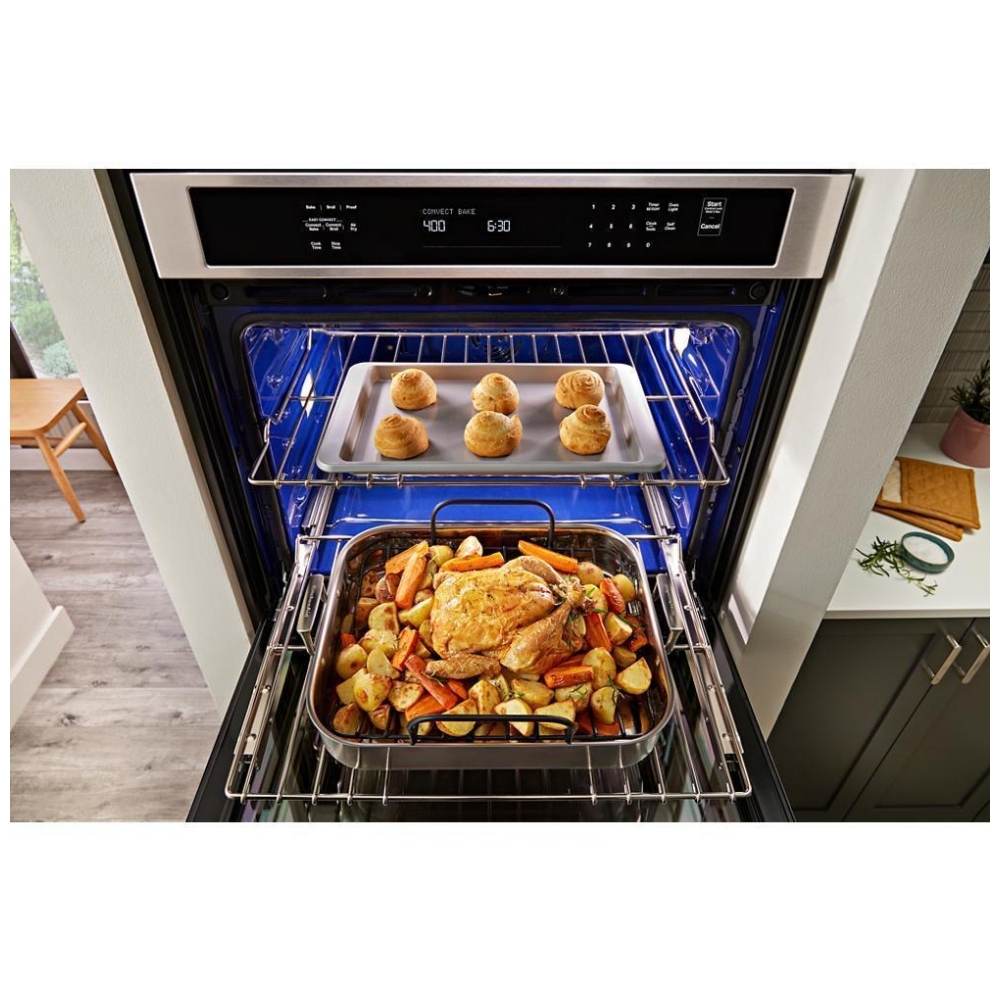

  • Even-Heat™ True Convection
  • Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
  • FIT System Limited Guarantee
  • Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.*

    *On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit kitchenaid.com/promotions.
  • Integrated Meat Thermometer
  • Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.

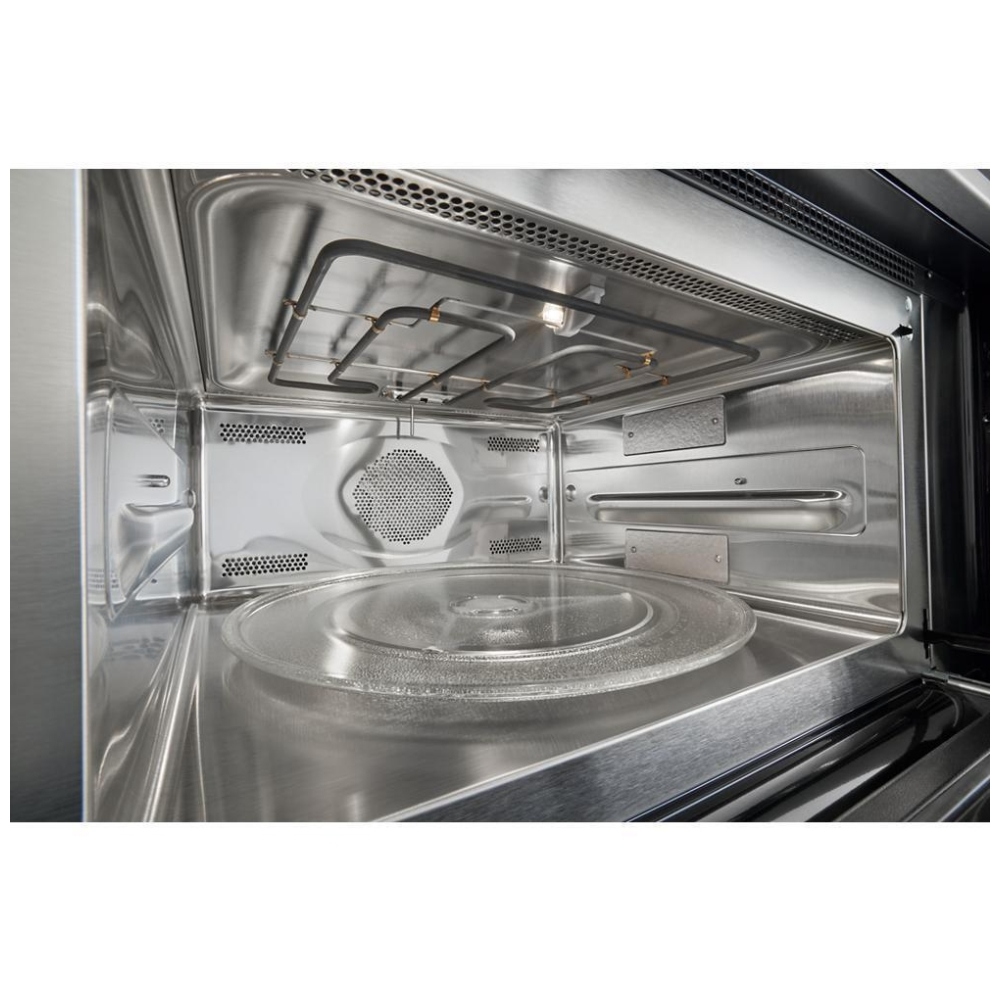

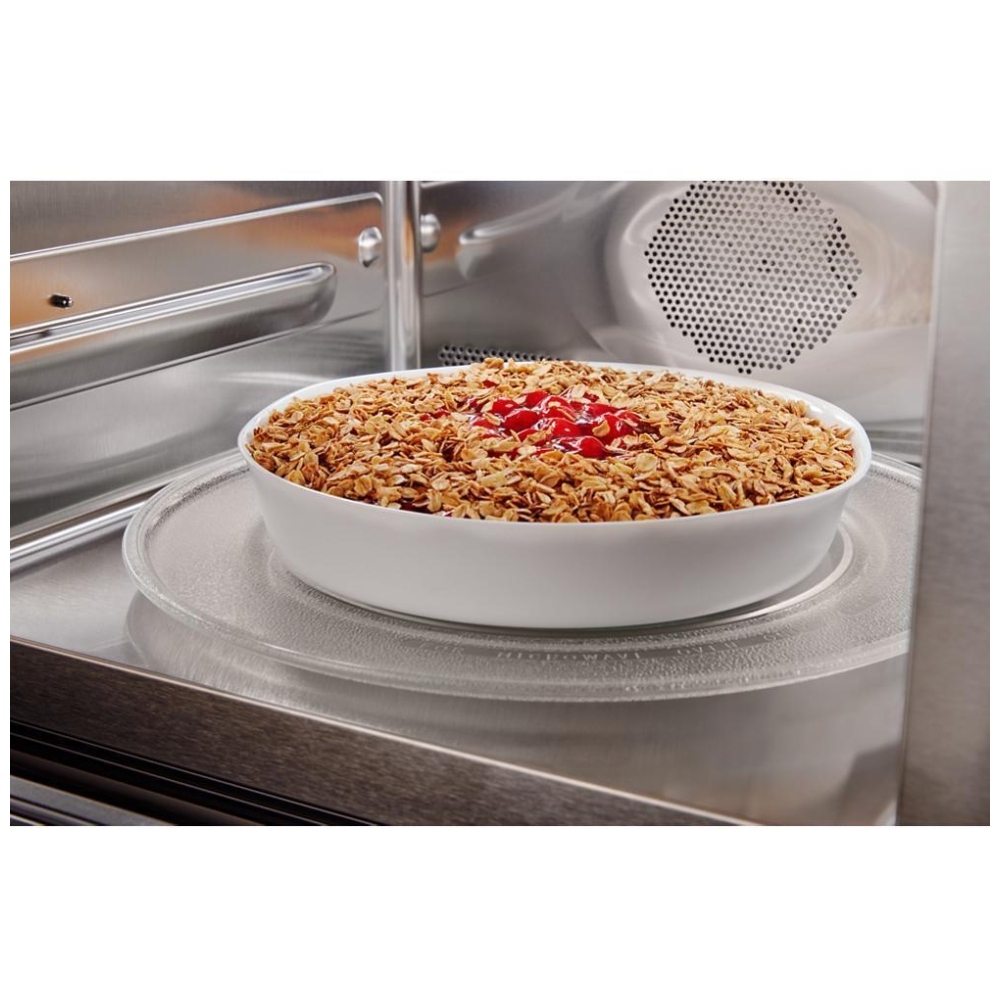

  • Microwave Convection Cooking
  • Uses dual heating elements and a fan to reach temperatures up to 450°F, turning the microwave into a second oven for small batch bakes like cookies, madeleines and cakes.

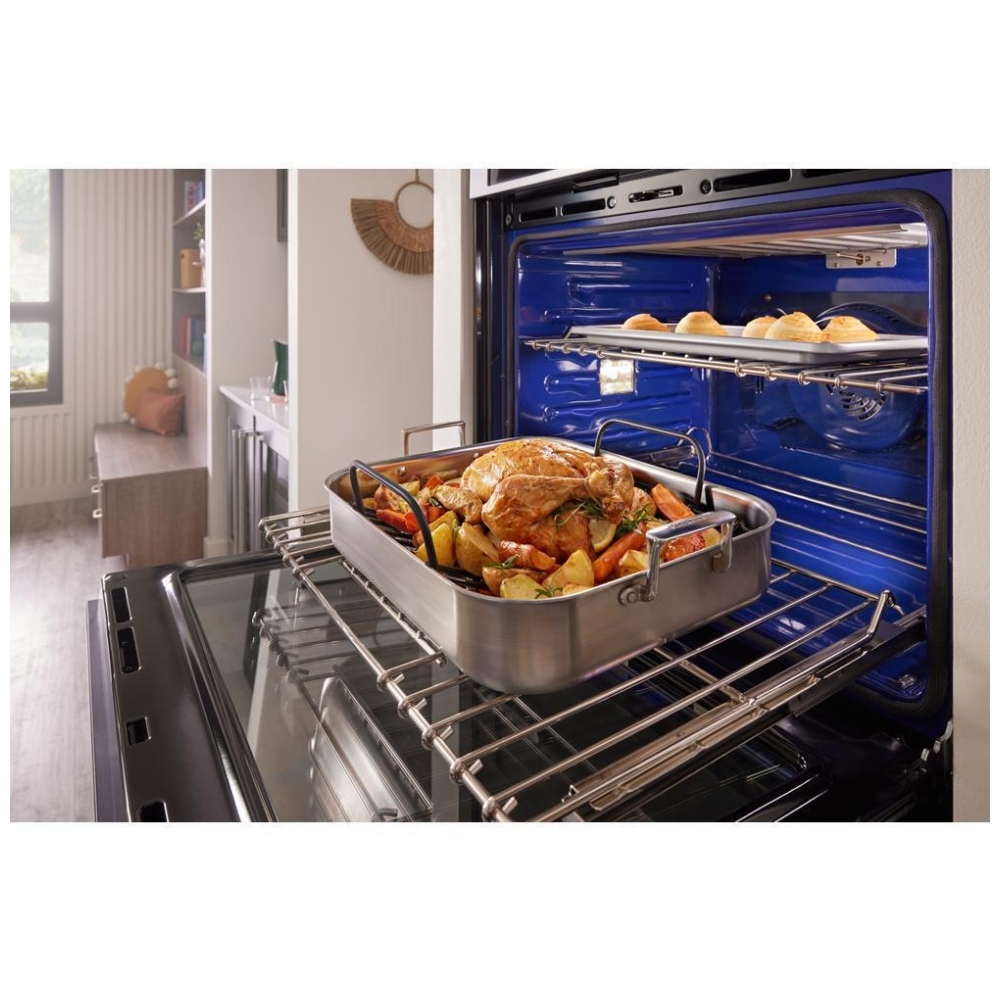

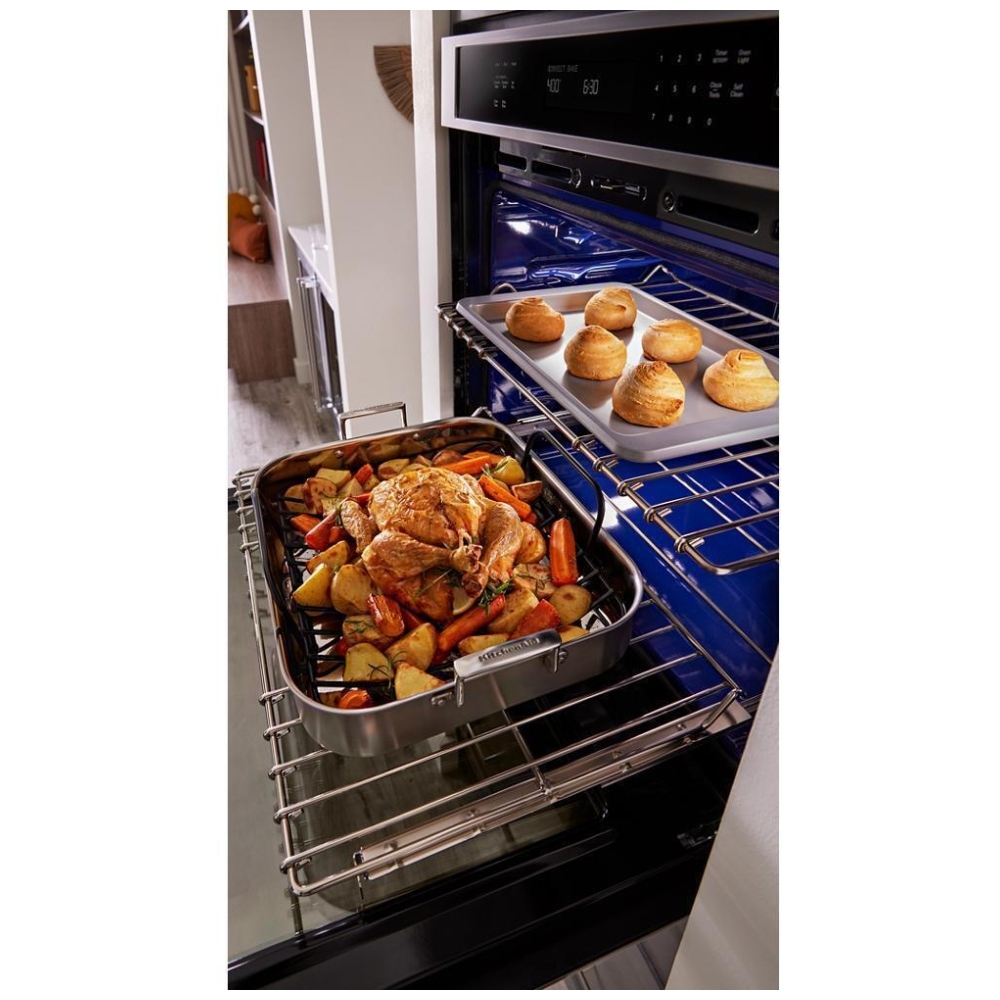

  • SatinGlide™ Roll-Out Extension Rack
  • Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
  • Self-Cleaning Cycle
  • Uses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
  • Self-Close Doors
  • Feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
  • Star-K Certified
  • To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
  • What's in the box
  • Combination Microwave Wall Oven includes a Dishwasher-Safe Air Fry Basket, a Microwave Crisper Pan, and an Integrated Meat Thermometer

Manufacturer's Warranty: 1 year

Canadian model: KOEC530PWH

Canadian UPC: 883049670539

EAN: 0883049670539


 - KOEC530PWH
KOEC530PWH -
Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.* *When compared to deep frying.
 - KOEC530PWH
KOEC530PWH -
Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.*
 - KOEC530PWH
KOEC530PWH -

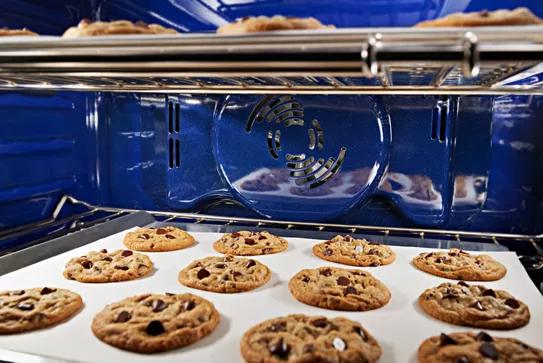

Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
 - KOEC530PWH
KOEC530PWH -

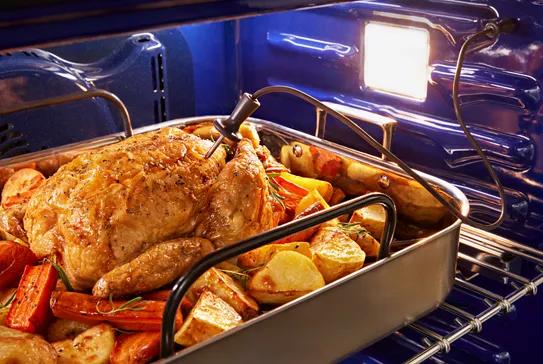

Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
 - KOEC530PWH
KOEC530PWH -

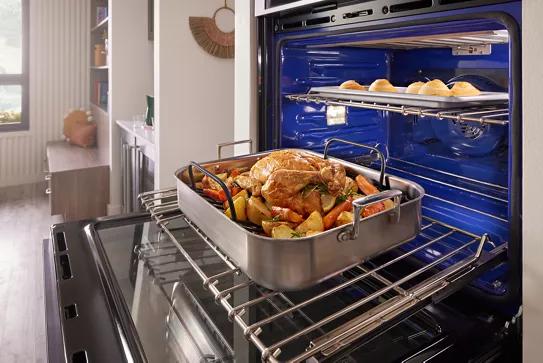

Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.

Specs
Certifications
Ada Compliant No
Cul Yes
Energy Rating (kwh/year) 356
Prop65 Standard
Star K Certified Star K Certified
Ul Yes
Controls
Control Type Electronic Touch
Display Color White
Electronic Display Type Digital
Microwave Selections Add A Minute; Control Lock; Convect; Cook Power; Cook Time; Cook/Start; Crisp; Defrost; Easy Convect; End of Cycle Signal; Off/Cancel; Popcorn; Reheat; Soften/Melt; Sound On/Off; Steam; Time Cook; Timer
Details
Air Fry Yes
Flush Installation Approved Yes
Fuel Type Electric
Grill Yes
Grill Power 1,600
Oven Automatic Shut-off Yes
Oven Selections Air Fry; Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Language Conversion; Proofing; Rapid Preheat; Sabbath Mode; Start Time; Temperature Probe; Temperature-Sensor Baking; Timer
Turntable Yes

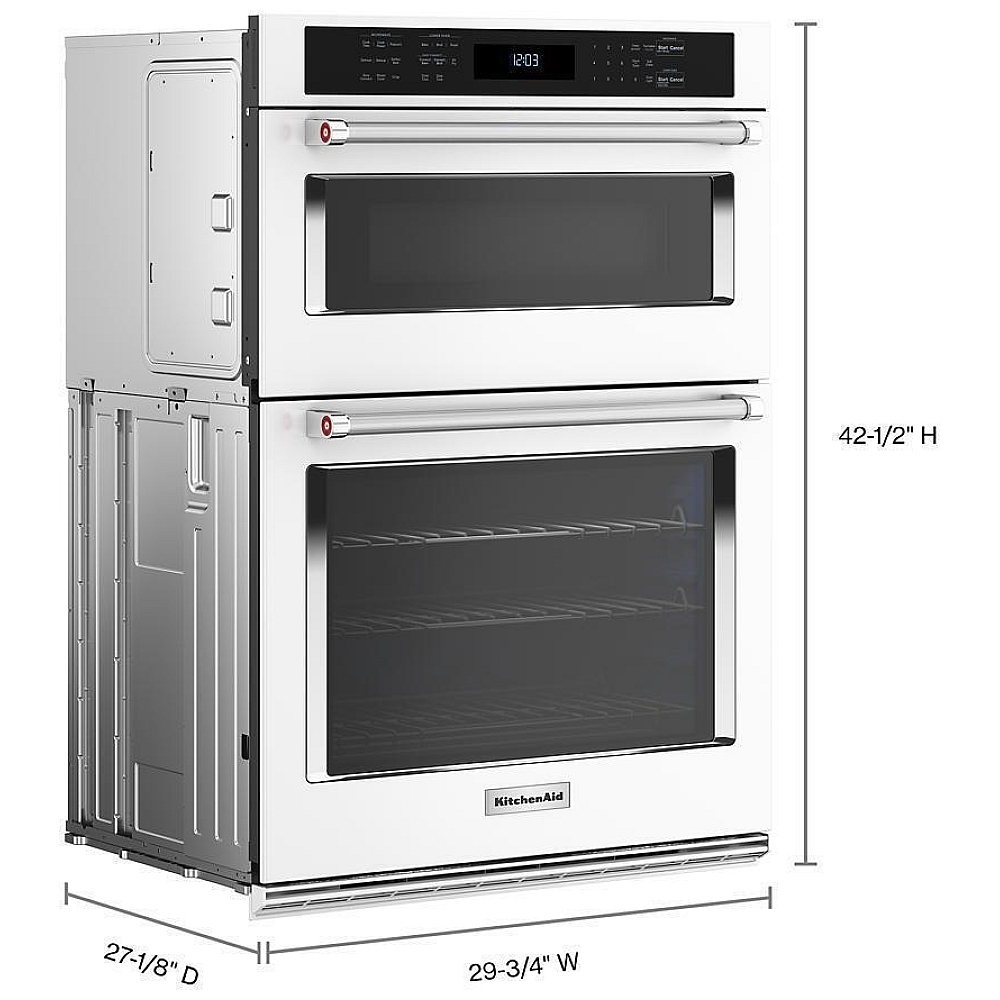

Dimensions
Product Height 42.5
Carton Height 45
Gross Weight 265
Oven Interior Height 18
Carton Width 34.8
Product Depth 27.125
Oven Interior Depth 19
Depth With Door Open 90 Degree 46.75
Cutout Depth 24
Cutout Height 41.313
Depth Closed Excluding Handles 24.5
Depth Closed Including Handles 27.125
Carton Depth 30.8
Cutout Width 28.5
Oven Capacity 5
Oven Interior Width 25
Net Weight 243
Product Width 29.75
Electrical
Power Cord Included No
Exterior Details
Door Type Metal & Glass
Handle Color Stainless Steel
Handle Material Metal
General
Microwave Interior Depth 16.5
Microwave Interior Height 8.25
Microwave Interior Light Halogen
Microwave Interior Width 17.625
Microwave Details
Door Release Handle
Language Conversion English/French/Spanish
Microwave Capacity 1.4
Number of Microwave Racks 2
Sensor Cooking Yes - Microwave
Turntable Diameter Size 14.125
Oven Details
Bake Element Power 2,800 W
Broiler Element Power 4,000 W
Broiler Location Top of Oven
Convection Yes
Convection Element Power 3,200
Convection Element Type True Convection
Convection Functions Bake; Broil; Convection Conversion
Convection Power 1,200
Cooking Power 900
Door Broil Position Closed
Door Lock Yes
Hidden Bake Element Yes
Interior Coating Porcelain
Interior Color Blue
Number of Oven Lights 2
Number of Oven Racks 3
Number of Rack Guides 6
Oven Cleaning Type Self-Cleaning
Oven Light Type Halogen
Self-cleaning Oven Racks No

Dimensions
Depth 27.13 "
Width 29.75 "
Height 42.5 "
Carton Depth 30.81 "
Carton Height 45 "
Carton Width 34.81 "
Depth Closed Excluding Handles 24.5 "
Depth Closed Including Handles 27.13 "
Depth With Door Open 90 Degree 46.75 "
Gross Weight 220 lbs
Net Weight 198.0 lbs
Capacity FT3 (cubic feet) 6.40

Microwave Details
Cooking Power Watts 900
Convection Yes
Convection Power Watts 1200
Grill Yes
Grill Power Watts 1600
Interior Light Yes, Halogen
Turntable Yes
Turntable Diameter Size In 14.13
Door Swing Drop Down
Microwave Capacity Cu Ft 1.4

Refinement KAD
Temperature Probe Yes

Specifications
Country Of Origin USA
Optional Accessories W11406621, W11366049
Sabbath Mode Yes

Electrical
Hz 60
Amps 40
Power Cord Included No

Certifications
UL Yes
CUL Yes

Controls
Control Type Electronic

Exterior
Handle Color Stainless Steel
Handle Material Metal

Configuration
Oven Configuration Microwave Combination

Details
Broiler Element Power 4000W
Convection Element Power Watts 3,200
Convection Functions Bake; Broil; Convection Conversion
Number Of Oven Racks 3
Oven Rack 3 Type Gliding Roll-Out
Hidden Bake Element Yes
Oven Cleaning Type Self-Clean
Oven Light Type Halogen
Bake Element Power 2800W
Number Of Oven Lights 2
Number Of Rack Guides 6
Oven Interior Depth In Inches 19.0
Oven Interior Width In Inches 25.0
Interior Coating Porcelain
Number Of Bake Elements 1
Number Of Broil Elements 1
Oven Capacity Cu Ft 5.0
Oven Interior Height In Inches 18.0
Oven Rack 1 Type Standard
Oven Rack 2 Type Standard
Interior Color Blue

Features
Sensor Cooking Yes - Microwave
Oven Selections Audible Signal; Bake; Broil; Air Fry; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Keep Warm/Warm Hold; Language Conversion; Proofing; Rapid Preheat; Sabbath Mode; Start Time; Temperature Probe; Temperature-Sensor Baking; Timer
Language Conversion English/French/Spanish

Microwave
Microwave Selections Add A Minute; Control Lock; Convect; Cook/Start; Cook Power; Cook Time; Crisp; Defrost; Easy Convect; End of Cycle Signal; Off/Cancel; Popcorn; Reheat; Soften/Melt; Sound On/Off; Steam; Time Cook; Timer

Description
Size In 30

Configuration and Overview
Fuel Type Electric
