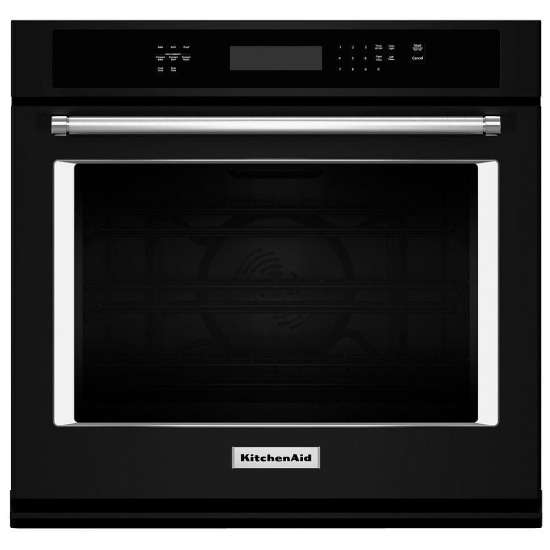

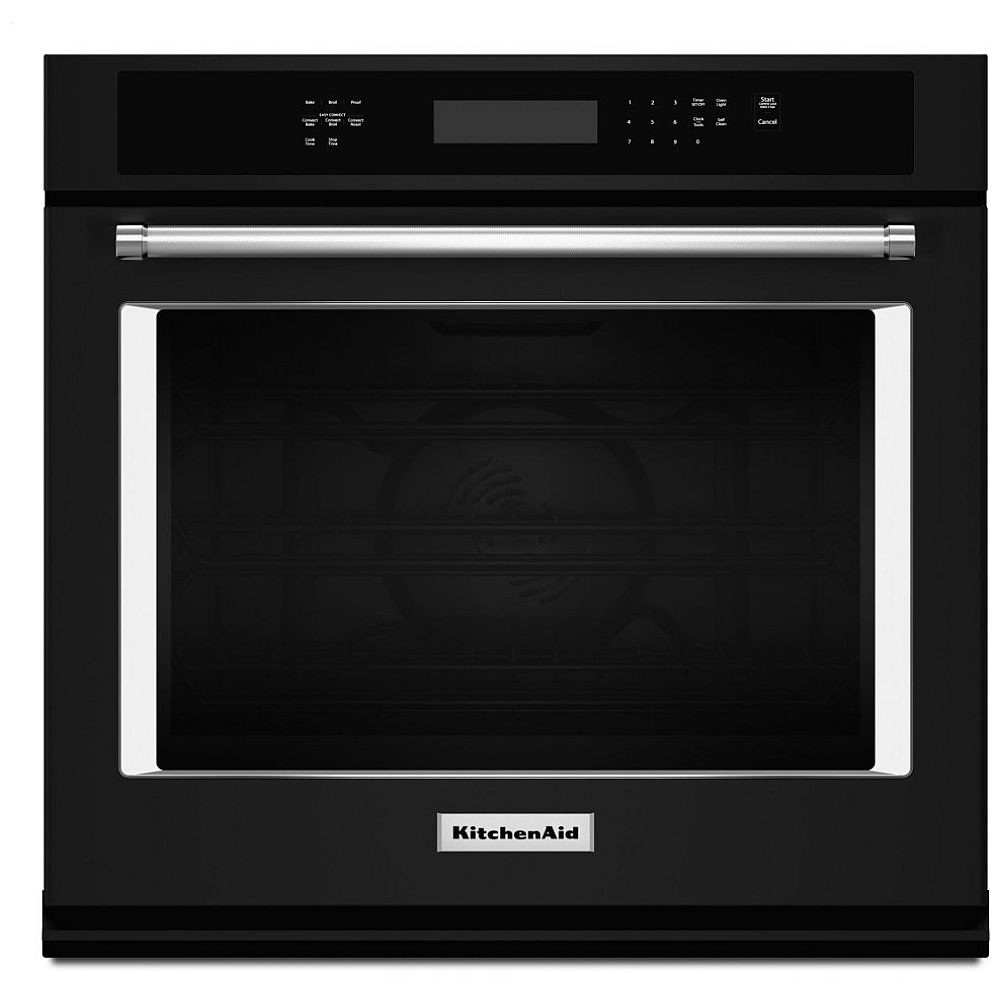

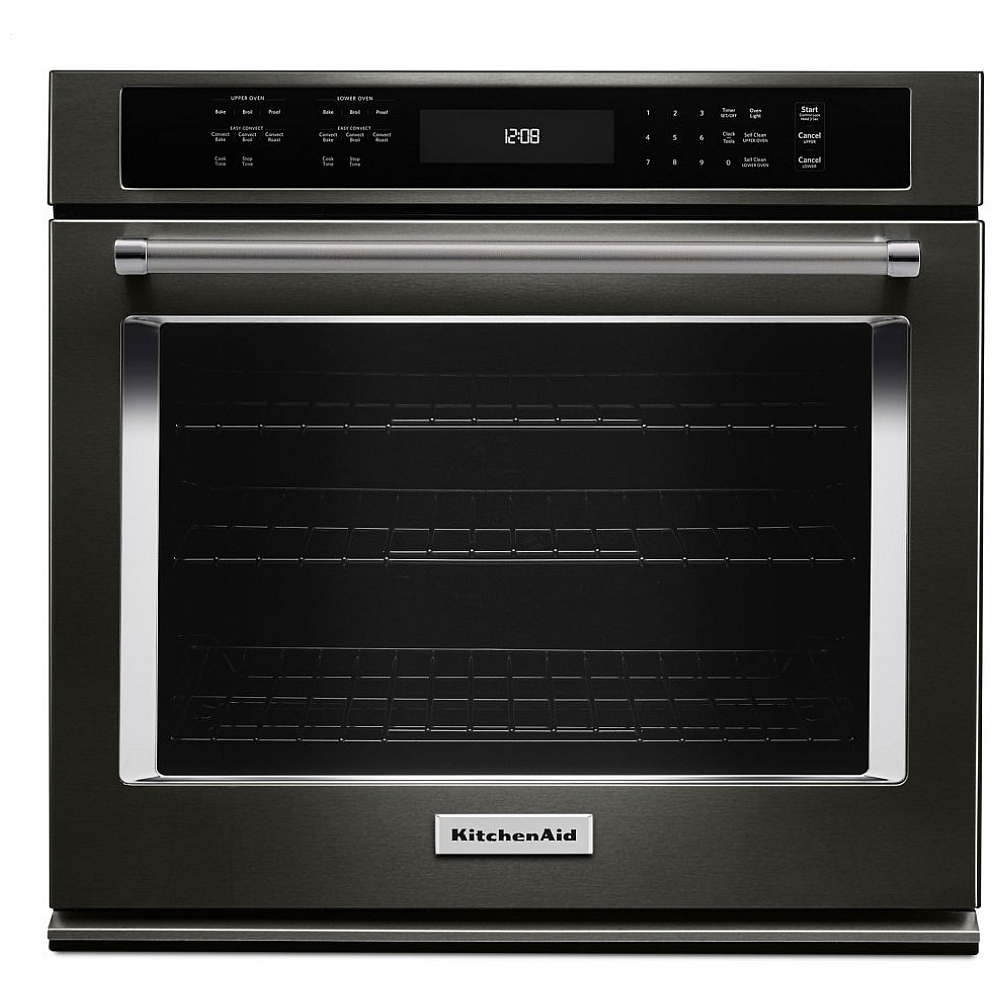

This 27" Single Wall Oven with Even-Heat™ True Convection provides consistent heating and even cooking. A unique bow-tie shaped design and convection fan helps ensure there are no burnt edges or undercooked centers. The Temperature Probe delivers accurate measurement of internal temperatures of meats, poultry, and casseroles without opening the oven door, for perfectly cooked food. The oven s bold design details are the perfect balance of elegance and functionality.

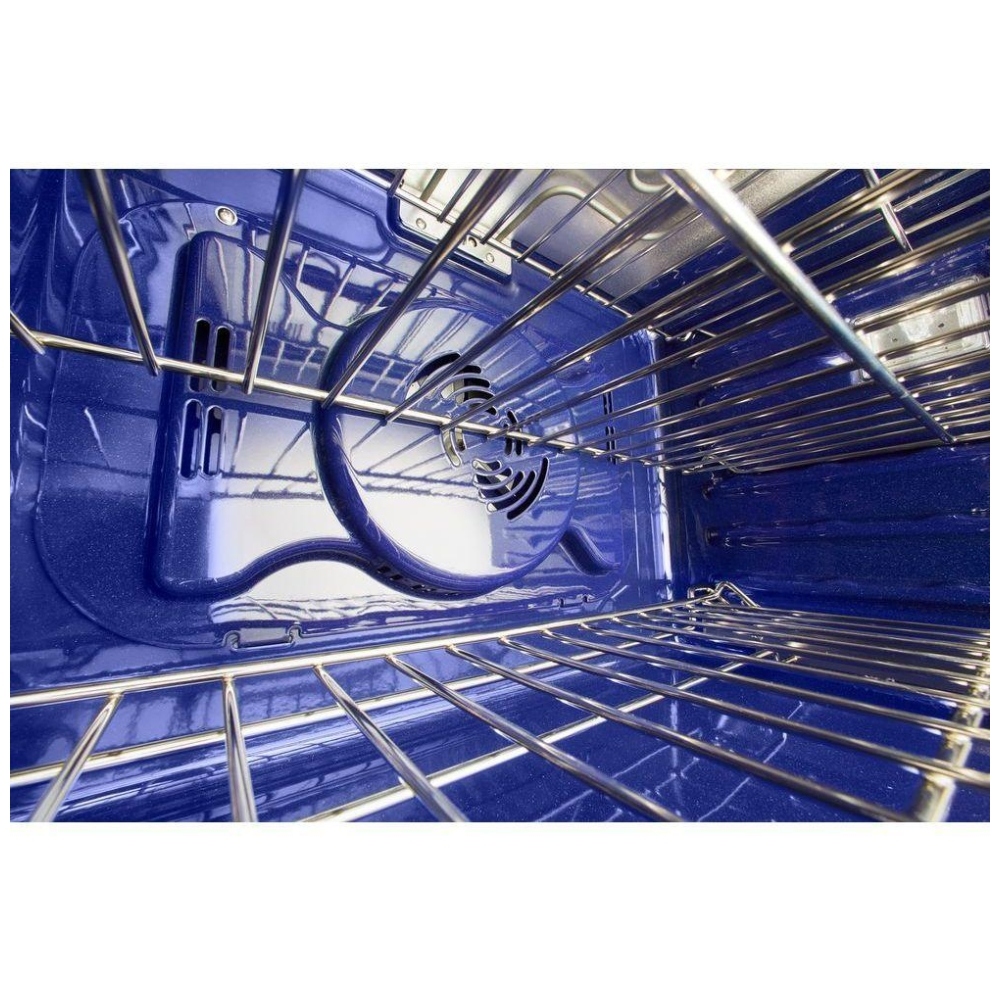

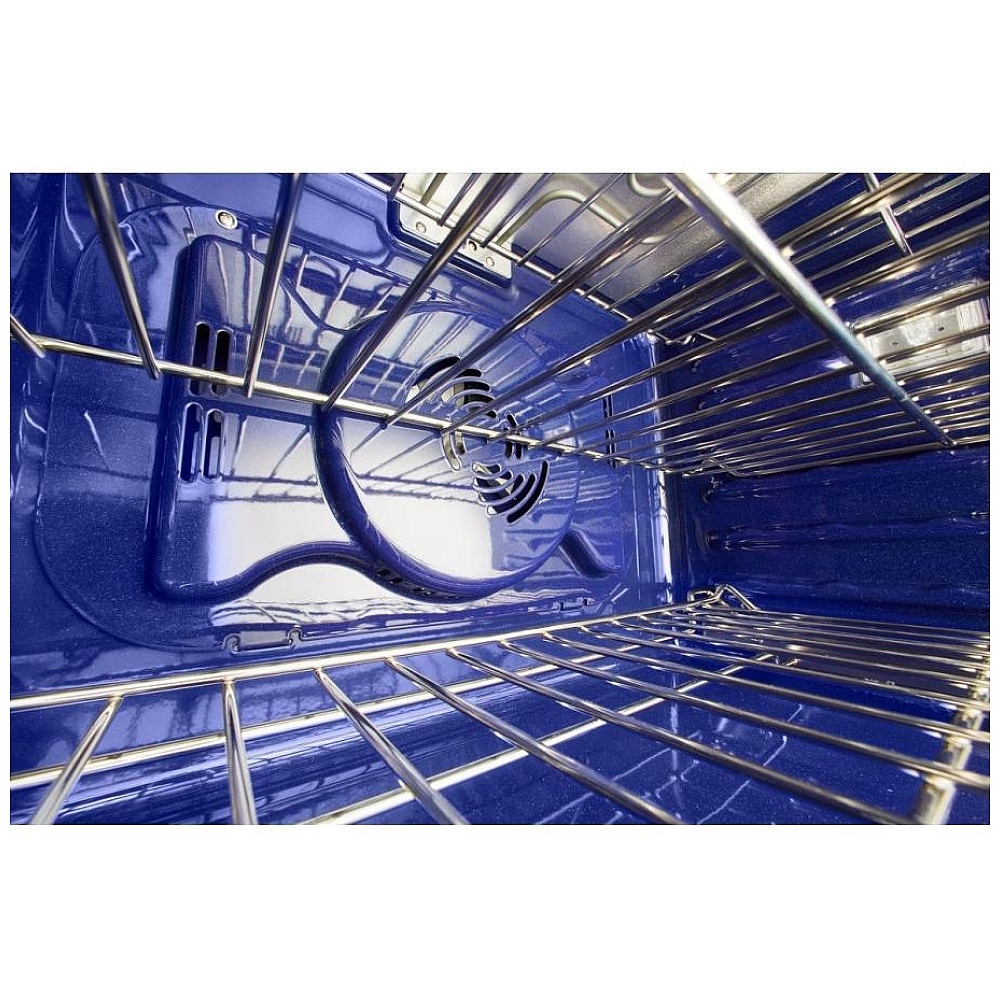

- Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal tempaeratures combined with airflow for crisp, flaky baked goods, juicy, well-browned roasts and carmerlized vegetables.
- Allows accurate measurement of internal temperature of meats, poultry, and casseroles without having to open the oven door.
- Allows for customization of wall oven installation to match the height of existing cabinets through flexible design elements.
- Takes the guesswork out of convection cooking by ensuring exceptional results when experimenting with new recipes or familiar favorites.
- The spacious capacity simultaneously accommodates multiple dishes.
- Helps remove cold spots to help ensure even baking because the entire oven, including the walls and racks, are heated to the correct temperature.
- Allows easy loading and features an easy-grip handle, giving you the confidence when cooking with large or heavy dishes.

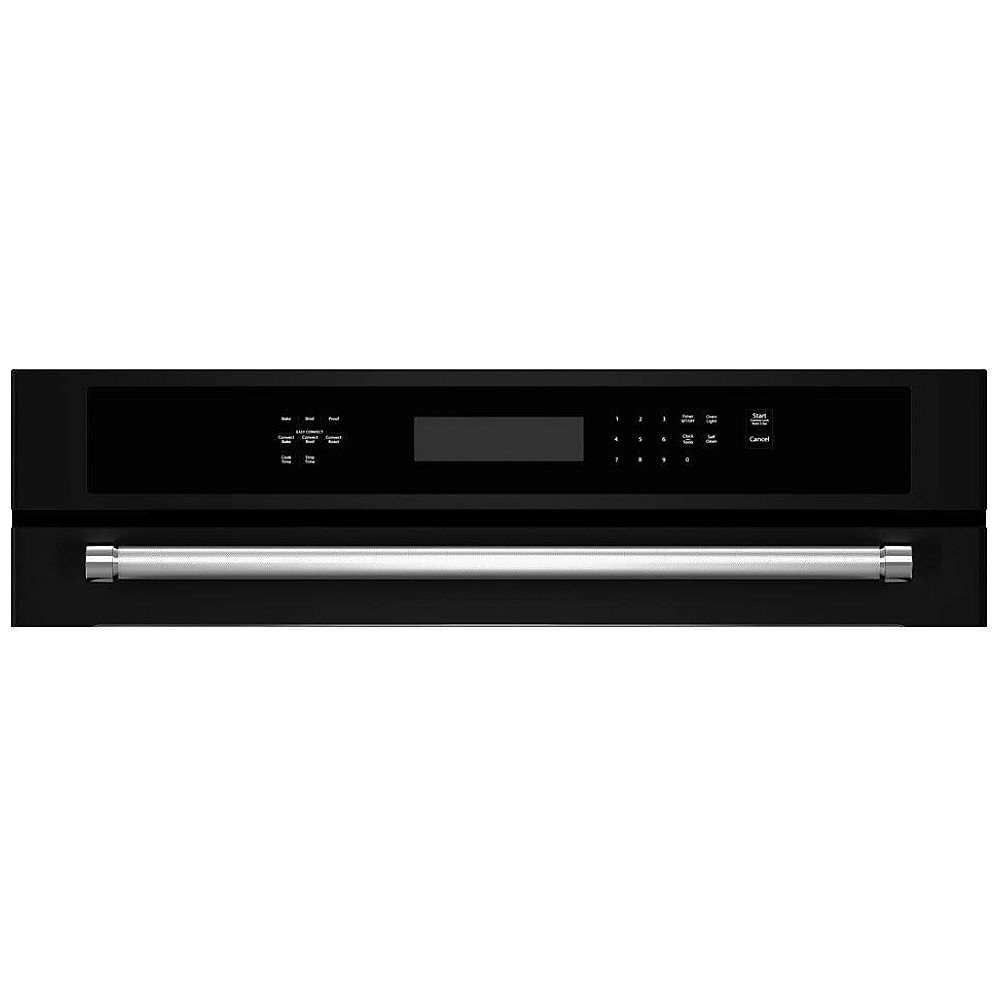

- Gives an intuitive glass touch screen experience that s easy to wipe clean.
- Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.

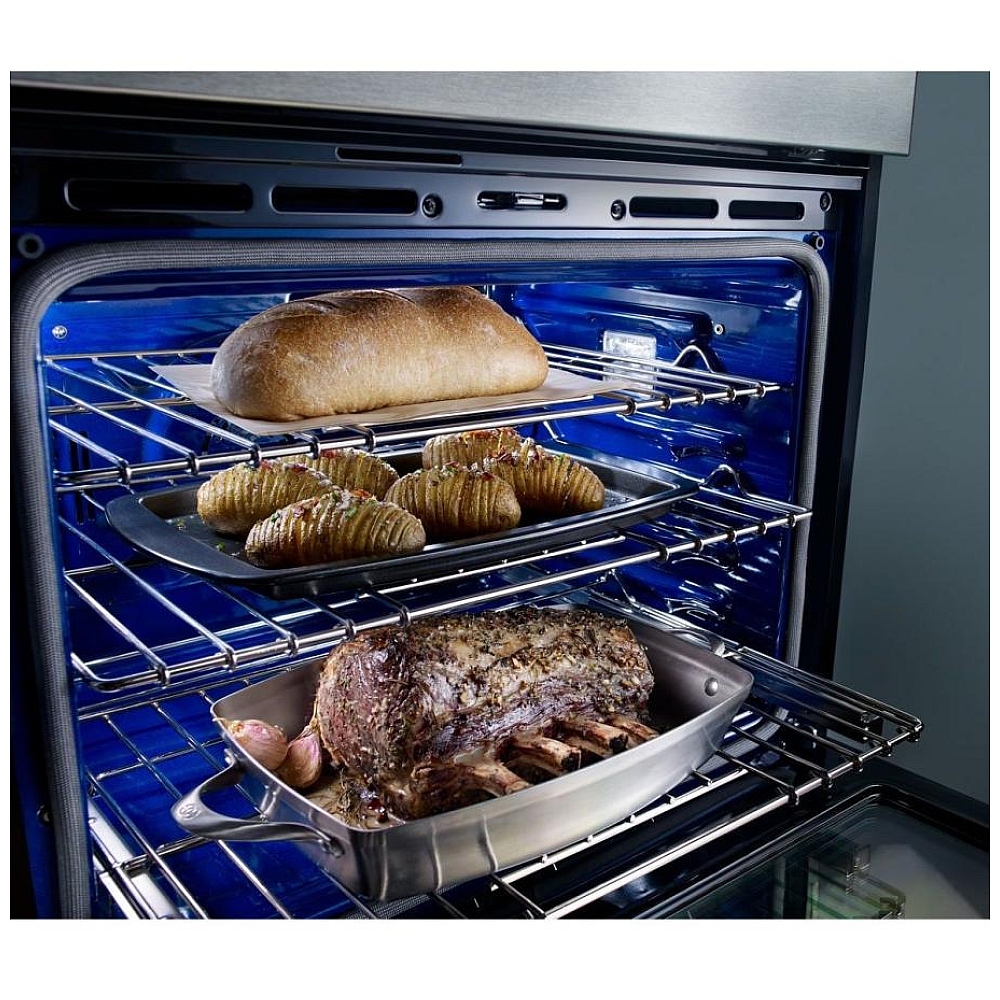

Allows easy roll-out for loading and unloading and features an easy-grip handle, giving confidence to cook with large or heavy dishes.
Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
Helps remove cold spots to help ensure even baking because the entire oven, including the walls and racks, are heated to the correct temperature.
Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.
The spacious capacity simultaneously accommodates multiple dishes.
Allows for customization of wall oven instillation to match the height of existing cabinets through flexible design elements.
Combines a bold blend of professionally-inspired styling with sleek touches for the home. This beautiful built-in wall oven features Satin Textured Handles, Precision Touch Controls, a stunning Chrome Inlaid Frame, the KitchenAid® Badge and Brand Medallio
Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the oven is heated to, and stays at, the perfect temperature.
Gives an intuitive glass touch screen experience that’s easy to wipe clean.
Allows accurate measurement of internal temperature of meats, poultry, and casseroles without having to open the oven door.
UPC: 883049327167
Certifications | |
CUL | Yes |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Energy Rating | 333 |
Refinement KAD | |
EasyConvect™ Conversion | EasyConvect™ Conversion |
Self Clean | Self Clean |
Even-Heat™ Preheat | Even-Heat™ Preheat |
Even-Heat™ True Convection | Even-Heat™ True Convection |
FIT System | FIT System |
SatinGlide™ Roll Out Extension Rack | SatinGlide™ Roll Out Extension Rack |
Oven Details | |
Door Lock | Yes |
Door Removable | Yes |
Power On Indicator Light | Yes |
Language Conversion | English/French |
Temperature Conversion | Yes |
Automatic Shut-Off | Yes |
Door Broil Position | Closed |
Oven Cooking System | Convection |
Interior Color | Black |
Bake Element Power | 2800W |
Interior Coating | Porcelain |
Light Control | Oven Light Touch Pad |
Light Type | Halogen |
Broiler Location | Top of Oven |
Convection Element Type | True |
Oven Rack 1 Type | Standard |
Oven Rack 2 Type | Standard |
Oven Rack 3 Type | Gliding Roll-Out |
Number of Oven Lights | 2 |
Self-Cleaning Oven Racks | No |
Number of Oven Racks | 3 |
Number of Rack Guides | 6 |
Oven Self-Cleaning | Adjustable Self Cleaning |
Hidden Bake Element | Yes |
Convection Functions | Bake , Broil , Roast |
Number of Bake Elements | 1 |
Number of Broil Elements | 1 |
Description | |
Fuel Type | Electric |
Size | 27 |
Oven Type | Single |
Details | |
Number of Rack Guides | 6 |
Oven Capacity | 4-3/10 |
Door Broil Position | Closed |
Interior Color | Blue |
Light Control | Oven Light Touch Pad |
Light Type | Halogen |
Broiler Location | Top of Oven |
Interior Coating | Porcelain |
Convection Element Power | 3200 |
Oven Rack 2 Type | Standard |
Oven Rack 3 Type | Gliding Roll-Out |
Oven Interior Depth | 19.0 in |
Oven Interior Height | 18.0 in |
Oven Interior Width | 22.0 in |
Number of Oven Racks | 3 |
Rack Guide Type | Molded |
Hidden Bake Element | Yes |
Number of Bake Elements | 1 |
Number of Broil Elements | 1 |
Appearance | |
Handle Material | Stainless Steel |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Flush Installation Approved | Yes |
Dimensions | |
Poids Brut | 140 lbs |
Net Weight | 126 lbs |
Depth With Door Open 90 Degree | 46-3/4 in |
Height | 28-3/4 in |
Width | 27.0 in |
Oven Capacity | 4.3 cu. ft. |
Depth | 27-1/8 in |
Refinements | |
Features | EasyConvect™ Conversion , Even-Heat™ Preheat , Even-Heat™ True Convection , FIT System , SatinGlide™ Roll Out Extension Rack , Self Clean , ADA Compliant |
Configuration and Overview | |
Size | 27 in |
Fuel Type | Electric |
Installable Under Cooktop | Yes |
LP Convertible | No |
Oven Type | Single |
CUL | Yes |
ADA Compliant | ADA Height and Side and Front Reach Compliant |
UL | UL |
Exterior | |
Handle Material | Metal |
Door Lock | Yes |
Flush Installation Approved | Yes |
Installable Under Cooktop | Yes |
Electrical Requirements | |
Power Cord Included | |
Hz |
CAPACITY
4-3/10
CUTOUT DEPTH
60.96 cm, 24.0 in
CUTOUT HEIGHT
71.12 cm, 28.0 in
CUTOUT WIDTH
64.77 cm, 25-1/2 in
DEPTH
68.90 cm, 27-1/8 in
DEPTH WITH DOOR OPEN 90 DEGREE
118.74 cm, 46-3/4 in
HEIGHT
73.02 cm, 28-3/4 in
OVEN CAPACITY
121.69 l, 4.3 cu. ft.
WIDTH
68.58 cm, 27.0 in
CUL
Yes
FUEL TYPE
Electric
INSTALLABLE UNDER COOKTOP
Yes
LP CONVERTIBLE
No
OVEN TYPE
Single
SIZE
68.58 cm, 27 in
AUTOMATIC SHUT-OFF
Yes
BAKE ELEMENT POWER
2800W
BROILER LOCATION
Top of Oven
CONVECTION ELEMENT TYPE
True
CONVECTION FUNCTIONS
Bake, Broil, Roast
DOOR BROIL POSITION
Closed
DOOR LOCK
Yes
DOOR REMOVABLE
Yes
HIDDEN BAKE ELEMENT
Yes
INTERIOR COATING
Porcelain
INTERIOR COLOR
Blue
LANGUAGE CONVERSION
English/French
LIGHT CONTROL
Oven Light Touch Pad
LIGHT TYPE
Halogen
NUMBER OF BAKE ELEMENTS
1
NUMBER OF BROIL ELEMENTS
1
NUMBER OF OVEN LIGHTS
2
NUMBER OF OVEN RACKS
3
NUMBER OF RACK GUIDES
6
OVEN COOKING SYSTEM
Convection
OVEN INTERIOR DEPTH
48.26 cm, 19.0 in
OVEN INTERIOR HEIGHT
45.72 cm, 18.0 in
OVEN INTERIOR WIDTH
55.88 cm, 22.0 in
OVEN RACK 1 TYPE
Standard
OVEN RACK 2 TYPE
Standard
OVEN RACK 3 TYPE
Gliding Roll-Out
POWER ON INDICATOR LIGHT
Yes
SELF-CLEANING OVEN RACKS
No
TEMPERATURE CONVERSION
Yes
DOOR TYPE
Metal & Glass
FLUSH INSTALLATION APPROVED
Yes
HANDLE COLOR
Stainless Steel
HANDLE MATERIAL
Metal
BAKE ELEMENT POWER
2800W
BROILER ELEMENT POWER
4000W
CONVECTION ELEMENT POWER
3200
CONVECTION ELEMENT TYPE
True
NUMBER OF OVEN LIGHTS
2
NUMBER OF OVEN RACKS
3
NUMBER OF RACK GUIDES
6
OVEN CLEANING TYPE
Adjustable Self Cleaning
OVEN RACK 1 TYPE
Standard
OVEN RACK 2 TYPE
Standard
OVEN RACK 3 TYPE
Gliding Roll-Out
RACK GUIDE TYPE
Molded
ADA COMPLIANT
ADA Height and Side and Front Reach Compliant
ENERGY RATING
410
PROP 65
CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
UL
UL
HZ
60
POWER CORD INCLUDED
No
VOLTS
240
DISPLAY COLOR
White
ELECTRONIC DISPLAY TYPE
Digital
OVEN DOOR
Metal & Glass
OVEN WINDOW SIZE
Extra Large
OVEN CONFIGURATION
Single Oven
PRODUCTOUTLETCATEGORIES
Cooking
STATUS BADGE ESPOT CA
New
GPC CODE
10001950
ISINVOICEUNIT
true
ISORDERABLEUNIT
true
PRODUCT TYPE
EA
UDEX
1100400623
ISBASEUNIT
true
ISCONSUMERUNIT
true
COOKTOP COMBINATIONS
KCES550, KCES556, KCES956, KCES950, KECC604, KECC607, KECC664, KECC667, KICU509, KICU569, KCGS350, KCGS356, KCGS550, KCGS556, KCGS950, KCGS956, KGCC506, KGCC566
