KitchenAid KUIX535HPA
1ST4R4
Call Now! 877-374-3439 Or Chat For Bundle Discounts
Call Now! 877-374-3439 Or Chat For Bundle Discounts
Price Match & Beat Guarantee
We will beat any Canadian competitor’s price!* Terms apply.
MAP Price🛈 Info

MAP Price Explanation

Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).


CAS sales staff have the ability to significantly discount most product prices below our online advertised prices especially when purchasing multiple products.

Visit one of our many Canadian showrooms or call 877-374-3439 to speak with our knowledgeable sales staff to get the best prices on your appliances




















Excludes: Whirlpool, Maytag, kitchenAid, Jennair brands
$2,598
KitchenAid Promo
$2,598  (1.0E-7% off)  if you buy 2 or 3 items.
* Only on eligible KitchenAid items
 Add to Cart
Call Local Showroom
Earn 50,000 PC Optimum™ points!*
* Available only on in-store purchases at select Real Canadian Superstore locations.
Points eligibility and amounts shown are based on qualifying advertised price on this page.
Ratings & Reviews
4.1
78%
recommend this
Read Reviews
(296 reviews)
1ST4R4
Region Availability:
7 - 9 Business Days
When will I get this?

THIS ITEM QUALIFIES FOR FREE DELIVERY!* 🛈
* Delivery amount is reduced by our standard $89.95 rate.  Remote areas will be left with the difference in price to pay above $89.95.  Not valid on same-/next-day delivery options.  Applicable only when sold at regular advertised price.  Offer subject to change or terminate without notice.
Reserve & Pick Up
FREE
Distribution Centres
Address
Units Available
Woodbridge, ON
27 Director Crt.
Winnipeg, MB
191 Elan Blvd
Burnaby, BC
8010 Winston St.
Ottawa, ON
55 Banton St.
Laval, QC
1340 Boul. Dagenais Ouest
Dartmouth, NS
315 Wilkinson Ave.
Calgary, AB
2777 23 Ave. NE
In stock

Description & Features

KitchenAid KUIX535HPA Ice Maker, 15 inch Width, 25 lb./day Ice Production, 25 lb. Ice Storage capacity (lbs.), Panel Ready
Enjoy an ample supply of clear, uniformly shaped ice cubes ideal for a variety of everyday applications. This 15-inch ice maker accepts an overlay-style front panel (requires custom panel and handle, not included) that adds an elegant finishing touch to your kitchen or bar area. Fully Flush Installation blends with surrounding cabinetry for a refined built-in look.

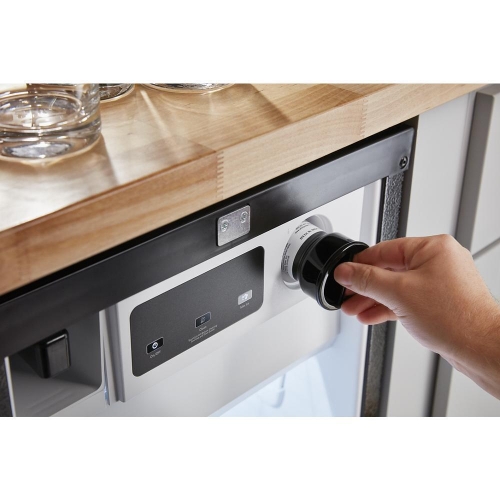

Filter-Ready
Filter-Ready
provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.
Fully Flush Installation with Articulating Hinge
Fully Flush Installation with Articulating Hinge
allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.

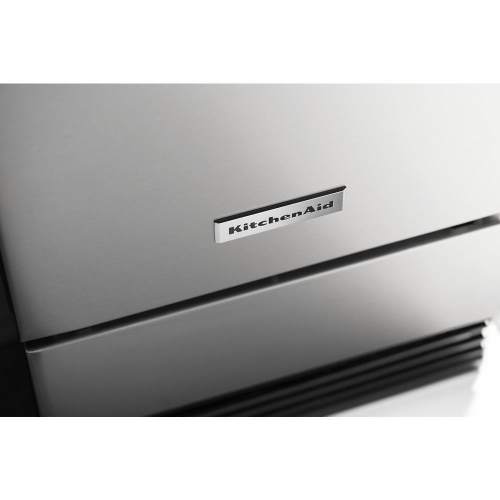

PrintShield™ Finish
PrintShield™ Finish
resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
Self Cleaning Cycle
Self Cleaning Cycle
Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.

  • Built-In Drain Pump System
  • Allows this ice maker to be installed nearly anywhere in the home within 100 feet of an under-sink drain line, so you can keep a continuous supply of clear ice in your kitchen or entertaining space
  • Clear Ice Technology
  • provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.
  • Filter-Ready
  • provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.
  • Fully Flush Installation with Articulating Hinge
  • allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.
  • Holds 25 Pounds of Ice
  • ensures a generous supply of fresh ice is conveniently at your fingertips.
  • Max Ice
  • PrintShield™ Finish
  • resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
  • Reversible Door
  • offers flexible installation options by allowing hinge installation on either side of the door.
  • Self Cleaning Cycle
  • Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.

Top 3 Features

Fully Flush Installation with Articulating Hinge

allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-

Clear Ice Technology

provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.

Factory-Installed Drain Pump

creates installation options and opens other areas of your home to supplemental ice storage.

Additional Features

Self-Cleaning Cycle

makes routine maintenance easy using a "clean cycle" and Affresh® ice maker cleaner.

Holds 25 Pounds of Ice

ensures a generous supply of fresh ice is conveniently at your fingertips.

Max Ice

ensures a generous supply of fresh ice is conveniently at your fingertips.

Filter-Ready

provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.

Reversible Door

offers flexible installation options by allowing hinge installation on either side of the door.

Panel-Ready

allows the ice maker to accept a custom front panel (not included) to complement or match surrounding cabinets.


UPC: 883049483283

Specs

Certifications
Ada Compliant No
Prop65 Standard
Ul Yes
Controls
Ambient Temperature Range 55F to 110F
Control Location Interior Up Front
Control Type Electronic Touch
Details
Door Opening Direction Right
Drain Connection Rear Access 5/8in. OD
Drain Pump Pump Included
Ice Capacity Storage 25
Stainless Steel Cutting Grid 3/4in. x 3/4in. Cubes
Water Inlet Connection 1/4in. OD PEX Tubing
Water Supply Pressure 30 - 120 psi
Dimensions
Carton Depth 28.37
Carton Height 36.07
Carton Width 17.25
Cutout Depth 25
Cutout Height 34.5
Cutout Width 15
Gross Weight 107
Height To Top of Cabinet 33.625
Height To Top of Door Hinge 34.063
Net Weight 96.5
Exterior Details
Cabinet Finish Textured
Cabinet Material Prepainted Steel
Handle Location Horizontal
Reversible Door Yes
Filter Details
Water Filter Indicator/reset Yes
Water Filter Location Interior
Water Filter Part Number F2WC9I1
Freezer Details
Defrost Type Automatic Defrost
Icemaker Details
Ice Maker On/off Yes
Oven Details
Interior Light LED
Refrigerator Details
Interior Liner Finish Plastic
Liner Color White

Dimensions
Depth 26 1/16
Cabinet Width 14 7/8
Carton Depth 28 3/8
Carton Height 36 1/8
Carton Width 17 1/4
Cutout Depth 25
Cutout Height 34 1/2
Cutout Width 15
Depth Closed Excluding Handles 24 5/8
Depth Closed Including Handles 26 1/16
Depth Excluding Doors 22 1/8
Depth With Door Open 90 Degree 39 1/2
Gross Weight 107
Height To Top Of Cabinet 33 5/8
Height To Top Of Door Hinge 34 1/16
Net Weight 96.5

Certifications
Prop 65 Standard
ADA Compliant No
UL UL
CEE Tier Not Rated
Energy Star® Qualified No

Configuration
Refrigeration Configuration Ice Maker

Refinement
Style Ice Makers

Controls
Ice Maker On/Off Yes
Defrost Type Automatic Defrost
Control Type Electronic Touch
Control Location Interior Up Front

Appearance
Cabinet Finish Textured
Reversible Door Yes

Exterior
Door Opening Right
Cabinet Material Prepainted Steel

Ice Maker Features
Selections Articulating Hinge,Clear Ice Technology,Easy Access Filter Install,Ice Scoop,Max Ice,True Flush Installable

Filters
Water Filter Part Number F2WC9I1

Details
Ambient Temperature Range 55F to 110F
Drain Connection Rear Access 5/8" OD
Drain Pump Pump Included
Ice Capacity Storage (lbs) 25
Liner Color White
Liner Finish Plastic
Interior Light LED
Stainless Steel Cutting Grid 3/4" x 3/4" Cubes
Water Inlet Connection 1/4" OD PEX Tubing
Water Supply Pressure psi 30 - 120 psi

Electrical
Amps 15 or 20
Volts 115/120

Filter Details
Water Filter Indicator/Reset Yes
Water Filter Location Interior
