KitchenAid
Buy 2 save $200, Buy 3 save $300,
Buy 4 save $400, Buy 5+ save $500!
PLUS Bonus offer up to $1750 in total savings*
KitchenAid KWCU405SSS
Discontinued
>> View & Compare KitchenAid Built In Cooking Line Up << >> View & Compare KitchenAid Built In Cooking Line Up <<
>> View & Compare KitchenAid Ventilation Line Up << >> View & Compare KitchenAid Ventilation Line Up <<
AHRMRW
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
In Home Delivery
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Price Match & Beat Guarantee: We beat any competitor’s price!*
Ratings & Reviews
AHRMRW
When will I get this?

Why Buy This at CAS?
In Home Delivery
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Price Match & Beat Guarantee: We beat any competitor’s price!*
Description & Features

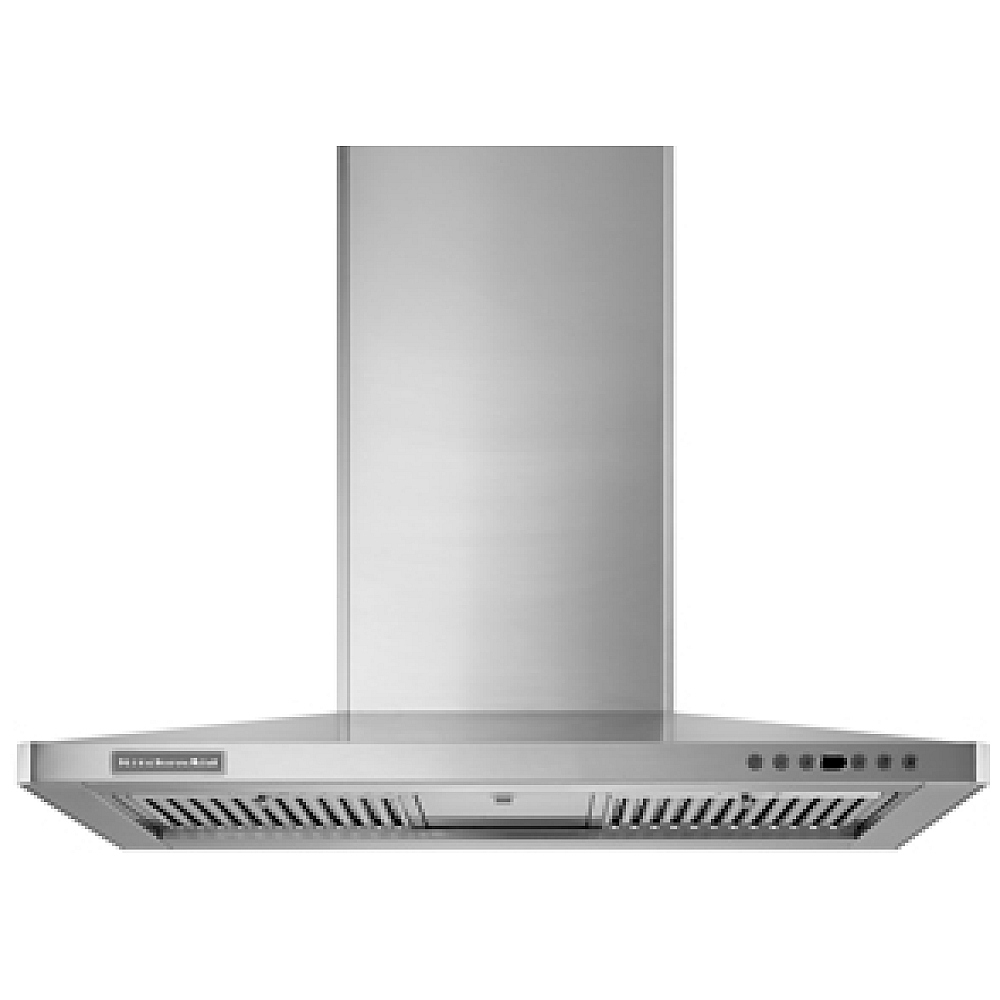

The sleek styling of this wall-mount canopy hood will complement any kitchen whether it is integrated into the design as a focal point, or simply admired for its slim canopy profile, beveled edges, and exceptional performance.



This KitchenAid® wall-mount hood offers a slim design, featuring a seamless canopy with beveled edges. You'll appreciate features like a Pro Motor, dual light setting, and Power Boost function for greater versatility when cooking.
  • Pro motor exhausts up to 600 CFM
  • Halogen lights over cooking surface
  • Dual-light setting
  • Dishwasher-safe grease filters help remove steam and grease
  • 4-speed electronic touch controls with blue light
  • Whisper Quiet® ventilation system
  • Convertible to recirculating installation (ductwork not included)
  • Chimney extension kit
  • Slim canopy profile
  • Seamless canopy design with beveled edges
  • Architect® Series II styling with new integrated cast metal badge

Manufacturer's Warranty: 1 year

Canadian model: KWCU405SSS

Specs
Electrical Requirements
Amperage 20 Amps.
Frequency 60 Hz.
Voltage 120 V.
Circuit Amps @ 120VAC 15
Type
VentilationType Updraft
Performance
Duct Outlet Size 6"
Duct Outlet Type Round
CFM (Vertical, Round) 600
Blower Type Pro Motor
Sones (Vertical, Round) 6.0
Lighting / Controls
Night Light Yes
Number of Light Settings 2
Number of Speeds 4
Number of Cooktop Lights 2
Cooktop Light Type Halogen
Control Type Push Button
Ventilation Features
Grease Filter Hvy. Duty Baffle Filters
Fan Speed Indication Yes
Dimensions
Lower Chimney Height (in) 21 1/4 Inches
Product Depth 22 Inches
Product Width 30 Inches
Canopy Height 3 15/16 Inches
Dimensions
Height: 3 15/16"
Depth: 22"
Duct Size: 6
Weight: 60 lbs.
Depth : 22
Height : 3 15/16
Width : 30
Canopy Height : 3 15/16
Performance
Blower Power : 600 Cubic feet per minute
Features
Charcoal Filter : No
Convertible to Re-Circulating Installation (ductwork not included) : Yes
Covered Light : Yes
Downdraft : No
Duct Type : Round
Fan Speeds : 4
Fluorescent Light : No
Heavy Duty Grease Filters : Yes
Non-Vented : No, Convertible
Optional Wire Racks : No
Pop-Up Vent Cover : No
Twin Blower : No
Type : Wall Mount
Variable Speed and ON/OFF Controls : No
Venting Style : Convertible
Washable Filters : Yes
Stainless Steel Backsplash : No
Lighting : 2 Halogen
Duct Size : 6 in. Round
Controls
Control Type : Push Button
Disappearing Control Panel : No
Up-Front Electronic Touch Control : No
Capacity
Maximum Exhaust Capacity : 600 Cubic feet per minute
Electrical: 20 Ampere, 120 Volts, 60 Hertz
Accessories
White optional recirculation kit (ductwork not included): Part No. 8212714
Black optional recirculation kit (ductwork not included): Part No. 8212714
Stainless Steel optional recirculation kit (ductwork not included): Part No. 8212713
White Chimney Extension Kit: Part No. 8212711
Black Chimney Extension Kit: Part No. 8212712
Stainless Steel Chimney Extension Kit: Part No. 8212710
