KitchenAid KWVU205YBA
Discontinued
>> View & Compare KitchenAid Built In Cooking Line Up << >> View & Compare KitchenAid Built In Cooking Line Up <<
>> View & Compare KitchenAid Ventilation Line Up << >> View & Compare KitchenAid Ventilation Line Up <<
1LL0G8
Call Now! 877-374-3439 Or Chat For Bundle Discounts
Call Now! 877-374-3439 Or Chat For Bundle Discounts
1LL0G8
When will I get this?

Reserve & Pick Up
FREE
Distribution Centres
Address
Units Available
Woodbridge, ON
27 Director Crt.
Winnipeg, MB
191 Elan Blvd
Burnaby, BC
8010 Winston St.
Ottawa, ON
55 Banton St.
Laval, QC
1340 Boul. Dagenais Ouest
Dartmouth, NS
315 Wilkinson Ave.
Calgary, AB
2777 23 Ave. NE
For more information on range hood installation services, click here.
Description & Features

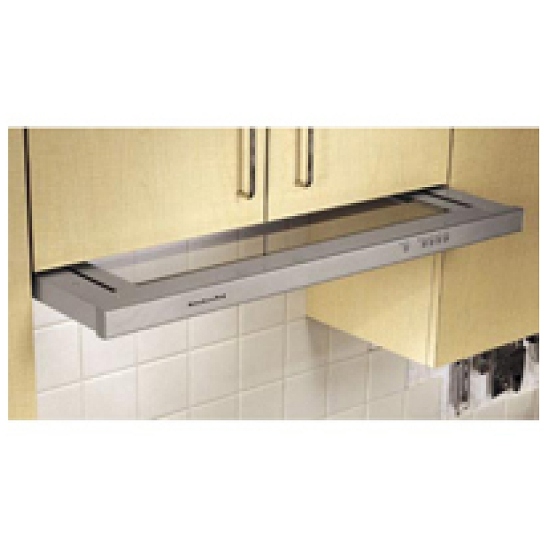

This hood features a slide-out system that fits flush under cabinets and slides out easily when you need it.


This hood features a slide-out system that fits flush under cabinets and slides out eas...cut...

Specs
Electrical Requirements
Amperage 15 Amps.
Frequency 60 Hz.
Voltage 120 V.
Circuit Amps @ 120VAC 15
Type
VentilationType Top Vented-Conv. to Recirc.
Performance
Duct Outlet Size 3 1/4" X 10"
Duct Outlet Type Rectangular
CFM (Horizontal, Rectangular) 350
Lighting / Controls
Number of Light Settings 1
Number of Speeds 3
Number of Cooktop Lights 1
Cooktop Light Type Fluorescent
Control Type Touch Control
Ventilation Features
Fan Speed Indication Yes
Grease Filter Dishwasher Safe Mesh Filter
Auto Off Yes
Dimensions
Product Depth 11 Inches
Product Height 10 1/2 Inches
Product Width 29 7/8 Inches

Dimensions
Height: 1 7/16"
Width: 30"
Depth: 11"
Duct Size: 3-1/4 in. x 10 in.
Weight: 70 lbs.
Depth: 11 in.
Height: 1 7/16 in.
Width: 30 in.
Performance
Blower Power: 350 CFM
Features
Convertible to Re-Circulating Installs: Yes
Covered Light: Yes
Downdraft: No
Fan Speeds: 3
Light: Fluorescent
Type: Convertible
Twin Blower: Yes
Variable Speed and ON/OFF Controls: Yes
Washable Filters: Yes
Duct Size: 3-1/4 in. x 10 in. Rectangular
Controls
Control Type: Electric
Electrical
Details: 15 Ampere, 120 Volts, 60 Hertz (1/second), USE COPPER WIRE ONLY. GROUNDED CIRCUIT IS REQUIRED. A TIME-DELAY FUSE OR CIRCUIT BREAKER AND SEPARATE CIRCUIT IS RECOMMENDED.
