CH0030SQB Kobe Range Hood Canada Parts - Sale! Best Price, Reviews and Specs

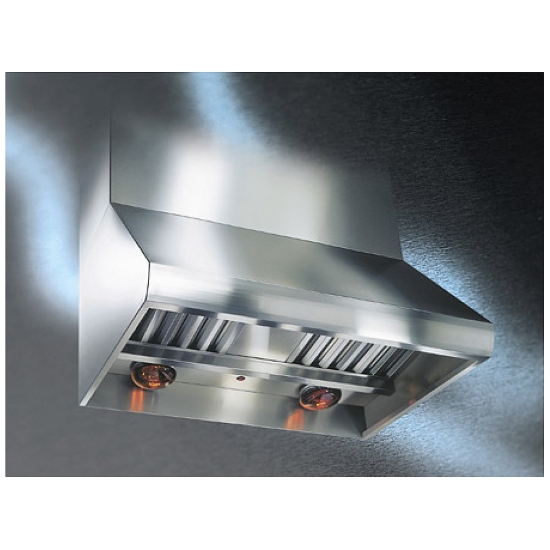

Kobe CH0030SQB Pro-Style Under Cabinet Range Hood with 1000 CFM Internal Blower, 4 Speed Electronic Buttons, Halogen Lights, Heat Lamps, 30-Second Delay Shutoff and Baffle Filters

QuietMode™ feature allows the KOBE range hood to operate at a reduced sound level of 45 decibels (1.4 sones).
Powerful Motor gives the hood a max CFM of 1000.
The 18-Gauge commercial grade stainless steel frame and seamless design allow the hood to be installed over any cooking system.
The Time Delay System features a 10-second standby startup and a 30-second delay shutoff.
Four-button electronic control - light, speed button, alternate speed button, and On/Off.
This remarkable hood comes with two bright 12-volt 20-watt halogen lights.
Two heating lamps allow you to keep your food warm while you are still cooking.
Two stainless steel baffle filters provide professional strength and appearance.
Quality Parts are checked for defects and designed for trouble free, long term use and are easy to install.
This versatile hood can be used as a hood liner for custom hood frames, for under cabinet or for stand alone style with the optional duct cover.

Manufacturer's Warranty: 2 years

Canadian model: CH0030SQB

Specs


Model / Size	CH0030SQB / 30" CH0042SQB / 42" CH0048SQB / 48"	CH0030SQB / 30" CH0042SQB / 42" CH0048SQB / 48"	CH0030SQB / 30" CH0042SQB / 42" CH0048SQB / 48"	CH0030SQB / 30" CH0042SQB / 42" CH0048SQB / 48"	CH0030SQB / 30" CH0042SQB / 42" CH0048SQB / 48"	CH0030SQB / 30" CH0042SQB / 42" CH0048SQB / 48"
Design	18-Gauge Seamless Commercial Stainless Steel	18-Gauge Seamless Commercial Stainless Steel	18-Gauge Seamless Commercial Stainless Steel	18-Gauge Seamless Commercial Stainless Steel	18-Gauge Seamless Commercial Stainless Steel	18-Gauge Seamless Commercial Stainless Steel
Voltage	120V 60Hz	120V 60Hz	120V 60Hz	120V 60Hz	120V 60Hz	120V 60Hz
Motor Type	Double Horizontal Squirrel Cage	Double Horizontal Squirrel Cage	Double Horizontal Squirrel Cage	Double Horizontal Squirrel Cage	Double Horizontal Squirrel Cage	Double Horizontal Squirrel Cage
Speed	QuietMode™	Low	Medium	High	High	High
Air Capacity (cfm)	400	600	800	1000	1000	1000
Sone	1.4	3.5	7.0	8.0	8.0	8.0
(dB)	45	58	67.5	70	70	70
Exhaust	Top Transition Rectangular to 8" Round x 1	Top Transition Rectangular to 8" Round x 1	Top Transition Rectangular to 8" Round x 1	Top Transition Rectangular to 8" Round x 1	Top Transition Rectangular to 8" Round x 1	Top Transition Rectangular to 8" Round x 1
Controls	Electronic Control (4 Buttons) - 10-Second Standby Startup 30-Second Delay Shutoff	Electronic Control (4 Buttons) - 10-Second Standby Startup 30-Second Delay Shutoff	Electronic Control (4 Buttons) - 10-Second Standby Startup 30-Second Delay Shutoff	Electronic Control (4 Buttons) - 10-Second Standby Startup 30-Second Delay Shutoff	Electronic Control (4 Buttons) - 10-Second Standby Startup 30-Second Delay Shutoff	Electronic Control (4 Buttons) - 10-Second Standby Startup 30-Second Delay Shutoff
Halogen Lights	12V 20W x 2 (30") 12V 20W x 3 (42" & 48")	12V 20W x 2 (30") 12V 20W x 3 (42" & 48")	12V 20W x 2 (30") 12V 20W x 3 (42" & 48")	12V 20W x 2 (30") 12V 20W x 3 (42" & 48")	12V 20W x 2 (30") 12V 20W x 3 (42" & 48")	12V 20W x 2 (30") 12V 20W x 3 (42" & 48")
Heating Lamps	Required 120V 175W (Lamps are not included with unit. Only heating lamps socket.)	Required 120V 175W (Lamps are not included with unit. Only heating lamps socket.)	Required 120V 175W (Lamps are not included with unit. Only heating lamps socket.)	Required 120V 175W (Lamps are not included with unit. Only heating lamps socket.)	Required 120V 175W (Lamps are not included with unit. Only heating lamps socket.)	Required 120V 175W (Lamps are not included with unit. Only heating lamps socket.)
Hood Dimension (W x D x H)	(CH0030SQB) 29-3/4" x 24" x 18" (CH0042SQB) 41-3/4" x 24" x 18" (CH0048SQB) 47-3/4" x 24" x 18"	(CH0030SQB) 29-3/4" x 24" x 18" (CH0042SQB) 41-3/4" x 24" x 18" (CH0048SQB) 47-3/4" x 24" x 18"	(CH0030SQB) 29-3/4" x 24" x 18" (CH0042SQB) 41-3/4" x 24" x 18" (CH0048SQB) 47-3/4" x 24" x 18"	(CH0030SQB) 29-3/4" x 24" x 18" (CH0042SQB) 41-3/4" x 24" x 18" (CH0048SQB) 47-3/4" x 24" x 18"	(CH0030SQB) 29-3/4" x 24" x 18" (CH0042SQB) 41-3/4" x 24" x 18" (CH0048SQB) 47-3/4" x 24" x 18"	(CH0030SQB) 29-3/4" x 24" x 18" (CH0042SQB) 41-3/4" x 24" x 18" (CH0048SQB) 47-3/4" x 24" x 18"
Weight (lbs)		Net	Gross		Net	Gross
Weight (lbs)	(CH0030SQB)	70.0	84.0	(CH0042SQB)	84.0	104.0
Weight (lbs)	(CH0048SQB)	92.0	115.0

Dimensions
Width:	29 3/4"
Depth:	24"
Height:	18"
Weight:	70 lbs.
Shipping Weight:	84 lbs.
Specifications
QuietMode™:	400 CFM/1.4 sones/45dB
Low Speed:	600 CFM/3.5 sones/58dB
Medium Speed:	800 CFM/7.9 sones/67.5dB
High Speed:	1000 CFM/8 sones/70dB
Motor Type:	Double Horizontal Squirrel Cage
Voltage:	120V/60Hz

Manuals

Manual-PDF (CH0030SQB-manual-pdf-canada.pdf)

Specification-PDF (CH0030SQB-specification-pdf-canada.pdf)
