Kobe RA3836SQD
Discontinued
AEUBY8
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $47.62 for 18 months
Ratings & Reviews
AEUBY8
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $47.62 for 18 months
Description & Features

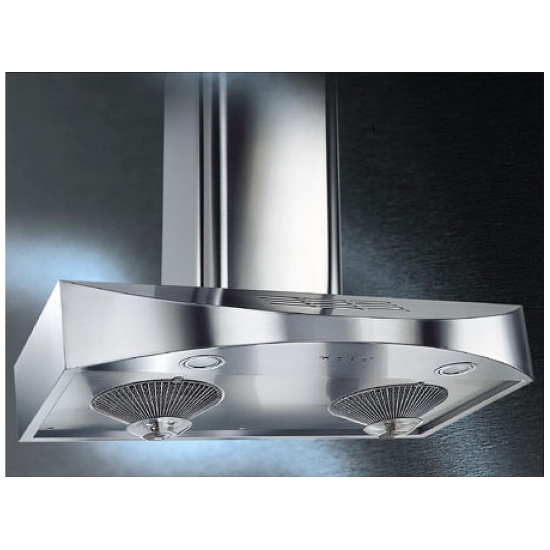

Kobe RA3836SQD Pro-Style Under Cabinet Range Hood with 440 CFM Internal Blower, 3 Speed Control, Halogen Lights, Safety Screen Filters and Recirculating Charcoal Filter Kits

This professional hood provides style and versatility all in one! Features a powerful and super quiet internal blower. Includes Two halogen lights for a clear soft tone to your cooking area.



  • Duct Free with Included Charcoal Filter Unit
  • Make this a Recirculating Wall Mounted Hood with the Recommended Recirculating Duct Cover (model RA1020RD)
  • This model has a four-button control panel - Light, Speed button (cycles through Low, Medium, High, & Quiet Mode™), alternate Speed button (cycles through Low, Quiet Mode™, High, & Medium) and On/Off.
  • Includes Two bright 12-volt 20-watt halogen lights
  • Fully enclosed bottom casing protects interior from oil and smoke.
  • Included charcoal filter unit with oil containers, one on each safety screen. With this charcoal filter unit, smokes and greases are easier to handle.
  • Innovative design for installation under the cabinet or as Wall Mounted with the optional duct cover (Model No. RA1020DC).



FOUR SPEEDS

  • Quiet Mode at 150 CFM and 2.0 Sones
  • Low at 200 CFM and 2.8 Sones
  • Medium at 330 CFM and 4.0 Sones
  • High at 400 CFM and 4.6 Sones



Manufacturer's Warranty: 2 years

Canadian model: RA3836SQD

Specs
Model / Size RA3830SQD / 30"
RA3836SQD / 36"		 RA3830SQD / 30"
RA3836SQD / 36"		 RA3830SQD / 30"
RA3836SQD / 36"		 RA3830SQD / 30"
RA3836SQD / 36"
Design 18-Gauge Seamless Commercial Stainless Steel 18-Gauge Seamless Commercial Stainless Steel 18-Gauge Seamless Commercial Stainless Steel 18-Gauge Seamless Commercial Stainless Steel
Voltage 120V 60Hz 120V 60Hz 120V 60Hz 120V 60Hz
Motor Type Twin Turbine Impeller Twin Turbine Impeller Twin Turbine Impeller Twin Turbine Impeller
Speed QuietMode™ Low Medium High
Air Capacity (cfm) 150 200 330 400
Sone 2.0 2.8 4.0 4.6
(dB) 50 55 60 62.5
Exhaust Duct Free with Charcoal Filter Unit Duct Free with Charcoal Filter Unit Duct Free with Charcoal Filter Unit Duct Free with Charcoal Filter Unit
Controls Electronic Control (4 Buttons) - 10-Second Standby Startup 30-Second Delay Shutoff Electronic Control (4 Buttons) - 10-Second Standby Startup 30-Second Delay Shutoff Electronic Control (4 Buttons) - 10-Second Standby Startup 30-Second Delay Shutoff Electronic Control (4 Buttons) - 10-Second Standby Startup 30-Second Delay Shutoff
Halogen Lights 12V 20W x 2 12V 20W x 2 12V 20W x 2 12V 20W x 2
Hood Dimension (W x D x H) (RA3830SQD) 29-3/4" x 20-1/2" x 5-1/8"
(RA3836SQD) 35-1/4" x 20-1/2" x 5-1/8"		 (RA3830SQD) 29-3/4" x 20-1/2" x 5-1/8"
(RA3836SQD) 35-1/4" x 20-1/2" x 5-1/8"		 (RA3830SQD) 29-3/4" x 20-1/2" x 5-1/8"
(RA3836SQD) 35-1/4" x 20-1/2" x 5-1/8"		 (RA3830SQD) 29-3/4" x 20-1/2" x 5-1/8"
(RA3836SQD) 35-1/4" x 20-1/2" x 5-1/8"
Weight (lbs) Net Gross Gross
Weight (lbs) (RA3830SQD) 36.3 40.7 40.7
Weight (lbs) (RA3836SQD) 39.6 44.0 44.0



Dimensions & Weights



Hood Width:

35 1/4"



Hood Depth:

20 1/2"



Hood Height:

5 1/8"



Net Weight:

39.6 lbs.



Gross Weight:

44.0 lbs.



Specifications



Design:

18-Gauge Seamless Commercial Stainless Steel



Motor Type:

Twin Vertical Turbine Impeller



QuietMode (Air Capacity/Sone/dB):

150 CFM/2.0/50



Low (Air Capacity/Sone/dB):

200 CFM/2.8/55



Medium (Air Capacity/Sone/dB):

330 CFM/4.0/60



High (Air Capacity/Sone/dB):

400 CFM/4.6/62.5



Exhaust:

Duct Free with Charcoal Filter Unit



Controls:

Electronic Control (4 Buttons) - 10-Second Standby Startup; 30-Second Delay Shutoff



Halogen Lights:

12V 20W x 2



Voltage:

120V 60Hz





Manuals
Video
RA3836SQD
Reviews
Rebates
Warranty
Financing
Install
Delivery and installation services are available from CAS
(Includes washers, dryers, and more.)
Click here for more details.
Custom advanced installation services (after delivery)
(Gas connections, ventilation, dishwashers, etc.)
Offered by Quick Contractors®
 1-877-694-3909
To book service online, please visit quicktask.com/cas
Delivery

Videos

Kobe RA3836SQD Live Demonstration Video
