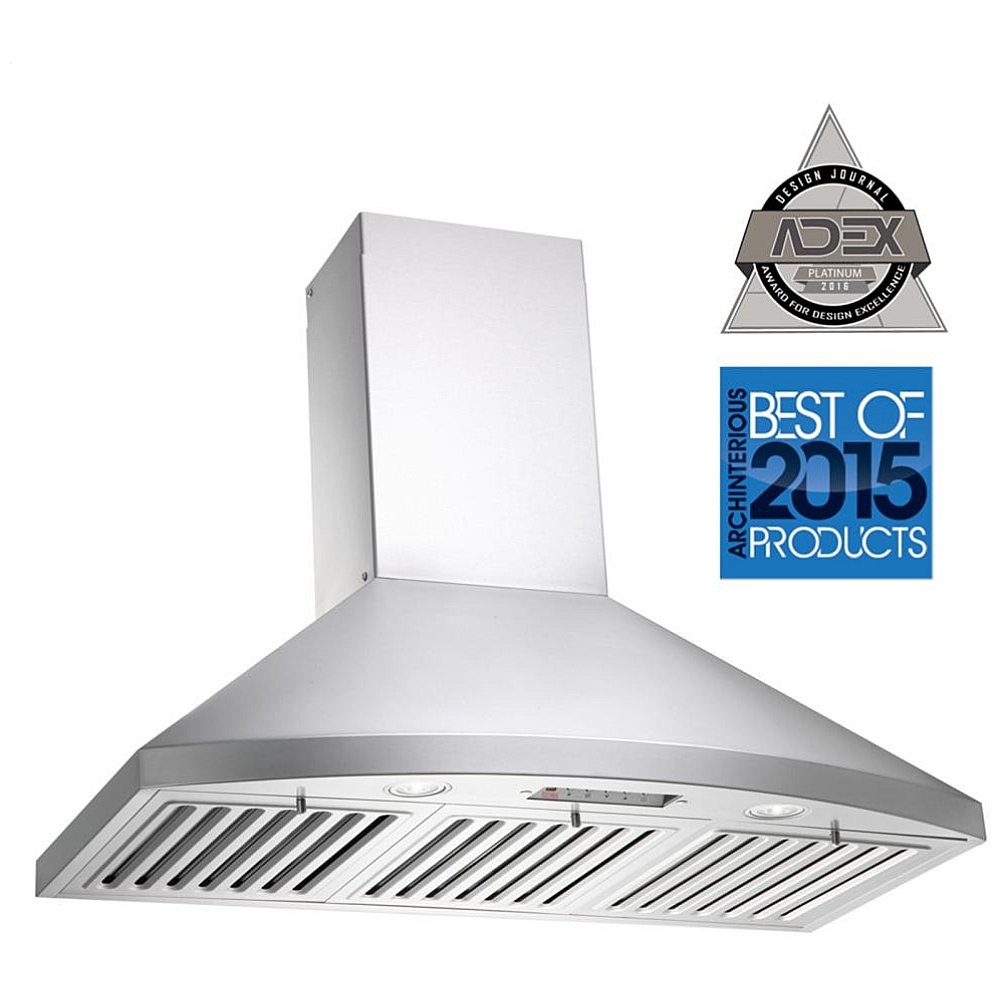

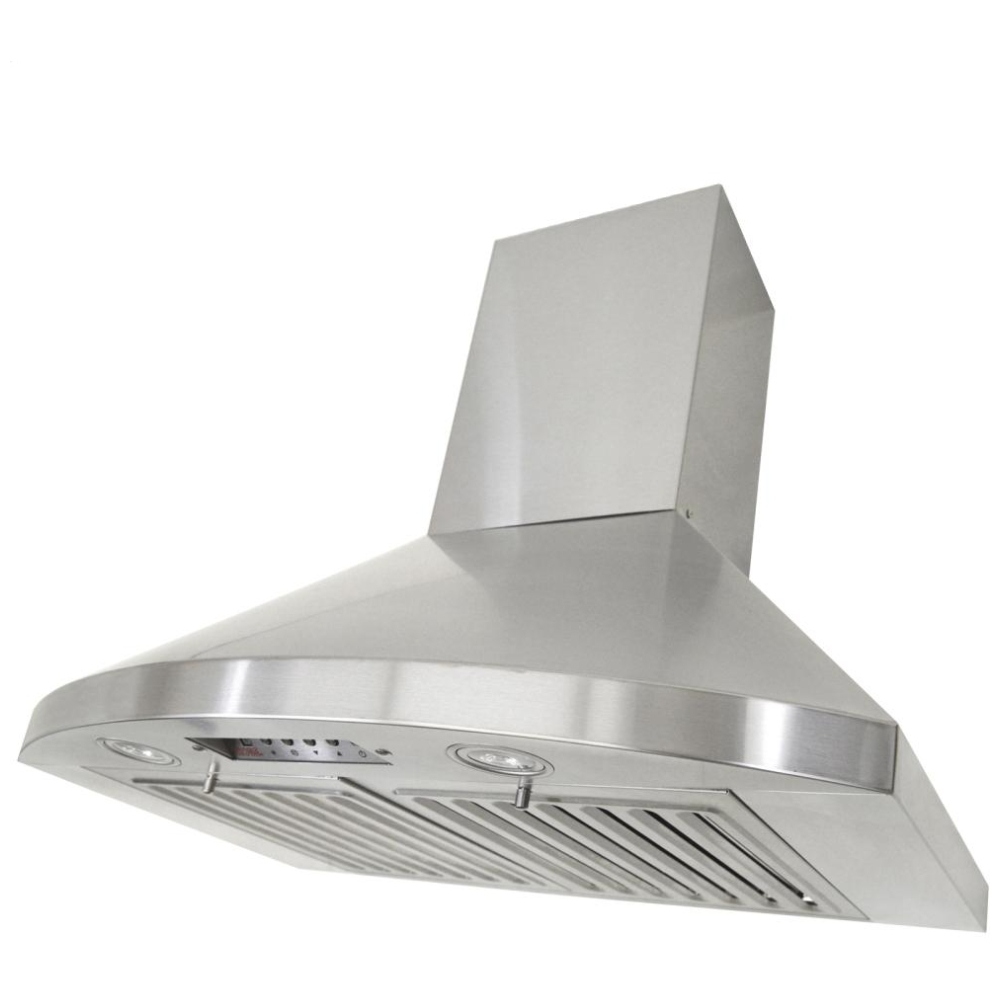

Kobe

RA9230SQB-1

 QuietMode

• At 300 CFM, this unique feature allows the KOBE range hood to operate at a reduced sound level of 40 decibels (1.0 sone). Other hoods operate between 6 to 8 sones at a comparable cfm level.

Powerful Motor

• QuietMode™ 300 CFM (1.0 sone)
• Speed 1 420 CFM (2.0 sones)
• Speed 2 510 CFM (3.5 sones)
• Speed 3 590 CFM (5.0 sones)
• Speed 4 640 CFM (5.4 sones)
• Speed 5 750 CFM (6.0 sones)

Multi Exhaust

• 6" Round Exhaust Duct

Attractive Appearance

• The 18-Gauge frame and seamless design allow the hood to be installed over any cooking system.

Time Delay Control

• The Time Delay System features a 3-minute delay shutoff (1 push On/Off) or immediately shutdown (2 push On/Off).

ECO Mode

• ECO Mode runs the fan on the QuietMode™ setting for 10 minutes every hour to remove excess moisture, microscopic particles and odors to promote a cleaner kitchen air quality.

Control

• 6-Speed / Five electronic button with LED Display, featuring the ECO Mode, Light Control, Speed Control (Speed 1, 2, 3, 4, 5 & QuietMode™ Speed), and Power Control (On/Off).

Bright LED Light

• The hood is equipped with 3W LED lights with 3-level lighting.

Easy to Clean

• KOBE's unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood.

Baffle Filters

• Dishwasher safe professional baffle filters allow for easy cleaning.

Quality

• Parts are checked for defects and designed for trouble free long term use.

Easy to Install

• Our special design makes installation fast and easy.

Color

• 18-Gauge Commercial Grade Stainless Steel - Satin Finish

Optional Accessories

Extension Duct Cover:

• Model No. RA0930DC
• Model No. RA0946DC

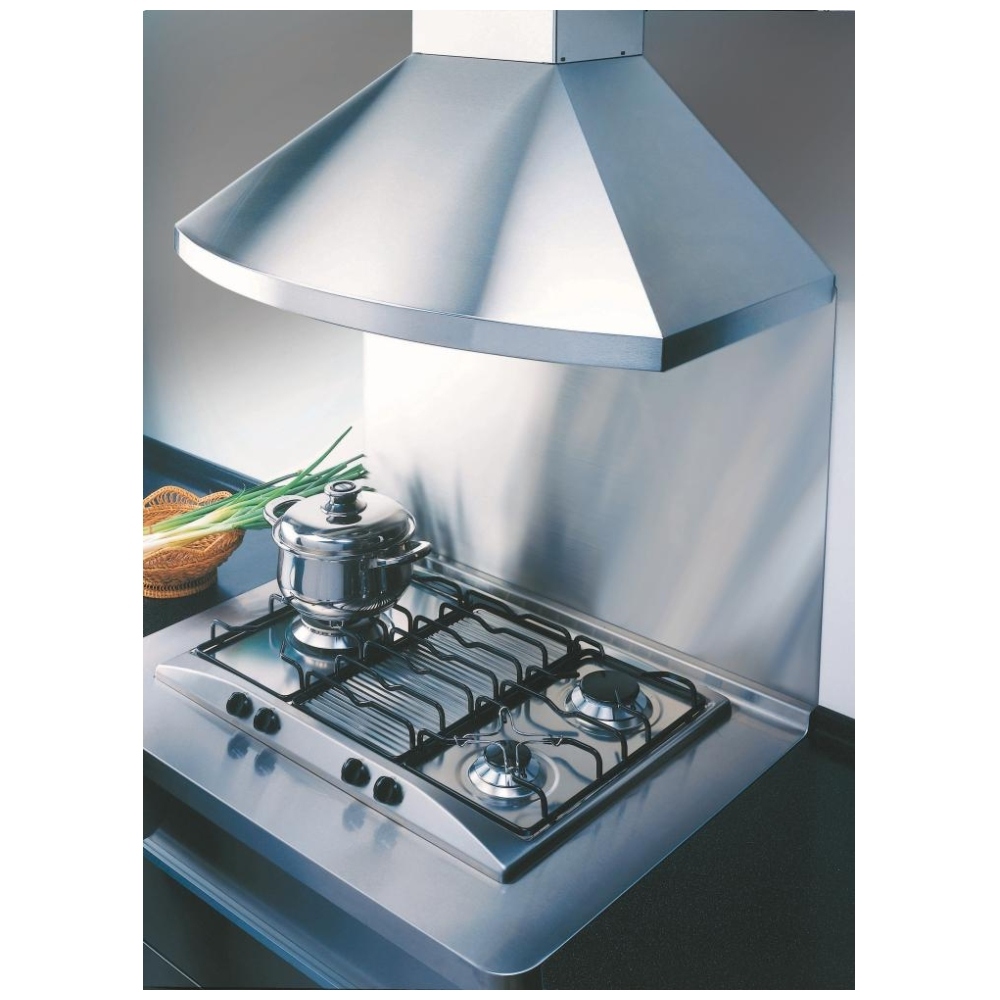

Stainless Steel Back Splash:

• 30" Stainless Steel Back Splash - Model No. SSP30
• 36" Stainless Steel Back Splash - Model No. SSP36

Manufacturer's Warranty: 2 years

Canadian model: RA9230SQB-1

Canadian UPC: 616483562029

EAN: 0616483562029
