RA9430SQB Kobe Range Hood Canada Parts - Sale! Best Price, Reviews and Specs

Kobe RA9430SQB Wall Mount Hood 30 in with 4 Speeds, QuietMode, Automatic Delay Shutoff and Standby Startup

Seamless with graceful curves, this uniquely designed European hood speaks of chic elegance and sophistication that's designed to enhance any kitchen area. Featuring a Powerful and ultra quiet internal blower and includes two 20 Watt halogen lights to set a clear soft tone to your cooking area. Includes Stainless steel baffle filters that provide style and professional grease-trapping ability. Now Featuring Smart Delay Shutoff that shuts off power automatically after a 30-second time delay.

6" Round Exhaust
Includes One Adjustable Duct Cover (Height Adjusts from 15-1/2" to 27")
Four speed with convenient Electronic Button Control - Power Control Button (On/Off), 2 Buttons for Speed Control (Quiet Mode(tm)/Low/Medium/High), and Light Control Button.
Constructed of Commercial Grade Stainless Steel

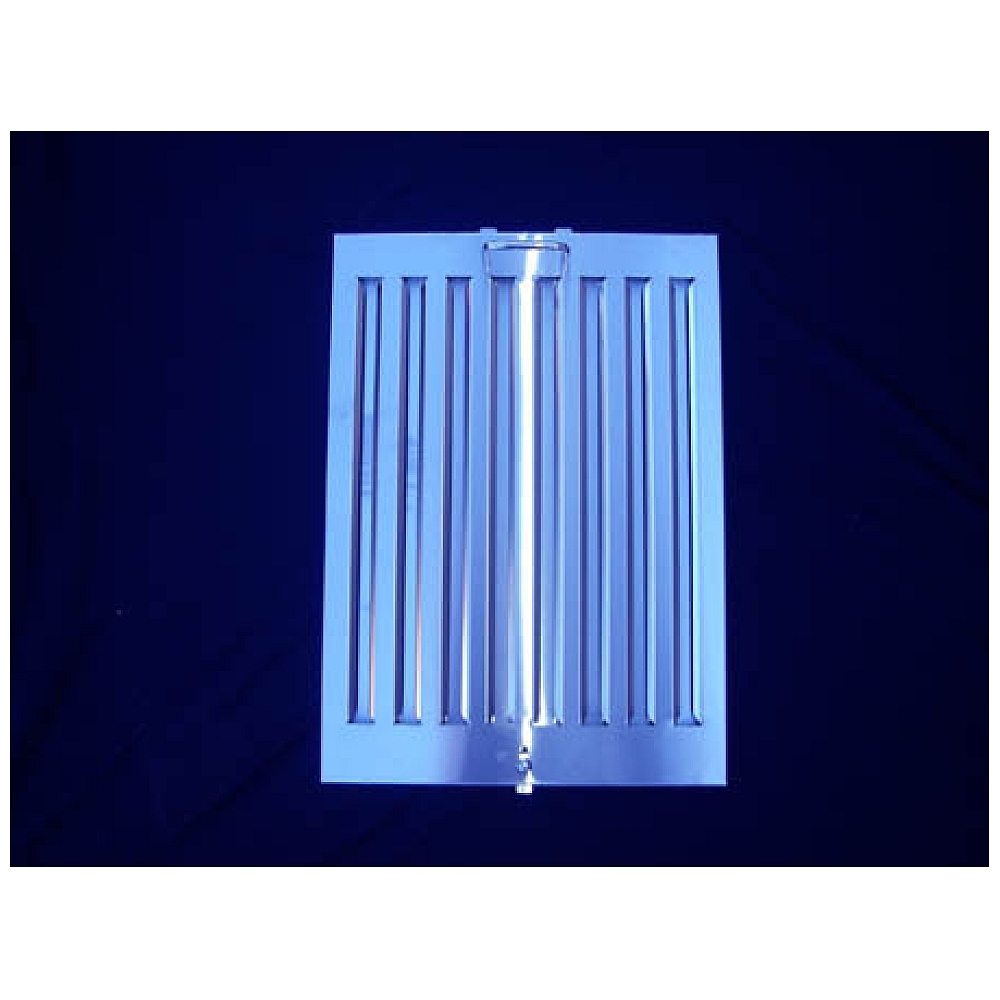

Includes Two Dishwasher Safe Stainless Steel Baffle Filters

SPEEDS

Quiet Mode runs at 280 CFM and 1.2 Sones
Low runs at 420 CFM and 2.0 Sones
Medium Runs at 580 CFM and 2.8 Sones
High Runs at 760 CFM and 4.5 Sones

Manufacturer's Warranty: 2 years

Canadian model: RA9430SQB

Specs


Model / Size	RA9430SQB / 30" RA9436SQB / 36"	RA9430SQB / 30" RA9436SQB / 36"	RA9430SQB / 30" RA9436SQB / 36"	RA9430SQB / 30" RA9436SQB / 36"
Design	18-Gauge Seamless Commercial Stainless Steel	18-Gauge Seamless Commercial Stainless Steel	18-Gauge Seamless Commercial Stainless Steel	18-Gauge Seamless Commercial Stainless Steel
Voltage	120V 60Hz	120V 60Hz	120V 60Hz	120V 60Hz
Motor Type	Horizontal Squirrel Cage	Horizontal Squirrel Cage	Horizontal Squirrel Cage	Horizontal Squirrel Cage
Speed	QuietMode™	Low	Medium	High
Air Capacity (cfm)	280	420	580	760
Sone	1.2	2.0	2.8	4.5
(dB)	42	50	55	62
Exhaust	Top 6" Round	Top 6" Round	Top 6" Round	Top 6" Round
Controls	Electronic Control (4 Buttons) - 10-Second Standby Startup 30-Second Delay Shutoff	Electronic Control (4 Buttons) - 10-Second Standby Startup 30-Second Delay Shutoff	Electronic Control (4 Buttons) - 10-Second Standby Startup 30-Second Delay Shutoff	Electronic Control (4 Buttons) - 10-Second Standby Startup 30-Second Delay Shutoff
Halogen Lights	12V 20W x 2	12V 20W x 2	12V 20W x 2	12V 20W x 2
Hood Dimension (W x D x H)	(RA9430SQB) 29-3/4" x 20-1/2" x 12-1/4" (RA9436SQB) 35-1/4" x 20-1/2" x 12-1/4"	(RA9430SQB) 29-3/4" x 20-1/2" x 12-1/4" (RA9436SQB) 35-1/4" x 20-1/2" x 12-1/4"	(RA9430SQB) 29-3/4" x 20-1/2" x 12-1/4" (RA9436SQB) 35-1/4" x 20-1/2" x 12-1/4"	(RA9430SQB) 29-3/4" x 20-1/2" x 12-1/4" (RA9436SQB) 35-1/4" x 20-1/2" x 12-1/4"
Duct Cover Dimension (W x D x H)	(RA9236DC) 10-9/16" x 7-15/16" x (15-1/2"~27")	(RA9236DC) 10-9/16" x 7-15/16" x (15-1/2"~27")	(RA9236DC) 10-9/16" x 7-15/16" x (15-1/2"~27")	(RA9236DC) 10-9/16" x 7-15/16" x (15-1/2"~27")
Weight (lbs)		Net	Gross	Gross
Weight (lbs)	(RA9430SQB)	42.0	62.0	62.0
Weight (lbs)	(RA9436SQB)	46.0	53.0	53.0

Dimensions
Width:	29 3/4"
Depth:	20 1/2"
Height:	12 1/4"
Exhaust Duct:	Top 6" Round
Weight:	42 lbs.
Shipping Weight:	62 lbs.
Specifications
QuietMode™:	280 CFM/1.2 sones/42dB
Low Speed:	420 CFM/2 sones/50dB
Medium Speed:	580 CFM/2.8 sones/55dB
High Speed:	760 CFM/4.5 sones/62dB
Motor Type:	Double Horizontal Squirrel Cage
Voltage:	120V/60Hz
