Gas Range Connection $189
(Includes Disconnecting Old Gas Unit)
Monogram
Save up to 20% on selected Appliances
PLUS Additional Savings up to $3500!
4.8 24

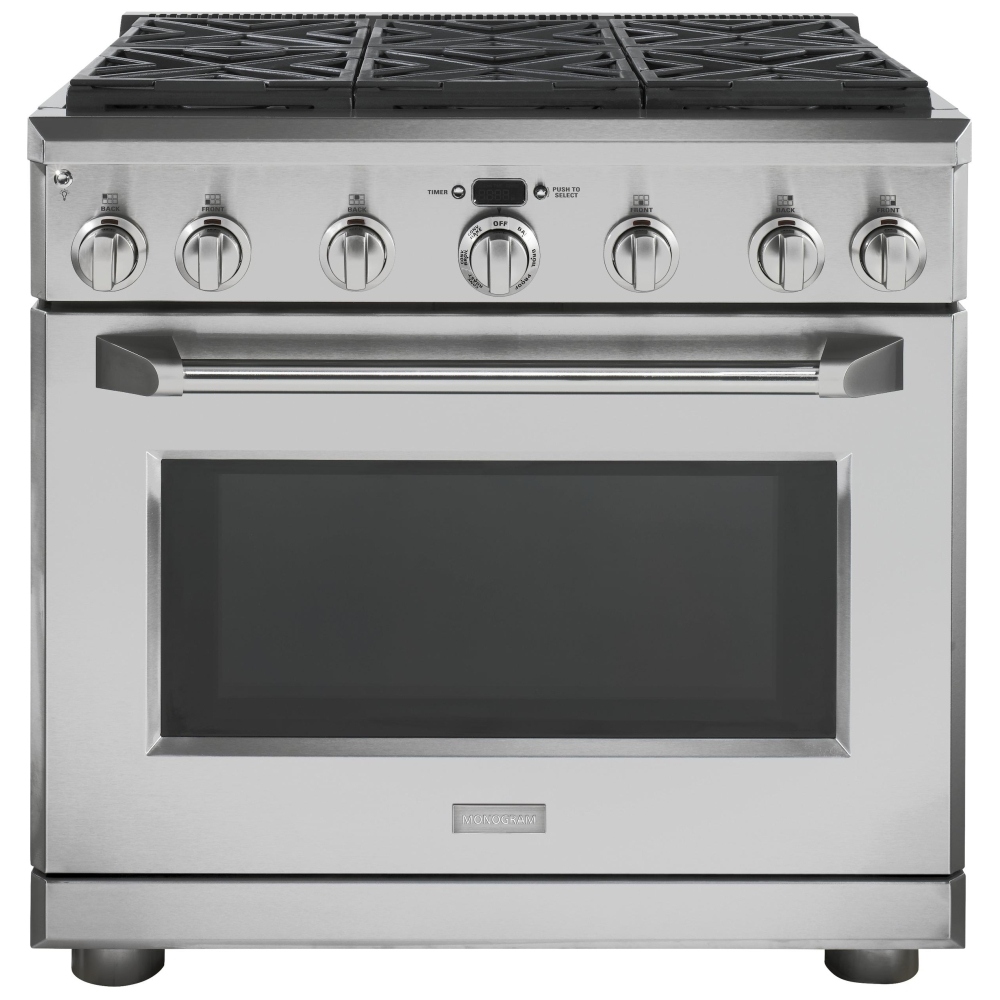

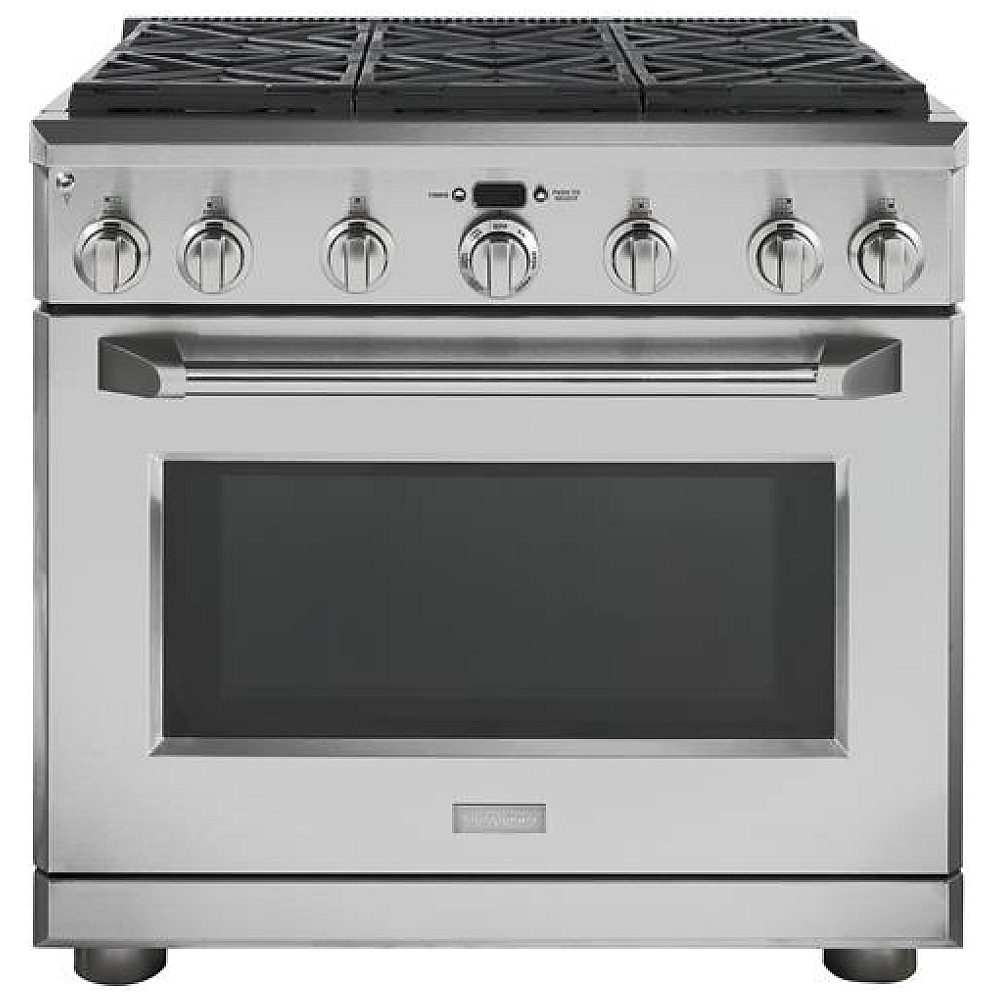

Monogram ZDP366NPSS
Discontinued
AD570W
Why Buy This at CAS?
Free In Home Delivery*
Haul Away Included
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
60 Day Returns
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $517.95 for 18 months
Ratings & Reviews
4.8
92%
recommend this
Read Reviews
(24 reviews)
Similar Colours and Options
ZDP366NNSS
ZDP366NNSS
Stainless Steel
AD570W
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Haul Away Included
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
60 Day Returns
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $517.95 for 18 months
Description & Features

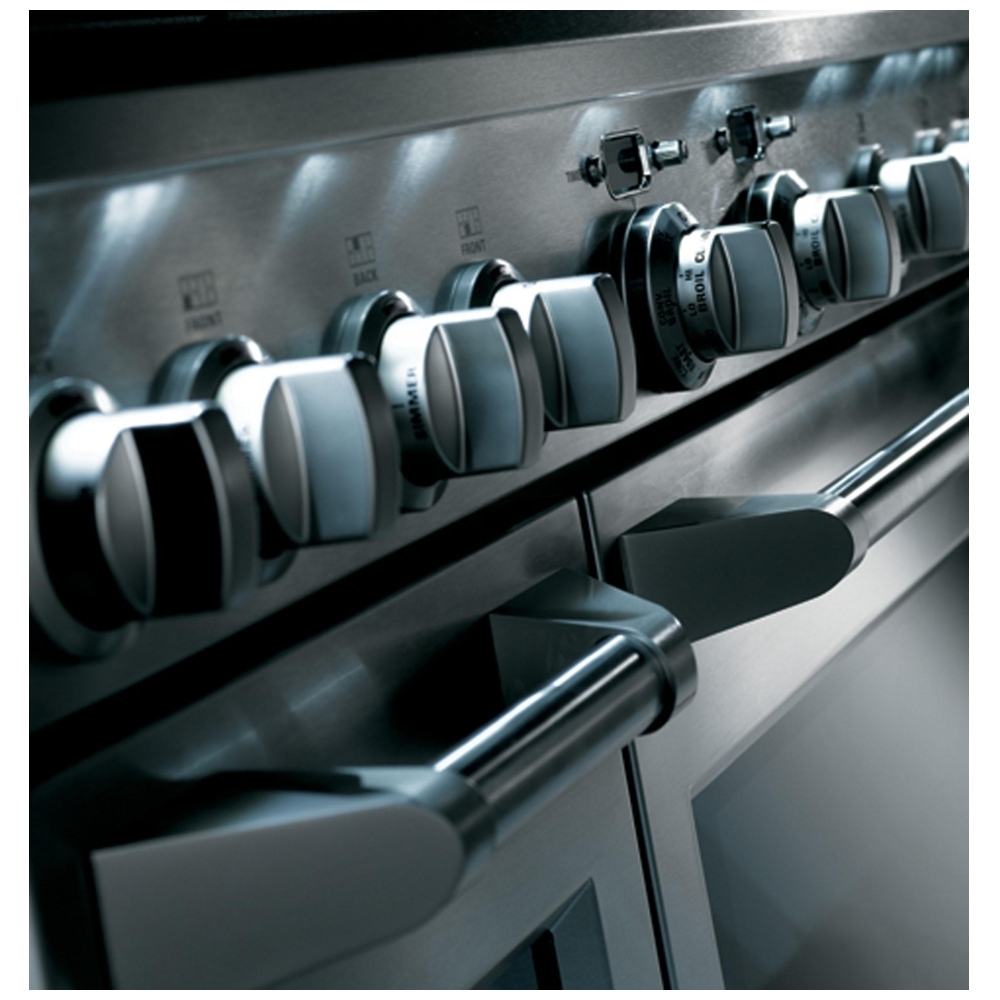

Authentic professional appearance

Stainless steel with smoothly finished edges, large electronic control knobs and heavy duty handles


Sealed, dual-flame stacked burners

Deliver a full spectrum of heat settings, from an ultra-low 140° F simmer to an intense 18,000 BTU


Monogram professional oven system

Combines European, reverse-air convection technology and six heating elements to provide superb baking results


Heavy-duty, full-extension racks

Glide smoothly in and out on stainless steel ball bearings for easy access, and are designed to remain in the oven during the self-clean cycle

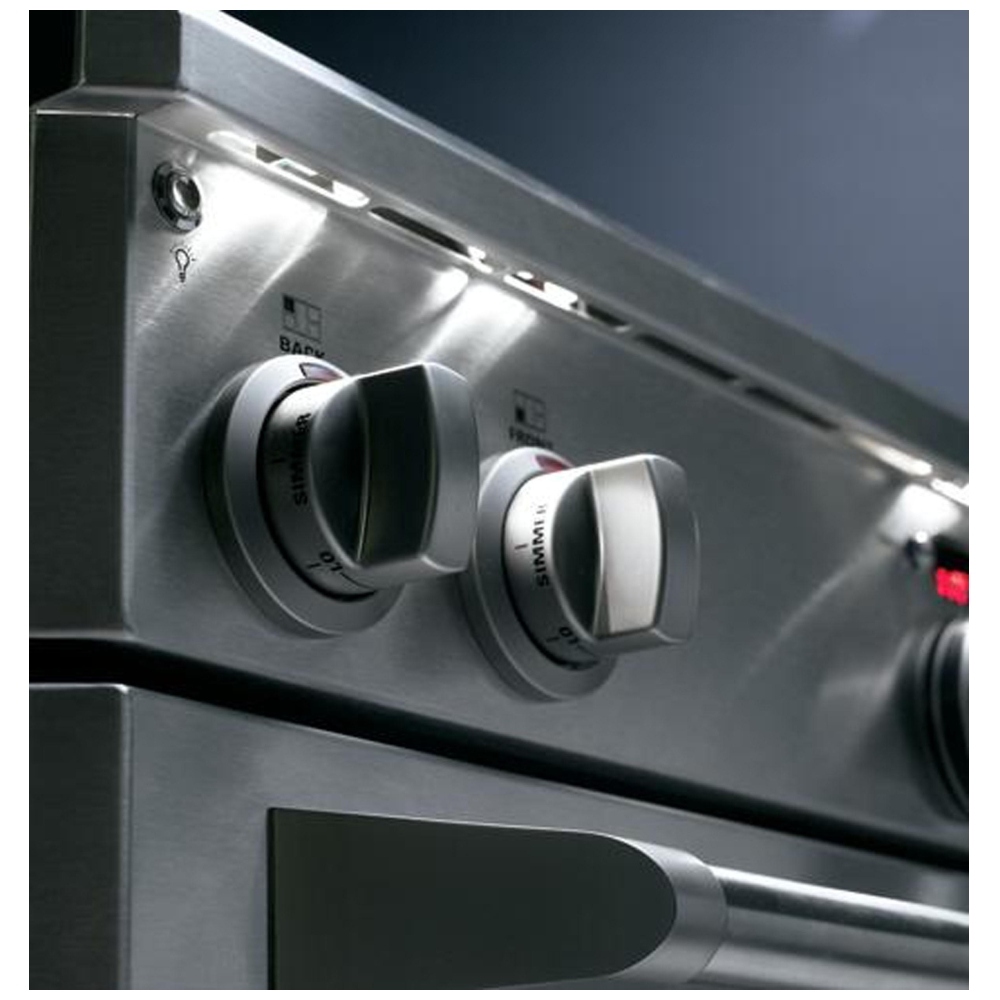

LED task lights

Below the bullnose, provide a functional and theatrical touch


Electronic ignition with automatic reignition

Ensures a continuous flame and reignites automatically if accidentally extinguished


Star-K certification

Allows Monogram ranges to operate in Sabbath mode


Optional full-width stainless steel toekick

Is included with the range


Large temperature and time displays

Make it easy to monitor cooking progress


Halogen light columns

Provide a clear view, regardless of rack position

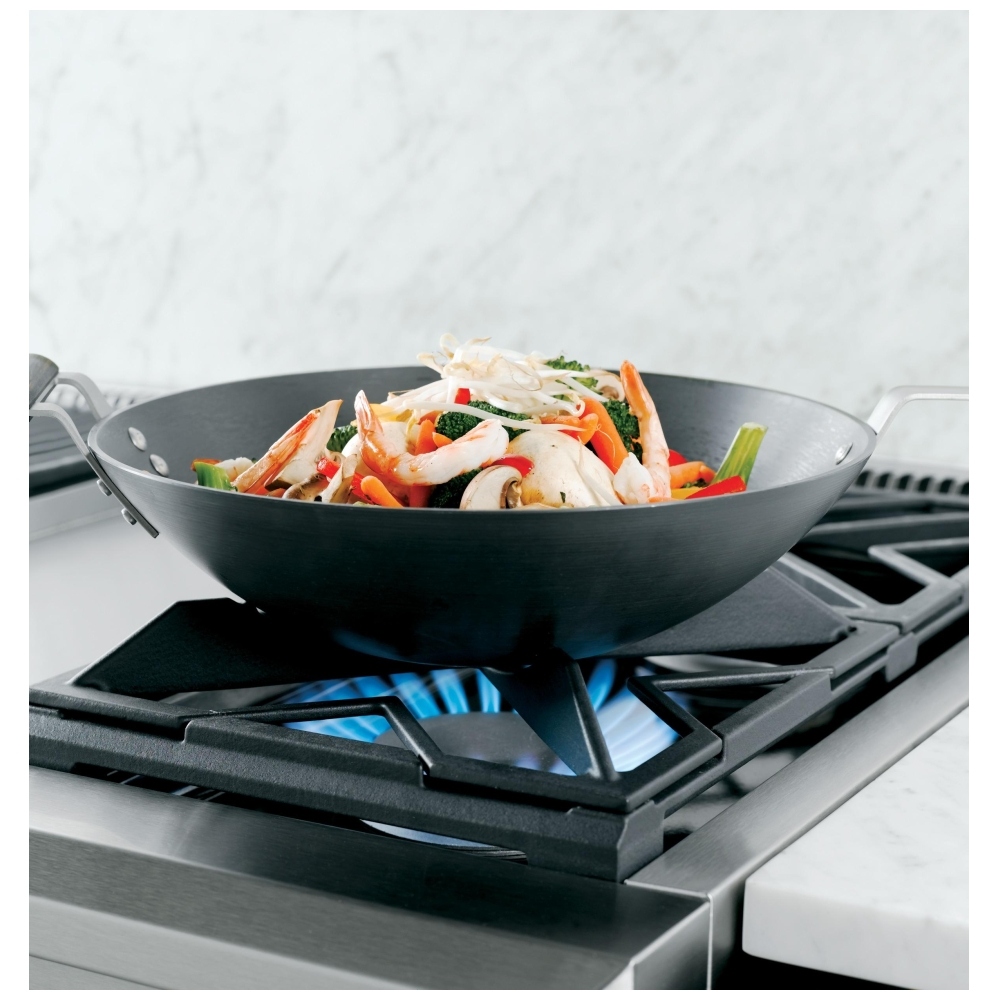

Reversible burner grates

Flat on one side and uniquely contoured on the other to accommodate round-bottom woks


Optional fixed (12 inch) or adjustable-height (30-36 inch) backsplashes

Are available

  • Authentic professional appearance
  • Stainless steel with smoothly finished edges, large electronic control knobs and heavy duty handles
  • Sealed, dual-flame stacked burners
  • Deliver a full spectrum of heat settings, from an ultra-low 140° F simmer to an intense 18,000 BTU
  • Monogram professional oven system
  • Combines European, reverse-air convection technology and six heating elements to provide superb baking results
  • Heavy-duty, full-extension racks
  • Glide smoothly in and out on stainless steel ball bearings for easy access, and are designed to remain in the oven during the self-clean cycle
  • LED task lights
  • Below the bullnose, provide a functional and theatrical touch
  • Electronic ignition with automatic reignition
  • Ensures a continuous flame and reignites automatically if accidentally extinguished
  • Star-K certification
  • Allows Monogram ranges to operate in Sabbath mode
  • Optional full-width stainless steel toekick
  • Is included with the range
  • Large temperature and time displays
  • Make it easy to monitor cooking progress
  • Halogen light columns
  • Provide a clear view, regardless of rack position
  • Reversible burner grates
  • Flat on one side and uniquely contoured on the other to accommodate round-bottom woks
  • Optional fixed (12 inch) or adjustable-height (30-36 inch) backsplashes
  • Are available

Authentic professional appearance

Stainless steel with smoothly finished edges, large electronic control knobs and heavy duty handles


Sealed, dual-flame stacked burners

Deliver a full spectrum of heat settings, from an ultra-low 140° F simmer to an intense 18,000 BTU


Monogram professional oven system

Combines European, reverse-air convection technology and six heating elements to provide superb baking results


Heavy-duty, full-extension racks

Glide smoothly in and out on stainless steel ball bearings for easy access, and are designed to remain in the oven during the self-clean cycle


LED task lights

Below the bullnose, provide a functional and theatrical touch


Electronic ignition with automatic reignition

Ensures a continuous flame and reignites automatically if accidentally extinguished


Star-K certification

Allows Monogram ranges to operate in Sabbath mode


Optional full-width stainless steel toekick

Is included with the range


Large temperature and time displays

Make it easy to monitor cooking progress


Halogen light columns

Provide a clear view, regardless of rack position


The large caterer’s oven

Is uniquely sized to accommodate three full-size sheet trays


Reversible burner grates

Flat on one side and uniquely contoured on the other to accommodate round-bottom woks


Optional fixed (12 inch) or adjustable-height (30-36 inch) backsplashes

Are available


Manufacturer's Warranty: 2 years

Canadian model: ZDP366NPSS

Canadian UPC: 084691178033

EAN: 0084691178033

Authentic professional appearance
ZDP366NPSS - Authentic professional appearance
Stainless steel with smoothly finished edges, large electronic control knobs and heavy duty handles

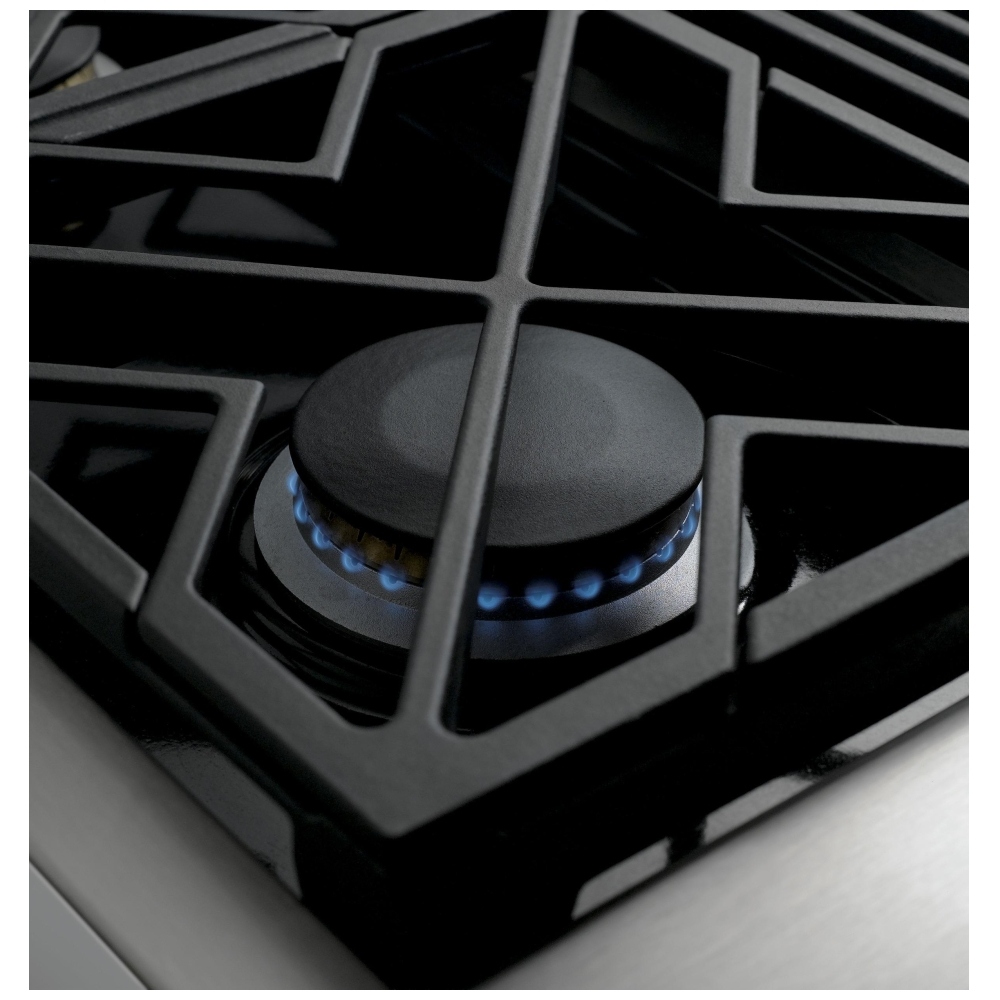

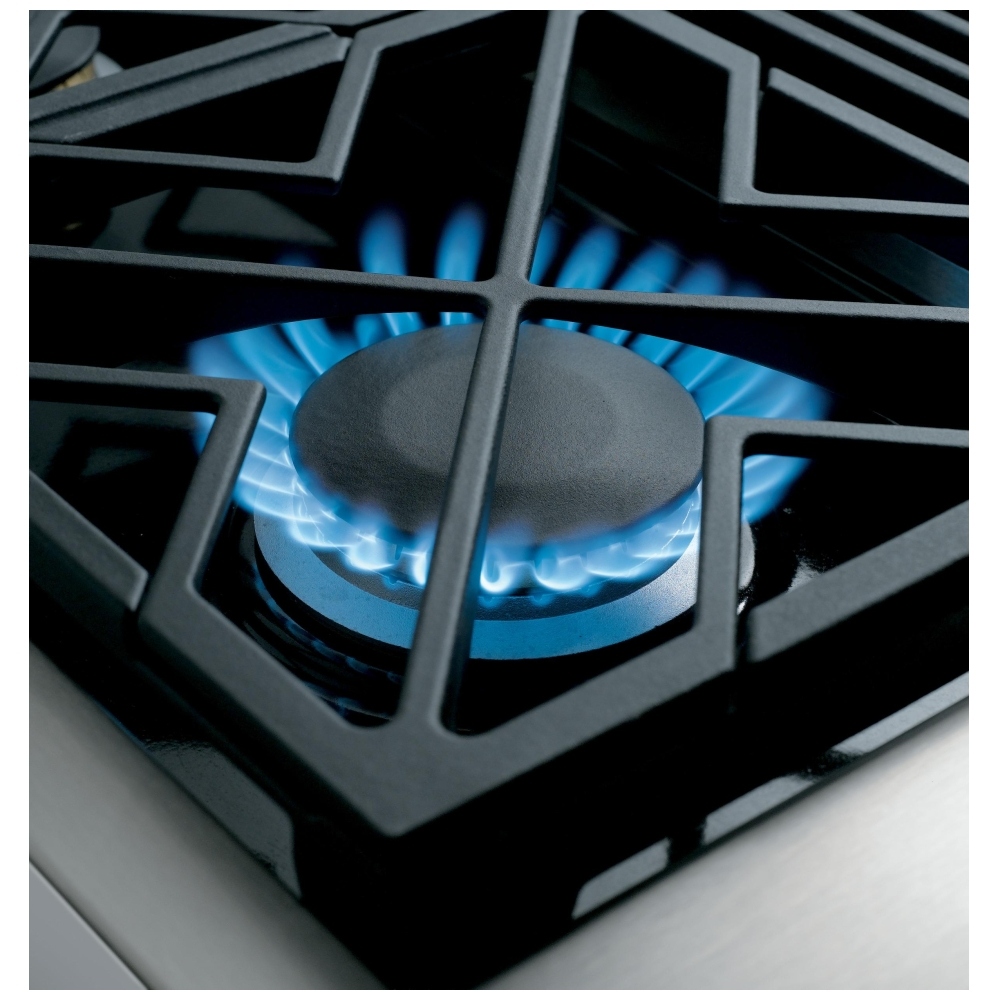

Sealed, dual-flame stacked burners
ZDP366NPSS - Sealed, dual-flame stacked burners
Deliver a full spectrum of heat settings, from an ultra-low 140° F simmer to an intense 18,000 BTU
Monogram professional oven system
ZDP366NPSS - Monogram professional oven system
Combines European, reverse-air convection technology and six heating elements to provide superb baking results

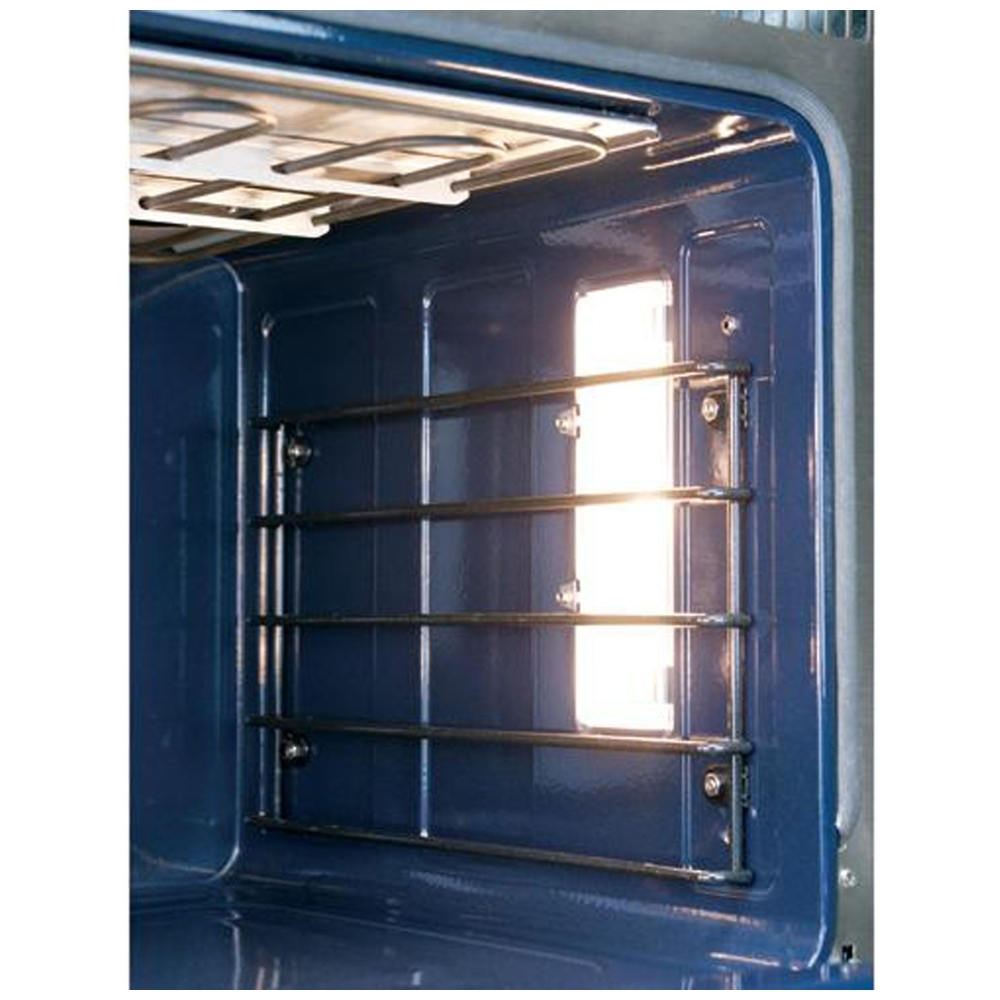

Heavy-duty, full-extension racks
ZDP366NPSS - Heavy-duty, full-extension racks
Glide smoothly in and out on stainless steel ball bearings for easy access, and are designed to remain in the oven during the self-clean cycle

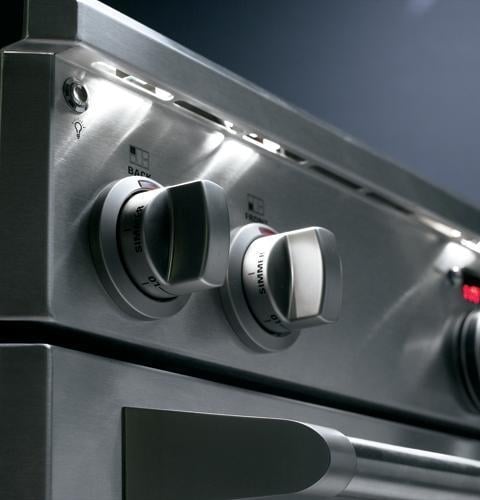

LED task lights - ZDP366NPSS
LED task lights
ZDP366NPSS - LED task lights
Below the bullnose, provide a functional and theatrical touch
Electronic ignition with automatic reignition - ZDP366NPSS
Electronic ignition with automatic reignition
ZDP366NPSS - Electronic ignition with automatic reignition
Ensures a continuous flame and reignites automatically if accidentally extinguished
Star-K certification - ZDP366NPSS
Star-K certification
ZDP366NPSS - Star-K certification
Allows Monogram ranges to operate in Sabbath mode
Optional full-width stainless steel toekick - ZDP366NPSS
Optional full-width stainless steel toekick
ZDP366NPSS - Optional full-width stainless steel toekick
Is included with the range

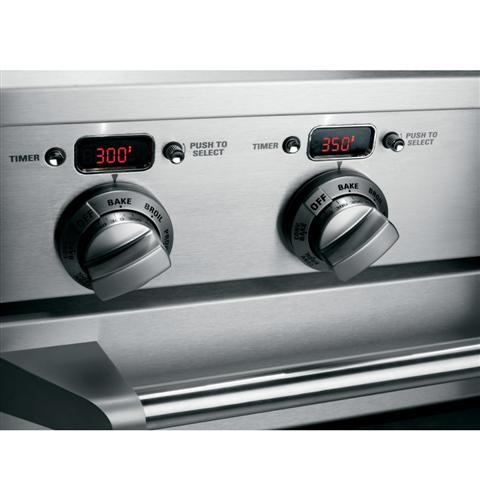

Large temperature and time displays - ZDP366NPSS
Large temperature and time displays
ZDP366NPSS - Large temperature and time displays
Make it easy to monitor cooking progress

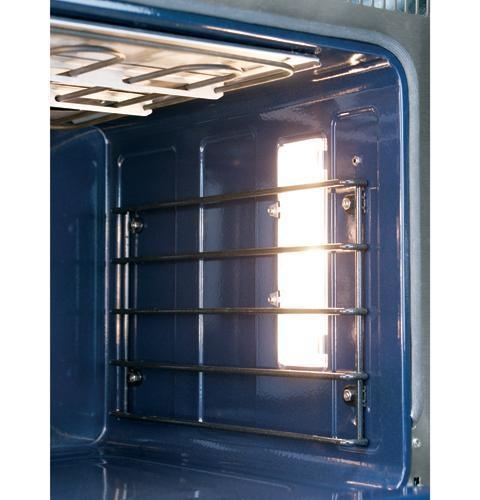

Halogen light columns - ZDP366NPSS
Halogen light columns
ZDP366NPSS - Halogen light columns
Provide a clear view, regardless of rack position

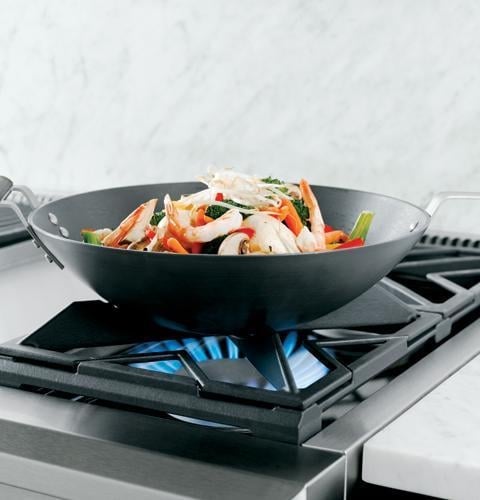

Reversible burner grates - ZDP366NPSS
Reversible burner grates
ZDP366NPSS - Reversible burner grates
Flat on one side and uniquely contoured on the other to accommodate round-bottom woks

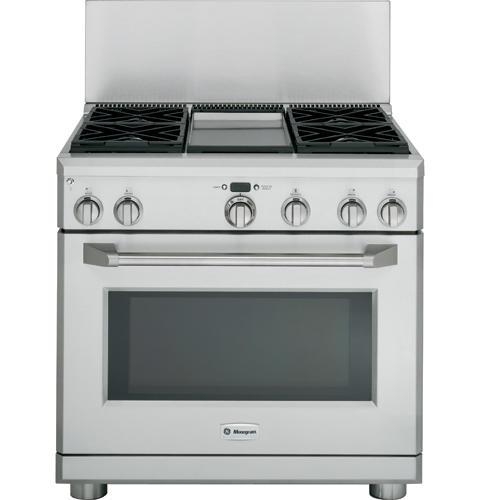

Optional fixed (12 inch) or adjustable-height (30-36 inch) backsplashes - ZDP366NPSS
Optional fixed (12 inch) or adjustable-height (30-36 inch) backsplashes
ZDP366NPSS - Optional fixed (12 inch) or adjustable-height (30-36 inch) backsplashes
Are available

Specs
CAPACITY
Total Capacity (cubic feet) 5.75
APPEARANCE
Control Knobs Diecast Metallic (Included)
Installation Semi-Flush Installation Capable
Design Style Professional Stainless Steel
Color Appearance Stainless Steel
POWER / RATINGS
Top Burner BTU Rating - LP (000's BTU's) (6) 15.0, 140 Degree simmer
Electrical Requirements 240VAC; 30A
Top Burner BTU Rating - Nat. Gas (000's BTU's) (6) 18.0, 140 Degree simmer
WARRANTY
Warranty Notes See written warranty for full details
Parts Warranty Limited 2-year entire appliance
Limited 5-year gas surface burners
Limited lifetime of oven racks
Labor Warranty Limited 2-year entire appliance
ACCESSORIES
Optional Backguard 12" stainless steel backsplash (UX12B36PSS)
30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB36PSS)
LP Conversion Kit Included
Factory-installed island backguard yes
WEIGHTS & DIMENSIONS
Net Weight 417.0
Height to Cooking Surface (in.) 35 1/4 to 36 3/4
Overall Depth 28.25
Height w/Legs Extended - Maximum Height 36.75
Height With Legs Retracted 35.25
Overall Width 35.875
Overall Height 35.25
Approximate Shipping Weight 462.0
Cabinet Width 36.0
FEATURES
Oven Cleaning Type Self-Clean
Cooktop Burner Type 6 Sealed, Dual Flame Stacked
Cooktop Burner Grate Features Continuous Grates
Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Cooking System Reverse Air Convection
True European Convection
Oven Rack Features 3 Self-Clean Oven Racks
5 Rack Positions
Full-Extension
Fuel Type Dual Fuel (with natural gas)
Cleaning Time 5 Hours
Cooking Technology Convection
Indicator Lights Burner "On"
Configuration 6 Burners
Lighting LED Bullnose Task Lighting
Self-Clean Oven Door Lock Automatic
Control Type Digital Temperature Display
with Timer Display
Oven Cooking Modes Convection Bake
Convection Broil
Convection Roast
Convection Roasting Rack Yes
Ignition System Electronic w/Auto Reignition
Oven Control Features Certified Sabbath Mode
Delay Clean Option
Proof Mode
Interior Oven Light 6 Halogen Lamps (Caterer Oven)
Cooktop Type Continuous Grates
Broiler Pan and Grid Yes
140 Deg. Simmer Burner All Burners - Adjustable

CAPACITY

Total Capacity (cubic feet)

5.75

FEATURES

Configuration

6 Burners

Cooking System

Reverse Air Convection, True European Convection

Cooking Technology

Convection

Oven Cleaning Type

Self-Clean

Cooktop Burner Type

6 Sealed, Dual Flame Stacked

140 Deg. Simmer Burner

All Burners - Adjustable

Control Type

Digital Temperature Display, with Timer Display

Indicator Lights

Burner "On"

Oven Control Features

Certified Sabbath Mode, Delay Clean Option, Proof Mode

Oven Cooking Modes

Convection Bake, Convection Broil, Convection Roast

Cooktop Burner Grate Features

Continuous Grates, Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates

Cleaning Time

5 Hours

Self-Clean Oven Door Lock

Automatic

Oven Rack Features

3 Self-Clean Oven Racks, 5 Rack Positions, Full-Extension

Convection Roasting Rack

Yes

Broiler Pan and Grid

Yes

Fuel Type

Dual Fuel (with natural gas)

Ignition System

Electronic w/Auto Reignition

Interior Oven Light

6 Halogen Lamps (Caterer Oven)

Lighting

LED Bullnose Task Lighting

APPEARANCE

Color Appearance

Stainless Steel

Design Style

Professional Stainless Steel

Installation

Flush Installation Capable

Control Knobs

Diecast Metallic (Included)

WEIGHTS & DIMENSIONS

Approximate Shipping Weight

462.0

Net Weight

417.0

Overall Height

35.25

Height w/Legs Extended - Maximum Height

36.75

Height With Legs Retracted

35.25

Height to Cooking Surface (in.)

35 1/4 to 36 3/4

Overall Width

35.875

Cabinet Width

36.0

Overall Depth

28.25

POWER / RATINGS

Electrical Requirements

240VAC; 30A

Top Burner BTU Rating - LP (000's BTU's)

(6) 15.0, 140 Degree simmer

Top Burner BTU Rating - Nat. Gas (000's BTU's)

(6) 18.0, 140 Degree simmer

ACCESSORIES

Factory-installed island backguard

yes

LP Conversion Kit

Included

Optional Backguard

12" stainless steel backsplash (ZX12B36PSS), 30"-36" adjustable stainless steel backsplash with warming shelf (ZXADJB36PSS)

WARRANTY

Parts Warranty

Limited 2-year entire appliance, Limited 5-year gas surface burners, Limited lifetime of oven racks

Labor Warranty

Limited 2-year entire appliance

Warranty Notes

See written warranty for full details

Manuals
Video

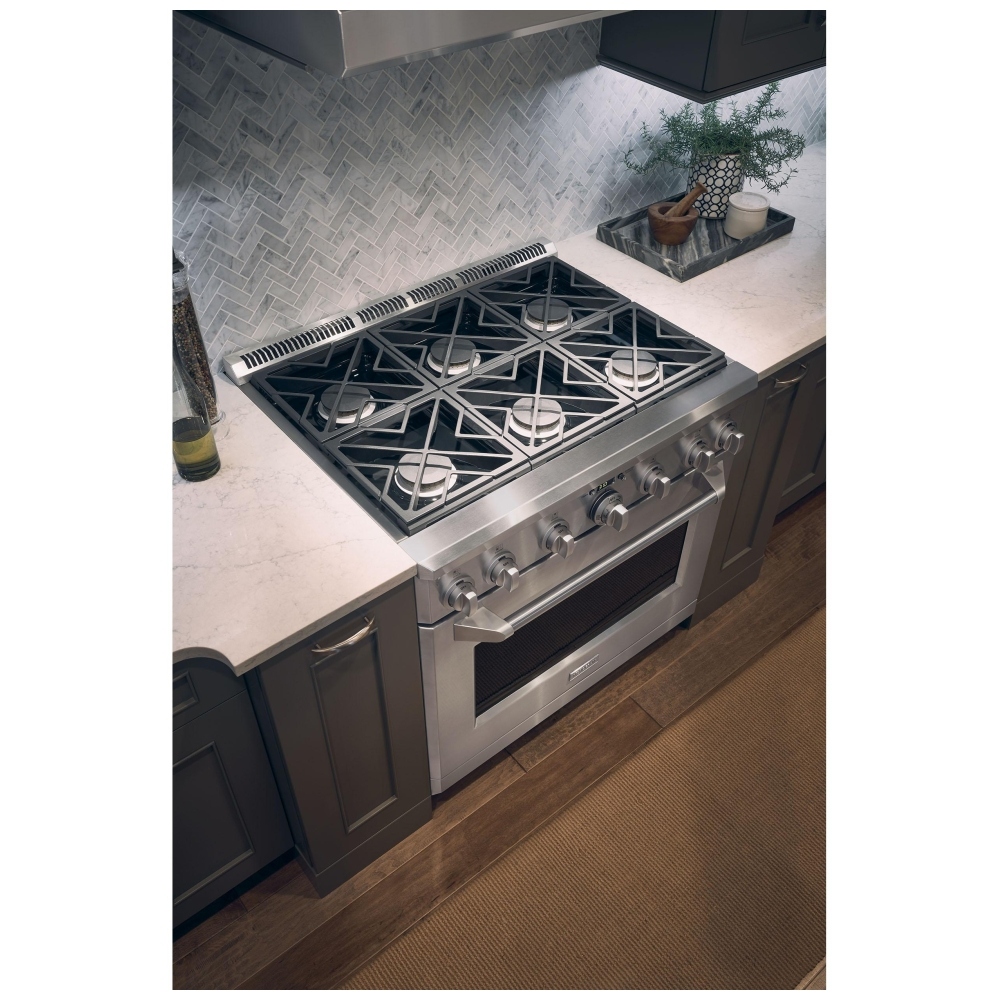

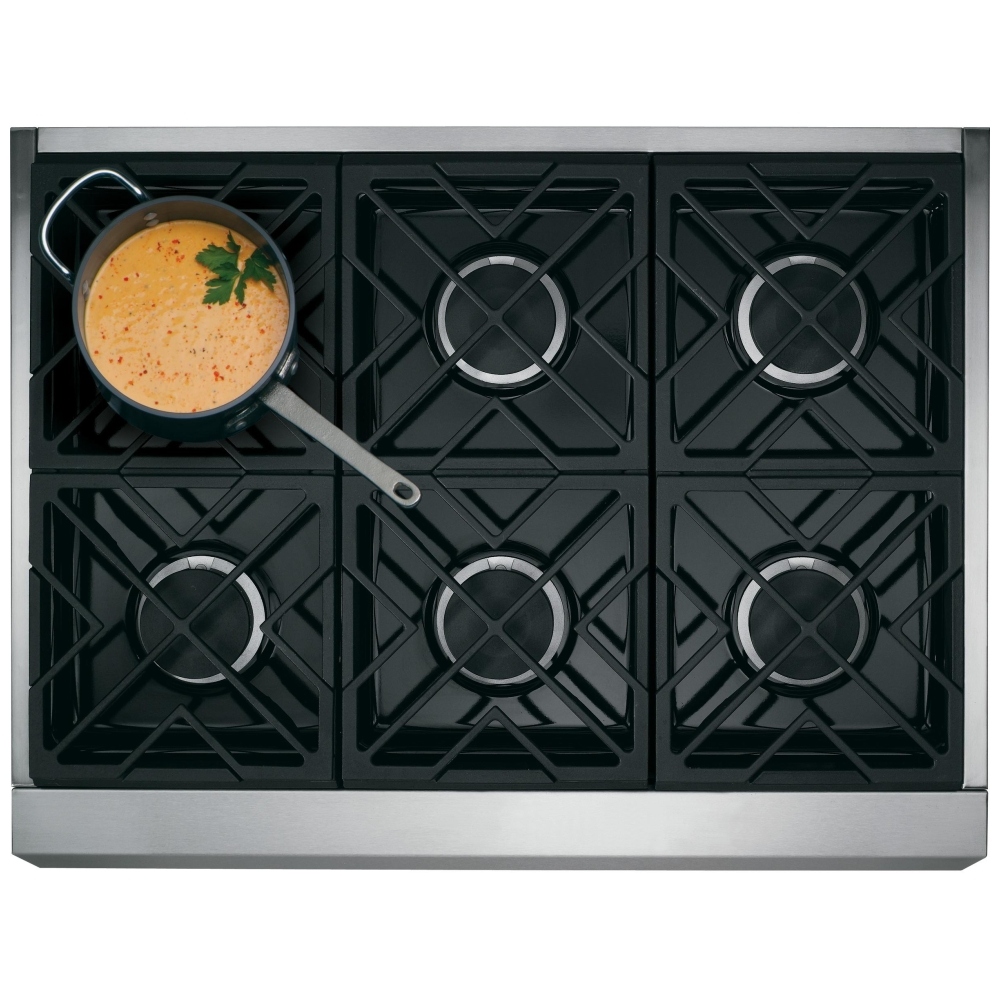

ZDP366NPSS
Reviews
Rebates
Warranty
Financing
Install
Delivery and installation services are available from CAS
(Includes washers, dryers, and more.)
Click here for more details.
Custom advanced installation services (after delivery)
(Gas connections, ventilation, dishwashers, etc.)
Offered by Quick Contractors®
 1-877-694-3909
To book service online, please visit quicktask.com/cas
Delivery

Videos

Monogram ZDP366NPSS Live Demonstration Video
