Manufacturer's Warranty: 2 years
UPC: 084691815990
EAN: 0084691815990
APPEARANCE | |
Exterior Design | Straight Sides |
Design Style | Professional |
Color Appearance | Stainless Steel |
WARRANTY | |
Labor Warranty | Limited 2-year entire appliance |
Parts Warranty | Limited 2-year entire appliance |
POWER / RATINGS | |
Amps at 110V | 12.5 |
ACCESSORIES | |
Optional 6" Duct Cover | ZX48DC6J |
Optional 12" Duct Cover | ZX48DC12J |
WEIGHTS & DIMENSIONS | |
Cabinet Width | 48 in |
Net Weight | 100 lb |
Overall Depth | 25 in |
Approximate Shipping Weight | 124 lb |
Overall Height | 18 in |
Overall Width | 48 in |
FEATURES | |
Cooktop Lighting | 3 Halogen |
Max CFM | 940 |
Required Duct Size | 10-in. Round |
Utensil Rod | Brushed Stainless Steel |
Damper in Transition | Yes |
Working Speed CFM/Sones | 410/4.0 |

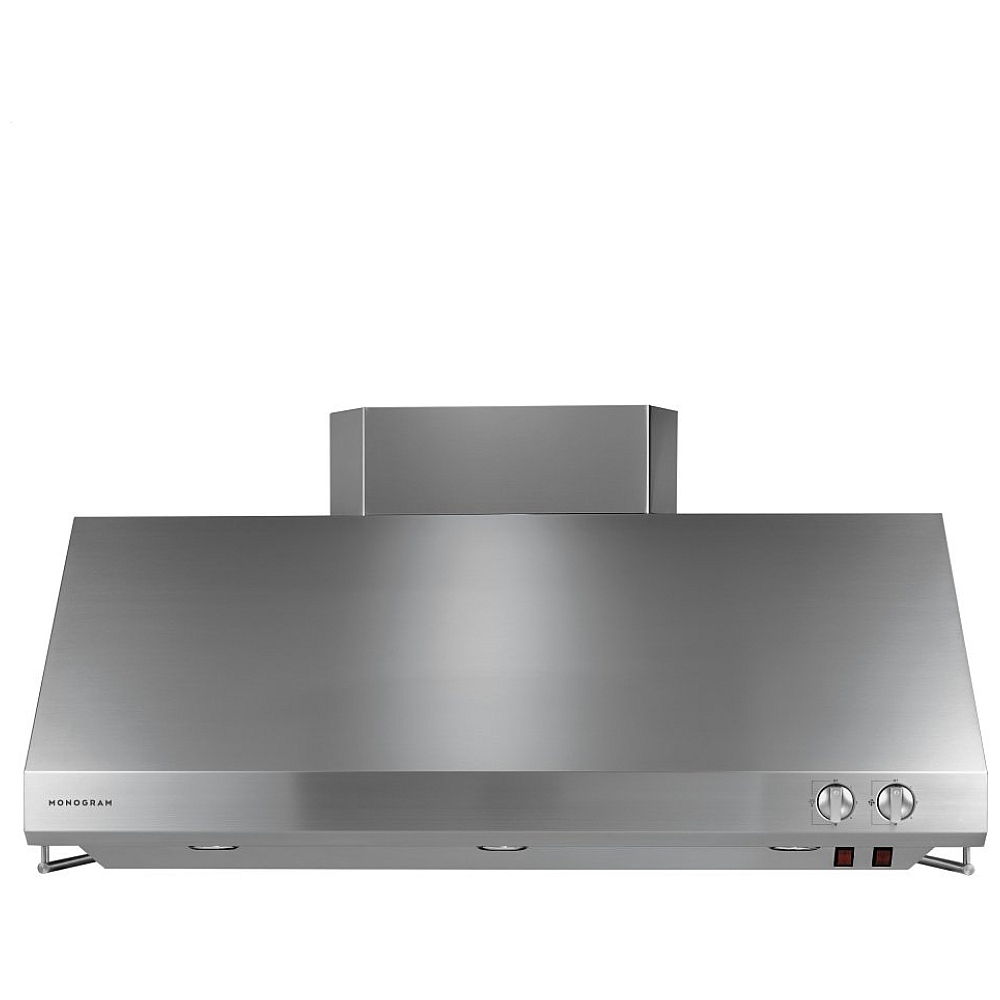

Short Description | 48" Stainless Steel Professional Hood |
CFM/ Sones Rating | 940/10.5 |
Exhaust Options | 10" Round Duct |
Double Wall Construction | Yes |
Product Type | Designer Hood |
Vertical Exhaust Blower Rating (CFM) | 940 |
Infrared Warming Lamps | 2 |
Welded / Finished Seams | Yes |
Variable Speed Fan | Yes |
Baffle Stainless Steel Filters | 3 |
Dual Blowers | Yes |
Grease Tray | 3 |
Lighting Levels | 4 |
Removable Filter | Yes |
Recirculating Capable | No |
FEATURES
Baffle Stainless Steel Filters
3
Cooktop Lighting
3, Halogen
Damper in Transition
Yes
Double Wall Construction
Yes
Dual Blowers
Yes
Exhaust Options
10" Round Duct
Grease Tray
3
Infrared Warming Lamps
2
Lighting Levels
4
Recirculating Capable
No
Removable Filter
Yes
Required Duct Size
10-in. Round
Utensil Rod
Brushed Stainless Steel
Variable Speed Fan
Yes
Vertical Exhaust Blower Rating (CFM)
940
Welded / Finished Seams
Yes
CFM/ Sones Rating
940/10.5
FEATURE
Working Speed CFM/Sones
410/4.0
APPEARANCE
Color Appearance
Stainless Steel
Design Style
Professional
Exterior Design
Straight Sides
WEIGHTS & DIMENSIONS
Approximate Shipping Weight
124.0
Cabinet Width
48.0
Net Weight
100.0
Overall Depth
25.0
Overall Height
18.0
Overall Width
48.0
POWER / RATINGS
Amps at 110V
12.5
ACCESSORIES
Optional 12" Duct Cover
ZX48DC12J
Optional 6" Duct Cover
ZX48DC6J
