Napoleon Grills BIM485RBPSS-1
Discontinued
BHRQ4H
Why Buy This at CAS?
Ratings & Reviews
BHRQ4H
When will I get this?

Why Buy This at CAS?
Description & Features

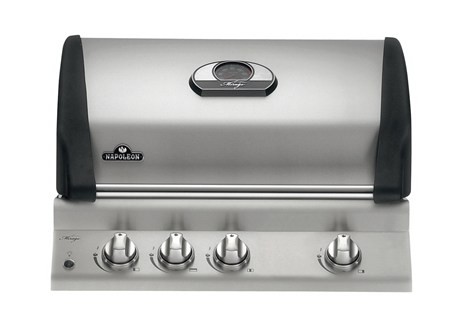

Napoleon Mirage Series BIM485RBPSS-1 Built-in Gas Grill Head 30 in with 675 sq. in. Total Cooking Surface, 61,500 Total BTU, 3 Main Tube Burners, Rear Infrared Rotisserie Burner and JET-FIRE Ignition

  • Versatile installation options
  • 48,000 BTU's for versatile cooking
  • Three 304 stainless steel commercial grade burners with stainless steel sear plates to vaporize drippings and control flare-ups
  • Double-lined, stainless steel space saving LIFT EASE roll top lid for oven-like heat retention
  • ACCU-PROBE temperature gauge
  • Engaging i-GLOW backlit control knobs for late night entertaining
  • Patented 304 stainless steel WAVE rod cooking grids
  • Automatic JETFIRE ignition for easy start up
  • Full width removable drip pan for easy clean ups
  • Optional charcoal tray, smoker tube and stainless steel griddle available
  • Available as a cart model
  • President's Limited Lifetime Warranty



Manufacturer's Warranty: 1 year

Canadian model: BIM485RBPSS-1

Specs






Dimensions





Width:

29 3/4"





Depth:

21 3/8"





Height:

7 1/2"





Burner Specifications





Total BTU:

61,500 (18 kW)





Main Tube Burners:

48,000 (14 kW)





Bottom Infrared Burners:

N/A





Side Burner:

N/A





Rear Infrared Burner:

13,500 (4 kW)





Features





Lift Ease Roll Top Lid:

Standard





Double Lined Stainless Steel Lid:

Standard





Accu-Probe Temperature Gauge:

Standard





Total Cooking Surface:

675 sq. in.





Electronic JETFIRE Ignition System:

Standard





Rear Burner Ignitor:

Standard





Ceramic Infrared SIZZLE ZONE Bottom Burner:

No





Ceramic Infrared SIZZLE ZONE Side Burner:

No





Range Side Burner:

No





Stainless Steel Bottom Burners:

3





Ceramic Infrared Rear Rotisserie Burner:

1





Stainless Steel WAVE Rod Cooking Grids:

Standard





Integrated Ice Bucket and Cutting Board:

No





i-GLOW Backlit Control Knobs:

Standard





Spider Guard Venturi & Brass Valves:

Standard





Removable Drip Pan:

Standard





Warming Rack:

Standard





WRAP AROUND Shelves and Condiment Trays:

N/A





Side Enclosure:

N/A





EASY ROLL Locking Casters:

N/A





President's Limited Lifetime Warranty:

Standard





Accessories





Rotisserie with Flexible Halogen Light:

Optional





Charcoal Tray:

Optional





Stainless Steel Griddle:

Optional





Smoker Pipe:

Optional





Heavy Duty Cover:

Optional





Manuals

There are currently no documents available for this product.
