Gas Range Connection $189
(Includes Disconnecting Old Gas Unit)
Smeg PGFU30X
Discontinued
Replaced by PGFU30X2
Change to Smeg PGFU30X2 for an extra $53
APDWIX
Replaced by PGFU30X2
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $55.34 for 18 months
Ratings & Reviews
Similar Colours and Options
PGFU36X
PGFU36X
Stainless Steel
APDWIX
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $55.34 for 18 months
Description & Features

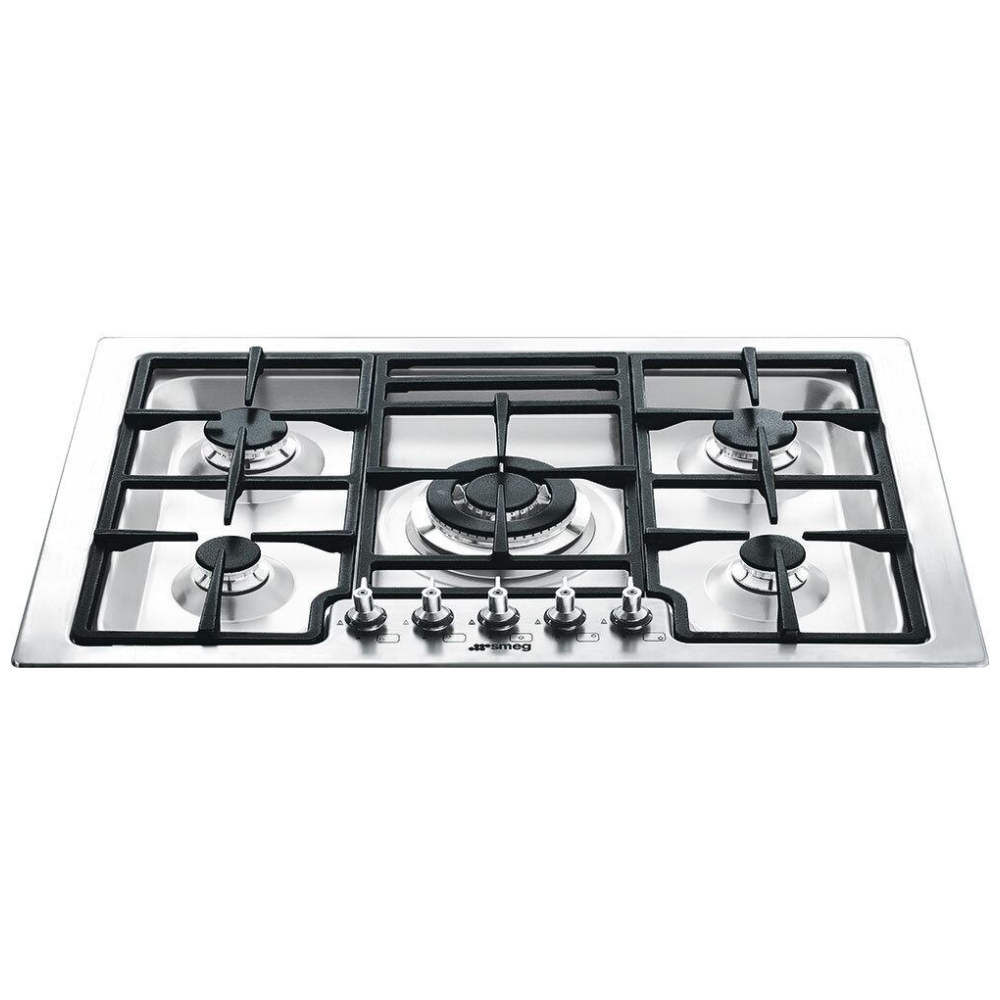

30" Classic Gas Cooktop with 5 Burners
The powerful 13,700 BTU double inset super burner can quickly boil a pot of water or heat food. Four additional burners including three rapid burners make cooking food significantly faster and easier. The continuous cast iron grates offer a heavy-duty cooking surface that can withstand high heat for years to come. An extra wide stainless steel frame provides countertop protection for your unit. The automatic electronic ignition comes equipped with safety valves.

Classic Design

Extra-wide stainless steel frame for countertop protection

5 Gas burners:

Front right: 3,600 BTUs burner

Back right: 6,200 BTUs rapid burner

Central: 13,700 BTUs double inset super burner

Back left: 6,200 BTUs rapid burner

Front left: 3,600 BTUs burner

AISI 304 Stainless Steel cooktop

Ultra low profile base (1/8")

Ergonomic front control knobs, interchangeable to

convert to "Linea" style

Heavy-duty cast iron grates

Full-width grates

Sealed burners

Automatic electronic ignition

Safety valves

LP Gas conversion kit included

Voltage rating: 120V / 60Hz / 0.1Amps


Manufacturer's Warranty: 2 years

Canadian model: PGFU30X

EAN: 8017709200039

Specs
Type
Product family Cooktop
Dimensions 30"
Type Gas
Installation Ultra-low profile
Power supply Mixed
EAN code 8017709200039
Aesthetic
Color Stainless steel
Finishing Satin
Aesthetics Classic
Stainless steel type Brushed
Material Stainless steel
Controls color Stainless steel effect
Control setting type Control knobs
Controls position Front
No. of controls 5
Grates Cast iron
Burners Standard
Burners material Aluminum
Programs / Functions
Cooking zones 5
Burners 5
Options
Standard cut-out 492x700 mm
Cooking zones
Zone 1 - Type Gas - AUX
Zone 2 - Type Gas - Semi-rapid
Zone 3 - Type Gas - Ultra-rapid
Zone 4 - Type Gas - Semi-rapid
Zone 5 - Type Gas - AUX
Zone 1 - Power 1.05 kW
Zone 1 - Power 3500 BTU
Zone 2 - Power 1.80 kW
Zone 2 - Power 6000 BTU
Zone 3 - Power 4.00 kW
Zone 3 - Power 13500 BTU
Zone 4 - Power 1.80 kW
Zone 4 - Power 6000 BTU
Zone 5 - Power 1.05 kW
Zone 5 - Power 3500 BTU
Technical Features
Gas Type G20 Natural gas
Gas safety valves Yes
Automatic Ignition Yes
Electrical Connection
Nominal power 1 W
Voltage 100-120 V
Frequency 50/60 Hz
Electric cable type Single phase
Power cord length 47 1/4 "
Logistic Information
Depth 20 1/8 "
Width 28 3/8 "
Height 3 1/16 "
Net weight 33 lbs
Gross weight 40 lbs
Packaged width 31 15/16 "
Packaged depth 23 3/4 "
Packaged height 6 9/16 "
Packaged dimensions 166X811X603
Maximum stackability 7
Packaging Cardboard box
Packaging composition - Paper 5 lbs
Packaging composition - Polystyrene 1 lbs
Accessories Included
Cast iron wok support 1
Other gas nozzles included G30 LPG liquid gas
Burner Output
Burners:
Sealed
Gas Burners:
5
Front Right Single Burner:
3,600 BTU
Back Right Single Burner:
6,200 BTU
Central Single Burner:
13,700 BTU
Back Left Single Burner:
6,200 BTU
Front Left Single Burner:
3,600 BTU
Features
Cast Iron Grates:
Continuous
Electronic Ignition:
Automatic
Safety Valves:
Yes
LP Gas Conversion Kit:
Included
Power Supply Location:
Back Right
Ultra Low Profile Base:
2/16"
Technical Requirements
Amperage:
0.1A
Voltage:
120V
Frequency:
60Hz
Dimensions and Weights
Product Width:
29 15/16"
Product Depth:
20 15/16"
Product Height:
3 1/2"
Shipping Weight:
45 Lbs.
Cutout Dimensions
Cutout Width:
27 9/16"
Cutout Depth:
19 3/8"
Cutout Height:
2"
