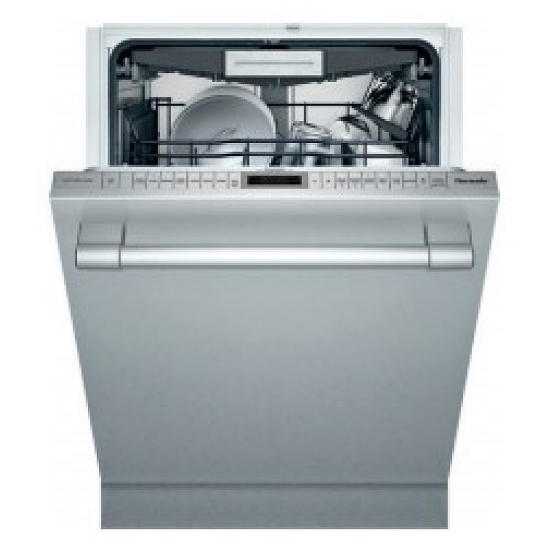

Thermador DWHD770WFP
Discontinued
ENERGY STAR®
1UZWQP
SMZPCJB1UC
SMZPCJB1UC
Product Accessories
$39
Similar Colours and Options
DWHD770WFM
Visit showroom for prices
DWHD770WPR
Visit showroom for prices
DWHD870WFP
Visit showroom for prices
1UZWQP
When will I get this?

Reserve & Pick Up
FREE
Distribution Centres
Address
Units Available
Woodbridge, ON
27 Director Crt.
Winnipeg, MB
191 Elan Blvd
Burnaby, BC
8010 Winston St.
Ottawa, ON
55 Banton St.
Laval, QC
1340 Boul. Dagenais Ouest
In stock
Dartmouth, NS
315 Wilkinson Ave.
Calgary, AB
2777 23 Ave. NE
For more information on dishwasher installation services, click here.

Protect your purchase with an extended warranty.

Protect purchase for 2 years: $99.99 CAD
Protect purchase for 3 years: $169.99 CAD

Description & Features

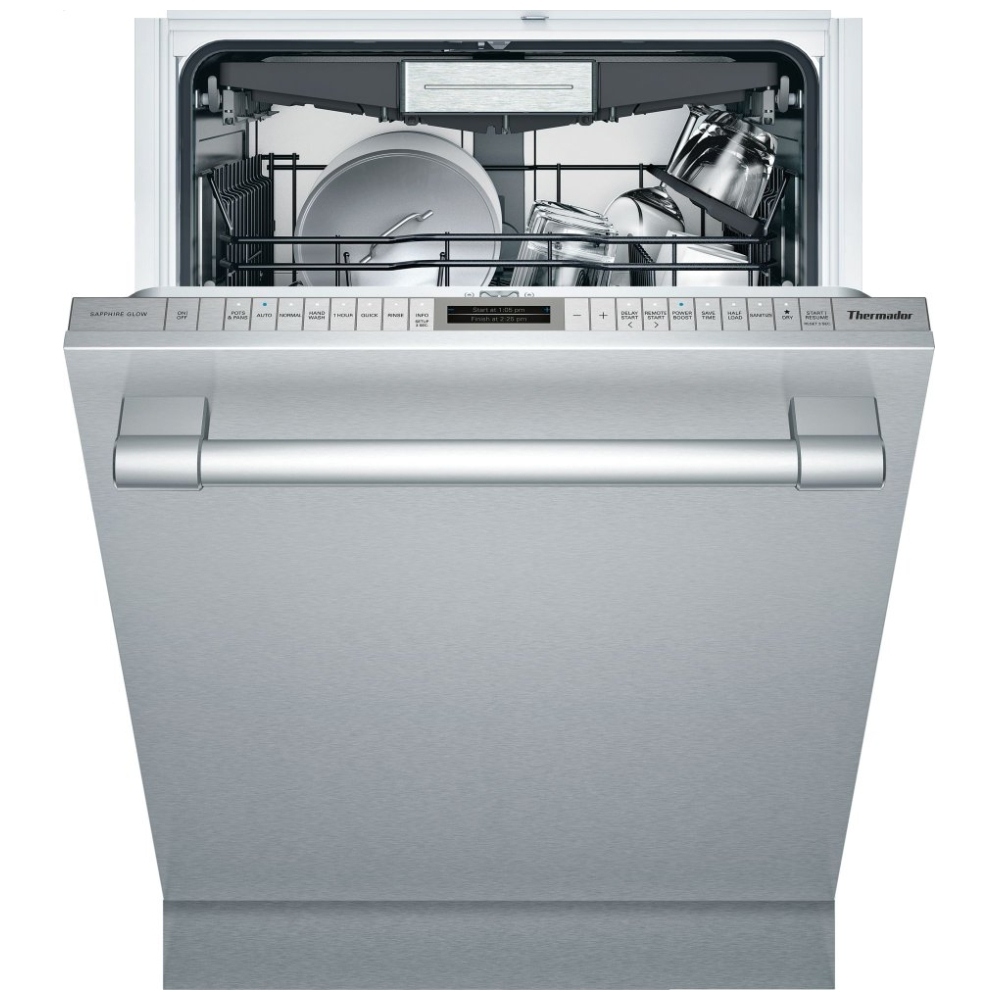

Thermador DWHD770WFP Dishwasher, 24" Exterior Width, 42 dB Decibel Level, Fully Integrated, Stainless Steel (Interior), 7 Wash Cycles, 16 Capacity (Place Settings), 3 Loading Racks, Wifi Enabled, Stainless Steel colour
Stainless Steel Panel with Professional Handle StarDry™ with Zeolite Sapphire Glow™ illuminates a brilliant blue light Spacious Adjustable Chef's Tool Drawer Time Remaining PowerBeam® countdown on floor Wifi Smart Appliance via Home Connect App

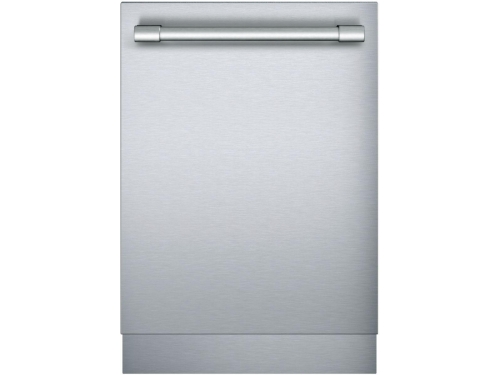

Stainless Steel Panel with Professional Handle
Stainless Steel Panel with Professional Handle

Professional style bold brushed stainless steel handles

StarDry™ with Zeolite
StarDry™ with Zeolite

Introducing StarDry™ with Zeolite, an exclusive Thermador drying solution. Zeolite is a natural substance that dries without the use of chemicals. This unique feature helps dry hard to reach crevices, and does not need to be replenished over time.

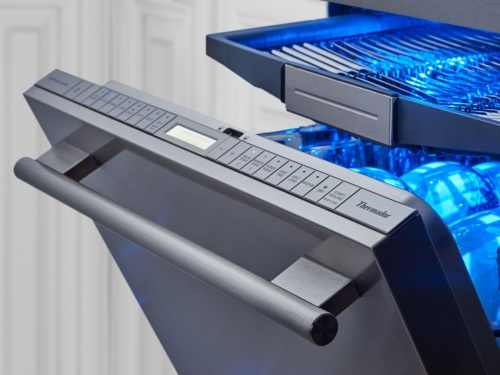

Sapphire Glow™ illuminates a brilliant blue light
Sapphire Glow™ illuminates a brilliant blue light

Sapphire Glow™ illuminates dishes and glassware with an internal brilliant blue light.

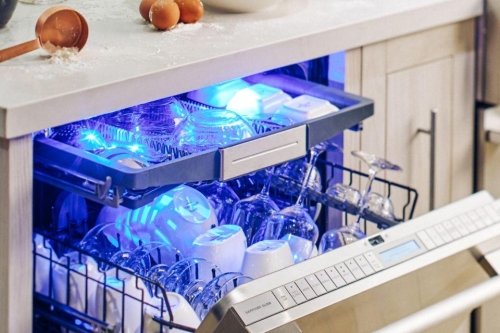

Spacious Adjustable Chef's Tool Drawer
Spacious Adjustable Chef's Tool Drawer

Adjustable Chef's Tool Drawer® delivers added loading capacity as well as flexibility to accommodate larger or smaller items in this additional third rack.

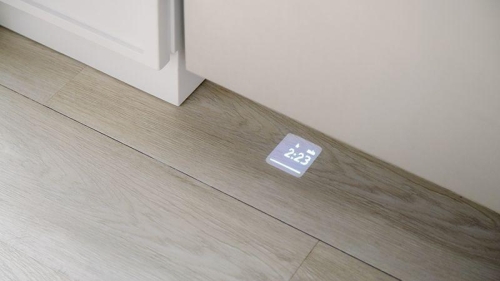

Time Remaining PowerBeam® countdown on floor
Time Remaining PowerBeam® countdown on floor

Time Remaining PowerBeam®: shines a countdown of the remaining time of the cycle on the floor.


  • Innovation
  • Sapphire Glow internal light illuminates glassware
  • Adjustable Chef's Tool Drawer - provides a flexible 3rd rack delivering added loading capacity as well as adjustability to accommodate larger items, wider ends and utensil handles
  • Time Remaining PowerBeam shines the actual remaining time of the cycle on the floor
  • Flexible Folding Tines fold down to accommodate larger pots, pans and dishes and add flexibility to hold items twice as wide as standard models and significantly wider than competitors
  • Dosage Assist optimizes break down of detergent tablets

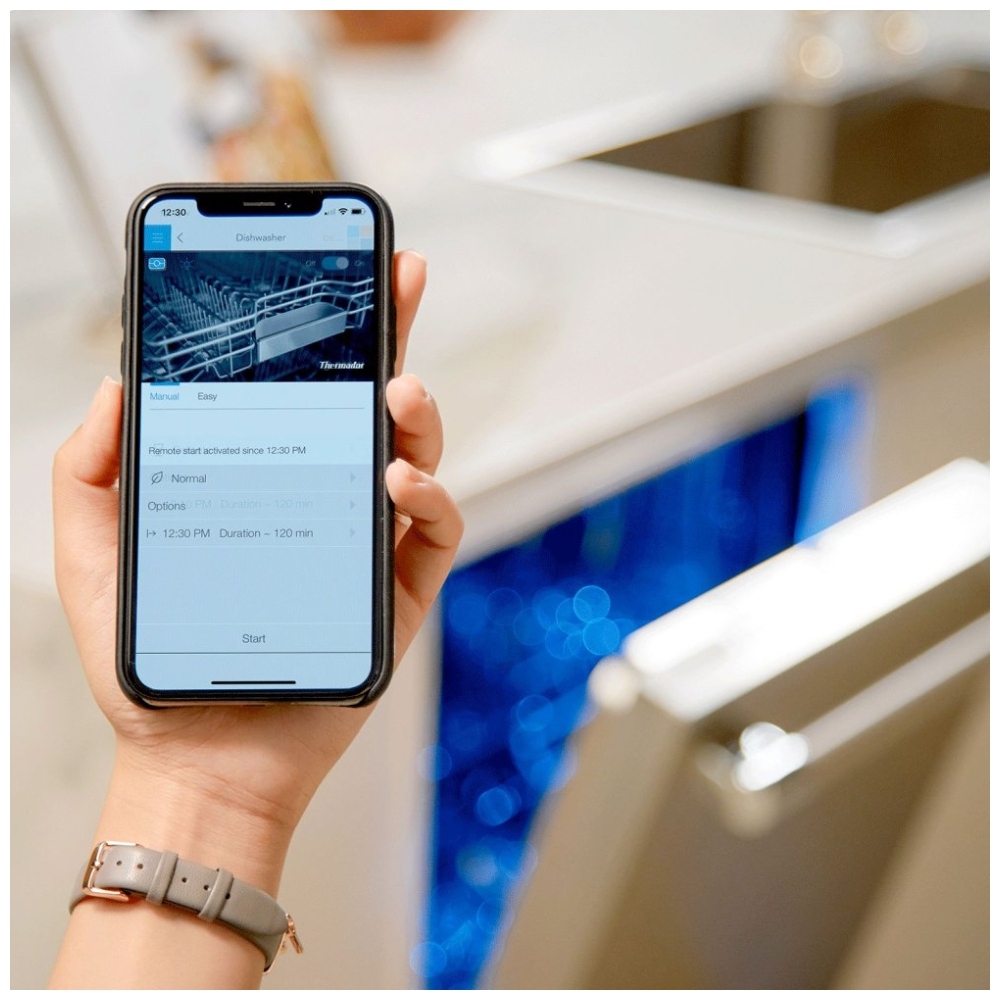

  • Receive recommendations for dishware cycles, as well as Remote Start from your smart device when you pair with the Thermador Connected Experience by Home Connect
  • Performance
  • Crystal Protection System ensures perfect results for fine crystal
  • PowerBoost option increases temperature and pressure in the lower rack for the ultimate in heavy-duty cleaning
  • Sens-A-Wash ensures superior washing and drying guaranteed
  • Extra Dry option ensures perfectly dry dishes
  • Hand Wash allows you to delicately wash fine items and wine glasses
  • Accommodates 16 plate settings for your dinner parties
  • Powerfully Quiet for peaceful kitchen experience
  • ENERGY STAR Qualified - uses only 269kWh/Yr
  • Extra-Tall-Item Sprinkler allows large items (22" high) to be washed
  • Design
  • Professional Handle
  • Stainless Steel Control Panel
  • Sleek Black-shimmer racks with 3-Step adjustment for added flexibility
  • Blue LED Display
  • 18/10 high-grade stainless steel interior offers long-lasting reliability, never rusts and resists nicks and chips
  • Silver Painted Toe Kick

  • StarDry™ - The most exceptional drying power in the world. Introducing Thermador's Zeolite technology, reducing the need to towel dry items. No other dishwasher dries better.
  • Push to Open dishwasher opens with either a push or pull,
  • so loading is easier, even when your hands are full
  • Sapphire Glow internal light illuminates glassware
  • Adjustable Chef’s Tool Drawer® delivers added loading

UPC: 825225943440

Specs

General
Appliance Width (in) 23 9/16
Height (in) 33 7/8
Installation Type Built-under
Number of place settings 16
List of programs 1 Hour, Auto, Hand Wash, Normal, Pots & Pans, Quick, Rinse
Cycle Options half load, Power Boost, Remote Start, Sanitation, Save Time, Star Dry
Display Yes
Silence level 42 dB(A) re 1 pW
3rd Rack Adjustable Chef's Tool Drawer
Interior light Yes
Removable top No
Power Cord Length 67''
Duration of the left-on mode - NEW (2012/30/EC) 0 min
Connectivity

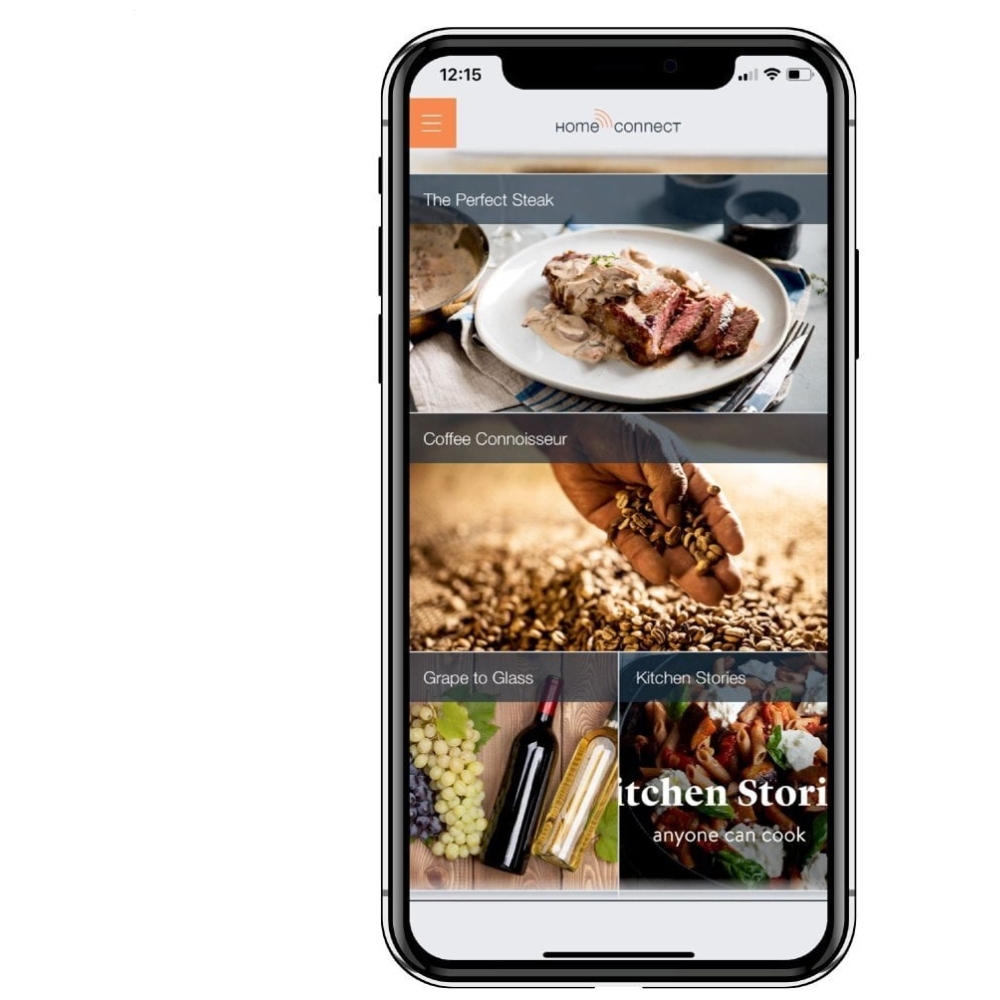

Home Connect™ Yes
Home Connect Features Remote Monitoring and Control
Power consumption standby/network: Please check the user manual for how to switch off the WiFi module. 2.0 W
Time auto-standby/network 2.0 min
Size and weight
Adjustable plinth No
Net weight 104.000 lbs
Programmes
Status indicator End of program audible, rem. time proj. White, sanitized LED US, water inlet
List of programs 1 Hour, Auto, Hand Wash, Normal, Pots & Pans, Quick, Rinse
Program 1 Pots & Pans
Program 2 Auto
Program 3 Normal
Program 4 Hand Wash
Program 5 1 Hour
Program 6 Quick
Program 7 Rinse
Programme duration, programme1 (min.) 110-135
Programme duration, programme2 (min.) 105-129
Programme duration, programme3 (min.) 95-119
Programme duration, programme7 (min.) 9
Reference programme Regular US
Temperature program 1 150-160 °F
Temperature program 2 130-150 °F
Temperature program 3 122-131 °F
Safety
ChildLock Yes
Consumption values
Glass protection Yes
Water consumption program 1 4.8-6.3 gal
Water consumption program 2 3.5-6.6 gal
Water consumption program 3 1.5-4.5 gal
Water consumption program 7 1 gal
Total annual water consumption 624 gallons
Maximum temperature for water intake (°C) 60 °C
Connection
Watts 1,440 W
Power Cord Length 67''
Fuse protection 12 A
Plug type Nema5-15P
Construction type
Color / Material housing Lacquered
Color / Control Panel Grey
Construction type Built-in
Panel ready Not possible
Drying system Inherent heat, Zeolith
Height (in) 33 7/8
Concealed heating element Yes
Installation Type Built-under
Tub material Stainless steel
Water softener Yes
Appliance Width (in) 23 9/16

Quality
  • Sapphire Glow™ internal light illuminates glassware
  • Adjustable Chef's Tool Drawer - provides a flexible 3rd rack delivering added loading capacity as well as adjustability to accomodate larger items, wider ends and utensil handles
  • Time Remaining PowerBeam® shines the actual remaining time of the cycle on the floor
  • Flexible Folding Tines fold down to accommodate larger pots, pans and dishes and add flexibility to hold items twice as wide as standard models and significantly wider than competitors
  • Dosage Assist optimizes break down of detergent tablets
 Performance
  • Crystal Protection™ System ensures perfect results for fine crystal
  • PowerBoost® option increases temperature and pressure in the lower rack for the ultimate in heavy-duty cleaning
  • Sens-A-Wash® ensures superior washing and drying guaranteed
  • Extra Dry option ensures perfectly dry dishes
  • Hand Wash allows you to delicately wash fine items and wine glasses
  • Accommodates 16 plate settings for your dinner parties
  • Powerfully Quiet® - NO_FEATUREA for peaceful kitchen experience
  • ENERGY STAR® Qualified - uses only 269kWh/Yr
  • Extra-Tall-Item™ Sprinkler allows large items (22" high) to be washed
 Design
  • Professional Handle
  • Stainless Steel Control Panel
  • Sleek Black-shimmer racks with 3-Step adjustment for added flexibility
  • Blue LED Display
  • 18/10 high-grade stainless steel interior offers long-lasting reliability, never rusts and resists nicks and chips
  • Silver Painted Toe Kick
