Technical Specifications
Energy source	Gas
Type of control	sword knobs
Safety device	automatic reignition
Construction type
Color of frame	Stainless steel
Color of surface	Stainless steel
Installation type	Built-in
Number of electric elements	0
Number of electric cooking zones	5
Type of frame	Professional, Standard frame
Number of gas burners	6
Number of halogen elements	0
Installation Type	Built-in
Type of grate	Cast iron
Number of radiant elements	0
Number of electric warming zones	0
Size and weight
Overall appliance dimensions (HxWxD) (mm)	268.3 x 913 x 656 mm
Net weight (kg)	68.893 kg
Cooking zone 1
Location of 1st heating element	front left
Type of heating element	Gas
Cooking zone 2
Location of 2nd heating element	center left
Cooking zone 3
Location of 3rd heating element	back left
Type of 3rd heating element	Gas
Cooking zone 4
Location of 4th heating element	middle back
Type of 4th heating element	Gas
Cooking zone 5
Location of 5th heating element	back right
Type of 5th heating element	Gas
Cooking zone 6
Location of 6th heating element	center right
Cooking zone 7
Location of 7th heating element	front right
Type of 7th heating element	Gas
Cooking zone 8
Location of 8th heating element	front middle / central
Type of 8th heating element	Gas
Cooking zone 9
Location of 9th heating element	front centre/cent
Safety
Type of safety device for gas	Without
Power on indicator	Yes
Residual heat indicator	without
Safety device	automatic reignition
Main on/off switch	No
Connection
Power cord length (cm)	244 cm
Energy source	Gas
Frequency (Hz)	60 Hz
Location of gas connection	bottom, rear, right
Gas connection rating (W)	31,620 W
Accessories
Included accessories	1 x island trim

Technical Specifications
Amps (A)	10
Frequency (Hz)	60
Gas type	Natural gas 15 mbar (USA)
Alternative gas type	Liquid gas 27,5 mbar (USA)
Approval certificates	CSA
Plug type	120V-3 prong
Minimum distance from rear wall (in)	12''
Net weight (lbs)	142
Gross weight (lbs)	158

Product Features
Type of grate	Cast iron
Number of double grates	3
Optional accessories	PA12CHPBLK, PA36GLBC, PAGRIDDLE, PAKNOBLK, PAKNOBLU, PALPKITHC, PWOKRINGHC
Knob material	Full metal
Natural gas connection rating (BTU)	108000
LP Gas Connection Rating (BTU)	90000
Sealed burners	Yes
Included accessories	1 x island trim
Location of 1st heating element	front left
Power of 1st burner (BTU)	18000
Location of 2nd heating element	back left
Power of 2nd burner (BTU)	18000
Location of 3rd heating element	front centre/cent
Power of 3rd burner (BTU)	18000
Location of 4th heating element	back right
Power of 4th burner (BTU)	18000
Location of 5th heating element	front right
Power of 5th burner (BTU)	18000
Location of 6th heating element	front middle / central
Power of 6th burner (BTU)	18000

Thermador PCG366G

Thermador PCG366G

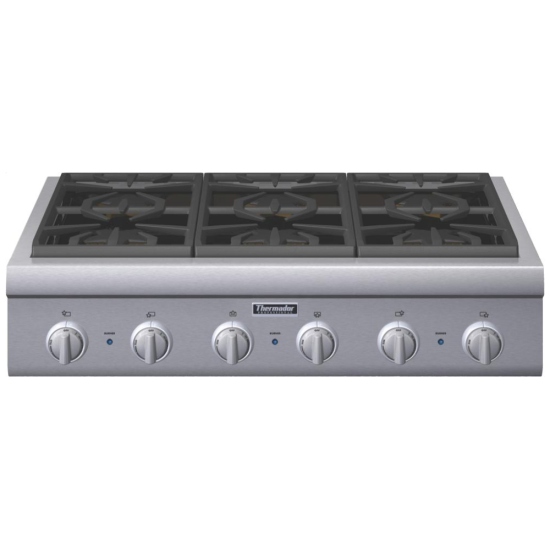

Thermador Professional Series PCG366G Gas Cooktop, 36 inch Exterior Width, 6 Burners, 18,000 BTU Highest Burner, Stainless Steel colour
