Technical Specifications
Energy source	Gas
Type of control	sword knobs
Safety device	automatic reignition
Construction type
Color of frame	Stainless steel
Color of surface	Stainless steel
Installation type	Built-in
Number of electric elements	0
Number of electric cooking zones	0
Number of gas burners	5
Number of halogen elements	0
Installation Type	Built-in
Type of grate	Cast iron
Total number of cooktop burners	5
Number of radiant elements	0
Number of electric warming zones	0
Size and weight
Overall appliance dimensions (HxWxD) (mm)	96.8 x 940 x 546 mm
Net weight (kg)	20.9 kg
Cooking zone 1
Location of 1st heating element	front left
Cooking zone 2
Location of 2nd heating element	center left
Cooking zone 3
Location of 3rd heating element	back left
Cooking zone 4
Location of 4th heating element	middle back
Cooking zone 5
Location of 5th heating element	back right
Cooking zone 6
Location of 6th heating element	center right
Cooking zone 7
Location of 7th heating element	front right
Cooking zone 8
Location of 8th heating element	front middle / central
Cooking zone 9
Location of 9th heating element	front centre/cent
Safety
Type of safety device for gas	Without
Power on indicator	No
Residual heat indicator	without
Safety device	automatic reignition
Main on/off switch	No
Connection
Power cord length (cm)	152 cm
Watts (W)	1,800 W
Energy source	Gas
Frequency (Hz)	60 Hz
Location of gas connection	bottom, rear, right
Gas connection rating (W)	17,050 W
Accessories
Included accessories	3 x cast iron pan support

Technical Specifications
Amps (A)	15
Frequency (Hz)	60
Gas type	Natural gas 15 mbar (USA)
Alternative gas type	Liquid gas 27,5 mbar (USA)
Approval certificates	CSA
Plug type	120V-3 prong
Minimum distance from counter front (in)	1 7/8''
Minimum distance from rear wall (in)	3''
Net weight (lbs)	39
Gross weight (lbs)	51

Product Features
Type of grate	Cast iron
Number of double grates	2
Optional accessories	SGRIDDLEF, SNLPKITF, SWOKRINGF
Knob material	Full metal
Natural gas connection rating (BTU)	58200
LP Gas Connection Rating (BTU)	45200
Sealed burners	Yes
Number of single grates	1
Included accessories	3 x cast iron pan support
Location of 1st heating element	front left
Power of 1st burner (BTU)	9100
Location of 2nd heating element	back left
Power of 2nd burner (BTU)	12000
Location of 3rd heating element	front centre/cent
Power of 3rd burner (BTU)	16000
Location of 4th heating element	back right
Power of 4th burner (BTU)	9100
Location of 5th heating element	front right
Power of 5th burner (BTU)	12000

Thermador SGS365FS

Thermador SGS365FS

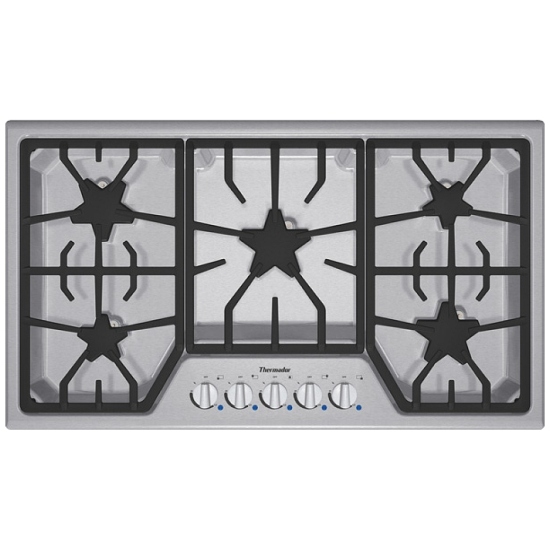

Thermador Masterpiece Series SGS365FS Gas Cooktop, 36 inch Exterior Width, 5 Burners, Stainless Steel colour
