Thor Kitchen ADW24PF
Not available for sale at CAS.
AIQXV5
Ratings & Reviews
AIQXV5
When will I get this?

Description & Features
Bring professional-grade cleaning power into your kitchen with the THOR Kitchen ADW24PF dishwasher, a 24-inch built-in model designed to deliver sparkling results and a sleek, modern look. With a width of approximately 24 inches, this dishwasher is sized to slide seamlessly into most standard cabinetry while offering generous capacity for up to 12 place settings, making it ideal for busy households that need to handle everything from everyday plates to large cookware in a single load. The contemporary pocket handle design creates a clean, uninterrupted front that pairs beautifully with surrounding cabinetry and other stainless appliances, while intuitive front controls keep all key functions at your fingertips without cluttering the door.

What truly sets the THOR Kitchen ADW24PF apart is its advanced Hybrid Tall Tub Design, which combines a durable stainless steel door and interior tub shell with a reinforced base for added stability and long-term reliability. This construction not only looks premium but also helps optimize interior space so you can fit tall stemware, oversized dinner plates, and bulky pots with ease. For households that prioritize hygiene, the dishwasher’s NSF/ANSI 184 Certified sanitization option is a standout feature, engineered to achieve a high level of bacteria reduction during the final rinse so dishes, glassware, and utensils come out not just visibly clean but hygienically sanitized.

Versatility is another hallmark of this model. Seven distinct wash cycles—ranging from Auto and Heavy for tough, baked-on messes to Glass and ECO for delicate or energy-conscious loads—allow you to tailor each wash to what’s actually in the racks, rather than relying on a one-size-fits-all program. Complementing these cycles are multiple functional options such as heated dry and sanitize, giving you more control over drying performance and overall cleanliness. Inside, adjustable racks and a multi-piece silverware basket make it easy to reconfigure the interior to suit everything from a quick breakfast load to a full family dinner’s worth of dishes. Operating at a quiet sound level around the low-50s dBA and engineered for efficient water and energy use, the THOR Kitchen ADW24PF delivers the performance and polish of a premium dishwasher at a practical, everyday value.

ENERGY STAR® Certified performance – reduces energy and water consumption compared with standard dishwashers, helping lower utility bills while maintaining strong cleaning results.

NSF/ANSI 184 Certified water sanitization – final-rinse sanitization cycle is independently certified to reduce bacteria by at least 99.99% for hygienic, food‑safe dishes.

Hybrid Tall Tub Design – stainless steel door and inner tub shell with a durable plastic base improve longevity, resist staining, and enhance overall stability.

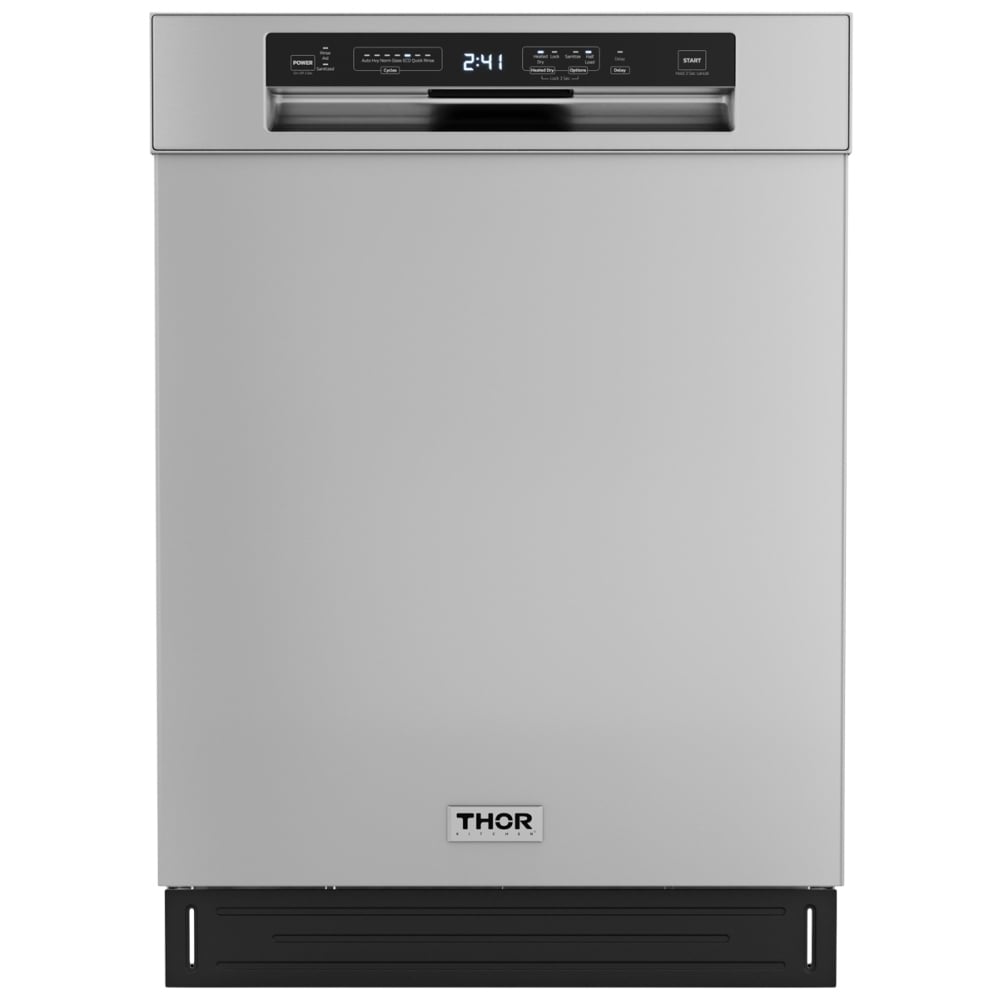

Pocket handle design – integrated pocket-style handle and front controls create a clean, contemporary look that blends seamlessly with modern cabinetry.

Front digital touch controls – fully visible control panel with electronic display makes it easy to select cycles, options, and monitor remaining time at a glance.

12 place setting capacity – accommodates up to 12 full place settings, ideal for small to medium households and entertaining without needing multiple loads.

7 wash cycles – Auto, Heavy, Normal, Glass, ECO, Quick, and Rinse cycles let you match water temperature and intensity to heavily soiled pots, everyday dishes, or delicate glassware.

5 functional options – add-on options such as Heated Dry, Sanitize, and Half‑load allow you to customize each cycle for faster drying, extra hygiene, or smaller loads.

52 dBA quiet operation – mid‑low sound level allows you to run the dishwasher during conversations, TV watching, or at night without excessive noise.

Forced hot‑air drying system – fan‑assisted hot‑air drying improves moisture removal so dishes, glasses, and cutlery come out cabinet‑ready with fewer water spots.

High‑temperature wash capability – elevated wash temperatures help break down grease and stuck‑on food for better cleaning performance on heavily soiled items.

Sanitize option – boosts final‑rinse temperature to sanitize dishes, baby items, and cutting boards, ideal for households wanting extra germ reduction.

Sensor/Auto wash cycle – automatically adjusts time and water usage based on soil level, optimizing cleaning results while conserving resources.

Heavy‑duty wash cycle – targets baked‑on and heavily soiled cookware with longer, more intensive washing action.

Delicate/Glass cycle – gentler spray pressure and temperature help protect stemware and fragile dishes from etching or damage.

ECO cycle – energy‑ and water‑saving program for lightly soiled loads, reducing operating costs and environmental impact.

Quick wash cycle – shorter program for lightly soiled dishes that need a fast turnaround between meals or courses.

Rinse‑only cycle – quickly rinses dishes to prevent food from drying on when you plan to run a full wash later.

Half‑load option – allows efficient washing of smaller loads in one rack, saving water and energy when the dishwasher isn’t full.

Delay start (up to 24 hours) – lets you schedule cycles to run later, taking advantage of off‑peak utility rates or finishing right before you wake up or return home.

Child lock / control lock – disables the control panel during operation to prevent accidental program changes or activation by children.

Leak protection system – built‑in safety features help detect and limit water leaks, reducing the risk of damage to floors and cabinetry.

Two powerful spray arms – upper and lower spray arms deliver strong, targeted water coverage to reach all corners of the tub for thorough cleaning.

Dual‑level wash system – two wash levels ensure both upper and lower racks receive consistent spray for even results on every shelf.

Stainless steel interior tub – resists odors, staining, and corrosion better than plastic tubs, while helping retain heat for improved drying.

Tall‑tub interior – increased vertical space allows loading of taller plates, baking sheets, and larger cookware on the lower rack.

Adjustable upper rack – rack height can be raised or lowered to fit tall stemware above or large pots and pans below, improving flexibility.

Fold‑down tines – sections of the lower rack tines fold flat to accommodate bulky items like pots, pans, and mixing bowls.

Nylon‑coated racks – durable, chip‑resistant rack coating helps protect dishes and glassware from scratches and metal contact.

Cutlery basket (three‑piece) – modular silverware basket keeps utensils separated for better cleaning and can be rearranged to free up rack space.

Cup shelves and stemware holders – dedicated supports in the upper rack secure cups and wine glasses, maximizing capacity and reducing breakage risk.

Rinse‑aid dispenser – automatically releases rinse aid during the final rinse to reduce spotting and improve drying performance.

Auto detergent dispenser – integrated detergent cup dispenses at the optimal time in the cycle for consistent cleaning results.

Water filtration system – built‑in filter helps trap food particles to prevent redepositing on dishes and maintain wash performance.

Built‑in water heating – internal heater boosts incoming water temperature when needed for better cleaning and sanitizing.

Standard 24‑inch built‑in size – designed to fit most 24‑inch dishwasher cutouts for straightforward replacement or new installations.

Side or top‑mount installation options – multiple mounting points help secure the dishwasher firmly in different cabinet configurations.

Hard‑wire power connection – junction‑box style electrical hookup provides a secure, permanent connection (no factory power cord).

Included drain hose / outlet pipe – supplied outlet hose simplifies installation and ensures proper drainage.

Water‑efficient operation – uses approximately 3.2 gallons of water per cycle (on standard settings), helping conserve water without sacrificing cleaning.

Compact depth design – shallower cabinet depth helps the unit fit tighter kitchen layouts while still offering full 24‑inch width capacity.

Cycle status indicators – panel lights and display show active cycle stage and remaining time so you know when dishes will be ready.

2‑year parts and labor warranty – extended manufacturer coverage provides added peace of mind on major components and workmanship.

Manufacturer's Warranty: 1 year

Canadian model: ADW24PF

Similar to USA model: ADW24PF

Canadian UPC: 850044461431

Similar to USA UPC: 850044461431

EAN: 0850044461431

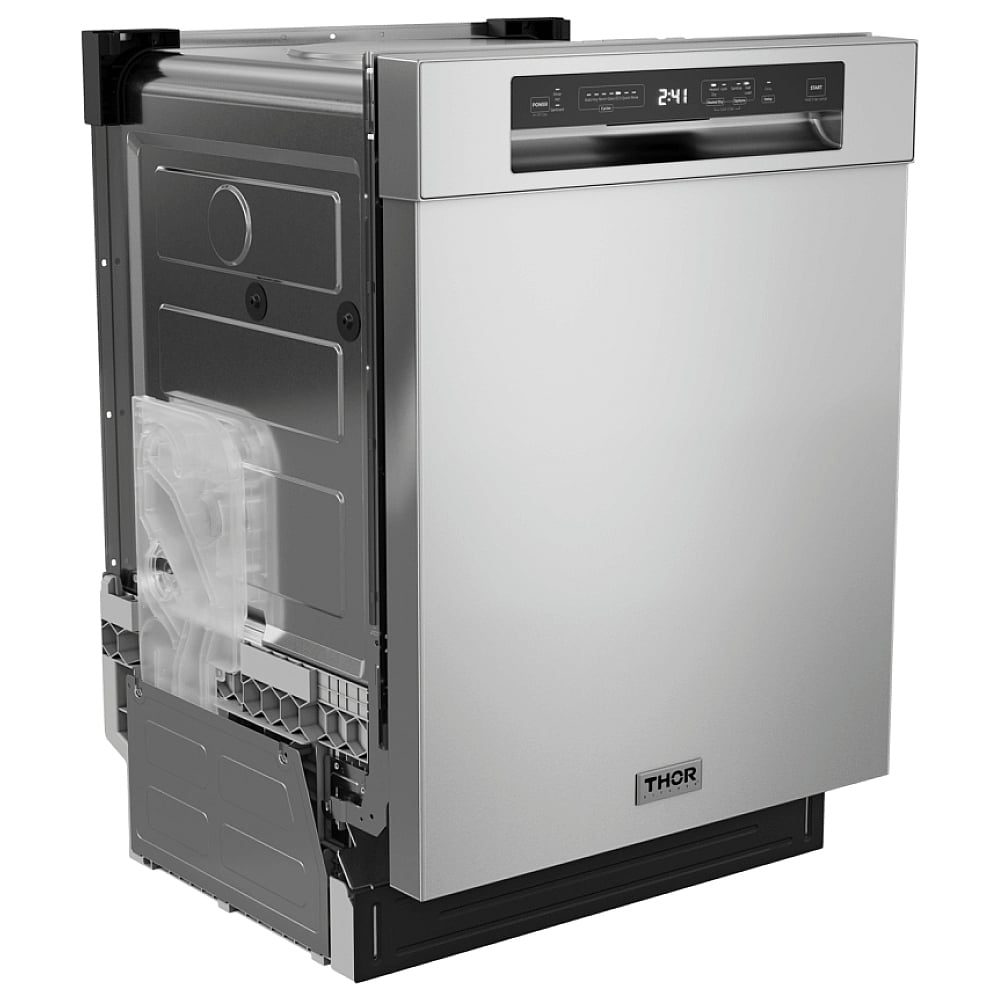

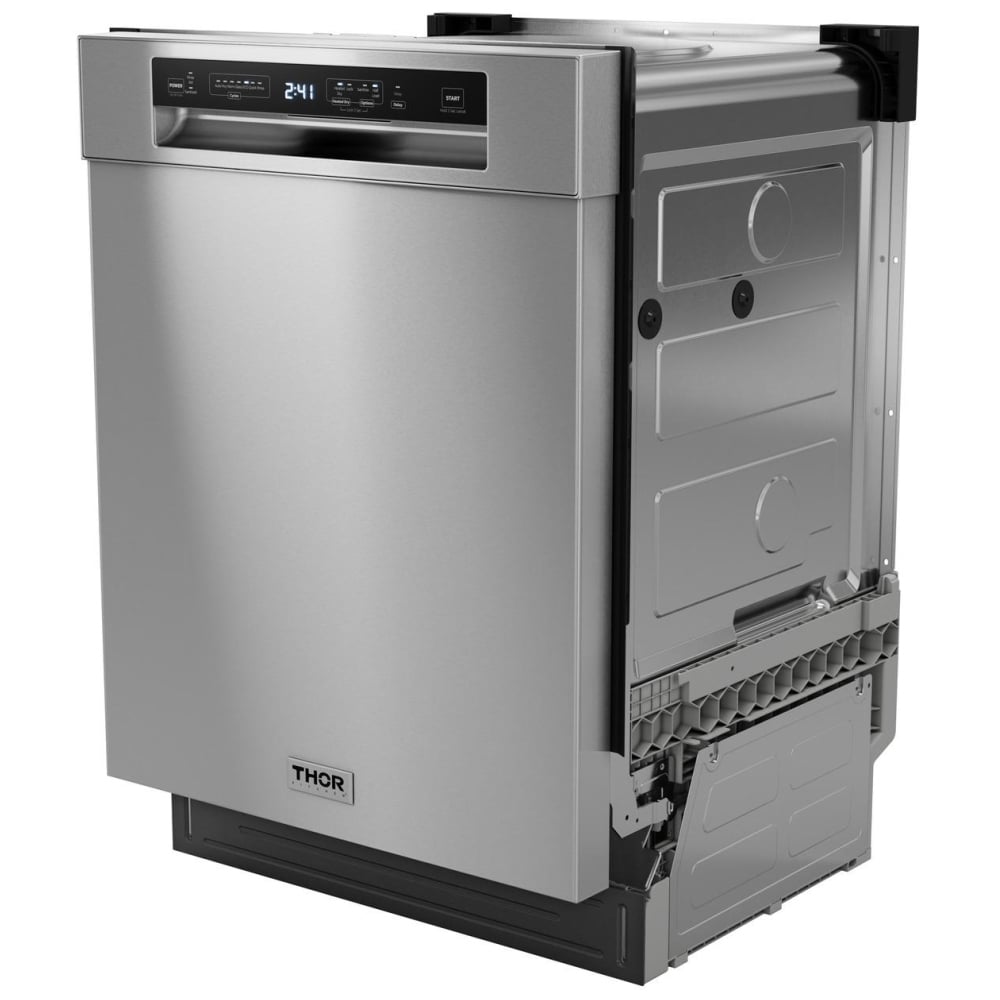

HYBRID TALL TUB DESIGN - ADW24PF
HYBRID TALL TUB DESIGN
ADW24PF - HYBRID TALL TUB DESIGN
Maximizes durability and aesthetics with a stainless steel door and tub shell, while incorporating a plastic base for added stability and functionality.
CYCLES - ADW24PF
CYCLES
ADW24PF - CYCLES
Auto / Heavy / Normal / Glass / ECO / Quick / Rinse: Provides a wide range of cycle options to cater to your specific dishwashing needs, whether it s tackling tough stains, delicate glassware, or conserving energy.

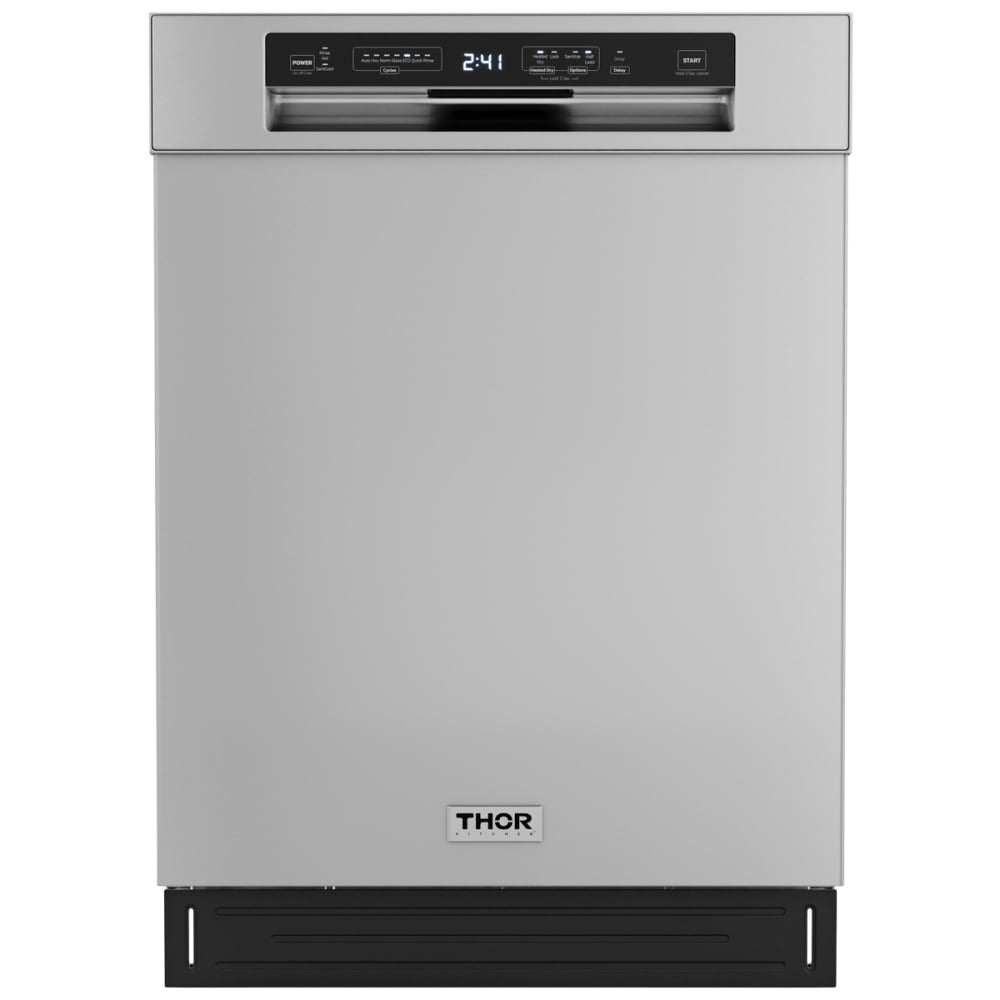

POCKET HANDLE DESIGN - ADW24PF
POCKET HANDLE DESIGN
ADW24PF - POCKET HANDLE DESIGN
Offers a sleek and modern look, providing a seamless integration into your kitchen decor, and the touch front controls offer convenience and ease of use.

Specs
Specification Value
Brand THOR Kitchen
Model ADW24PF
Type Built-in dishwasher
Style Front-control, pocket handle
Color / Finish Stainless steel
Capacity (Place Settings) 12 place settings
Width 23.62 inches
Depth (cabinet, excluding handle) 22.68 inches
Depth with Door Open (approx.) 46.3 inches
Height 33.66 inches
Product Dimensions (W x D x H) 23.62" x 22.68" x 33.66"
Cutout Width 23.8 inches
Cutout Depth 22.8 inches
Cutout Height 34–35 inches
Door Opening Depth (90° from door to cabinet) 27 inches
Net Weight 70.86 lb
Gross Weight 82.45 lb
Energy Star Certified Yes
Sound Level 52 dBA
Number of Wash Cycles 7 (Auto / Heavy / Normal / Glass / ECO / Quick / Rinse)
Functional Options 5 (including Heated Dry / Sanitize / Half-load, etc.)
Load Capacity (sets) 12 sets
Water Consumption 3.2 gallons per cycle (approx.)
Washing Performance 80 Plus Certified
Tub Material Stainless steel (hybrid tall tub with plastic base)
Number of Racks 2
Rack Material Nylon coated
Adjustable Upper Rack Yes
Fold-Down Tines Yes
Cup Shelves Yes
Stemware Holder Yes
Cutlery / Silverware Basket Three-piece silverware basket
Interior Finish Stainless steel
Tall Tub Yes (hybrid tall tub design)
Number of Spray Arms 2
Rinse Aid Dispenser Yes
Water Filtration Yes
Water Heating Yes
Auto Detergent Dispenser Yes
Interior Light No
Control Type Front control, touchpad / digital
Control Style Full console
Display Electronic display
Child Lock Yes (control panel lock)
Delay Start Yes (up to 24 hours)
Drying System Forced hot air / heated dry, vented
High Temperature Wash Yes
Sanitize Cycle / NSF Certification Yes, NSF/ANSI 184 certified sanitization
Quick Wash Setting Yes (Quick cycle)
China / Crystal Setting Yes (Glass cycle)
Heavy Duty Wash Yes (Heavy cycle)
Sensor / Smart Wash System Yes (sensor clean / smart wash system)
Half Load Option Yes (half-load function)
Delicate / Glass Wash Yes
Rinse & Hold Yes (Rinse cycle)
Steam Wash No
Hard Food Disposer No
Leak Protection Yes
Wi-Fi / Smart Connectivity No
Smart Home / App Compatible No
Energy Star Rated Yes
Annual Energy Use (approx.) ~240 kWh/year (rated power usage)
Voltage 120 V
Frequency 60 Hz
Amperage 7 A
Heater Power 840 W (heater)
Motor Power 50 W (motor)
Power Cord Hard-wired
Water Feed Pressure 20–120 psi (138–862 kPa)
Minimum / Suggested Inlet Water Temperature 120 °F
Inlet Hose Length Not specified by manufacturer
Outlet Hose Length 52 inches
Installation Side or top mounting
Handle Type Pocket handle
Fingerprint Resistant No
Country of Origin China
UPC 850044461431
Warranty 2-year limited (parts and labor)
