Whirlpool WDF540PADM
Discontinued
ENERGY STAR®
>> View & Compare Whirlpool Dishwasher Line Up << >> View & Compare Whirlpool Dishwasher Line Up <<
AELAW2
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Ratings & Reviews
AELAW2
When will I get this?

Description & Features

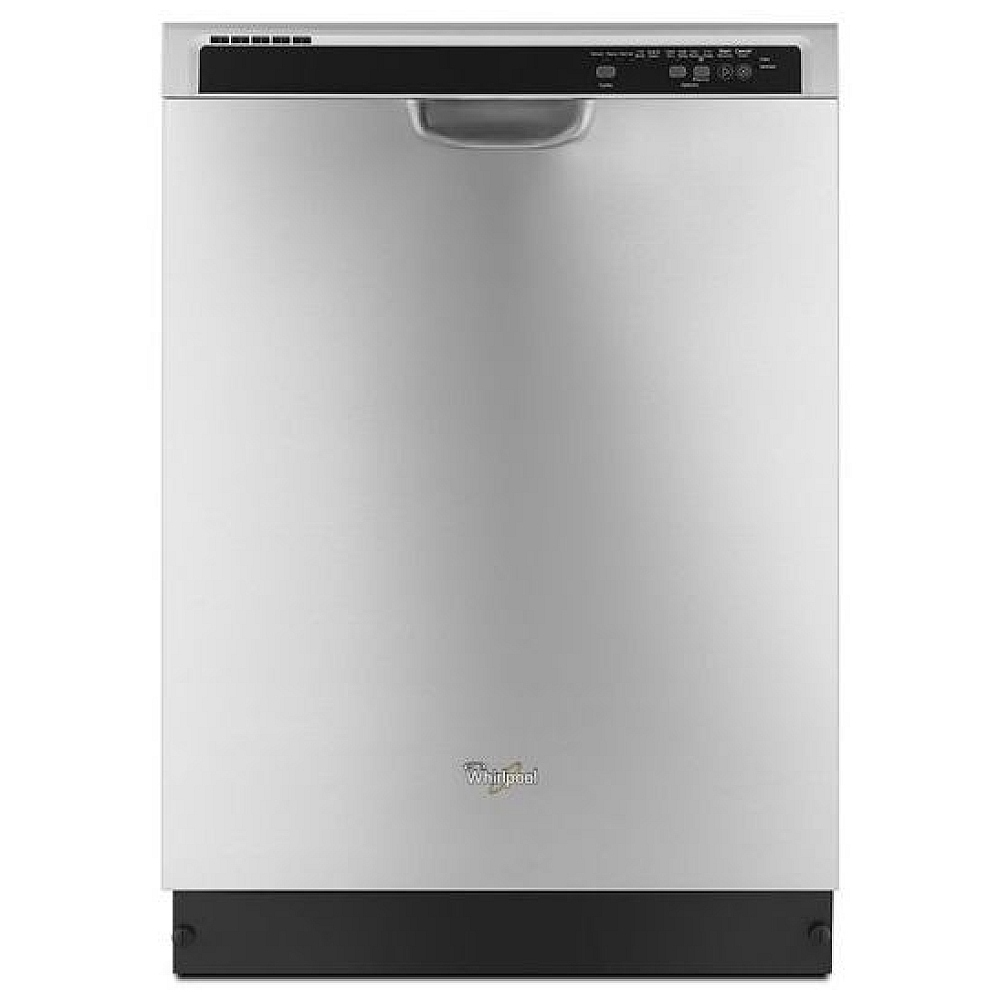

Whirlpool WDF540PADM Dishwasher



Help do your part to lessen the impact of household appliances on the environment, with the energy-efficient Whirlpool WDF540PADM dishwasher. This high-efficient dishwasher offers an impressive 15-place setting delivers an unsurpassed cleaning performance through the use of five wash cycles and several options while operating at whisper-quiet operation levels. You will be blown away as this dishwasher delivers a near professional wash performance while earning Energy Star® qualifications.



The attractive design of the Whirlpool WDF540PADM dishwasher complements any kitchen with its alluring stainless steel door with black accents. When the sleek door is opened downward, an impressive two-rack system with 15-place settings is exposed.



This high-performance dishwasher features five wash cycles. The wash cycles include sensor wash, overnight, 1-hour wash, Heavy, and Normal.



The Overnight cycle is a 7-hour wash cycle, that optimizes water efficient without using more electricity. This cycle quietly soaks dishes and cookware, eliminating the pre-wash cycle; then this dishwasher switches over to a heavy wash cycle to thoroughly clean heavily soiled dishes and cookware.



Whirlpool's 1-hour wash cycle is designed to deliver the same sparkling clean, in almost half the time of other cycles. This cycle works best on lightly soiled dishes.



The heavy cycle extends the cycle time to clean the dirtiest of dishes to a bright, shiny clean.



The normal cycle works best on dishes that are moderately soiled or have an average amount of food left behind.



For the ultimate cleaning performance, this dishwasher features the advanced sensor wash cycle. This intelligent cycle uses built-in sensors to detect the load size and soil level. Once the load size and soil level is detected, the dishwasher fill the wash tub with the optimal amount of water automatically.



Whirlpool did not stop there; they also equipped this unit with several wash options. The wash options include 4-hour delay, control lock, heated dry, hi temp wash, and Sani Rinse®.



This dishwasher features the NSF Certified Sani Rinse option. This option uses a high-temperature rinse to eliminate 99.999% of food bacteria.



To help you accommodate more in each wash load, this dishwasher features the convenient AnyWare™ silverware basket. The AnyWare™ silverware basket was designed to be placed anywhere on the dishwasher. This means you can move the silverware basket to where it fits best, whether that means the front of the lower rack or in the door.



Just when you thought this dishwasher could not get any better, it earned Energy Star® qualifications. Energy Star® appliances use fewer natural resources to operate, exceed strict federal minimum energy consumption guidelines by a minimum of 25%. This means when you clean your dishes with this dishwasher; you use fewer natural resources than with a unit that is not Energy Star® qualified.



When it comes to selecting a dishwasher you can trust; there is no better choice than the Whirlpool WDF540PADM dishwasher. This impressive 15-place setting capacity uses five wash cycles and several wash options to clean away dried-on, stuck-on foods with ease.


Clean dishes with an ENERGY STAR® certified dishwasher your family can count on. This dishwasher automatically selects the right settings with the Sensor cycle, and cycle memory remembers the last cycle you picked so it s ready to go. The 1-Hour Wash cycle

  • 1-Hour Wash cycle
  • Clean the dishes you need fast with a cycle that thoroughly takes care of plates, pans and glasses in just an hour.
  • An American Company for Over 100 Years
  • Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
  • Cycle memory
  • Quickly start your dishwasher with one button. It automatically remembers the last cycle you picked so it s stored and ready to go.
  • ENERGY STAR® Certified
  • ENERGYSTAR® certified models exceed government standards to help save money on your utility bills.
  • ENERGY STAR® certified models exceed government standards to help save money on your utility bills.
  • Heated Dry option
  • Use a clean, dry dish straight from the dishwasher thanks to added heat for drying. For optimal drying results, use this option with rinse aid.
  • Heavy cycle
  • Takes care of heavily soiled messes and other hard-to-clean dishes without the extra elbow grease by adding extra time to the cycle.
  • High Temperature Wash option
  • Get thorough cleaning with the High Temperature Wash option.
  • In-door silverware basket
  • Frees up rack space by easily fitting on the front of the lower rack or in the door to make room for more dishes.
  • Industry's Best Selling Dishwasher Brand
  • Normal cycle
  • Use for normal amounts of food soil to clean up leftover messes from your day-to-day meals.
  • Sani Rinse option
  • Sanitizes dishes by eliminating 99.999% of food soil bacteria.
  • Sensor cycle
  • Automatically get the right wash and dry settings for each load with two sensors that measure temperature, soil level and load size during prewash and the wash cycle.
  • Soil sensor
  • Determines how dirty dishes are and adjusts the Normal cycle as needed to make sure dishes come out clean.

Manufacturer's Warranty: 1 year

Canadian model: WDF540PADM

Canadian UPC: 883049340869

EAN: 0883049340869


1-Hour Wash cycle - WDF540PADM
1-Hour Wash cycle
WDF540PADM - 1-Hour Wash cycle
Clean the dishes you need fast with a cycle that thoroughly takes care of plates, pans and glasses in just an hour.

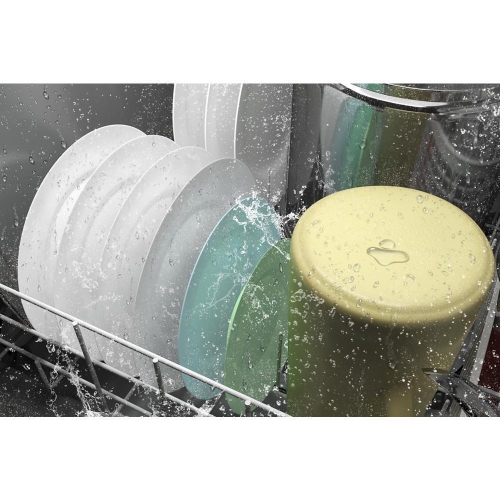

Sensor cycle - WDF540PADM
Sensor cycle
WDF540PADM - Sensor cycle
Automatically get the right wash and dry settings for each load with two sensors that measure temperature, soil level and load size during prewash and the wash cycle.

Specs
Certifications
Cee Tier Rating Tier I
Energy Rating 260
Energy Rating (kwh/year) 260
Energy Star Qualified ENERGY STAR® Qualified
Nsf Certified Yes
Prop65 Standard
Controls
Control Location Front
Control Type Electronic
Status Light Blue
Cycles
Number of Wash Cycles 5
Details
Decibel Level 53
Dishwasher Cycle Selection 1-Hour Wash; Heavy; Normal; Sensor Wash; Soak & Clean
Dishwasher Option Selections 4 Hour Delay; Control Lock; Heated Dry; Hi Temp Wash; Sani Rinse
Dishwasher Type Built-In
Dispensers Detergent and Rinse Aid
Number of Place Settings 15
Number of Racks 2
Number of Wash Levels 5
Number of Washarms 3
Rack Material Nylon
Rinse Aid Dispenser Level Indicator Yes
Sensor Yes
Sound Package Yes
Tub Material Plastic
Tub Style Built-in Tall Tub 24in.
Wash System Type Removable Filter
Dimensions
Product Height 34.5
Cutout Depth 24
Cutout Height 33.875
Carton Height 35.63
Gross Weight 67
Carton Depth 26.5
Carton Width 24.5
Cutout Width 24
Product Depth 24.5
Net Weight 56
Product Width 23.875
Depth With Door Open 90 Degree 49.5
Exterior Details
Control Panel Color Black
Handle Color Stainless Steel
Handle Type Pocket Handle
Window No
General
Decibel Level (dba) 53
Dishwasher Rack Material Nylon
Oven Details
Lower Rack Glides Rollers
Lower Rack Utility Basket No
Rack Details
Lower Rack Cushion-tip Tines No
Lower Rack Fold-down Tines No
Lower Rack Style Straight
Second Level Rack Adjustable No
Second Level Rack Cushion-tip Tines Yes
Second Level Rack Extras 1-11 in. Cup Shelf; 2-No Flip Clips
Second Level Rack Fold-down Tines No
Second Level Rack Glides Single Channel Rails
Third Level Rack Adjustable N/A
Third Level Rack Glides N/A
Third Level Rack Removable N/A
Silverware Basket Details
Silverware Basket Location Rack or Door
Silverware Basket Type AnyWare™ Basket
Smart Compatibility
Connectivity No
Works With No

Dimensions
Depth 24 1/2
Width 23 7/8
Height 34 1/2
Carton Depth 26 1/2
Carton Height 35 5/8
Carton Width 24 1/2
Cutout Depth 24
Cutout Height 33 7/8
Cutout Width 24
Depth With Door Open 90 Degree 49 1/2
Gross Weight 67
Maximum Height 34 1/2
Minimum Height 33 1/2
Net Weight 56.0

Certifications
Prop 65 Standard
CEE Tier Tier I
Energy Star® Qualified ENERGY STAR® Qualified
NSF® Certified Yes
UL UL
Energy Rating (kWH/year) 260

Configuration and Overview
Dishwasher Type Built-In
Decibel Level dBA 53

Compatibility
Connectivity No
Works With No

Controls
Control Type Electronic
Control Location Front
Sensor Yes
Status Light Blue

Details
Dispenser Detergent and Rinse Aid
Rinse Aid Dispenser Level Indicator Yes
Number of Racks 2
Rack Material Nylon
Number of Wash Levels 5
Wash System Type Removable Filter
Number of Washarms 3
Tub Material Plastic
Tub Style Built-in Tall Tub 24"

GDS
isBaseUnit true
isConsumerUnit true
IsDispatchUnit .
IsInvoiceUnit true
IsOrderableUnit true
Product Type EA
GPC Code 10001929
UDEX 1100792115

Features
Sound Package Yes

Exterior
Handle Type Pocket Handle
Handle Color Stainless Steel

Cycles and Options
Number of Wash Cycles 5
Dishwasher Cycle Selections 1-Hour Wash,Heavy,Normal,Sensor Wash,Soak & Clean

Appearance
Window No

Options
Dishwasher Option Selections 4 Hour Delay,Control Lock,Heated Dry,Hi Temp Wash,Sani Rinse®

2nd Level Rack
Extras 1-11" Cup Shelf,2-No Flip Clips
Cushion-Tip Tines Yes
Adjustable No
Fold-Down Tines No
Glides Single Channel Rails
Style Straight
Utility Basket No

Electrical
Amps 15
Volts 120

Silverware Basket
Location Rack or Door
Type AnyWare™ Basket

Third Level Rack
Removable NA

Refinements
WHR Dishwasher 1-Hour Wash,Energy Star® Certified,Kosher Consumer Friendly,Sensor Cycle
