Whirlpool WDF540PADW
Discontinued
ENERGY STAR®
>> View & Compare Whirlpool Dishwasher Line Up << >> View & Compare Whirlpool Dishwasher Line Up <<
AFS75M
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Ratings & Reviews
AFS75M
When will I get this?

Description & Features

 Whirlpool WDF540PADW Dishwasher



Eliminate the guesswork from achieving outstanding cleaning results with the Whirlpool WDF540PADW dishwasher with sensor clean system. Whirlpool’s sensor clean automatically adjusts the wash and dryness settings to deliver professional level cleaning results. This impressive Energy Star® unit accommodates up to 15-place settings while cleaning quietly at a low 53 dBA. For additional loading and unloading convenience, this Whirlpool features the AnyWare™ Plus silverware basket to free up rack space. Best of all you can achieve a thorough cleaning to lightly soiled dishes in 1-hour.



Enhance the look of your kitchen with the traditional designed of the white Whirlpool WDF540PADW dishwasher. Its flush to cabinet installation creates a built-in, seamless appearance even the pickiest of homeowners will love.



Do not let its built-in installation food you. This high-performance dishwasher features a full tub wash tub with 15 place setting capacity across two dish racks. The adjustable upper dish rack slides into two positions with ease, allowing you to accommodate large or awkward items on the lower dish rack.



The AnyWare™ Plus silverware basket may be placed on the lower dishrack, upper dish rack, or lifted in front of the door. Move the silverware basket in front of the door frees up more space on the lower dish rack, allowing you to wash more dishes in each load.



Regardless of where you place the AnyWare™ Plus Silverware basket is placed, you can rest easy knowing every piece of silverware will receive the same thorough cleaning result with the Silverware Spray jet. The Silverware Spray jet is a sprayer jet dedicated to the silverware basket, working to clean every fork, spoon, and knife during the wash cycle.



Whirlpool gives you the ability to customize your wash performance through the use of five wash cycles and five wash options. The five wash cycles include 1-hour wash, heavy wash, normal wash, sensor wash, and soak & clean. Its wash options offer 4-hour delay wash, control lock, heated dry, hi-temp wash, and SaniRinse®.



The sensor cycle takes the guesswork out of clean dishes. This cycle uses built-in sensors to detect the load size, soil level, and dryness program needed to achieve near-professional cleaning results. Once the sensors select the ideal wash and dry settings, they continue to the monitor load during the wash cycle to make real-time adjustments to the cycle.



The 1-hour wash option is perfect for half loads of lightly soiled, in the half the time of a regular wash cycle.  Thanks to Whirlpool you can enjoy fresh, clean dishes in half the time.



Whirlpool’s Sani Rinse® option eliminates up to 99% of bacteria from plate ware and cookware using a high-temperature rinse. There is no better option during cold and flu season to keep your family healthy.



This quiet, high-performance dishwasher is Energy Star qualified. Energy Star appliances exceed strict federal minimum energy consumption guidelines by at least 25%. In other words, Whirlpool designed the WDF540PAWD dishwasher to provide the same great performance and functions Whirlpool is known for while using fewer natural resources.


Clean dishes with an ENERGY STAR® certified dishwasher your family can count on. This dishwasher automatically selects the right settings with the Sensor cycle, and cycle memory remembers the last cycle you picked so it s ready to go. The 1-Hour Wash cycle on this efficient dishwasher cleans plates, pans and glasses fast.

  • 1-Hour Wash cycle
  • Clean the dishes you need fast with a cycle that thoroughly takes care of plates, pans and glasses in just an hour.
  • An American Company for Over 100 Years
  • Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
  • Cycle memory
  • Quickly start your dishwasher with one button. It automatically remembers the last cycle you picked so it s stored and ready to go.
  • ENERGY STAR® Certified
  • ENERGYSTAR® certified models exceed government standards to help save money on your utility bills.
  • ENERGY STAR® certified models exceed government standards to help save money on your utility bills.
  • Heated Dry option
  • Use a clean, dry dish straight from the dishwasher thanks to added heat for drying. For optimal drying results, use this option with rinse aid.
  • Heavy cycle
  • Takes care of heavily soiled messes and other hard-to-clean dishes without the extra elbow grease by adding extra time to the cycle.
  • High Temperature Wash option
  • Get thorough cleaning with the High Temperature Wash option.
  • In-door silverware basket
  • Frees up rack space by easily fitting on the front of the lower rack or in the door to make room for more dishes.
  • Industry's Best Selling Dishwasher Brand
  • Normal cycle
  • Use for normal amounts of food soil to clean up leftover messes from your day-to-day meals.
  • Sani Rinse option
  • Sanitizes dishes by eliminating 99.999% of food soil bacteria.
  • Sensor cycle
  • Automatically get the right wash and dry settings for each load with two sensors that measure temperature, soil level and load size during prewash and the wash cycle.
  • Soil sensor
  • Determines how dirty dishes are and adjusts the Normal cycle as needed to make sure dishes come out clean.

Manufacturer's Warranty: 1 year

Canadian model: WDF540PADW

Canadian UPC: 883049340838

EAN: 0883049340838

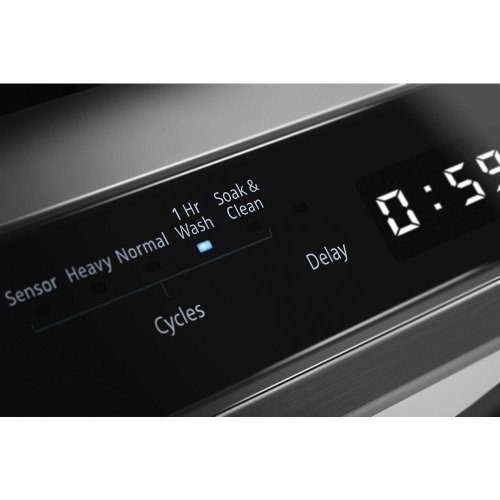

1-Hour Wash cycle - WDF540PADW
1-Hour Wash cycle
WDF540PADW - 1-Hour Wash cycle
Clean the dishes you need fast with a cycle that thoroughly takes care of plates, pans and glasses in just an hour.

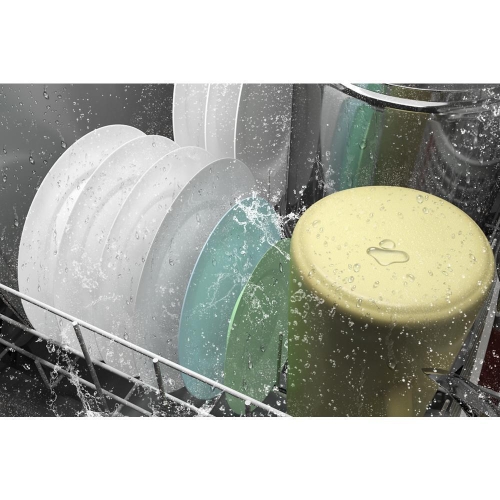

Sensor cycle - WDF540PADW
Sensor cycle
WDF540PADW - Sensor cycle
Automatically get the right wash and dry settings for each load with two sensors that measure temperature, soil level and load size during prewash and the wash cycle.

Specs
Certifications
Cee Tier Rating Tier I
Energy Rating (kwh/year) 260
Nsf Certified Yes
Prop65 Standard
Controls
Control Location Front
Control Type Electronic
Status Light Blue
Cycles
Number of Wash Cycles 5
Details
Dishwasher Cycle Selection 1-Hour Wash; Heavy; Normal; Sensor Wash; Soak & Clean
Dishwasher Option Selections 4 Hour Delay; Control Lock; Heated Dry; Hi Temp Wash; Sani Rinse
Dishwasher Type Built-In
Dispensers Detergent and Rinse Aid
Number of Place Settings 15
Number of Racks 2
Number of Wash Levels 5
Number of Washarms 3
Rinse Aid Dispenser Level Indicator Yes
Sensor Yes
Sound Package Yes
Tub Material Plastic
Tub Style Built-in Tall Tub 24in.
Wash System Type Removable Filter
Dimensions
Product Height 34.5
Cutout Depth 24
Cutout Height 33.875
Carton Height 35.63
Gross Weight 67
Carton Depth 26.5
Carton Width 24.5
Cutout Width 24
Product Depth 24.5
Net Weight 56
Product Width 23.875
Depth With Door Open 90 Degree 49.5
Exterior Details
Control Panel Color White
Handle Type Pocket Handle
Window No
General
Decibel Level (dba) 53
Dishwasher Features 1-Hour Wash; Kosher Consumer Friendly; Sensor Cycle
Dishwasher Rack Material Nylon
Energy Star® Qualified ENERGY STAR® Qualified
Oven Details
Lower Rack Glides Rollers
Lower Rack Utility Basket No
Rack Details
Lower Rack Cushion-tip Tines No
Lower Rack Fold-down Tines No
Lower Rack Style Straight
Second Level Rack Adjustable No
Second Level Rack Cushion-tip Tines Yes
Second Level Rack Extras 1-11 in. Cup Shelf; 2-No Flip Clips
Second Level Rack Fold-down Tines No
Second Level Rack Glides Single Channel Rails
Third Level Rack Adjustable N/A
Third Level Rack Glides N/A
Third Level Rack Removable N/A
Silverware Basket Details
Silverware Basket Location Rack or Door
Silverware Basket Type AnyWare™ Basket
Smart Compatibility
Connectivity No
Works With No

Dimensions
Depth 24 1/2
Width 23 7/8
Height 34 1/2
Carton Depth 26 1/2
Carton Height 35 5/8
Carton Width 24 1/2
Cutout Depth 24
Cutout Height 33 7/8
Cutout Width 24
Depth With Door Open 90 Degree 49 1/2
Gross Weight 67
Maximum Height 34 1/2
Minimum Height 33 1/2
Net Weight 56.0

Certifications
Prop 65 Standard
CEE Tier Tier I
Energy Star® Qualified ENERGY STAR® Qualified
NSF® Certified Yes
UL UL
Energy Rating (kWH/year) 260

Configuration and Overview
Dishwasher Type Built-In
Decibel Level dBA 53

Compatibility
Connectivity No
Works With No

Controls
Control Type Electronic
Control Location Front
Sensor Yes
Status Light Blue

Details
Dispenser Detergent and Rinse Aid
Rinse Aid Dispenser Level Indicator Yes
Number of Racks 2
Rack Material Nylon
Number of Wash Levels 5
Wash System Type Removable Filter
Number of Washarms 3
Tub Material Plastic
Tub Style Built-in Tall Tub 24"

GDS
isBaseUnit true
isConsumerUnit true
IsDispatchUnit .
IsInvoiceUnit true
IsOrderableUnit true
Product Type EA
GPC Code 10001929
UDEX 1100792115

Features
Sound Package Yes

Cycles and Options
Number of Wash Cycles 5
Dishwasher Cycle Selections 1-Hour Wash,Heavy,Normal,Sensor Wash,Soak & Clean

Appearance
Window No

Options
Dishwasher Option Selections 4 Hour Delay,Control Lock,Heated Dry,Hi Temp Wash,Sani Rinse®

2nd Level Rack
Extras 1-11" Cup Shelf,2-No Flip Clips
Cushion-Tip Tines Yes
Adjustable No
Fold-Down Tines No
Glides Single Channel Rails
Style Straight
Utility Basket No

Electrical
Amps 15
Volts 120

Silverware Basket
Location Rack or Door
Type AnyWare™ Basket

Third Level Rack
Removable NA

Refinements
WHR Dishwasher 1-Hour Wash,Energy Star® Certified,Kosher Consumer Friendly,Sensor Cycle
