WEG745H0FS Whirlpool Gas Range 30 inch Canada Parts - Sale! Best Price, Reviews and Specs

Take on family favorites with this slide-in gas range designed to fit your kitchen and your cooking. Frozen Bake™ technology lets you skip preheating the oven range for frozen dishes like pizza, lasagna, chicken nuggets, fries or pies. Cook food faster with this kitchen range's true convection cooking. Large griddles and other longer cookware heat evenly on the range stove with the center oval burner. And when it's time to clean up, EZ-2-Lift™ hinged cast-iron grates provide quick access to wipe up spills on the kitchen range's cooktop.

Frozen Bake™ Technology

Skip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster

EZ-2-Lift™ Hinged Cast-Iron Grates

Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ hinged cast-iron grates

True Convection Cooking

True convection cooking helps you cook foods faster

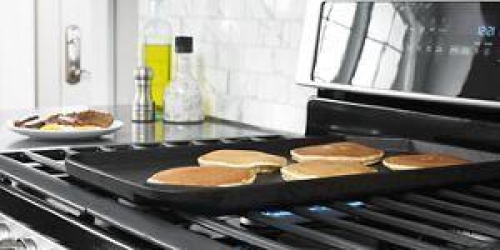

Center Oval Burner

The oval shape of this fifth burner fits large griddles and other longer cookware so they heat evenly on the range top.

SpeedHeat™ Burner

Sear and boil quickly with the high temperatures provided by the 17,000-BTU SpeedHeat™ burner.

AquaLift® Self-Cleaning Technology

Clean the oven with minimal odors at a temperature below 248°F. This innovative 40-minute cycle combines low heat with water to release baked-on spills that can be wiped away once the cycle is complete.* *Unlike traditional Adjustable Self-Clean Cycle which burns off soils, when using Aqualift® self-clean technology, add water, run the cycle and then manually remove the water and soils with a wet sponge when the cycle is finished.

Temperature Sensor

A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.

Rapid Preheat

Save time with this fast preheating mode. A rear fan combined with the use of all of the elements helps to heat the oven quickly.

5.8 Cu. Ft. Capacity

Easily cook a whole meal with 5.8 Cu. Ft. Capacity.

Large Oven Window

Top 3 Features

Frozen Bake™ Technology

Skip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster.

EZ-2-Lift™ Hinged Cast-Iron Grates

Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ hinged cast-iron grates. The hinged design allows you to wipe up under them without removing them entirely. For a more thorough clean, the grates are also dishwasher-safe.

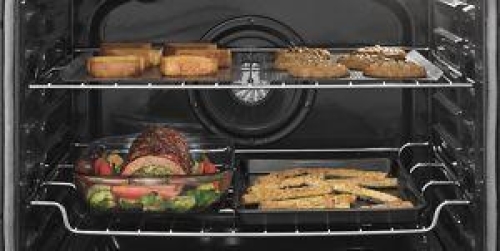

True Convection Cooking

True convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food.

Additional Features

SpeedHeat™ Burner

Sear and boil quickly with the high temperatures provided by the 17,000-BTU SpeedHeat™ burner.

AquaLift® Self-Cleaning Technology

AquaLift® self-cleaning technology delivers odour-free oven cleaning without chemicals in only 50 minutes.

Center Oval Burner

The oval shape of this fifth burner fits large griddles and other longer cookware so they heat evenly on the range top.

Temperature Sensor

A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.

Rapid Preheat

Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly. Now you can save time when single-rack baking with 20% faster preheating.

Large Oven Window

True convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food.

5.8 Cu. Ft. Capacity

Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly. Now you can save time when single-rack baking with 20% faster preheating.

Dishwasher-Safe Knobs

A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.

#1 Selling Appliance Brand in the U.S.A.

Manufacturer's Warranty: 1 year

UPC: 883049397627

EAN: 0883049397627

Frozen Bake™ Technology
WEG745H0FS - Frozen Bake™ Technology
Skip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster.

EZ-2-Lift™ Hinged Cast-Iron Grates
WEG745H0FS - EZ-2-Lift™ Hinged Cast-Iron Grates
Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ hinged cast-iron grates. The hinged design allows you to wipe up under them without removing them entirely. For a more thorough clean, the grates are also dishwasher-safe.

True Convection Cooking
WEG745H0FS - True Convection Cooking
True convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food.

Center Oval Burner
WEG745H0FS - Center Oval Burner
The oval shape of this fifth burner fits large griddles and other longer cookware so they heat evenly on the range top.

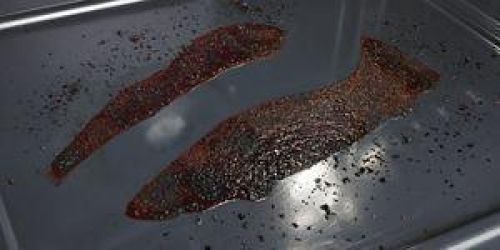

AquaLift® Self-Cleaning Technology
WEG745H0FS - AquaLift® Self-Cleaning Technology
AquaLift® self-cleaning technology delivers odour-free oven cleaning without chemicals in only 50 minutes.

Specs

Certifications
Prop 65 & AB-1200	CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . California AB-1200 Disclosures
Dimensions
Capacity	5-4/5
Height	36 in
Net Weight	208 lbs
Width	29-7/8 in
Configuration and Overview
Fuel Type	Gas
Range Type	Slide-in
Size	30 in
Appearance
Handle Material	Metal
Oven Details
Automatic Convection Conversion Temperature Adjust	Yes
Broiler Location	Top of Oven
Convection Functions	Bake, Broil, Roast
Drawer Type	Storage Drawer
Hidden Bake Element	Yes
Interior Color	Grey
Oven Control Location	Front
Oven Control Type	Electronic Touch
Power On Indicator Light	Yes
Cooktop Details
Cooktop Control Location	Front
Heating Element On Indicator Light	No
Hot Surface Indicator Light	No
Number of Cooking Element-Burners	5
Number of Grates	2
Details
Cooktop Surface Material	Porcelain Coated Steel
Number of Oven Racks	3
Number of Rack Guides	7
Oven Light Type	Incandescent
Refinements
Features	ADA Compliant, EZ-2-Lift™ Hinged Grates, Frozen Bake™ Technology, Sabbath Mode/Star-K Certification, Self-Cleaning, True Convection, Bladed Knob, Whirlpool Handle
Features
Power Outage Compatible	No
Description
Fuel Type	Gas

Dimensions
Width	29 7/8
Height	36
Carton Depth	30 1/2
Carton Height	43 1/2
Carton Width	31 1/2
Depth Closed Excluding Handles	28 7/8
Gross Weight	204
Capacity (cubic feet)	5.80

Certifications
Prop 65	Standard
ADA Compliant	ADA Height and Operation Compliant
UL	UL

Configuration and Overview
Fuel Type	Gas
Range Type	Slide-in
Size (IN,inches)	30

Configuration
Range Configuration	Slide-In
Oven Configuration	Single Oven

Exterior
Oven Door	Metal & Glass
Oven Window Size	Extra Large
Handle Color	Stainless Steel

Oven Details
Drawer Type	Storage Drawer
Automatic Convection Conversion Temperature Adjust	Yes
Convection Functions	Bake,Broil,Roast
Power On Indicator Light	Yes
Interior Color	Grey
Oven Control Type	Electronic Touch
Oven Cooking System	Convection
Oven Control Location	Front
Hidden Bake Element	Yes
Broiler Location	Top of Oven

Controls
Knob Color	Color Coordinated/Black on Stainless
Display Color	Blue
Electronic Display Type	Digital
Knob Type	Weighted

Cooktop Details
Hot Surface Indicator Light	No
Heating Element On Indicator Light	No
Cooktop Surface Color	Black
Cooktop Surface Material	Porcelain Coated Steel
Number of Cooking Element-Burners	5
Left Front Element-Burner Power	17,000 BTU
Left Rear Element-Burner Power	5000 BTU
Center Front Element-Burner Type	Sealed Burner
Left Front Element-Burner Type	Sealed Burner
Left Rear Element-Burner Type	Sealed Burner
Auto Re-ignition	No
Right Rear Element-Burner Type	Sealed Burner
Grate Details	Cast Iron Grates,Dishwasher Safe,Matte Finish,Rear Hinged Grate
Cooktop Control Location	Front
Cooktop Control Type	Knobs
Cooktop Element Style	Gas Burner
Ignition Type	Électroniques
Center Rear Element-Burner Power	8000 BTU
Right Front Element-Burner Power	15,000 BTU
Number of Grates	2
Right Front Element-Burner Type	Sealed Burner
Right Rear Element-Burner Power	9200 BTU

Appearance
Handle Material	Metal

Features
Selection	Keep Warm Setting,Settings,Control Lock,Frozen Bake,Cook Time Indicator,Delay Start,Sabbath Mode,Convect Modes,Rapid Preheat
Power Outage Compatible	No

Electrical
Amps	15
Volts	120
Power Cord Included	Yes

Details
Bake Element Power	18,000 BTU
Convection Element Type	Single-Fan
Broiler Element Power	13000 BTU
Number of Oven Lights	1
Oven Light Type	Incandescent
Number of Rack Guides	7
Oven Rack Type	2 Standard and 1 Max Capacity
Oven Cleaning Type	AquaLift® Steam Clean
Number of Oven Racks	3

Refinements
WHR Range	ADA Compliant,Bladed Knob,EZ-2-Lift™ Hinged Grates,Frozen Bake™ Technology,Sabbath Mode/Star-K Certification,Self-Cleaning,True Convection,Whirlpool Handle

Refinement
Style	Ranges

Manuals

Installation Guide (WEG745H0FS-installation-guide-canada.pdf)

Use & Care Guide (WEG745H0FS-use-care-guide-canada.pdf)

Dimension Guide (WEG745H0FS-dimension-guide-canada.pdf)

Warranty Information (WEG745H0FS-warranty-information-canada.pdf)

Installation Instructions (WEG745H0FS-installation-instructions-canada.pdf)
