Whirlpool
Bonus Induction Ready 4-PC Cookware Set
Whirlpool WEG745H0LZ
Discontinued
Replaced by WSGS7530RZ
AG1159
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Replaced by WSGS7530RZ
Ratings & Reviews
Similar Colours and Options
AG1159
When will I get this?

Description & Features

Introducing you to the latest addition to the Whirlpool line-up - the WEG745H0LZ Gas Range. With its 30-inch exterior width and 5.8 cubic foot capacity, this range is the perfect addition to any kitchen, big or small. With 5 gas burners and a convenient air fry mode, you'll be able to cook all of your favorite dishes with ease.

What sets the WEG745H0LZ apart from other gas ranges is its 7-in-1 oven capabilities. The true convection cooking technology ensures that your food will be cooked evenly every time. The EZ-2-Lift™ hinged cast-iron grates make cleaning up a breeze, and the dishwasher-safe air fry basket ensures that you won't have to spend hours scrubbing your range.

So why choose the WEG745H0LZ? It's simple. This range is built for convenience and efficiency, ensuring that you'll be able to cook all of your favorite meals with ease. Whether you're a seasoned chef or just starting out, the WEG745H0LZ is the perfect addition to your kitchen. So don't wait - upgrade your cooking game today with the Whirlpool WEG745H0LZ Gas Range.




Cook however you want with a gas 7-in-1 Air Fry Oven. You can air fry your favorite foods like chicken wings, nuggets and fries right in your oven with the included air fryer basket that s dishwasher safe. Features like True Convection Cooking and cast iron stove grates give you the flexibility to cook a variety of dishes.

  • 5.8 Cu. Ft. Capacity
  • Easily cook a whole meal with 5.8 Cu. Ft. Capacity.
  • 7-in-1 Oven
  • Cook however you want with 7 cooking modes in 1 oven: Air Fry, Convect Bake, Convect Broil, Frozen Bake™, Bake, Broil and Keep Warm cycles. This range gives you the flexibility to cook a variety of dishes by combining multiple cooking modes in one oven.
  • Air Fry Mode
  • Skip preheating and air fry chicken nuggets, wings, fries and more to get crispy results right in your oven. The Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.
  • AquaLift® Self-Cleaning Technology
  • Clean your oven without harsh chemicals in only 40 minutes with AquaLift® Self-Cleaning Technology. Add water, run the cycle and then wipe away any remaining soils once the cycle is done.
  • Broil Setting
  • When you place food close to the oven s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.
  • Center Oval Burner
  • Easily fit large griddles and other longer cookware on this fifth burner.
  • Control Lock Mode
  • Disable the control panel to avoid unintended use and easily clean the controls.
  • EZ-2-Lift™ Hinged Cast-Iron Grates
  • Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without removing them.
  • Fingerprint Resistant
  • Available in a stainless finish that s easy to clean and resists fingerprints and smudges.
  • Frozen Bake™ Technology
  • Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings.
  • Hidden Bake Element
  • A hidden bake element under the floor of the oven creates a smooth surface inside the oven that s easier to clean.
  • Keep Warm Setting
  • Keep dishes from getting cold with this setting that delivers low heat to the oven.
  • Rapid Preheat
  • Save time with faster preheating.* A rear fan combined with the use of all of the elements helps to heat the oven quickly.
  • SpeedHeat™ Burner
  • Get dinner to the table fast with this burner that generates the high heat needed to sear and boil quickly.
  • Storage Drawer
  • A Storage Drawer in the bottom of your range allows easy access to the items you use most and opens up space elsewhere.
  • True Convection with Third Heating Element
  • Quickly bake multiple items at once with True Convection Cooking. The oven fan circulates hot air from three heating elements around the oven so you can cook foods fast and don t have to move dishes around as you cook.

Manufacturer's Warranty: 1 year

Canadian model: WEG745H0LZ

Canadian UPC: 883049626468

EAN: 0883049626468

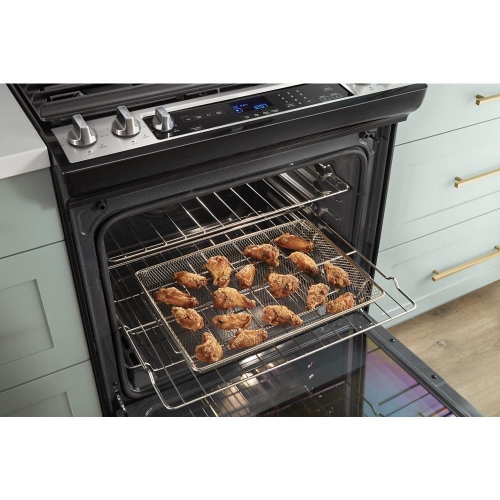

Air Fry Mode - WEG745H0LZ
Air Fry Mode
WEG745H0LZ - Air Fry Mode
Skip preheating and air fry chicken nuggets, wings, fries and more to get crispy results right in your oven. The Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.

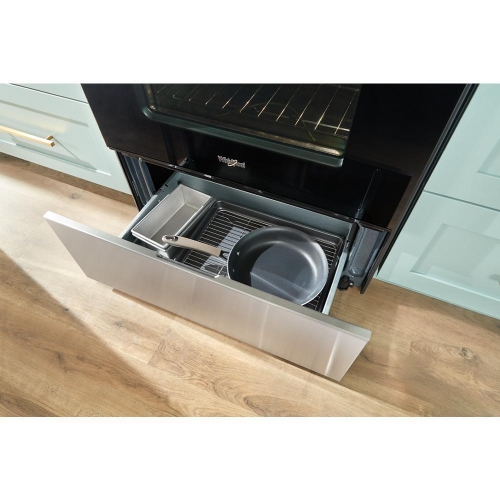

Storage Drawer - WEG745H0LZ
Storage Drawer
WEG745H0LZ - Storage Drawer
A Storage Drawer in the bottom of your range allows easy access to the items you use most and opens up space elsewhere.

Specs
Certifications
Ada Compliant Yes
Cul Yes
Prop65 Standard
Ul Yes
Controls
Display Color Blue
Electronic Display Type LED
Cooktop Details
Auto Re-ignition No
Cooktop Control Knob Color Stainless Steel
Cooktop Control Knob Type Dishwasher Safe Weighted
Cooktop Control Location Front
Cooktop Control Type Knobs
Cooktop Surface Color Black
Cooktop Surface Material Porcelain Coated Steel
Griddle Included Optional Accessory
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Ignition Type Direct Spark Ignition
Total Gas BTUs - Cooktop 54,200
Details
Automatic Convection Conversion Temperature Adjust Yes
Fuel Type Gas
Lp Convertible Yes - Kit Included
Oven Automatic Shut-off No
Oven Light Switch Location Top of Console
Oven Selections Air Fry; Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Delay Start; Frozen Bake; Keep Warm/Warm Hold; Rapid Preheat; Sabbath Mode; Timer
Power On Indicator Light Yes
Power Outage Compatible Yes
Range Drawer Type Storage Drawer
Range Type Slide-in
Dimensions
Product Height 39.962
Carton Height 43.5
Gross Weight 213
Oven Interior Height 22.125
Carton Width 31.5
Product Depth 28.5
Oven Interior Depth 20.625
Depth With Door Open 90 Degree 48.5
Cutout Depth 24
Cutout Height 36
Depth Closed Excluding Handles 27.875
Depth Closed Including Handles 28.875
Carton Depth 30.5
Cutout Width 30
Oven Interior Width 24.375
Net Weight 196
Product Width 29.875
Electrical
Power Cord Included Yes
Element/burner Details
Center Front Element-burner Power 8,000 BTU
Center Front Element-burner Type Warming
Cooktop Element Style Sealed Burners
Left Front Element-burner Power 17,000 BTU
Left Front Element-burner Type Standard
Left Rear Element-burner Power 5,000 BTU
Left Rear Element-burner Type Standard
Number of Cooking Element-burners 5
Right Front Element-burner Power 15,000 BTU
Right Front Element-burner Type Standard
Right Rear Element-burner Power 9,200 BTU
Right Rear Element-burner Type Standard
Exterior Details
Door Type Glass
Handle Color Stainless Steel
Handle Material Metal
Handle Type Reach Through Handle
Oven Control Knob Color Stainless Steel
Oven Control Location Front
Oven Control Type Electronic Touch
Oven Window Size Extra Large
Grate Details
Grate Details Dishwasher Safe; Matte Finish; Porcelain Coated Cast Grates; Rear Hinged Grate
Oven Details
Bake Element Power 18,000 BTU
Broiler Element Power 13,000 BTU
Broiler Location Top of Oven
Convection Element Power 925
Convection Element Type True Bow Tie
Convection Functions Bake; Broil
Door Removable Yes
Hidden Bake Element Yes
Interior Color Grey
Number of Oven Lights 1
Number of Oven Racks 3
Number of Rack Guides 7
Oven Cleaning Type AquaLift® Self Clean
Oven Cooking System True Convection
Oven Light Type Incandescent
Oven Rack Type 2 Standard and 1 Max Capacity
Total Gas BTUs - Ovens 31,000
Smart Compatibility
Connectivity No
Works With No

Dimensions
Width 29 7/8
Height 39.962
Carton Depth 30 1/2
Carton Height 43 1/2
Carton Width 31 1/2
Cutout Depth 24
Cutout Height 36
Cutout Width 30
Depth Closed Excluding Handles 27 7/8
Depth Closed Including Handles 28 7/8
Depth With Door Open 90 Degree 48 1/2
Gross Weight 213
Net Weight 196.0
Capacity (cubic feet) 5.80

Description
Fuel Type Gas
Size (in.) 30

Configuration and Overview
Range Type Slide-in

Compatibility
Works With No

Exterior
Door Removable Yes
Drawer Type Storage Drawer
Door Type Glass
Oven Window Size Extra Large
Handle Color Stainless Steel
Handle Material Metal
Handle Type Reach-Through Handle

Features
Hot Surface Indicator Light Yes
Heating Element On Indicator Light Yes
Automatic Convection Conversion Temperature Adjust Yes
Griddle Optional Accessory
LP Convertible Yes - Kit Included
Power On Indicator Light Yes
Power Outage Compatible Yes
Total Gas BTUs - Cooktop 54200
Total Gas BTUs - Oven(s) 31000
Selection Air Fry,Audible Signal,Automatic Door Latch,Bake,Broil,Cancel/Off,Clock,Control Lock,Convect Modes,Cook Time Indicator,Delay Start,Frozen Bake,Keep Warm/Warm Hold,Rapid Preheat,Sabbath Mode,Timer

Controls
Display Color Blue
Electronic Display Type LED

Cooktop Details
Cooktop Surface Color Black
Number of Cooking Element-Burners 5
Cooktop Element Style Sealed Burners
Ignition Type Direct Spark Ignition
Left Front Element-Burner Power 17,000 BTU
Cooktop Control Knob Color Stainless Steel
Left Front Element-Burner Type Standard
Left Rear Element-Burner Power 5000 BTU
Left Rear Element-Burner Type Standard
Right Rear Element-Burner Type Standard
Auto Re-ignition No
Right Front Element-Burner Type Standard
Cooktop Control Location Front
Cooktop Control Type Knobs
Cooktop Control Knob Type Dishwasher-Safe Weighted
Center Front Element-Burner Power 8000 BTU
Grate Details Dishwasher Safe,Matte Finish,Porcelain Coated Cast Grates,Rear Hinged Grate
Center Front Element-Burner Type Warming
Right Front Element-Burner Power 15,000 BTU
Right Rear Element-Burner Power 9200 BTU

Details
Cooktop Surface Material Porcelain Coated Steel
Automatic Shut-Off No
Interior Color Grey
Oven Control Type Electronic Touch
Oven Control Knob Color Stainless Steel
Oven Control Location Front
Convection Functions Bake,Broil
Hidden Bake Element Yes
Bake Element Power 18,000 BTU
Oven Light Switch Location Top of Console
Broiler Location Top of Oven
Broiler Element Power 13000 BTU
Number of Oven Lights 1
Convection Element Type True-Bow Tie
Oven Light Type Incandescent
Convection Element Power (watts) 925
Number of Rack Guides 7
Oven Rack Type 2 Standard and 1 Max Capacity
Oven Cleaning Type AquaLift® Self Clean
Oven Interior Depth(IN,inches) 20 5/8
Oven Interior Height(IN,inches) 22 1/8
Oven Interior Width(IN,inches) 24 3/8
Number of Oven Racks 3

Electrical
Amps 15
Hz 60
Volts 120
Power Cord Included Yes

Oven Details
Oven Cooking System True Convection

Certifications
ADA Compliant Yes
CUL Yes
Kosher Consumer Friendly Yes
UL Yes
