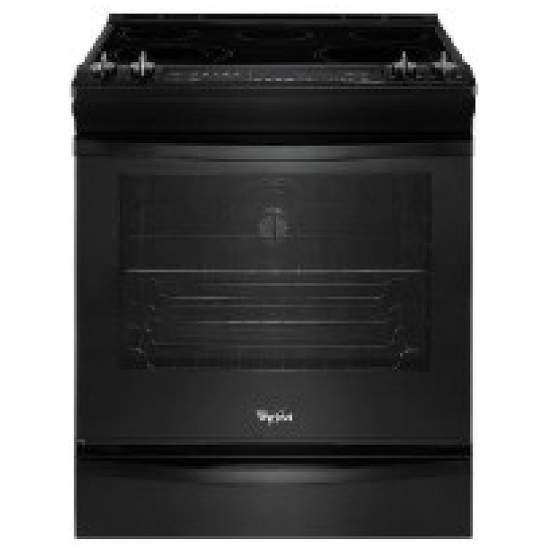

YWEE730H0DB Whirlpool Electric Range 30 inch Canada Parts

Leave unnecessary meal prep behind with the 6.2 cu. ft. front control electric stove that fits your kitchen and delivers delicious results. Fan convection cooking helps you cook tastier roasts and bake bread with just the right texture in less time than non-convection ovens. You'll be able to skip the preheat and cook frozen favorites faster in this self-cleaning stove with Frozen Bake technology. And thanks to the FIT system, it's easy to upgrade to a full-depth slide-in range made to fit in your existing kitchen cutout. When it's time for cleanup, AquaLift self-cleaning technology helps you wipe away messes in your slide-in electric stove without harsh chemicals or odors.

Full-Depth Slide-In Range with the FIT System

Upgrade to a full-depth slide-in range that fits seamlessly in your kitchen without the hassle of remodeling thanks to the FIT system.

Temperature Sensor

A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.

Rapid Preheat

Put dinner on the table faster with Rapid Preheat, which uses the bake and broil elements to heat the oven quickly and efficiently. Ideal for single rack baking, this option saves time with 21% faster preheating.

4,000-Watt Broil Element

At 4,000 watts, Whirlpool® slide-in ranges feature one of the most powerful broiling elements in the industry.

Easy-Wipe Ceramic Glass Cooktop

The ceramic glass cooktop provides an ideal space for cooking and easy cleanup.

6.2 cu. ft. Capacity
Frozen Bake™ Technology
Full-Depth Slide-In Range with the FIT System
AquaLift® Self-Cleaning Technology
TimeSavor™ Plus True Convection Cooking System
AccuBake® Temperature Management System
Rapid Preheat
4,000-Watt Broil Element
Easy Wipe Ceramic Glass Cooktop

Manufacturer's Warranty: 1 year

Canadian model: YWEE730H0DB

Similar to USA model: WEE730H0DB

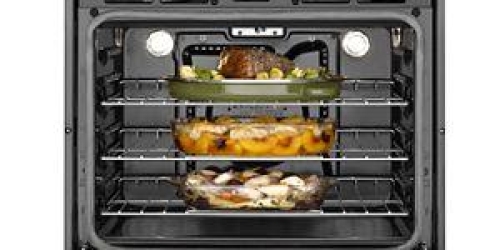

6.2 cu. ft. Capacity - YWEE730H0DB — 6.2 cu. ft. Capacity
YWEE730H0DB - 6.2 cu. ft. Capacity
The 6.2 cu. ft. oven has room to bake and roast holiday dishes, so there's always enough space to handle even your largest meals.

Frozen Bake Technology - YWEE730H0DB — Frozen Bake Technology
YWEE730H0DB - Frozen Bake Technology
Frozen Bake technology cooks frozen foods faster by eliminating the need to preheat the oven. Just select the food type, temperature and cook time listed on the frozen item's package and the oven will start customizing. Now you can cook frozen pizza 31% faster, and even lasagna, chicken nuggets, fries and pies can get from the oven to the table in less time.

AquaLift® Self-Cleaning Technology - YWEE730H0DB — AquaLift® Self-Cleaning Technology
YWEE730H0DB - AquaLift® Self-Cleaning Technology
Get odor-free cleaning without harsh chemicals in only 50 minutes. AquaLift® self-cleaning technology uses only water and low heat to help remove baked-on foods from the bottom of the oven.

Specs

Dimensions
Depth Closed Including Handles	28-7/8 in
Height	36.0 in
Width	29-7/8 in
Configuration and Overview
ADA Compliant	ADA Height and Operation Compliant
Fuel Type	Electric
Prop 65	CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Range Type	Slide-in
Size	30 in
UL	UL
Appearance
Door Type	Metal & Glass
Handle Color	White
Handle Material	Metal
Oven Details
Automatic Convection Conversion Temperature Adjust	No
Bake Element Power	3600W
Broiler Location	Top of Oven
Convection Element Type	Single-Fan
Convection Functions	Bake, Broil, Roast
Drawer Type	Storage Drawer
Hidden Bake Element	Yes
Interior Color	Grey
Number of Oven Lights	1
Number of Oven Racks	2
Number of Rack Guides	7
Oven Control Location	Front
Oven Control Type	Electronic Touch
Oven Cooking System	Convection
Oven Light Type	Incandescent
Oven Rack Type	1 Standard, 1 Max Capacity
Power On Indicator Light	Yes
Cooktop Details
Center Rear Element-Burner Size	6""
Cooktop Control Location	Front
Cooktop Control Type	Knobs
Cooktop Element Style	Radiant
Cooktop Surface Material	Ceramic Glass
Heating Element On Indicator Light	Yes
Hot Surface Indicator Light	Yes
Left Front Element-Burner Type	Radiant
Left Rear Element-Burner Type	Radiant
Number of Cooking Element-Burners	5
Power Outage Compatible	No
Electrical
Amps	40
Power Cord Included	No
Details
Broiler Element Power	4000W
Certifications
Prop 65	CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Configuration and Overview
Fuel Type	Electric
Size	30
Cooktop Features
Cooktop Element Style	Radiant
Cooktop Surface Color	Black
Cooktop Surface Material	Ceramic Glass
Number of Cooking Element-Burners	5
Center Rear Element-Burner Power	100 watt
Center Rear Element-Burner Size	6"
Center Rear Element-Burner Type	Radiant
Left Front Element-Burner Power	2500 watt
Left Front Element-Burner Size	9"/6"
Left Front Element-Burner Type	Radiant
Left Rear Element-Burner Power	700 watt
Left Rear Element-Burner Size	6"
Left Rear Element-Burner Type	Radiant
Right Front Element-Burner Power	2500 watt
Right Front Element-Burner Size	10"
Right Front Element-Burner Type	Radiant
Right Rear Element-Burner Power	1200 watt
Right Rear Element-Burner Size	6"
Right Rear Element-Burner Type	Radiant
Oven Features
Automatic Convection Conversion Temperature Adjust	No
Heating Element On Indicator Light	Yes
Hot Surface Indicator Light	Yes
Power On Indicator Light	Yes
Bake Element Power	3600W@240 V
Broiler Element Power	4000W
Broiler Location	Top of Oven
Convection Element Type	Single-Fan
Convection Functions	Broil; Bake; Roast
Hidden Bake Element	Yes
Light Type	Incandescent
Number of Oven Lights	1
Number of Oven Racks	2
Number of Rack Guides	7
Oven Rack Type	1 Standard, 1 Max Capacity
Style and Extras
Drawer Type	Storage Drawer
Handle Material	Metal
Selections	Frozen Bake; Bake; Broil; Keep Warm Setting; AquaLift Self Clean; Cook Time; Delay Start; Rapid Preheat; Settings; Control Lock; Convect Modes
ADA Compliant	ADA Height and Operation Compliant
UL	Yes
Dimensions
Height	91.44 CM
Width	75.8825 CM

Manuals

Installation Instructions (YWEE730H0DB-installation-instructions-canada.pdf)

Warranty (YWEE730H0DB-warranty-canada.pdf)

Use and Care Guide (YWEE730H0DB-use-and-care-guide-canada.pdf)
