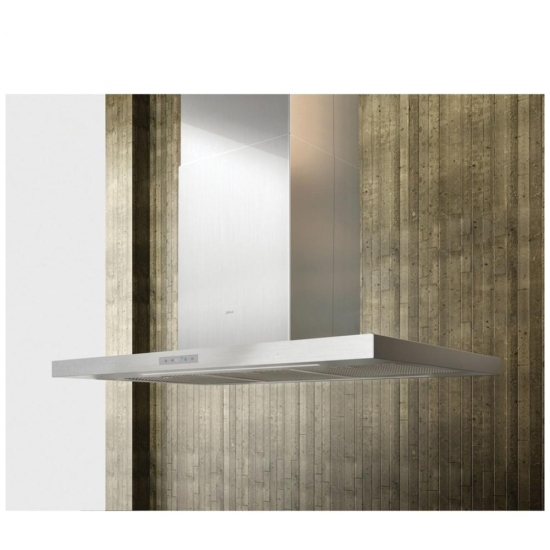

Zephyr ADL-M90BSX
Discontinued
ACU1X2
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $175.50 for 18 months
Ratings & Reviews
Similar Colours and Options
ADLM90BSX
ADLM90BSX
Capacitive Touch Controls
Stainless Steel
ADU-M90BSX
ADU-M90BSX
Stainless Steel
ACU1X2
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $175.50 for 18 months
Description & Features
Duo, Island, 90cm, SS, LED, BODY ONLY
  • Capacitive Touch Controls
  • CleanAir Function
  • Decorative Mesh Filters
  • Includes Wireless Remote Control
  • LED Light Strip
  • Low-Profile Body
  • Multiple Blower Options
  • Optional Duct Cover Extension Kit
  • Optional Recirculating Kit
  • Tri-level Lighting

Manufacturer's Warranty: 1 year

Canadian model: ADL-M90BSX

Canadian UPC: 646328004209

EAN: 0646328004209

Specs
Brand Zephyr
Manufacturer Zephyr
Category Range Hood
Sub-Category Island
Vent Type Convertible
UPC 646328004209
GTIN 00646328004209
Country of Origin Italy
Model Group ADL-B
Model Name Duo Island
Collection Designer Collection
Blower Included No
Internal Blower 1 CFM 290
Internal Blower 1 Min. Sones 1.4
Internal Blower 1 Max Sones 3
Internal Blower 2 CFM 600
Internal Blower 2 Max Sones 6
In-Line Blower CFM 1000
External Blower CFM 1000
Installation Type Island
Installation Type Island
For Outdoor Use No
Color Stainless Steel
Controls Type Capacitive Touch
Blower Speeds 3
Automatic Delay-Off Yes
Clean Air Function Yes
Lighting Type LED
Lights Quantity 2
Watts Per Bulb 8.5
Lights Levels 3
Grease Filter Type Decorative Mesh
Compatible Mesh or Baffle Filter Part Number 50200031
Duct Discharge Vertical
Duct Size; Horizontal; IN N/A
Duct Size; Vertical; IN 6, 8
Mounting Height Above Cooktop; IN 24 - 36
Voltage 120
Maximum Amperage 6.5
ADA Compliant Yes
Warranty Parts / Labor 1 / 1
Compatible Appliances ZRC-01LL, Z1C-02LL, MUA006A, MUA008A, Z0F-01AC
Bluetooth Connected No
Wi-Fi Connected No
Remote Included Yes
Remote Optional No
Energy Star Certified No
Alexa & Google Home Compatible No
CEC Title 20 Compliant Yes
Primary Material Stainless Steel
Nominal Width; IN 36
Net Width; IN 35.375
Net Depth; IN 23.625
Net Height; IN 29.5 - 49
Weight; LBS 101
Ceiling Height Minimum 8 ft.
Ceiling Height Maximum 10 ft.
Chimney Height in. 28
Chimney Width in. 12.93
Chimney Depth in. 11.25
Shipping Length; IN 20.87
Shipping Width; IN 40.55
Shipping Height; IN 31.5
Shipping Weight; LBS 110.2
Shipping Method LTL
Freight Class 300
Duct Type Vertical
Duct Type Vertical
ADL-M90BSX
36" Duo Island
290, 600, 1000 CFM
Recirculating
Mesh Filter
Stainless Steel
Vertical Ducting
