Zephyr AK1100B
Discontinued
AHMDE2
Why Buy This at CAS?
In Home Delivery
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $22.78 for 18 months
Ratings & Reviews
Similar Colours and Options
AK1100BB
AK1100BB
Dishwasher Safe Filters
Black
AK1100S
AK1100S
Stainless Steel
AK1100W
AK1100W
White
AHMDE2
When will I get this?

Why Buy This at CAS?
In Home Delivery
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $22.78 for 18 months
Description & Features

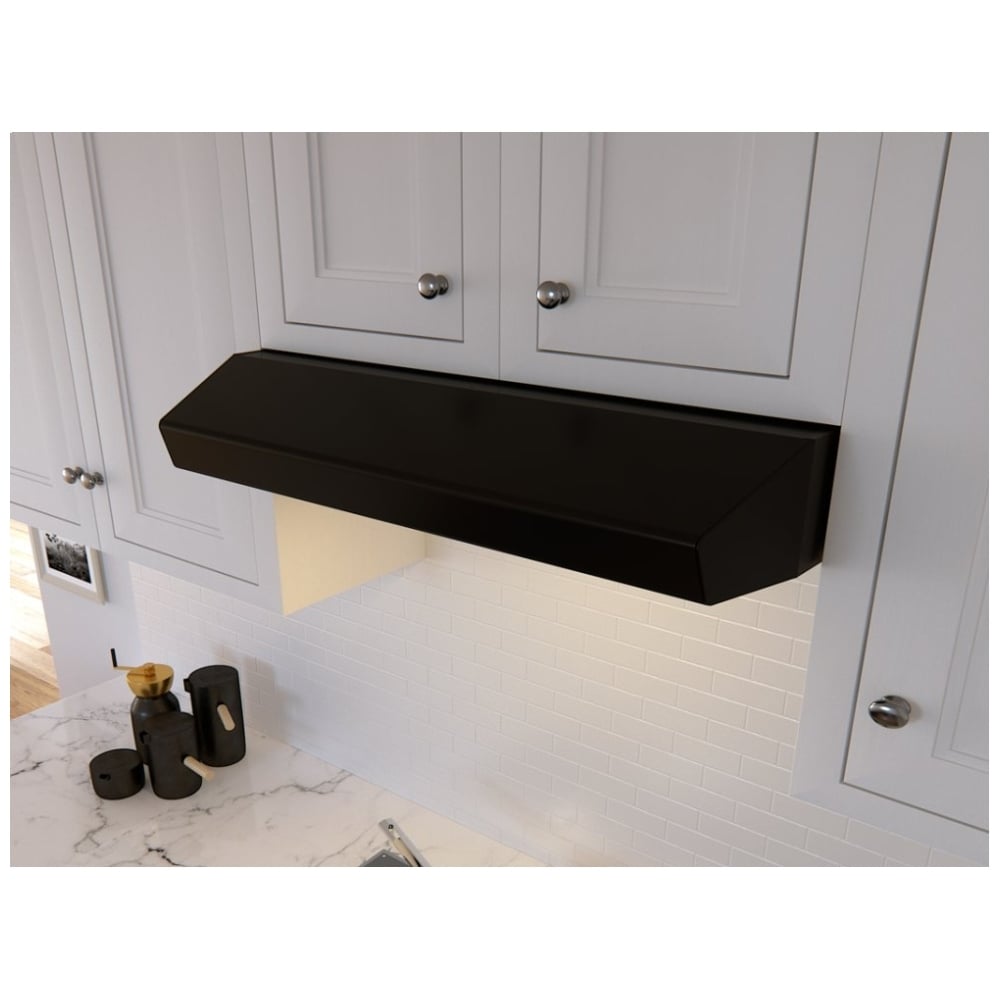

Zephyr Breeze I Series AK1100B Under Cabinet Range Hood 30 in w/ 250 CFM Internal Blower, 3 Speed Slide Controls, 2 Incandescent Lamps and Recirculating Option

Breeze I, UC, 30", Blk, 250 CFM

•Mechanical Controls
This model is equipped with mechanical slider controls that allow for easy application between settings and years of trouble-free use.
•Three Speed Levels
The Breeze models are equipped with three individual speed settings so you can adjust the power for the specific type of cooking you are doing.
•Lighting Options
Every Breeze hood comes equipped with incandescent bulbs. Upgrade to halogen lighting for whiter, brighter and longer-lasting lighting.
•Dual Level Lighting
High and Low levels of light offer the perfect mood option for your kitchen.


Manufacturer's Warranty: 1 year

Canadian model: AK1100B

Canadian UPC: 646328110023

EAN: 0646328110023

Specs
Brand Zephyr
Manufacturer Zephyr
Category Range Hood
Sub-Category Under Cabinet
Vent Type Convertible
UPC 646328110023
GTIN 00646328110023
Country of Origin Taiwan
Model Group AK11
Model Name Breeze I Under-Cabinet
Collection Core Collection
Replacement Model AK1100BB
Blower Included Yes
Internal Blower 1 CFM 250
Internal Blower 1 Min. Sones 1.8
Internal Blower 1 Max Sones 3.5
Minimum CFM 150
Installation Type Under Cabinet
Installation Type Under Cabinet
For Outdoor Use No
Color Black
Controls Type Mechanical Slide
Blower Speeds 3
Automatic Delay-Off No
Clean Air Function No
Lighting Type Halogen
Lights Quantity 2
Watts Per Bulb 35
Lights Levels 2
Grease Filter Type Mesh
Compatible Mesh or Baffle Filter Part Number 50200012
Duct Discharge Vertical or Horizontal
Duct Size; Horizontal; IN 3.25 x 10
Duct Size; Vertical; IN 3.25 x 10
Mounting Height Above Cooktop; IN 24 - 32
Voltage 120
Maximum Amperage 1.3
ADA Compliant No
Warranty Parts / Labor 3 / 1
Compatible Appliances 0AK11-21001, Z0B0040, 0AK11-20001
Remote Included No
Remote Optional No
Energy Star Certified No
Alexa & Google Home Compatible No
CEC Title 20 Compliant Yes
Primary Material Steel
Wattage 156
Certification UL
Nominal Width; IN 30
Net Width; IN 29.9375
Net Depth; IN 20.25
Net Height; IN 5.5
Weight; LBS 19
Ceiling Height Minimum 8 ft.
Ceiling Height Maximum 12 ft.
Shipping Length; IN 33.66
Shipping Width; IN 9.17
Shipping Height; IN 24.61
Shipping Weight; LBS 24.9
Shipping Method Small Parcel
Freight Class 175
Duct Type Vertical
Duct Type Vertical
Dimensions
Height: 5 1/2"
Width: 30"
Depth: 20 5/64"
Performance
CFM: 250
Sones (Min-Max): 1.5 - 3.5
Features & Accessories
Aluminum Filters: 2
Controls: Slider
Speed Levels: 3
Lighting (Standard Incandescent): 40R16
Lighting (Optional Halogen): PAR20
Dual Level Lighting: Yes
Delay Off: No
Duct Specifications
Ducting: 3-Way
Option 1 (Vertical): 3 1/4" x 10"
Option 2 (Rear Horizontal): 3 1/4" x 10"
Option 3: Recirculating (Requires kit - 0AK11-21001)
Accessories
Recirculating Kit: 0AK11-21001
Aluminum Replacement Filters: 0AK11-22001
Carbon Filter: 0AK11-20001
