Brand	Zephyr
Manufacturer	Zephyr
Category	Range Hood
Sub-Category	Under Cabinet
Vent Type	Convertible
UPC	646328113628
GTIN	00646328113628
Country of Origin	Taiwan
Model Group	AK11
Model Name	Breeze I Under-Cabinet
Collection	Core Collection
Replacement Model	AK1136BB
Blower Included	Yes
Internal Blower 1 CFM	250
Internal Blower 1 Min. Sones	1.8
Internal Blower 1 Max Sones	3.5
Minimum CFM	150
Installation Type	Under Cabinet
Installation Type	Under Cabinet
For Outdoor Use	No
Color	Black

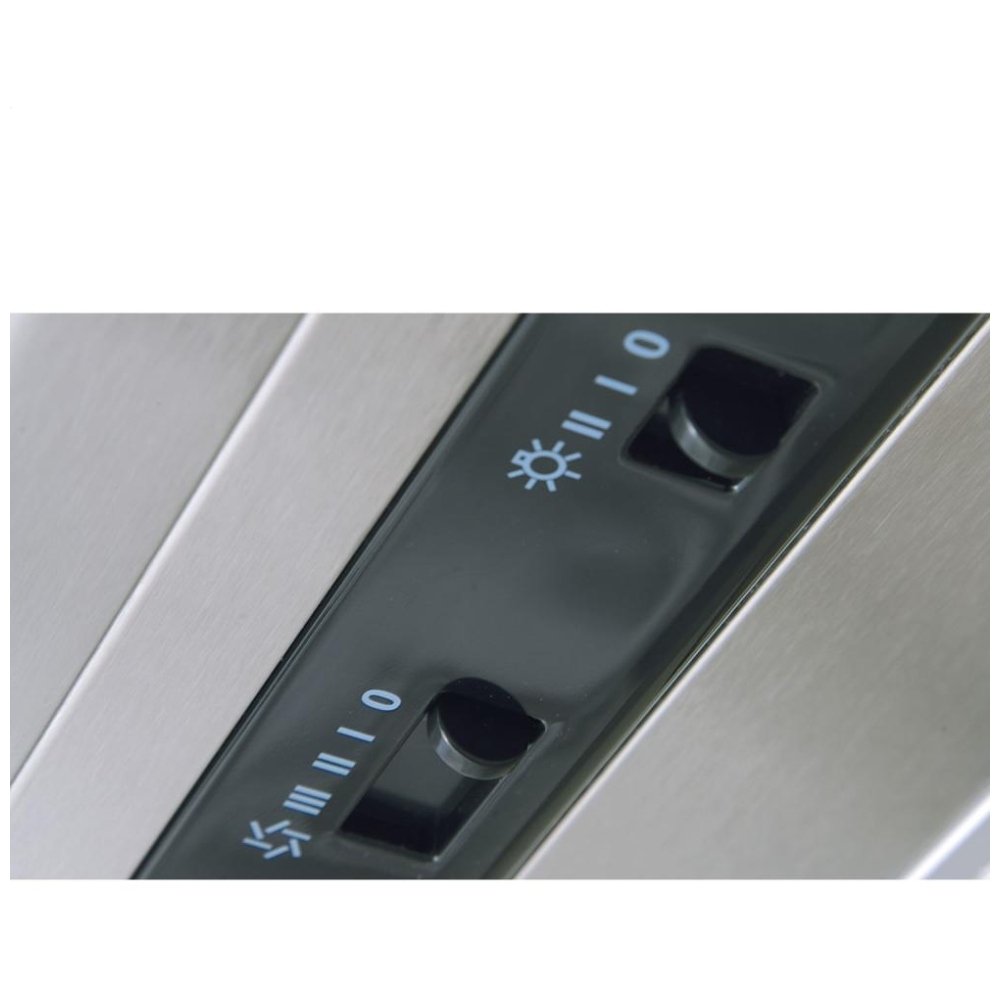

Controls Type	Mechanical Slide
Blower Speeds	3
Automatic Delay-Off	No
Clean Air Function	No
Lighting Type	Halogen
Lights Quantity	2
Watts Per Bulb	35
Lights Levels	2
Grease Filter Type	Mesh
Compatible Mesh or Baffle Filter Part Number	50200012
Duct Discharge	Vertical or Horizontal
Duct Size; Horizontal; IN	3.25 x 10
Duct Size; Vertical; IN	3.25 x 10
Mounting Height Above Cooktop; IN	24 - 32
Voltage	120
Maximum Amperage	1.3
ADA Compliant	No
Warranty Parts / Labor	3 / 1
Compatible Appliances	0AK11-21001, Z0B0040, 0AK11-20001
Bluetooth Connected	No
Wi-Fi Connected	No
Remote Included	No
Remote Optional	No
Energy Star Certified	No
Alexa & Google Home Compatible	No
CEC Title 20 Compliant	Yes
Primary Material	Steel
Wattage	156
Certification	UL
Nominal Width; IN	36
Net Width; IN	35.9375
Net Depth; IN	20.25
Net Height; IN	5.5
Weight; LBS	21
Ceiling Height Minimum	8 ft.
Ceiling Height Maximum	12 ft.
Shipping Length; IN	39.57
Shipping Width; IN	9.45
Shipping Height; IN	24.61
Shipping Weight; LBS	27.3
Shipping Method	Small Parcel
Freight Class	175
Duct Type	Vertical
Duct Type	Vertical

Dimensions
Height:	5 1/2"
Width:	36"
Depth:	20 5/64"
Performance
CFM:	250
Sones (Min-Max):	1.5 - 3.5
Features & Accessories
Aluminum Filters:	3
Controls:	Slider
Speed Levels:	3
Lighting (Standard Incandescent):	40R16
Lighting (Optional Halogen):	PAR20
Dual Level Lighting:	Yes
Delay Off:	No
Duct Specifications
Ducting:	3-Way
Option 1 (Vertical):	3 1/4" x 10"
Option 2 (Rear Horizontal):	3 1/4" x 10"
Option 3:	Recirculating (Requires kit - 0AK11-21001)
Accessories
Recirculating Kit:	0AK11-21001
Aluminum Replacement Filters:	0AK11-22001
Carbon Filter:	0AK11-20001

Zephyr AK1136B

Zephyr AK1136B

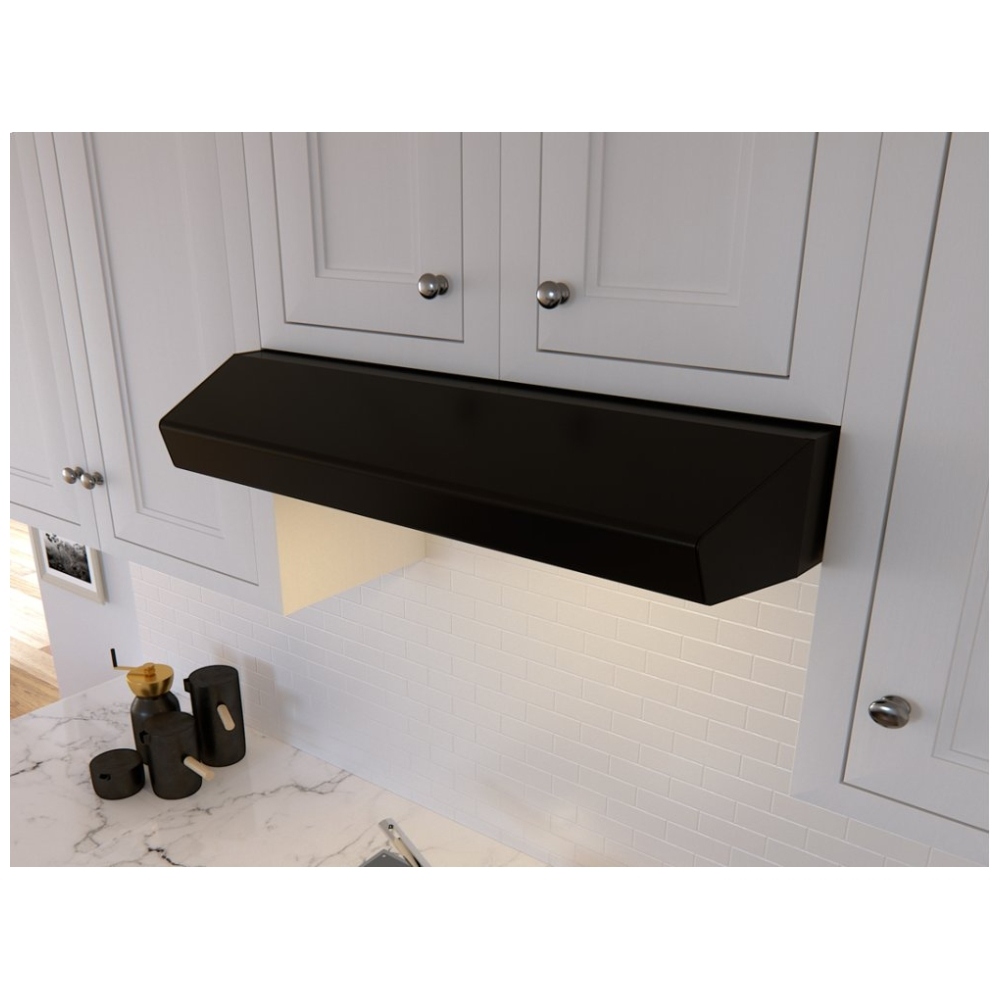

Zephyr AK1136B Range Hood, 36 inch Exterior Width, Under-Cabinet, 250 CFM, Incandescent, Aluminum Mesh Filter, Black colour
