Brand	Zephyr
Manufacturer	Zephyr
Category	Range Hood
Sub-Category	Under Cabinet
Vent Type	Convertible
UPC	646328001710
GTIN	00646328001710
Country of Origin	Taiwan
Model Group	AK71
Model Name	Gust
Collection	Core Collection
Blower Included	Yes
Internal Blower 1 CFM	400
Internal Blower 1 Min. Sones	2
Internal Blower 1 Max Sones	5
Minimum CFM	210
Installation Type	Under Cabinet
Installation Type	Under Cabinet
For Outdoor Use	No
Color	Stainless Steel
Controls Type	Mechanical Slide
Blower Speeds	3
Automatic Delay-Off	No
Clean Air Function	No
Lighting Type	Halogen
Lights Quantity	2
Watts Per Bulb	50
Lights Levels	2
Grease Filter Type	Mesh
Compatible Mesh or Baffle Filter Part Number	50210012
Duct Discharge	Vertical or Horizontal
Duct Size; Horizontal; IN	3.25 x 10
Duct Size; Vertical; IN	7, 3.25 x 10
Mounting Height Above Cooktop; IN	24 - 32
Voltage	120
Maximum Amperage	1.7
ADA Compliant	No
Warranty Parts / Labor	3 / 1
Compatible Appliances	ZRC-0200, MUA006A, Z0B0040, Z0F-C002
Bluetooth Connected	No
Wi-Fi Connected	No
Remote Included	No
Remote Optional	No
Energy Star Certified	No
Alexa & Google Home Compatible	No
CEC Title 20 Compliant	Yes
Primary Material	Stainless Steel
Wattage	204
Certification	CSA
Nominal Width; IN	30
Net Width; IN	29.9375
Net Depth; IN	21
Net Height; IN	7.375
Weight; LBS	29.2
Ceiling Height Minimum	8 ft.
Ceiling Height Maximum	12 ft.
Shipping Length; IN	10.63
Shipping Width; IN	32.83
Shipping Height; IN	25.35
Shipping Weight; LBS	35.6
Shipping Method	Small Parcel
Freight Class	150
Duct Type	Vertical
Duct Type	Vertical

Performance
Blower Type:	Internal
Blower CFM (Min. - Max.):	210 CFM - 400 CFM
Sones (Min. - Max.):	2.0 - 5.0 Sones
Features
Color:	Stainless Steel
Controls:	Mechanical Slide
Speed Levels:	3
Auto Delay-Off:	No
Lighting:	Halogen, 50W x 2
Dual Level Lighting:	Yes
Filters:	Aluminum Mesh
Recirculating Option:	Yes
Extension Duct Cover Option:	No
Duct Specifications
Vertical - Internal:	7" or 3 1/4" x 10"
Horizontal - Internal:	3 1/4" x 10"
AC Input / Power
AC Input:	120V - 60Hz
AC Power:	Max. 207W at 1.7A
Dimensions
Width:	29 15/16"
Depth:	21"
Height:	7 3/8"

Zephyr AK7100AS

Zephyr AK7100AS

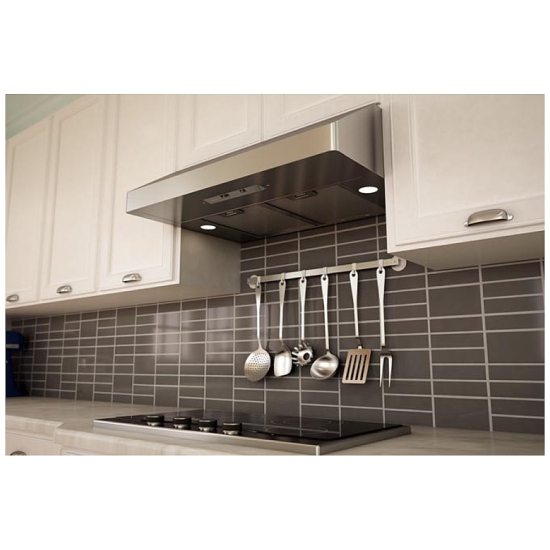

Zephyr AK7100AS Range Hood, 30 inch Exterior Width, Under-Cabinet, 400 CFM, Halogen , Aluminum Mesh Filter, Stainless Steel colour
