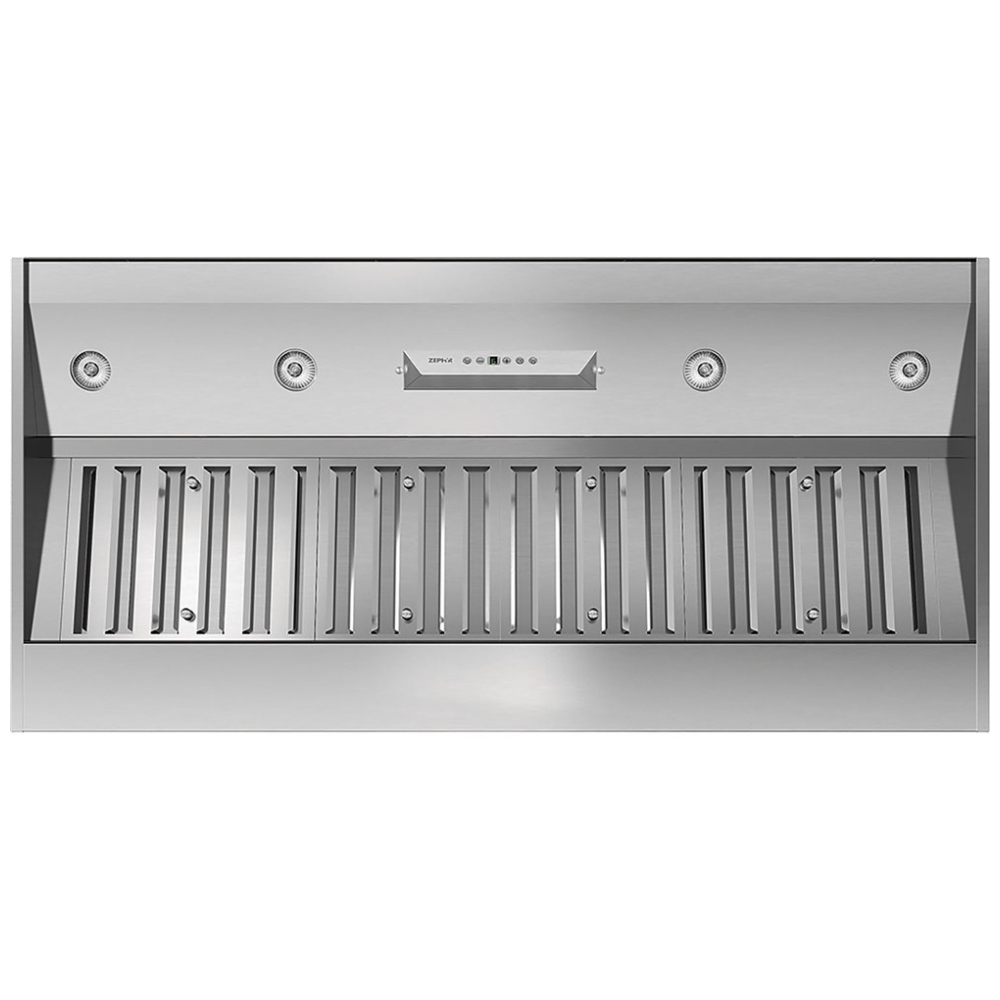

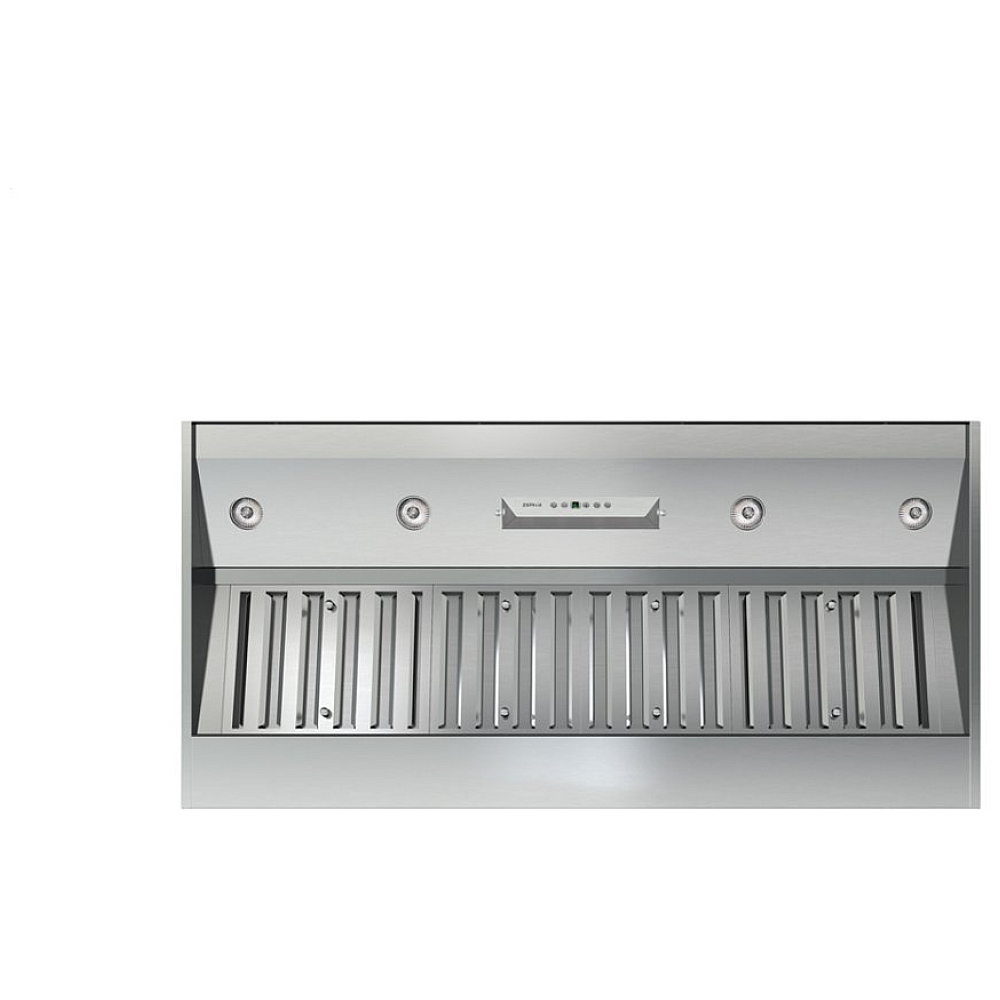

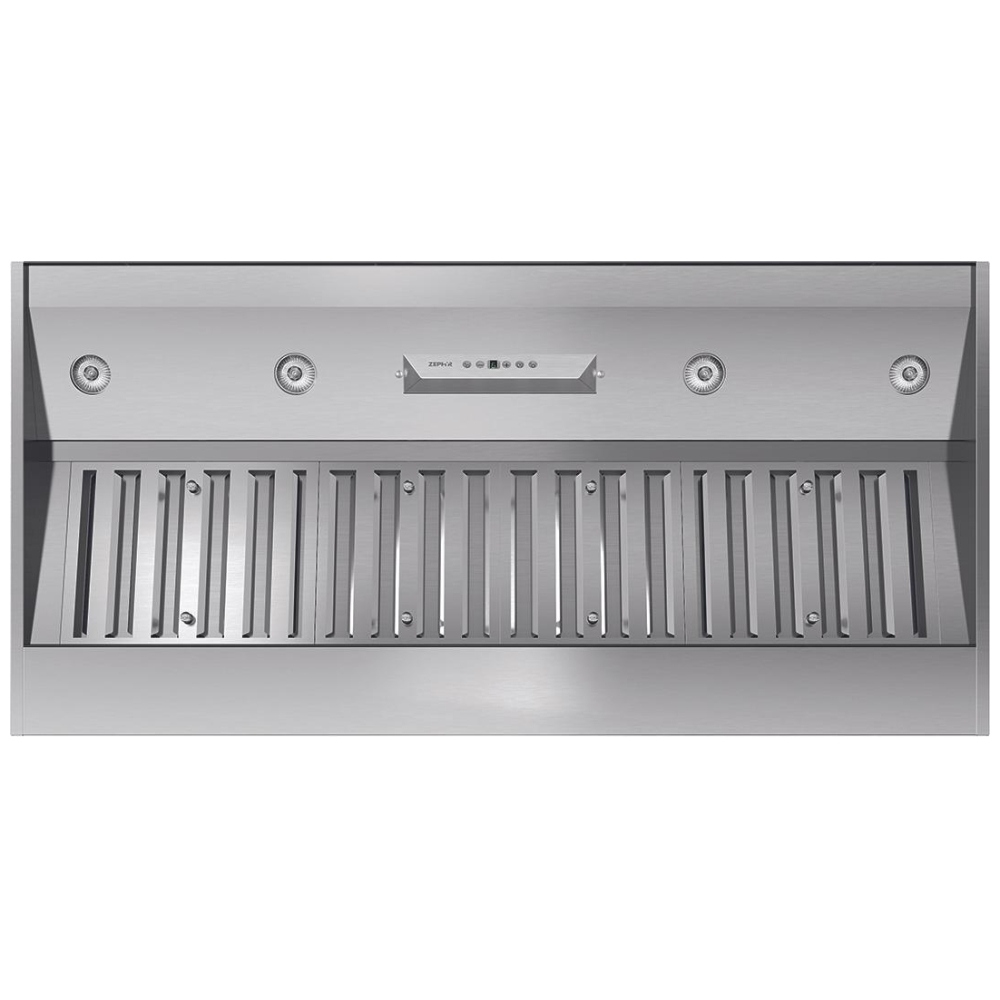

Zephyr AK9352AS
Discontinued
AE0UH2
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $136.28 for 18 months
Ratings & Reviews
Similar Colours and Options
AK9352BS
AK9352BS
Stainless Steel
AE0UH2
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $136.28 for 18 months
Description & Features
Monsoon II, One-Piece Liner, 52-3/8", SS, 1200 CFM
Zephyr Monsoon II One-Piece Liner
  • 1200-CFM motor and 6-speed electronic controls
  • Pro-style baffle filters with easy to clean removable grease tray
  • ADA compliant wireless remote control
  • Matches the most commonly specified installation footprints
  • 36-inch mounting height maximum

Manufacturer's Warranty: 1 year

Canadian model: AK9352AS

Canadian UPC: 646328003639

EAN: 0646328003639

Specs
Brand Zephyr
Manufacturer Zephyr
Category Range Hood
Sub-Category Insert
Vent Type Ducted
UPC 646328003639
GTIN 00646328003639
Country of Origin Taiwan
Model Group AK93
Model Name Monsoon II
Collection Pro Collection
Replacement Model AK9352BS
Blower Included Yes
Internal Blower 1 CFM 1200
Internal Blower 1 Min. Sones 3.5
Internal Blower 1 Max Sones 9
Minimum CFM 450
Installation Type Insert
Installation Type Insert
For Outdoor Use No
Color Stainless Steel
Controls Type Electronic
Blower Speeds 6
Automatic Delay-Off Yes
Clean Air Function Yes
Lighting Type Halogen
Lights Quantity 4
Watts Per Bulb 35
Lights Levels 2
Grease Filter Type Pro baffle
Compatible Mesh or Baffle Filter Part Number 50210013
Duct Discharge Vertical
Duct Size; Horizontal; IN N/A
Duct Size; Vertical; IN 10
Mounting Height Above Cooktop; IN 26 - 36
Voltage 120
Maximum Amperage 7
ADA Compliant Yes
Warranty Parts / Labor 3 / 1
Compatible Appliances MUA010A, Z0B0040, 14000005
Bluetooth Connected No
Wi-Fi Connected No
Remote Included Yes
Remote Optional No
Energy Star Certified No
Alexa & Google Home Compatible No
CEC Title 20 Compliant Yes
Primary Material Stainless Steel
Wattage 840
Certification UL
Nominal Width; IN 54
Net Width; IN 52.375
Net Depth; IN 22.5
Net Height; IN 12
Weight; LBS 69.1
Ceiling Height Minimum 8 ft.
Ceiling Height Maximum 12 ft.
Shipping Length; IN 17.09
Shipping Width; IN 55.87
Shipping Height; IN 28.82
Shipping Weight; LBS 84.4
Shipping Method LTL
Freight Class 300
Duct Type Vertical
Duct Type Vertical
Features
Color:
Stainless Steel
Controls:
Electronic Touch
Speed Levels:
6
Auto Delay-Off:
Yes
Clean Air Mode:
Yes
Lighting:
4 35-Watt Halogen Lights
Dual Level Lighting:
Yes
Filters:
Pro-Baffle
Removable Grease Tray:
Yes
Wireless Remote Control:
Yes
Duct Specifications
Blower:
Internal
Ducting:
Vertical, 10" Diameter
Recirculating Option:
No
Internal Blower
Minimum - Maximum CFM:
450 - 1,200
Minimum - Maximum Sones:
3.5 - 9.0
Power
A/C Power:
120V/60Hz/7A
Dimensions
Width:
52 3/8"
Depth:
22 1/2"
Height to Vent Orientation:
12"
Mounting Height Range:
26 - 36"
