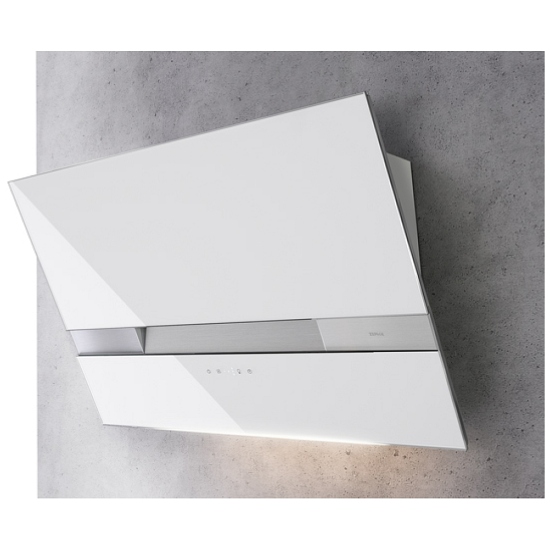

Zephyr AWA-M90AWX
Discontinued
ADLUEI
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $159.95 for 18 months
Ratings & Reviews
Similar Colours and Options
AWA-M90ABX
AWA-M90ABX
Black
AWAM90AWX
AWAM90AWX
White Glass
ADLUEI
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $159.95 for 18 months
Description & Features
Wave, Wall, 90cm, White Glass, BODY ONLY
  • Aluminum Mesh Filters
  • Capacitive Touch Controls
  • CleanAir Function
  • Dual Capture Zones
  • Includes Wireless Remote Control
  • LED Light Strip
  • Multiple Blower Options
  • Multiple Color Options
  • Optional Duct Cover Extension Kit
  • Optional Make-Up Air Kit
  • Optional Recirculating Kit
  • Tri-level Lighting

Manufacturer's Warranty: 1 year

Canadian model: AWA-M90AWX

Canadian UPC: 646328004346

EAN: 0646328004346

Specs
Brand Zephyr
Manufacturer Zephyr
Category Range Hood
Sub-Category Wall
Vent Type Convertible
UPC 646328004346
GTIN 00646328004346
Country of Origin Italy
Model Group AWA-A
Model Name Wave Wall
Collection Designer Collection
Blower Included No
Internal Blower 1 CFM 290
Internal Blower 1 Min. Sones 1.4
Internal Blower 1 Max Sones 3
Internal Blower 2 CFM 600
Internal Blower 2 Max Sones 6
In-Line Blower CFM 1000
External Blower CFM 1000
Installation Type Wall
Installation Type Wall
For Outdoor Use No
Color Stainless Steel + White
Controls Type Capacitive Touch
Blower Speeds 3
Automatic Delay-Off Yes
Clean Air Function Yes
Lighting Type LED
Lights Quantity 1
Watts Per Bulb 8.5
Lights Levels 3
Grease Filter Type Mesh
Compatible Mesh or Baffle Filter Part Number 50200057
Duct Discharge Vertical or Horizontal
Duct Size; Horizontal; IN 6, 8
Duct Size; Vertical; IN 6, 8
Mounting Height Above Cooktop; IN 22 - 32
Voltage 120
Maximum Amperage 6.45
ADA Compliant Yes
Warranty Parts / Labor 1 / 1
Compatible Appliances ZRC-00WA, Z1C-00IN, MUA006A, MUA008A, Z0F-01AC
Bluetooth Connected No
Wi-Fi Connected No
Remote Included Yes
Remote Optional No
Energy Star Certified No
Alexa & Google Home Compatible No
CEC Title 20 Compliant Yes
Primary Material Steel
Nominal Width; IN 36
Net Width; IN 35.375
Net Depth; IN 16.25
Net Height; IN 18.875
Weight; LBS 58
Ceiling Height Minimum 8 ft.
Ceiling Height Maximum 10 ft.
Shipping Length; IN 26.37
Shipping Width; IN 37.8
Shipping Height; IN 22.04
Shipping Weight; LBS 64.7
Shipping Method LTL
Freight Class 300
Duct Type Vertical
Duct Type Vertical
AWA-M90AWX
36" Wave Wall
290, 600, 1000 CFM
Recirculating
Mesh Filter
White
Vertical and Horizontal Ducting
Max Sones 6
