Zephyr CTPE60SX
Discontinued
AE6N16
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $424.95 for 18 months
Ratings & Reviews
AE6N16
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $424.95 for 18 months
Description & Features

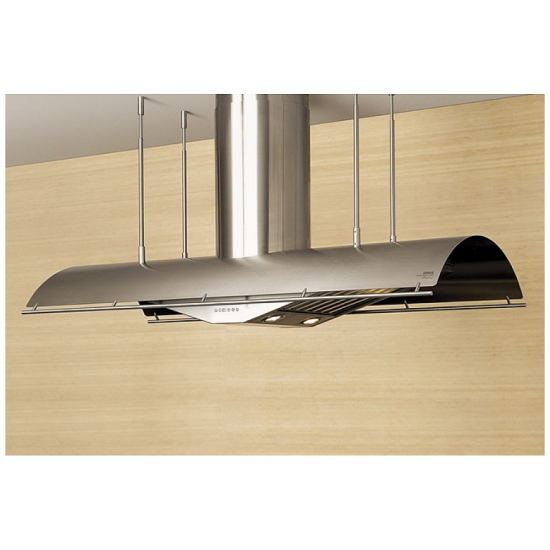

Zephyr Cheng Trapeze Collection CTPE60SX Island Mount Chimney Hood with 3-Speed Ventilation, Touch Controls, Stainless Steel Baffle Filters and 4 Dual Level Halogen Lamps (Blowers not included)

Our first island hood, the light and airy Trapeze is a streamlined reprieve from its bulky, conventional counterparts. Using a delicate suspension structure, the Trapeze seems to float in mid-air. With directional halogen lighting and a graceful, slow-curve canopy, the Trapeze is more than a focal point-it's a statement.


Three Speed BlowerDisplay shows selected speed



Delay-off FunctionAllows you to program the unit to shut off the blower and lights 15 minutes after the function is selected.

Lights On/Off/Dim

Island Hood Installation
Filters Clean ReminderAfter 30 hours of use, the display will flash, letting you know it is time to clean the unit to remove any possible residue,






Manufacturer's Warranty: 1 year

Canadian model: CTPE60SX

Specs
Dimensions
Width: 59 1/8"
Depth of Hood: 26 5/8"
Depth of Housing: 15 3/4"
Height of Canopy: 9"
Height of Hood: 34" min. / 52" max.
Width of Ducting: 12 5/8"
Blower Options
Internal Blower (600 CFM): CBI-600
External Blower (1000 CFM): CBE-1000
Internal Blower CFM: 600
External Blower CFM: 1000
Sones (Internal Blower): 6
Color/Finish
Stainless Steel/S: S
Features & Accessories
Controls: Touch
Stainless Steel Baffle Filters: 2
Speed Levels: 3
Lighting: Halogen 50W GU-10
Dual Level Lighting: Yes
Remote Control (Infrared): Yes
Duct Specifications
Internal Blower Ducting: 6"
External Blower Ducting: 8" - 10" (Run 10 " round duct work from external blower to the ceiling bracket. Before duct work passes through the ceiling bracket, use a 10" to 8" transition adaptor (included) and run 8" duct.)
Recirculating: No
Extension Kit Option: Yes up to 12 ft.
Standard Duct Cover: Min. ceiling height 8 ft. 2 in. Hood mounted 28" above cooking surface; 64" from floor. Max. ceiling height 10'4" feet. Hood mounted 36" above cooking surface; 72" from floor.
Duct Cover Extension: Min. ceiling height 8 ft. 10 in. Hood mounted 28" above cooking surface; 64" from floor. Max. ceiling height 12 ft. 2 in. Hood mounted 36" above cooking surface; 72" from floor.


Manuals
Video
CTPE60SX
Reviews
Rebates
Warranty
Financing
Install
Delivery and installation services are available from CAS
(Includes washers, dryers, and more.)
Click here for more details.
Custom advanced installation services (after delivery)
(Gas connections, ventilation, dishwashers, etc.)
Offered by Quick Contractors®
 1-877-694-3909
To book service online, please visit quicktask.com/cas
Delivery

Videos

Zephyr CTPE60SX Live Demonstration Video
