Zephyr ZANM90BS
Discontinued
AE6EIG
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $78.67 for 18 months
Ratings & Reviews
AE6EIG
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $78.67 for 18 months
Description & Features

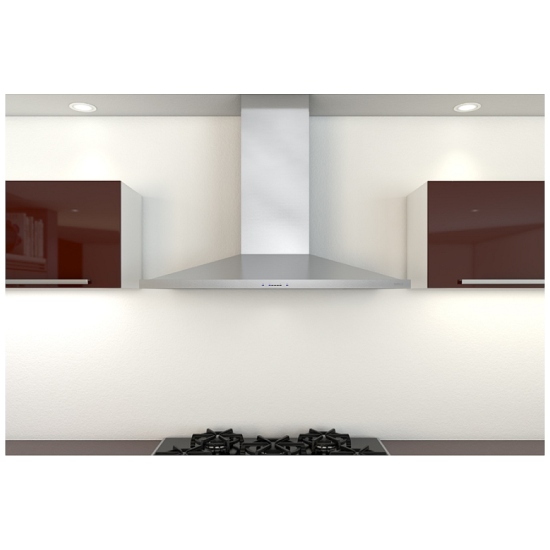

Zephyr Anzio ZAN-M90BS 36" Wall Mount Hood with 600 CFM Internal Blower, ACT Internal Blower with Airflow Control Technology, ICON Touch Controls and Auto Delay-off in Stainless Steel

A low-profile, chimney-style range hood that will add style and value to any kitchen. Complete with a 600 CFM blower, ICON Touch® controls and our exclusive ACT technology.
  • Internal Blower with Airflow Control Technology (ACT)
  • ACT is a feature built into specific Zephyr hoods allowing you to limit the maximum blower CFM to meet local code requirements
  • ICON Touch Controls
  • 5 Speed Levels
  • 50w x 2 Halogen Lights
  • Dual Level Lighting
  • 2 Aluminum Mesh Filters
  • Convertible to Recirculating
  • Up to 12 ft. Ceiling Duct Cover Extension

Manufacturer's Warranty: 1 year

Canadian model: ZANM90BS

Canadian UPC: 646328003165

EAN: 0646328003165

Specs
UPC 646328003165
BLOWER INCLUDED YES/NO yes
INTERNAL BLOWER 1 CFM 600
BLOWER CFM w/ACT 390, 290
INTERNAL BLOWER 1 SONES 6
CONTROLS TYPE ICON Touch®
BLOWER SPEEDS 5
AUTOMATIC DELAY-OFF yes
CLEANAIR FUNCTION no
LIGHTS TYPE (INCLUDED) halogen
LIGHTS QUANTITY 2
WATTS PER BULB 50
LIGHTS LEVELS 2
FILTER TYPE mesh
DUCT DISCHARGE vertical
DUCT SIZE, VERTICAL, INCHES 6
DUCT SIZE, HORIZONTAL, INCHES NA
MOUNTING HEIGHT ABOVE COOKTOP, INCHES 26 - 34
INPUT VOLTAGE 120
MAXIMUM AMPERAGE 5
NOMINAL WIDTH, INCHES 36
NET WIDTH, INCHES 35.4375
DEPTH, INCHES 22.0625
HEIGHT, INCHES (for chimney hoods, heights include duct covers) 27 - 48.5
WEIGHT, LBS 38.1
SHIPPING HEIGHT, INCHES 27.36
SHIPPING WIDTH, INCHES 39.49
SHIPPING LENGTH, INCHES 23.62
SHIPPING WEIGHT, LBS 55.8
Performance
Internal Blower CFM:
200 (min.) - 600 (max.)
Internal Sones:
1 (min.) - 6 (max.)
Features
ACT:
Yes
Controls:
ICON Touch
Speed Levels:
5
Auto Delay-Off:
Yes
Lighting:
Halogen, 50W x 2
Dual Level Lighting:
Yes
Filters:
Aluminum Mesh x 2
Recirculating Option:
Yes
Duct Cover Extension Option:
Yes
Color:
Stainless Steel
Duct Specifications
Vertical - Internal:
6"
Horizontal - Internal:
N/A
AC Power:
120V, 60Hz at Max. 2.7A
Optional Accessories
Recirculating Kit:
ZRC00AN
Duct Cover Extension:
Z1C00AN
Universal Make-Up Air Kit:
MUA006A
Warranty
Warranty:
3 Year Parts, 1 Year Labor
Dimensions
Overall Width:
35 7/16"
Overall Depth:
22 1/16"
Overall Height - Ducted:
27" min. - 48 1/2" max.
Overall Height - Recirculated:
31" min. - 48 1/2" max.
Flue Width:
10 3/8"
Flue Depth:
10 5/8"
Mounting Height:
26" - 34"
