Zephyr ZAZM90BS
Discontinued
AE4G7B
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $116.62 for 18 months
Ratings & Reviews
AE4G7B
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $116.62 for 18 months
Description & Features

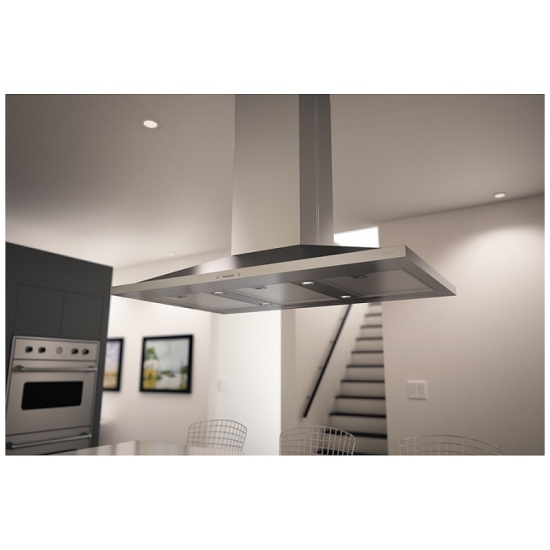

 Zephyr ZAZM90BS Island Mount Range Hood, 36 in, 600 CFM, ICON Touch Controls, 5 Speed levels, 5 minute auto delay-off, Aluminum mesh filters, Recirculating Option

A low-profile, chimney-style range hood that will add style and value to any kitchen. Complete with a 600 CFM blower, ICON Touch® controls and our exclusive ACT technology.



  • ACT Internal blower with airflow control technology
  • ICON Touch Controls
  • 5 Speed levels
  • 5 minute auto delay-off
  • 4 50W Halogen lighting
  • Aluminum mesh filters
  • Recirculating option
  • Extension duct cover option up to 12' ceiling

Manufacturer's Warranty: 1 year

Canadian model: ZAZM90BS

Canadian UPC: 646328003172

EAN: 0646328003172

Specs
UPC 646328003172
BLOWER INCLUDED YES/NO yes
INTERNAL BLOWER 1 CFM 600
BLOWER CFM w/ACT 390, 290
INTERNAL BLOWER 1 SONES 6
CONTROLS TYPE ICON Touch®
BLOWER SPEEDS 5
AUTOMATIC DELAY-OFF yes
CLEANAIR FUNCTION no
LIGHTS TYPE (INCLUDED) halogen
LIGHTS QUANTITY 4
WATTS PER BULB 50
LIGHTS LEVELS 2
FILTER TYPE mesh
DUCT DISCHARGE vertical
DUCT SIZE, VERTICAL, INCHES 6
DUCT SIZE, HORIZONTAL, INCHES NA
MOUNTING HEIGHT ABOVE COOKTOP, INCHES 26 - 34
INPUT VOLTAGE 120
MAXIMUM AMPERAGE 5
NOMINAL WIDTH, INCHES 36
NET WIDTH, INCHES 41.9375
DEPTH, INCHES 25.5625
HEIGHT, INCHES (for chimney hoods, heights include duct covers) 31.5 - 50
WEIGHT, LBS 61.1
SHIPPING HEIGHT, INCHES 32.09
SHIPPING WIDTH, INCHES 39.84
SHIPPING LENGTH, INCHES 21.65
SHIPPING WEIGHT, LBS 85.1



PERFORMANCE
Internal, Min.-Max. Blower CFM 200-600
Internal, Min-Max. Sones 1-6
COLOR
Stainless Steel SS
FEATURES
ACT: Yes
Controls: ICON Touch
Speed Levels: 5
5 Minute Auto Delay-Off: Yes
Lighting: Halogen, 50W x 4
Dual Level Lighting: Yes
Filters: Aluminum Mesh
Duct Cover Extension Option: Yes, Up to 12' Ceiling
Recirculating Option : Yes
DUCT SPECIFICATIONS
Vertical-Internal: 6" Round
AC POWER 120V, 60Hz at Max. 4.2A
MOUNTING HEIGHT 26"-34"
WARRANTY 3 Years Parts, 1 Year Labor
