Features
Blower type	Internal
Dishwasher-proof filters	Yes
Lights	Yes
Energy Star	No
Duct type	Round
Duct size	8"
HVI certified	No
Optional blowers

General
Style	Island
Finish	Stainless Steel
Mounting type	Island/Chimney
Type	Convertible
Air flow	715 CFM
Speeds	6
Decibel rating
Additional information	Electronic LCD Controls; Auto Delay-Off; Dual Level Bloom HD LED Lighting; Aluminum Mesh Filters; Recirculating Option Available
Sone	0.8 - 5.8
Vertical exhaust compatible	Yes
Horizontal Exhaust Compatible	Yes

Brand	Zephyr
Manufacturer	Zephyr
Category	Range Hood
Sub-Category	Island
Vent Type	Convertible
UPC	646328001895
GTIN	00646328001895
Country of Origin	Taiwan
Model Group	ZMD
Model Name	Modena
Collection	Core Collection
Replacement Model	ZMD-M90BS
Blower Included	Yes
Blower CFM w/ACT	590, 390, 290
Internal Blower 1 CFM	715
Internal Blower 1 Min. Sones	0.8
Internal Blower 1 Max Sones	5.8
Minimum CFM	250
Installation Type	Island
Installation Type	Island
For Outdoor Use	No
Color	Stainless Steel + Glass
Controls Type	Electronic LCD
Blower Speeds	6
Automatic Delay-Off	Yes
Clean Air Function	Yes
Lighting Type	LED
Lights Quantity	4
Watts Per Bulb	3
Lights Levels	2
Grease Filter Type	Mesh
Compatible Mesh or Baffle Filter Part Number	50200042
Duct Discharge	Vertical
Duct Size; Horizontal; IN	N/A
Duct Size; Vertical; IN	8
Mounting Height Above Cooktop; IN	26 - 34
Voltage	120
Maximum Amperage	4
ADA Compliant	Yes, with optional remote
Warranty Parts / Labor	3 / 1
Compatible Appliances	ZRC-00MD, Z1C-00MD, RC-0001, MUA008A, Z0F-C002
Bluetooth Connected	No
Wi-Fi Connected	No
Remote Included	No
Remote Optional	Yes
Energy Star Certified	No
Alexa & Google Home Compatible	No
CEC Title 20 Compliant	Yes
Primary Material	Stainless Steel
Wattage	480
Certification	UL
Nominal Width; IN	36
Net Width; IN	35.4375
Net Depth; IN	27.5
Net Height; IN	28 - 50
Weight; LBS	86.9
Ceiling Height Minimum	8 ft.
Ceiling Height Maximum	10 ft.
Chimney Height in.	26.5
Chimney Width in.	13.68
Chimney Depth in.	14.18
Shipping Length; IN	34.88
Shipping Width; IN	42.91
Shipping Height; IN	27.09
Shipping Weight; LBS	118.3
Shipping Method	LTL
Freight Class	300
Duct Type	Vertical
Duct Type	Vertical

Performance
Blower Type:	Internal
Blower CFM (Min. - Max.):	250 CFM - 715 CFM
Sones (Min. - Max.):	0.8 - 5.8 Sones
Features
Color:	Stainless Steel
Controls:	Electronic LCD
Speed Levels:	5 + Burst
Auto Delay-Off:	Yes
Lighting:	Bloom LED, 3W x 4
Dual Level Lighting:	Yes
Filters:	Aluminum Mesh
Recirculating Option:	Yes
Extension Duct Cover Option:	Yes, Up to 12 Ft. Ceiling
Duct Specifications
Vertical - Internal:	8"
Horizontal - Internal:	N/A
AC Input / Power
AC Input:	120V - 60Hz
AC Power:	Max. 215W at 3.5A
Dimensions
Width:	35 7/16"
Depth:	27 1/2"
Height:	28"

Zephyr ZMDM90AS

Zephyr ZMDM90AS

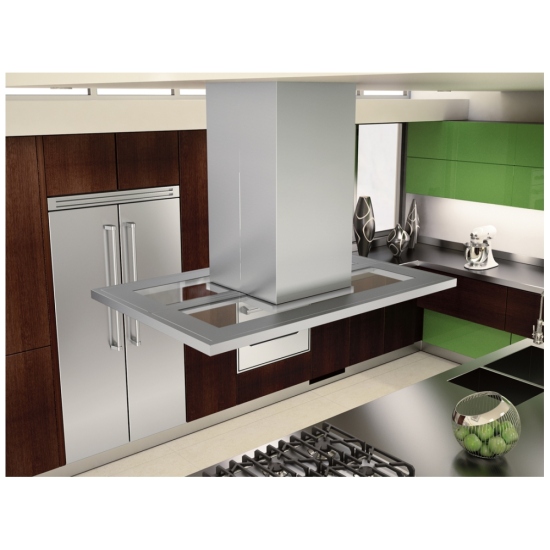

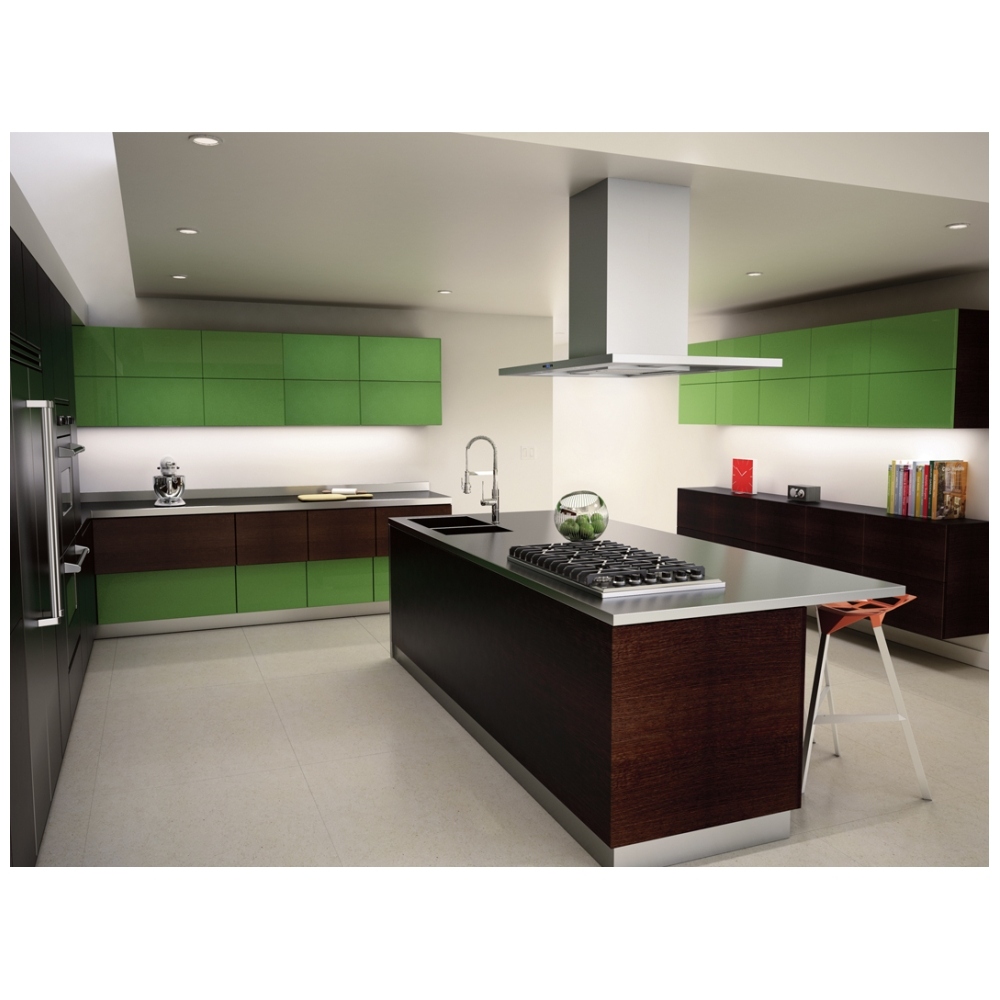

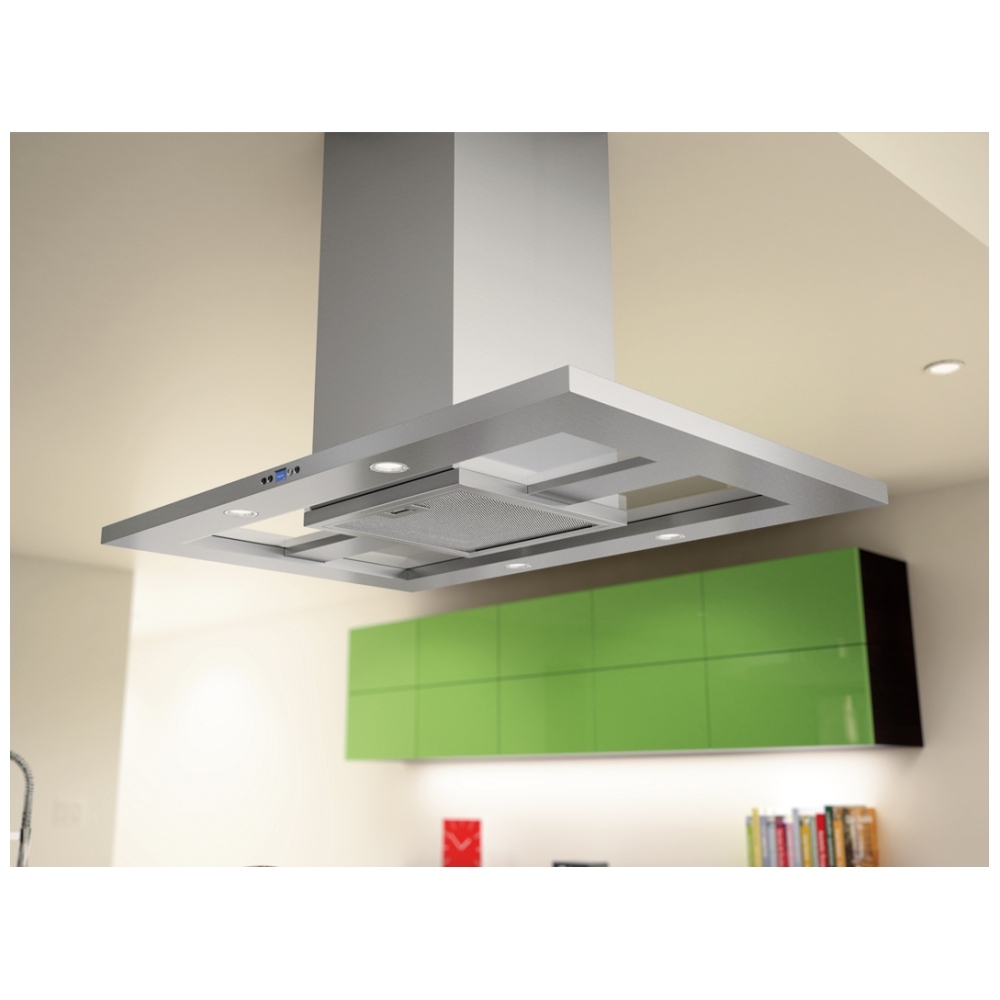

Zephyr ZMDM90AS Range Hood, 36 inch Exterior Width, Island, 715 CFM, LED, Aluminum Mesh Filter, Stainless Steel colour
