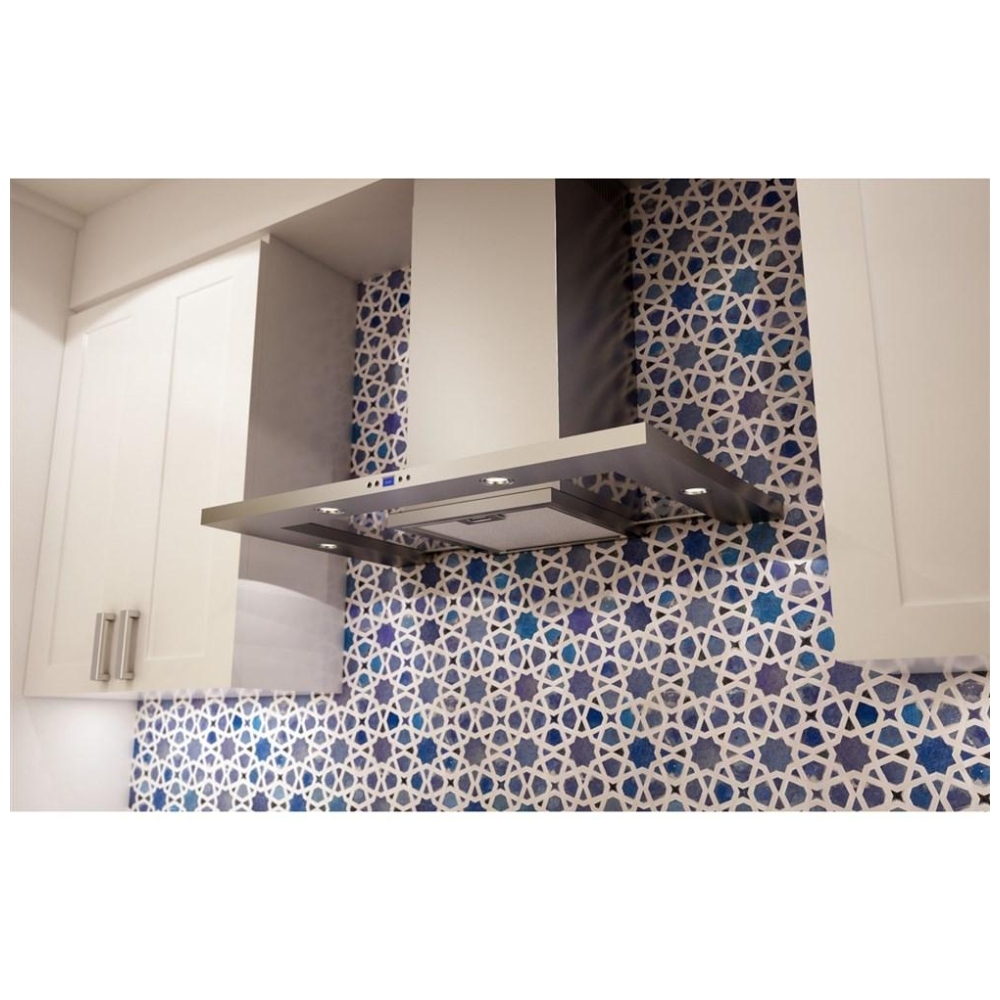

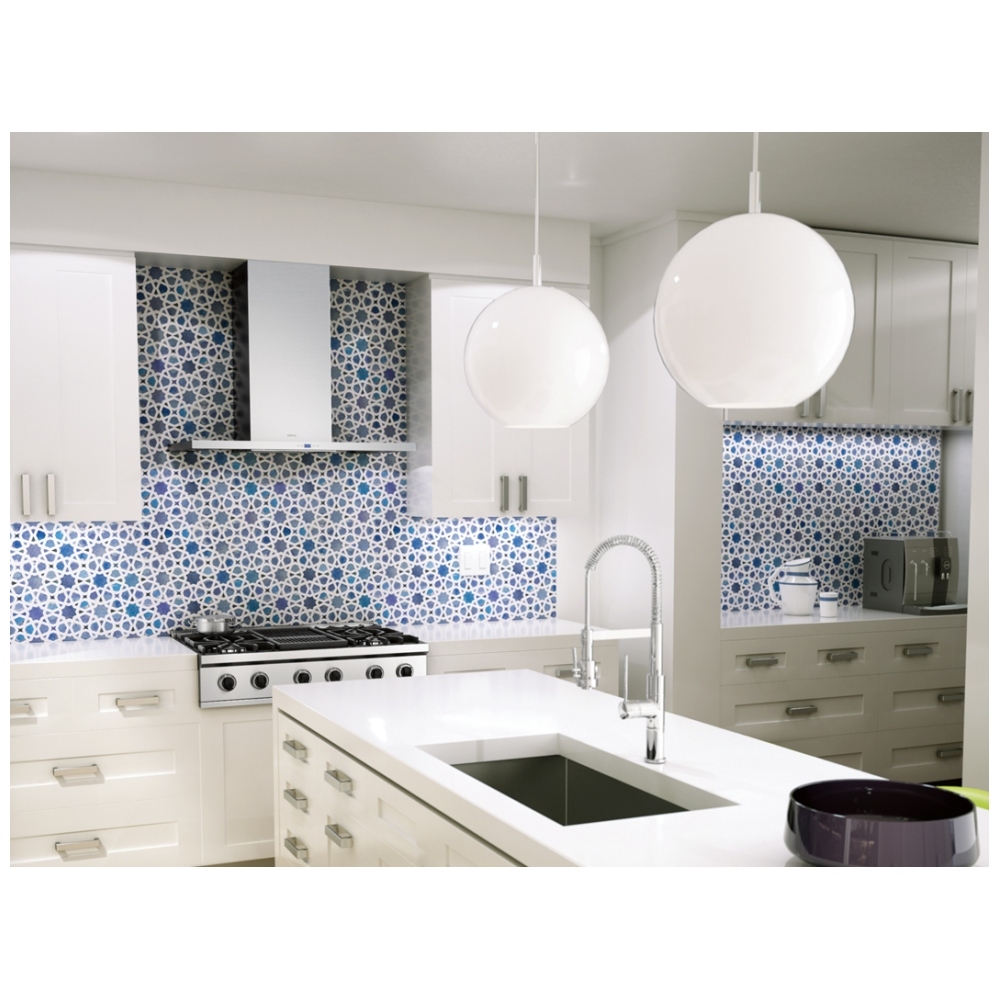

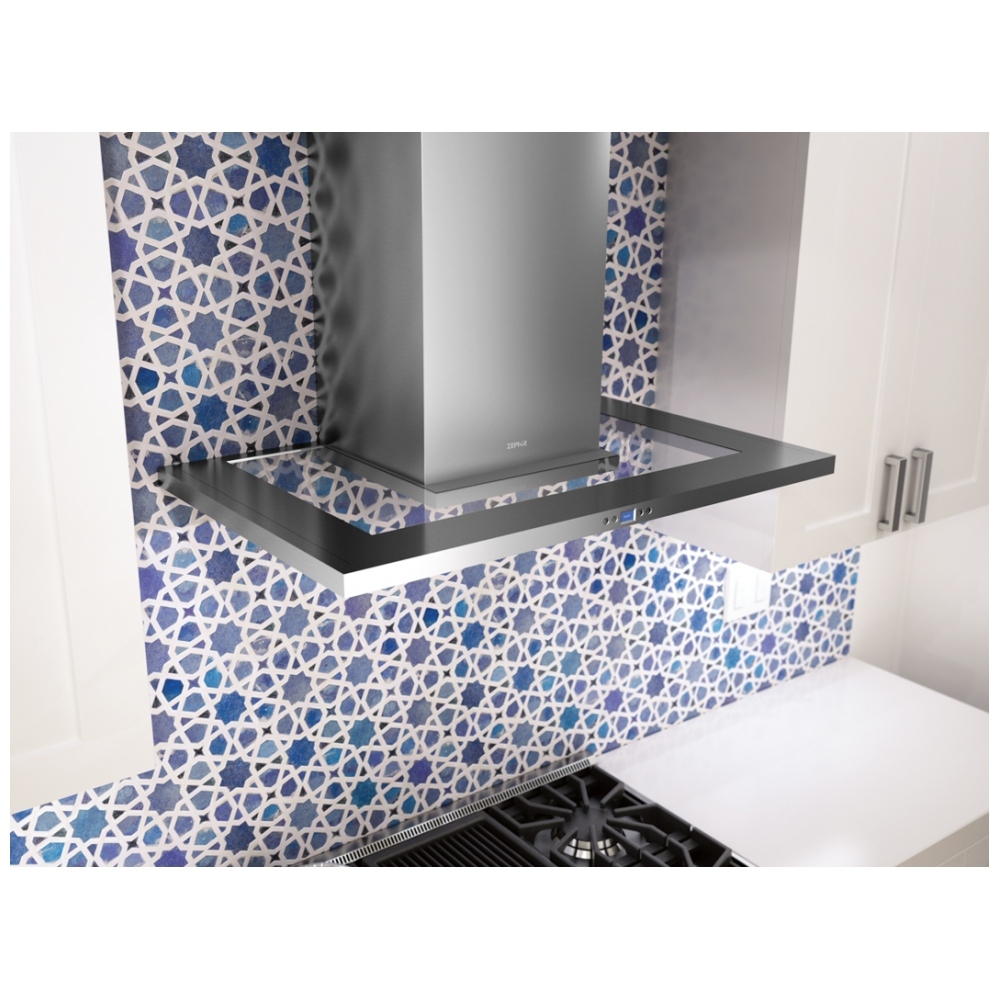

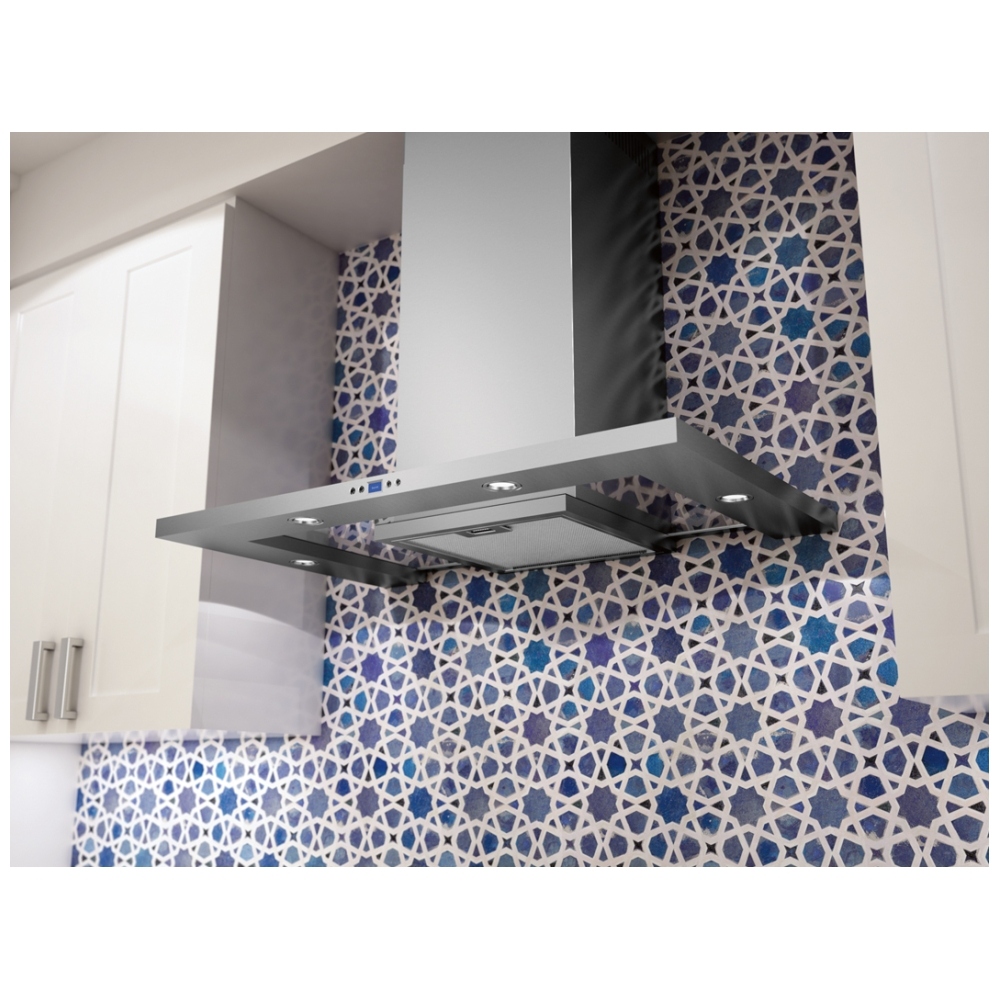

Zephyr ZMO-M90AS
Discontinued
AK23O8
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $125.39 for 18 months
Ratings & Reviews
Similar Colours and Options
ZMO-M90BS
ZMO-M90BS
Dishwasher Safe Filters
Stainless Steel
ZMOM90AS
ZMOM90AS
Stainless Steel
AK23O8
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $125.39 for 18 months
Description & Features
Modena, Wall, 90cm, SS, DCBL, ACT
  • Airflow Control Technology™ (ACT™)
  • Aluminum Mesh Filters
  • Bloom™ HD LED Light Bulbs
  • CleanAir Function
  • DCBL Suppression System®
  • Dual-Level Lighting
  • Electronic LCD Controls
  • Low-Profile Body
  • Optional Duct Cover Extension Kit
  • Optional Make-Up Air Kit
  • Optional Recirculating Kit
  • Optional Wireless Remote Control
  • Ultra-Quiet Performance

Manufacturer's Warranty: 1 year

Canadian model: ZMO-M90AS

Canadian UPC: 646328001970

EAN: 0646328001970

Specs
Brand Zephyr
Manufacturer Zephyr
Category Range Hood
Sub-Category Wall
Vent Type Convertible
UPC 646328001970
GTIN 00646328001970
Country of Origin Taiwan
Model Group ZMO
Model Name Modena
Collection Core Collection
Replacement Model ZMO-M90BS
Blower Included Yes
Blower CFM w/ACT 590, 390, 290
Internal Blower 1 CFM 715
Internal Blower 1 Min. Sones 0.8
Internal Blower 1 Max Sones 5.8
Minimum CFM 250
Installation Type Wall
Installation Type Wall
For Outdoor Use No
Color Stainless Steel + Glass
Controls Type Electronic LCD
Blower Speeds 6
Automatic Delay-Off Yes
Clean Air Function Yes
Lighting Type LED
Lights Quantity 4
Watts Per Bulb 3
Lights Levels 2
Grease Filter Type Mesh
Compatible Mesh or Baffle Filter Part Number 50200042
Duct Discharge Vertical
Duct Size; Horizontal; IN N/A
Duct Size; Vertical; IN 8
Mounting Height Above Cooktop; IN 26 - 34
Voltage 120
Maximum Amperage 4
ADA Compliant Yes, with optional remote
Warranty Parts / Labor 3 / 1
Compatible Appliances ZRC-00MO, Z1C-00MO, RC-0001, MUA008A, Z0F-C002
Bluetooth Connected No
Wi-Fi Connected No
Remote Included No
Remote Optional Yes
Energy Star Certified No
Alexa & Google Home Compatible No
CEC Title 20 Compliant Yes
Primary Material Stainless Steel
Wattage 480
Certification UL
Nominal Width; IN 36
Net Width; IN 35.4375
Net Depth; IN 22.125
Net Height; IN 27 - 50
Weight; LBS 57.3
Ceiling Height Minimum 8 ft.
Ceiling Height Maximum 10 ft.
Chimney Height in. 25.5
Chimney Width in. 13.37
Chimney Depth in. 12.37
Shipping Length; IN 27.52
Shipping Width; IN 41.93
Shipping Height; IN 30.24
Shipping Weight; LBS 82
Shipping Method LTL
Freight Class 300
Duct Type Vertical
Duct Type Vertical
ZMO-M90AS
36" Modena Wall
290, 390, 590, 715 CFM
Recirculating
Mesh Filter
Stainless Steel
Vertical Ducting
Max Sones 5.8
