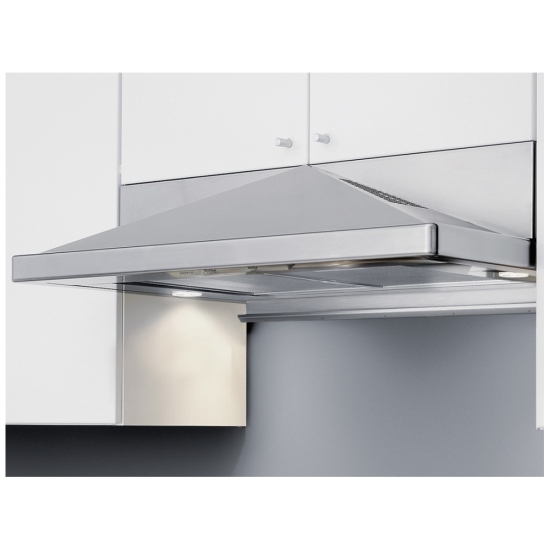

Zephyr ZPY-E30AS290
Discontinued
ADGFFB
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $41.39 for 18 months
Ratings & Reviews
ADGFFB
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $41.39 for 18 months
Description & Features
Pyramid, UC, 30", SS, 290
  • Adjustable Utensil Bar
  • Aluminum Mesh Filters
  • Dual-Level Lighting
  • Halogen Lighting
  • Mechanical Slide Controls
  • Optional Recirculating Kit
  • Vertical or Horizontal Ducting

Manufacturer's Warranty: 1 year

Canadian model: ZPY-E30AS290

Canadian UPC: 646328000683

EAN: 0646328000683

Specs
Brand Zephyr
Manufacturer Zephyr
Category Range Hood
Sub-Category Under Cabinet
Vent Type Convertible
UPC 646328000683
GTIN 00646328000683
Country of Origin Taiwan
Model Group ZPY-A
Model Name Pyramid Under-Cabinet
Collection Core Collection
Replacement Model ZPY-E30BS290
Blower Included Yes
Internal Blower 1 CFM 290
Internal Blower 1 Min. Sones 1.1
Internal Blower 1 Max Sones 3.2
Minimum CFM 210
Installation Type Under Cabinet
Installation Type Under Cabinet
For Outdoor Use No
Color Stainless Steel
Controls Type Mechanical Slide
Blower Speeds 3
Automatic Delay-Off No
Clean Air Function No
Lighting Type Halogen
Lights Quantity 2
Watts Per Bulb 50
Lights Levels 2
Grease Filter Type Mesh
Compatible Mesh or Baffle Filter Part Number 50200030
Duct Discharge Vertical or Horizontal
Duct Size; Horizontal; IN 3.25 x 10
Duct Size; Vertical; IN 7, 3.25 x 10
Mounting Height Above Cooktop; IN 24 - 32
Voltage 120
Maximum Amperage 2
ADA Compliant No
Warranty Parts / Labor 3 / 1
Compatible Appliances ZRC-0200, MUA006A, Z0B0040, Z0F-C002
Bluetooth Connected No
Wi-Fi Connected No
Remote Included No
Remote Optional No
Energy Star Certified No
Alexa & Google Home Compatible No
CEC Title 20 Compliant Yes
Primary Material Stainless Steel
Wattage 240
Certification UL
Nominal Width; IN 30
Net Width; IN 29.9375
Net Depth; IN 21
Net Height; IN 7.375
Weight; LBS 27.8
Ceiling Height Minimum 8 ft.
Ceiling Height Maximum 12 ft.
Shipping Length; IN 12.6
Shipping Width; IN 34.13
Shipping Height; IN 26.14
Shipping Weight; LBS 35.5
Shipping Method Small Parcel
Freight Class 175
Certification # E127334
Clean Filter Alert No
Duct Type Vertical
Duct Type Vertical
ZPY-E30AS290
30" Pyramid Under-Cabinet
290 CFM
Recirculating
Mesh Filter
Stainless Steel
Vertical and Horizontal Ducting
Max Sones 3.2
