Description & Features

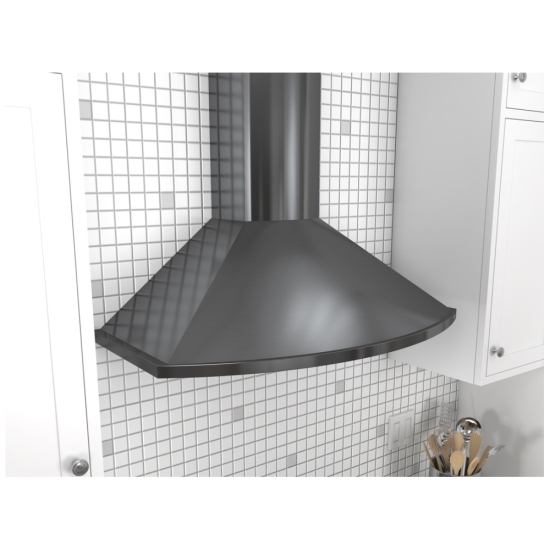

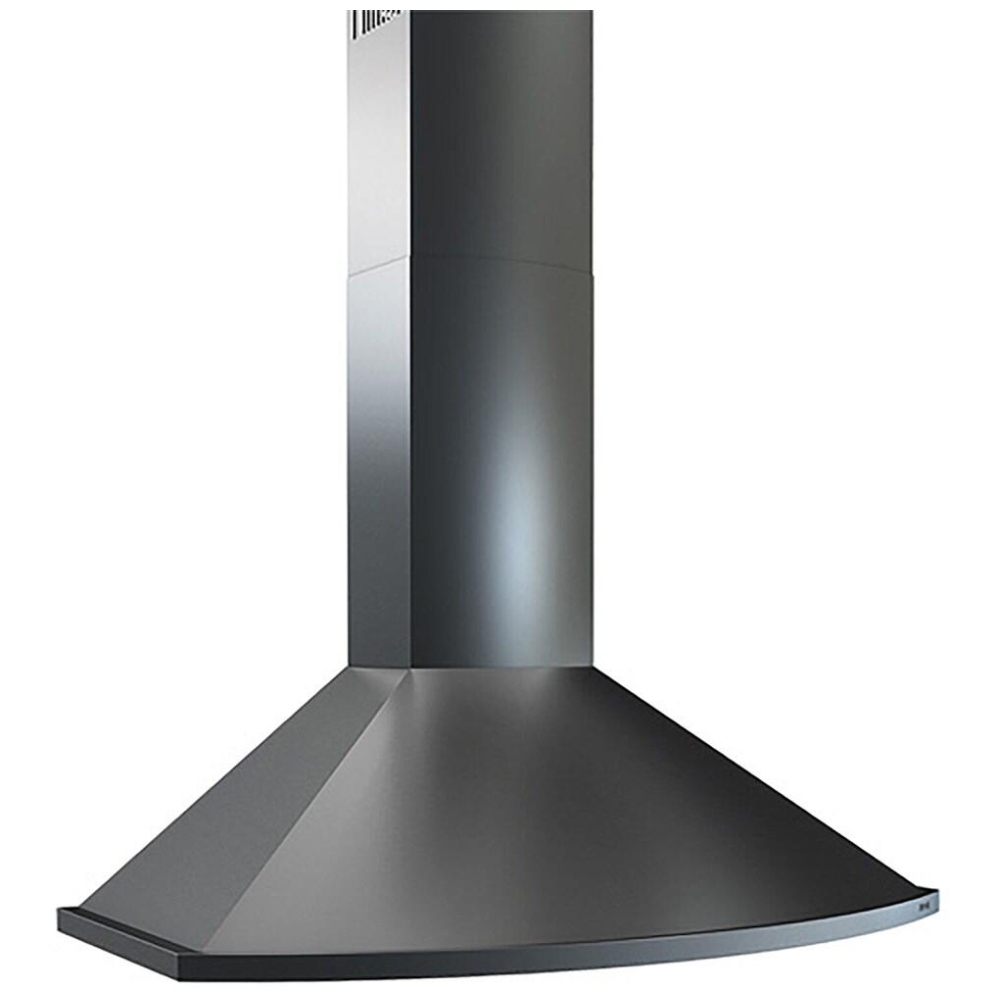

36 Inch Wall Mount Chimney Hood with Recirculating Option
Savona's semi-circular surfaces accentuate this range hood's European design with delicate reflections of light and shadows. It is titanium coated for extra durability and features an anti-smudge coating which makes cleaning a breeze. This unit includes a 685-CFM blower, ICON Touch controls with 5 speeds and their exclusive ACT technology.
Savona, Wall, 90cm, Blk SS, 685CFM, ACT, LED
Recirculating Option
  • Works to bring filtered air back into the kitchen
Icon Touch Controls
  • Seamlessly integrate into the hood and allow users to easily control the 5-speeds, delay-off function, auto reminders and Airflow Control Technology.
Titanium Coating
  • Titanium coated for extra durability and an anti-smudge coating for easier cleanup
685 CFM
  • Internal blower of 200-685 CFM for greater ventilation
Airflow Control Technology (ACT)
  • An exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to meet local code requirements

Manufacturer's Warranty: 1 year

Canadian model: ZSAM90DBS

Canadian UPC: 646328005350

EAN: 0646328005350

Specs
Brand Zephyr
Manufacturer Zephyr
Category Range Hood
Sub-Category Wall
Vent Type Convertible
UPC 646328005350
GTIN 00646328005350
Country of Origin Taiwan
Model Group ZSA-D
Model Name Savona Wall
Collection Core Collection
Replacement Model ZSA-M90FBS
Blower Included Yes
Blower CFM w/ACT 390, 290
Internal Blower 1 CFM 685
Internal Blower 1 Min. Sones 1
Internal Blower 1 Max Sones 6
Minimum CFM 200
Installation Type Wall
Installation Type Wall
For Outdoor Use No
Color Stainless Steel
Controls Type ICON Touch®
Blower Speeds 5
Automatic Delay-Off Yes
Clean Air Function No
Lighting Type LED
Lights Quantity 1
Watts Per Bulb 9
Lights Levels 2
Grease Filter Type Mesh
Compatible Mesh or Baffle Filter Part Number 50200011
Duct Discharge Vertical
Duct Size; Horizontal; IN N/A
Duct Size; Vertical; IN 6
Mounting Height Above Cooktop; IN 26 - 34
Voltage 120
Maximum Amperage 5
ADA Compliant No
Warranty Parts / Labor 3 / 1
Compatible Appliances ZRC-00SV, Z1C-01SABS, MUA008A, Z0F-C002
Bluetooth Connected No
Wi-Fi Connected No
Remote Included No
Remote Optional No
Energy Star Certified No
Alexa & Google Home Compatible No
CEC Title 20 Compliant Yes
Primary Material Steel
Wattage 480
Certification UL
Nominal Width; IN 36
Net Width; IN 35.4375
Net Depth; IN 19.5
Net Height; IN 28 - 45
Weight; LBS 31.5
Ceiling Height Minimum 8 ft.
Ceiling Height Maximum 9.5 ft.
Chimney Height in. 18
Chimney Width in. 9
Chimney Depth in. 7.5
Shipping Length; IN 38.39
Shipping Width; IN 17.32
Shipping Height; IN 25.59
Shipping Weight; LBS 45
Shipping Method Small Parcel
Freight Class 200
Certification # E127334
Clean Filter Alert Yes
Duct Type Vertical
Duct Type Vertical
Overview
Internal Blower CFM (Min. - Max.):
200-685 CFM
Internal Blower Sones (Min. - Max.):
1-6 Sones
ACT 390 CFM (Min. - Max.):
200-390 CFM
ACT 390 Sones (Min. - Max.):
1-4 Sones
ACT 290 CFM (Min. - Max.):
200 - 290 CFM
Controls:
ICON Touch
Speed Levels:
5
Auto Delay-Off:
Yes
Lighting:
BriteStrip LED
Filters:
2 (Aluminum Mesh)
Recirculating Option:
Yes
Extension Duct Cover Option:
Yes (Up to 12' Ceiling)
Mounting Height:
26"-34"
Vertical Internal Blower:
6" Round
Electrical Specifications
Voltage:
120V
Amps:
5A
Frequency:
60 Hz
Warranty
Parts & Labor:
1 Year
Parts:
2 Additional Years
Dimensions & Weights
Width:
36"
Depth:
19 1/2"
Standard Min. Ducted Height:
28"
Standard Min. Recirculating Height:
32"
Standard Max. Height:
45"
Mounting Height:
26"-34"
Weight:
40 lbs
