Zephyr ZSAM90DW
Discontinued
ADAJ5C
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $73.84 for 18 months
Ratings & Reviews
Similar Colours and Options
ZSA-M90DW
ZSA-M90DW
White
ZSAM90DB
ZSAM90DB
Black Stainless Steel
ZSAM90DS
ZSAM90DS
Stainless Steel
ADAJ5C
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $73.84 for 18 months
Description & Features

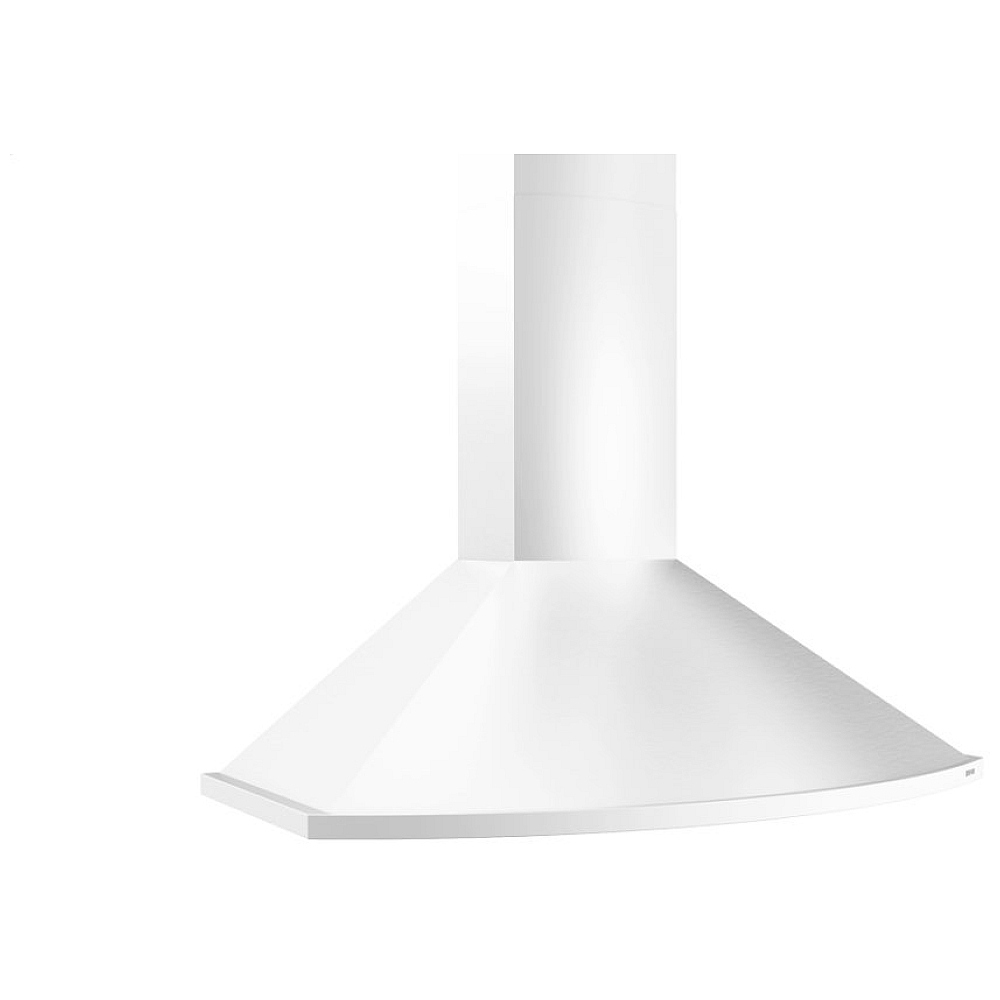

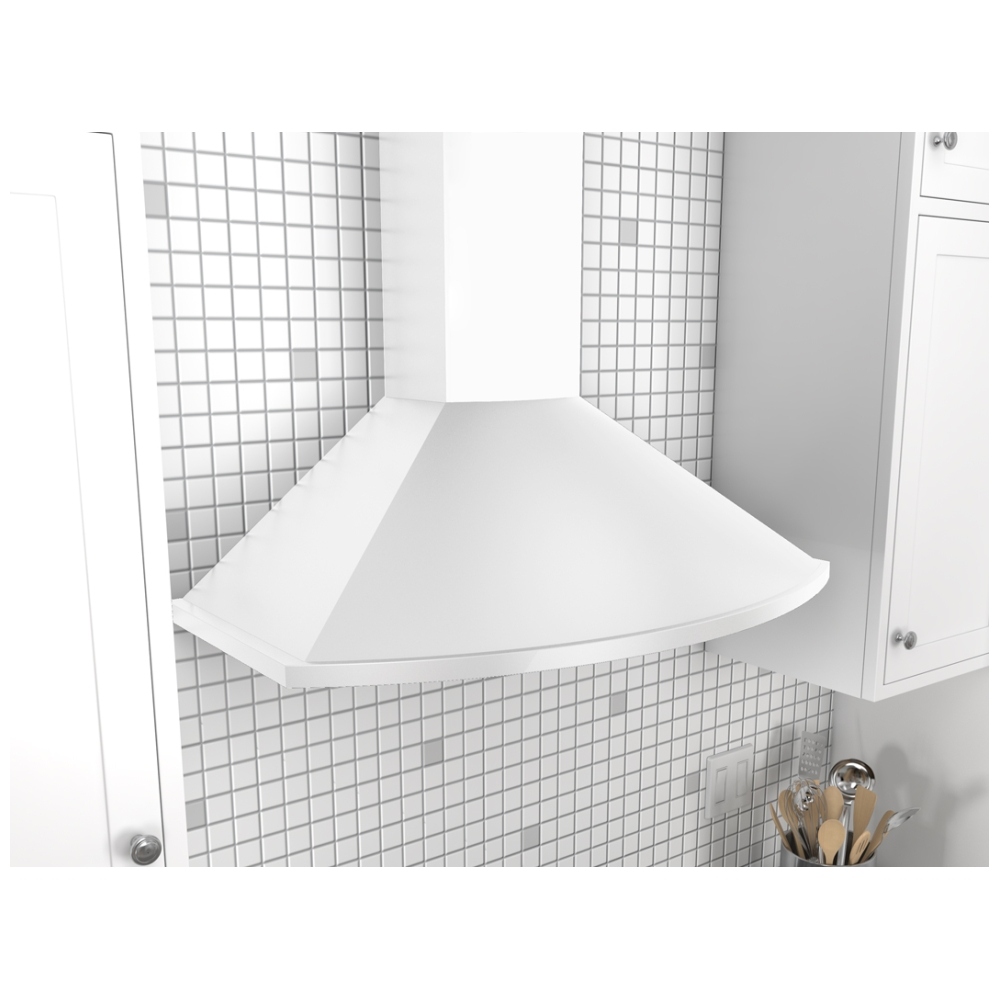

36 Inch Wall Mount Chimney Hood with Recirculating Option
Savona's semi-circular surfaces accentuate this range hood's European design with delicate reflections of light and shadows. It is titanium coated for extra durability and features an anti-smudge coating which makes cleaning a breeze. This unit includes a 685-CFM blower, ICON Touch controls with 5 speeds and their exclusive ACT technology.
The Zephyr Essentials Europa Series ZSA-M90DW 36-In. Savona Wall Range Hood's semi-circular surfaces accentuate this range hood's European design with delicate reflections of light and shadows. Underneath the 11-inch tall body, the Savona features a robust 685 CFM fan that operates at an ultra quiet 1 sone on normal working speed.
Recirculating Option
  • Works to bring filtered air back into the kitchen
Icon Touch Controls
  • Seamlessly integrate into the hood and allow users to easily control the 5-speeds, delay-off function, auto reminders and Airflow Control Technology.
Titanium Coating
  • Titanium coated for extra durability and an anti-smudge coating for easier cleanup
685 CFM
  • Internal blower of 200-685 CFM for greater ventilation
Airflow Control Technology (ACT)
  • An exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to meet local code requirements

Manufacturer's Warranty: 1 year

Canadian model: ZSAM90DW

Canadian UPC: 646328005695

EAN: 0646328005695

Specs
Models ZSA-M90DW
Size 36"
CFM 290, 390, 685
Recirculating yes
Ducting Vertical
Overview
Internal Blower CFM (Min. - Max.):
200-685 CFM
Internal Blower Sones (Min. - Max.):
1-6 Sones
ACT 390 CFM (Min. - Max.):
200-390 CFM
ACT 390 Sones (Min. - Max.):
1-4 Sones
ACT 290 CFM (Min. - Max.):
200 - 290 CFM
Controls:
ICON Touch
Speed Levels:
5
Auto Delay-Off:
Yes
Lighting:
BriteStrip LED
Filters:
2 (Aluminum Mesh)
Recirculating Option:
Yes
Extension Duct Cover Option:
Yes (Up to 12' Ceiling)
Mounting Height:
26"-34"
Vertical Internal Blower:
6" Round
Electrical Specifications
Voltage:
120V
Amps:
5A
Frequency:
60 Hz
Warranty
Parts & Labor:
1 Year
Parts:
2 Additional Years
Dimensions & Weights
Width:
36"
Depth:
19 1/2"
Standard Min. Ducted Height:
28"
Standard Min. Recirculating Height:
32"
Standard Max. Height:
45"
Mounting Height:
26"-34"
Weight:
40 lbs
