MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).












Manufacturer's Warranty: 1 year
Canadian model: NGM8059UC
Canadian UPC: 825225972617
EAN: 4242005455126
| Specification | Value |
|---|---|
| Brand | Bosch |
| Series | 800 Series |
| Model | NGM8059UC |
| Product Type | Built-in gas cooktop |
| Category | Gas Cooktop - 5 Burners |
| Fuel Type | Natural Gas (factory set) |
| Convertible to LP | Yes (LP conversion nozzle set included) |
| Alternative Gas Type | Liquid propane 27.5 mbar (USA) |

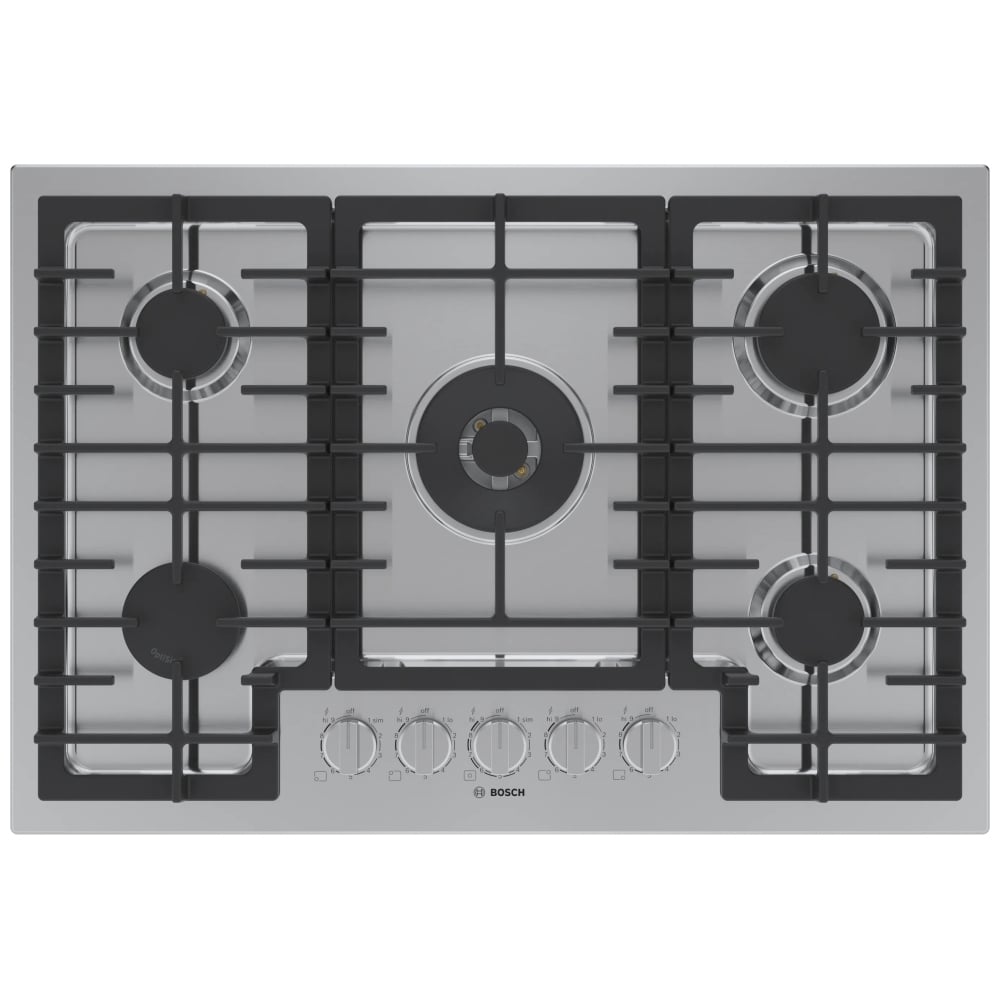

| Number of Burners / Cooking Zones | 5 sealed gas burners |
| Sealed Burners | Yes |
| FlameSelect | Yes, 9-step gas valves |
| Power Levels | 9 preset flame levels per burner |

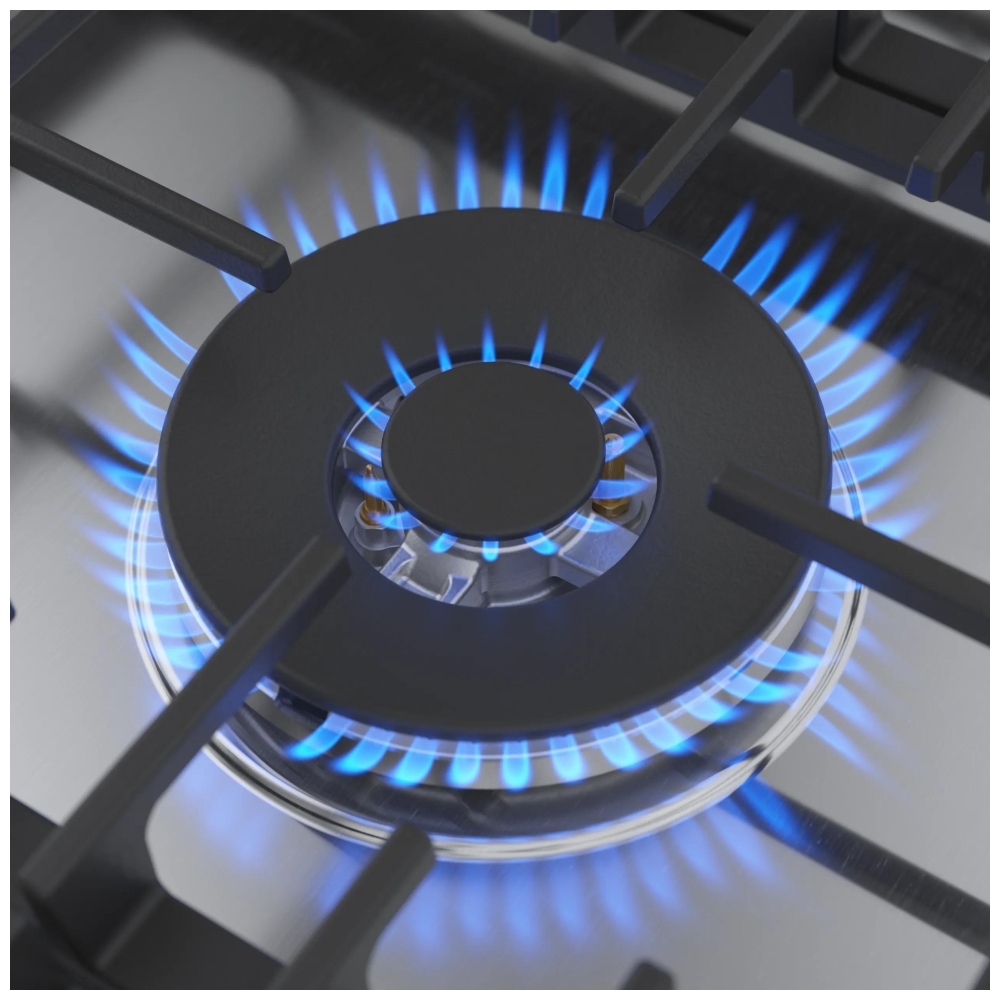

| Dual-Flame Power Burner | Yes (two-ring burner for simmer to high boil) |

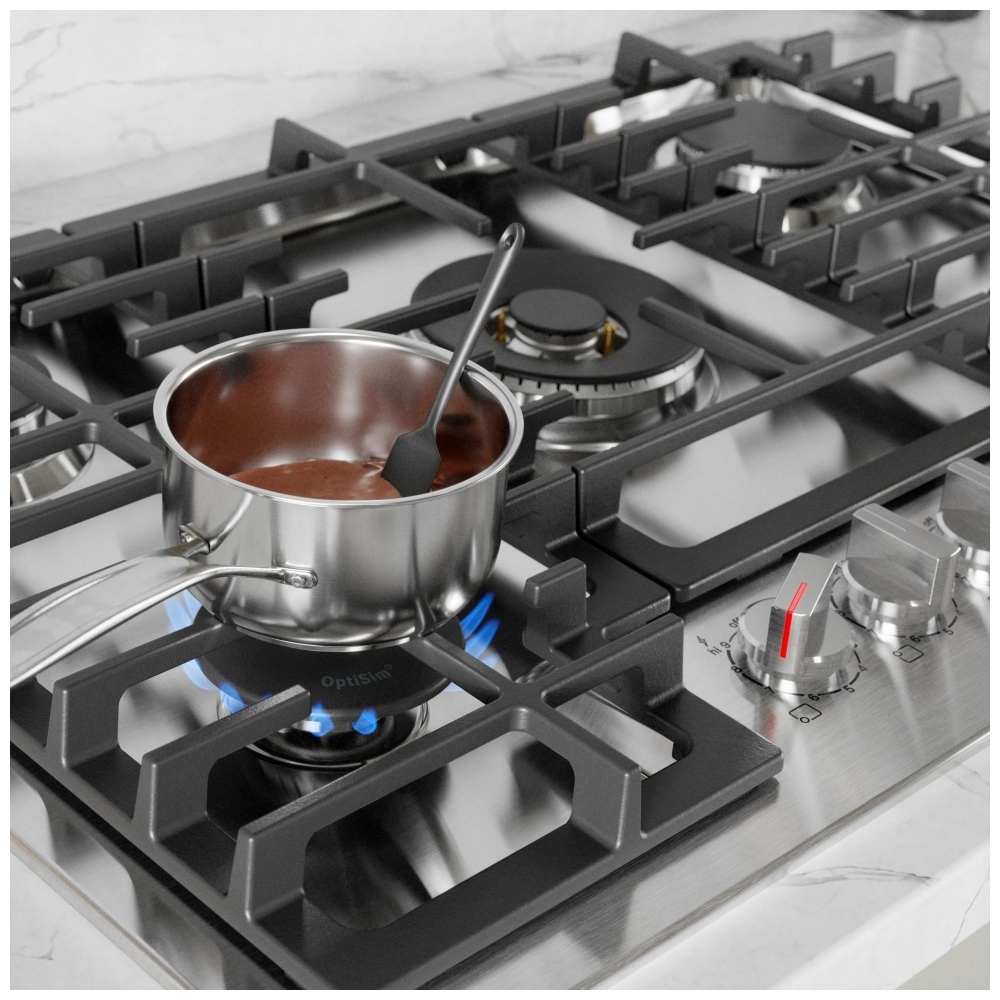

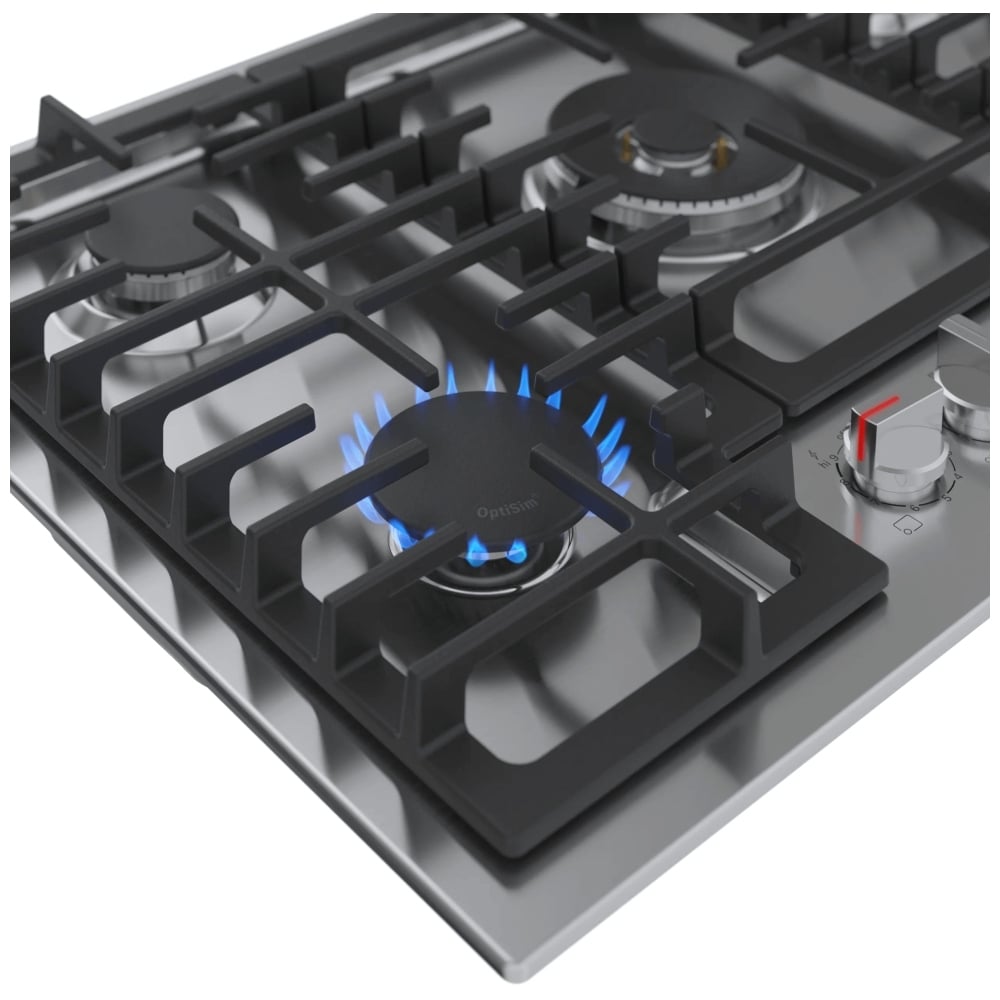

| OptiSim Burner / Simmer Cap | Yes, OptiSim simmer cap / special simmer burner |
| Total BTU Load (Natural Gas) | 42,700 BTU |
| Total BTU Load (LP) | 41,400–42,700 BTU (listed as 42,700 BTU on most spec sheets) |
| Front Left Burner (NG / LP) | 3,400 BTU / 3,400 BTU |
| Back Left Burner (NG / LP) | 6,000 BTU / 6,000 BTU |

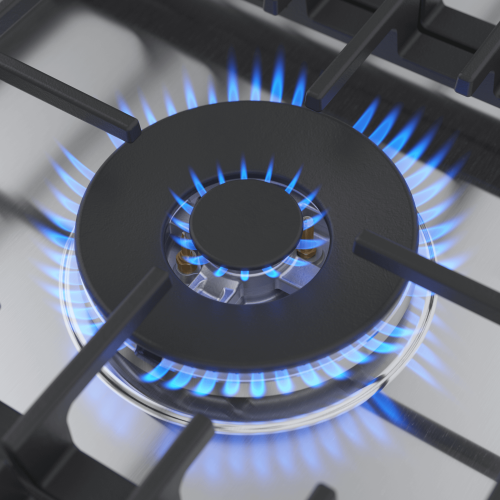

| Center Burner (Dual-Flame Power Burner, NG / LP) | 17,000 BTU / 15,700 BTU |
| Back Right Burner (NG / LP) | 10,300 BTU / 10,300 BTU |
| Front Right Burner (NG / LP) | 6,000 BTU / 6,000 BTU |
| Total Connected Gas Load | 12,500 W (approx. 42,700 BTU) |
| Energy Input | Gas |
| Ignition System | Electronic ignition with thermocouple flame monitoring |
| SMARTFLAME / Flame Monitoring Safety | Yes (flame failure safety) |
| LED Burner Indicator | Yes, red light line indicates burner on and residual heat |
| Residual Heat Indicator | Yes, separate indicator |
| Main On/Off Switch | No |

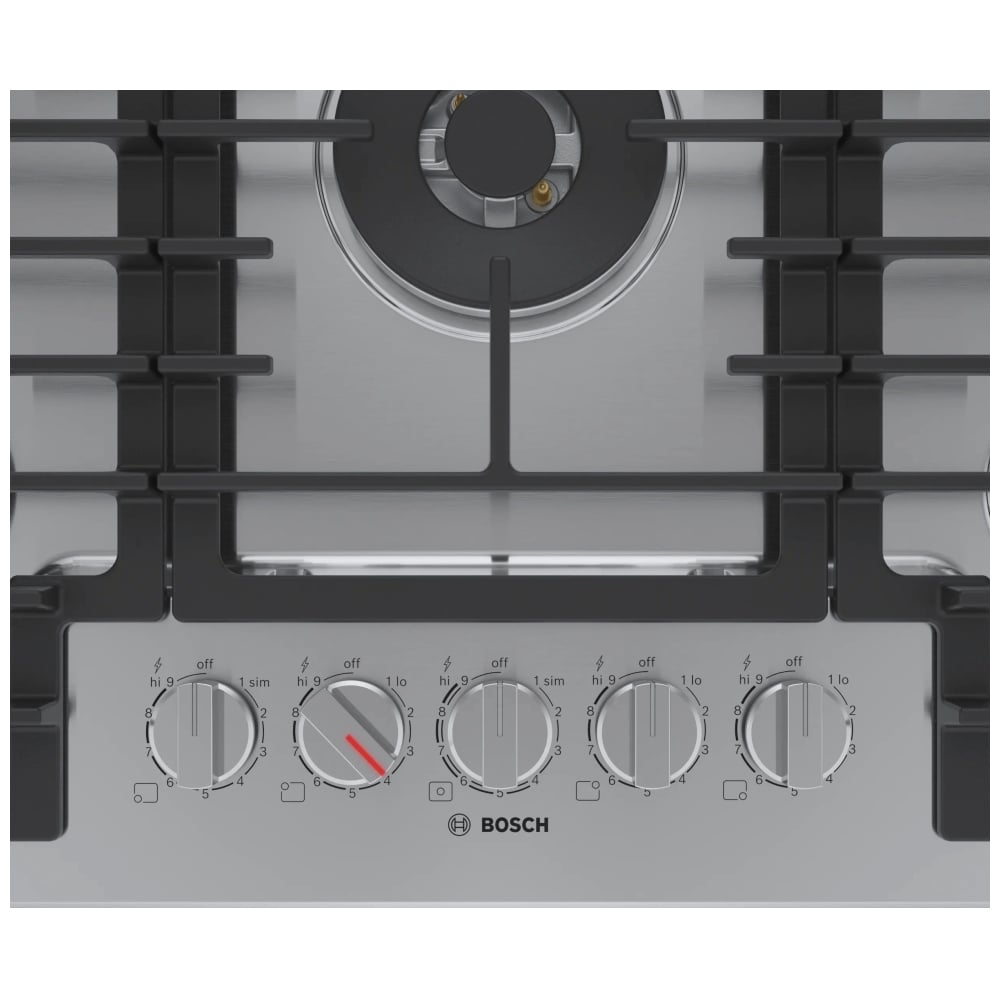

| Control Type | Mechanical knob control |

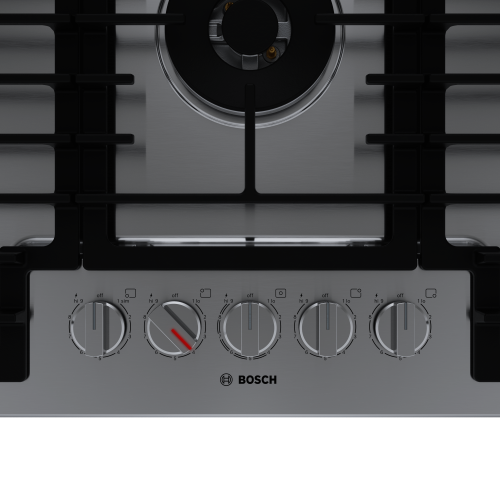

| Control Style | Front, illuminated “sword” knobs |
| Knob Material | Full metal |
| Control Location | Front-center |
| Number of Simultaneous Positions Usable | 5 |
| Surface Material | Stainless steel |
| Basic Surface Material | Stainless steel |
| Color / Finish | Stainless steel |

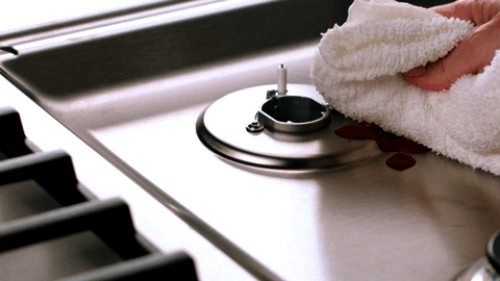

| Frame Type | Frameless, low-profile design |
| Grate Material | Cast iron with rubber feet |

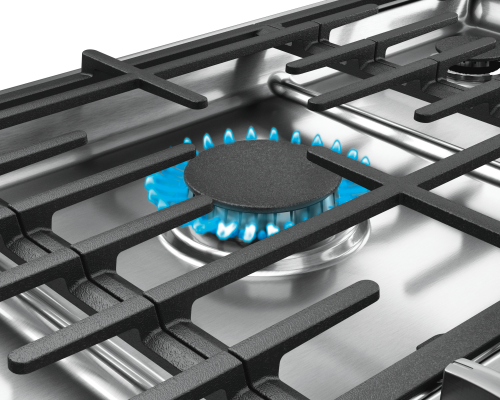

| Grate Features | Continuous, dishwasher-safe, full-width grates |
| Number of Double Grates | 2 |
| Number of Single Grates | 1 |

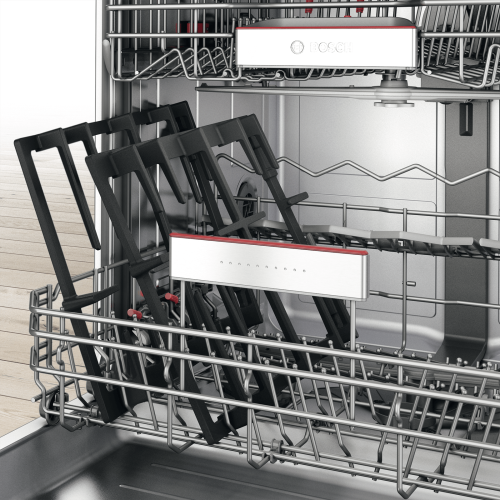

| Dishwasher-Safe Grates | Yes |
| Hob Ignition | Knob ignition |
| Overall Appliance Dimensions (H x W x D) | 3 13/16" x 31" x 21 1/4" (approx. 9.7 cm x 78.7 cm x 54.0 cm) |
| Appliance Height | 3 13/16" (3.81" nominal) |
| Appliance Width | 31" (class width 30") |
| Appliance Depth | 21 1/4" |
| Metric Dimensions (H x W x D) | 95.2 mm x 788 mm x 540 mm |

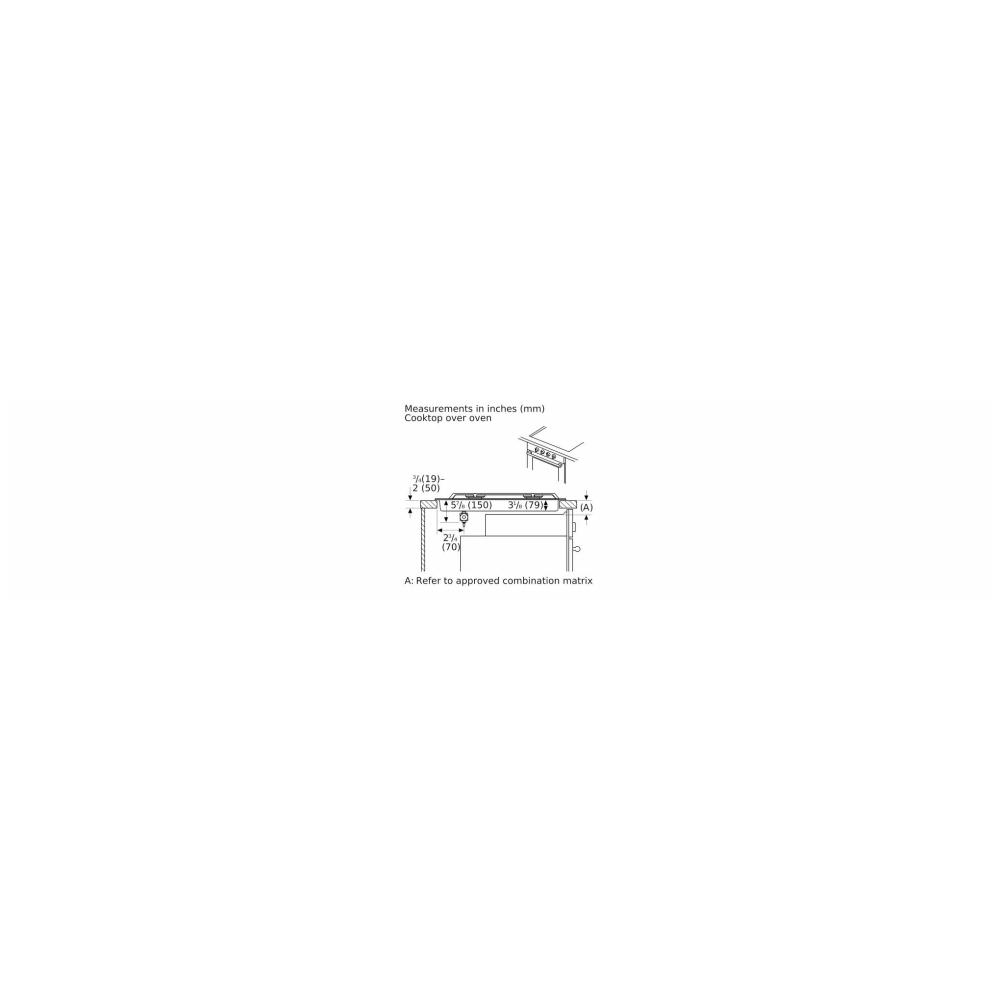

| Required Cutout Size (H x W x D) | 3 13/16" x 28 15/16" x 19 1/8" |
| Min / Max Cutout Width (metric) | 735 mm (min) x 735 mm (max) |
| Cutout Depth (metric) | 486 mm |
| Minimum Worktop Thickness | 19 mm |
| Minimum Distance from Counter Front | 1 7/8" |
| Minimum Distance from Rear Wall | 3" |
| Location of Gas Connection | Bottom, rear, right |
| Gas Connection Rating | 12,500 W |
| Natural Gas Connection Rating | 42,700 BTU |
| LP Gas Connection Rating | 42,700 BTU (some sheets list 41,400 BTU) |
| Electrical Requirements | 120 V / 60 Hz / 15 A |
| Voltage | 120 Volts |
| Frequency | 60 Hz |
| Circuit Breaker / Fuse Protection | 15 A |
| Plug Type | 120V, 3-prong |
| Power Cord Length | 40" (approx. 101.6 cm) |
| Home Connect (Wi-Fi) | No |
| Connectivity | Non-connected appliance |
| ADA Compliant (when properly installed) | Commonly listed as ADA compliant on some sites; others list “No” – check local requirements |
| ExtraLow Burners | No (uses FlameSelect and OptiSim instead) |
| Keep Warm Function | No dedicated keep-warm setting |
| Timer | No integrated cooktop timer |
| Wok Burner | Yes (center dual-flame burner suitable for wok with accessory ring) |
| Included Accessories | 1 x nozzle set for liquid gas (LP), 1 x cast iron pan support / grate set |
| Optional Accessories | Wok ring HEZ298102; Griddle plate HEZ9GR58UC |
| Product Packaging Dimensions (H x W x D) | 8 3/8" x 37 1/8" x 24 3/4" |
| Net Weight | Approx. 27–51 lb (varies by listing; ~12.2–23.1 kg) |
| Gross / Shipping Weight | Approx. 45 lb (about 20.4 kg) |
| UPC | 825225972617 |
| EAN | 4242005455126 |
| Material Number / SKU | NGM8059UC |
| Appliance Group | Hob / Cooktop |
| Installation Type | Built-in |
| Flushmount Capable | No (standard drop-in) |
