Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	19.20
NET WEIGHT (kg)	14.00
CARTON LENGHT (mm)	924.00
CARTON HEIGHT (mm)	769.00
CARTON WIDTH (mm)	357.00
VOLUMEN (M3)	0.30
SHIPPING WEIGHT	42.33
NET WEIGHT	30.86
CARTON LENGHT	36.38
CARTON HEIGHT	30.28
CARTON WIDTH	14.06
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel
Color	inox
Type of Ventilation	Convertible
HOODS FEATURES	Semi baffle filter,Led light
WIDTH (IN)	30"
WIDTH (CM)	76.00
AIRFLOW (M3/H)	680.00
CFM (MAX)	400.00
db (min)	15.00
db (max)	51.00
SONES	0.4 - 5.0
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Rectangular 10 x 3 1/4"
DUCT SHAPE	Rectangular
EXHAUST LOCATION	Top or Rear
RECTANGULAR DUCTH HEIGHT	10"
RECTANGULAR DUCT WIDTH	3.25
Round duct diameter	NA
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	2.2 A
HERTZ	60.00
WATTS	265.00
LIGHTING	LED 2 x 2.1 ww 3000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	2.10
KELVINS	3000.00
GREASE FILTER TYPE	Dishwasher-Safe, Stainless Steel Baffle Slot Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Stainless Steel
BLOWER TYPE	Interior Unit
CONTROL TYPE	Rocker Switches
SPEED CONTROL	YES
NUMBER OF SPEEDS	2.00
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	Yes w/kit
DIMENSIONS	76 x 58 x 25
DIMENSIONSinches	30" x 23" x 10"
ADJUSTABLE HEIGHT	NO
Minimum Overall Height - Top to Bottom	10"
Maximum Overall Height - Top to Bottom	10"
Overall Height - Top to Bottom	10"
Overall Width - Side to Side2	30"
Overall Depth - Front to Back	23"
Hood Height	10"
Minimum Compatible Ceiling Height	NA
Maximum Compatible Ceiling Height	NA
Minimum Height Above Cooktop (ELECTRIC)	= 24
Minimum Height Above Cooktop (GAS)	= 30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	NA
Chimney Depth - Front to Back	NA
Chimney Height - Top to Bottom	NA
RECIRCULATION KIT NUMBER	KIT02770
CHIMNEY EXTENSION NUMBER	NA
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	KIT0175561
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	NO
CHAROCAL FILTER	YES
CERTIFICADO NOM	NA

Selected Model
Color	Stainless Steel
Model number	ESR430S1
Dimensions

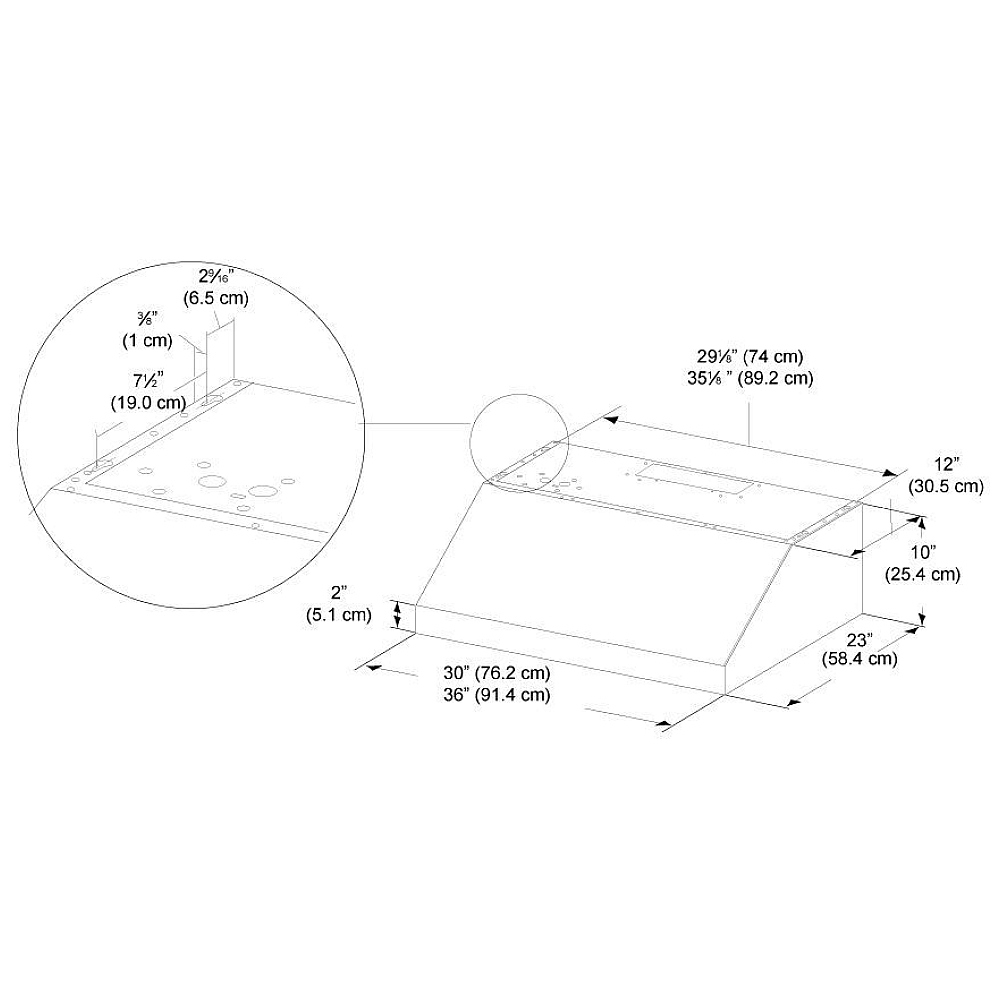

Dimensions	30'' (W) X 23'' (D) X 10'' (H)
Exterior Appearence
Stainless Steel grade	430
Features
Controls	Rocker controls
Illumination	2, 2.1W LED light, 1 intensity (bulbs included) 2, 40 Watt Halogen Lamps (Bulbs Included), 1 Intensities
Blower Type	400 CFM, 3- speed
CRS CFM Reduction (< 300 CFM)	Included Function
Blower Performance	Speed 1, 160 CFM, 1.5 Sones Speed 2, 280 CFM, 3.1 Sones Speed 3, 400 CFM, 5.9 Sones
Filter Type	2 Stainless Steel Baffle Filters
Ducting	Ducted or Recirculating Installation (Recirculating Kit Sold Separately)
Duct transition	3¼’’ X 10’’ (Top or Rear) \| Back Draft Damper Included
Electrical Requirements
Electrical requirements	120V-60 HZ / 340 Watt at 2.8 Amps
Accessories (optionnal)
Recirculating Kit	KIT02770
CRS CFM Reduction (< 300 CFM)	KIT02748
Warranty
Complete 2 years warranty	Entire Appliance; In-Home; Parts & Labour

Elica ESR430S1

Elica ESR430S1

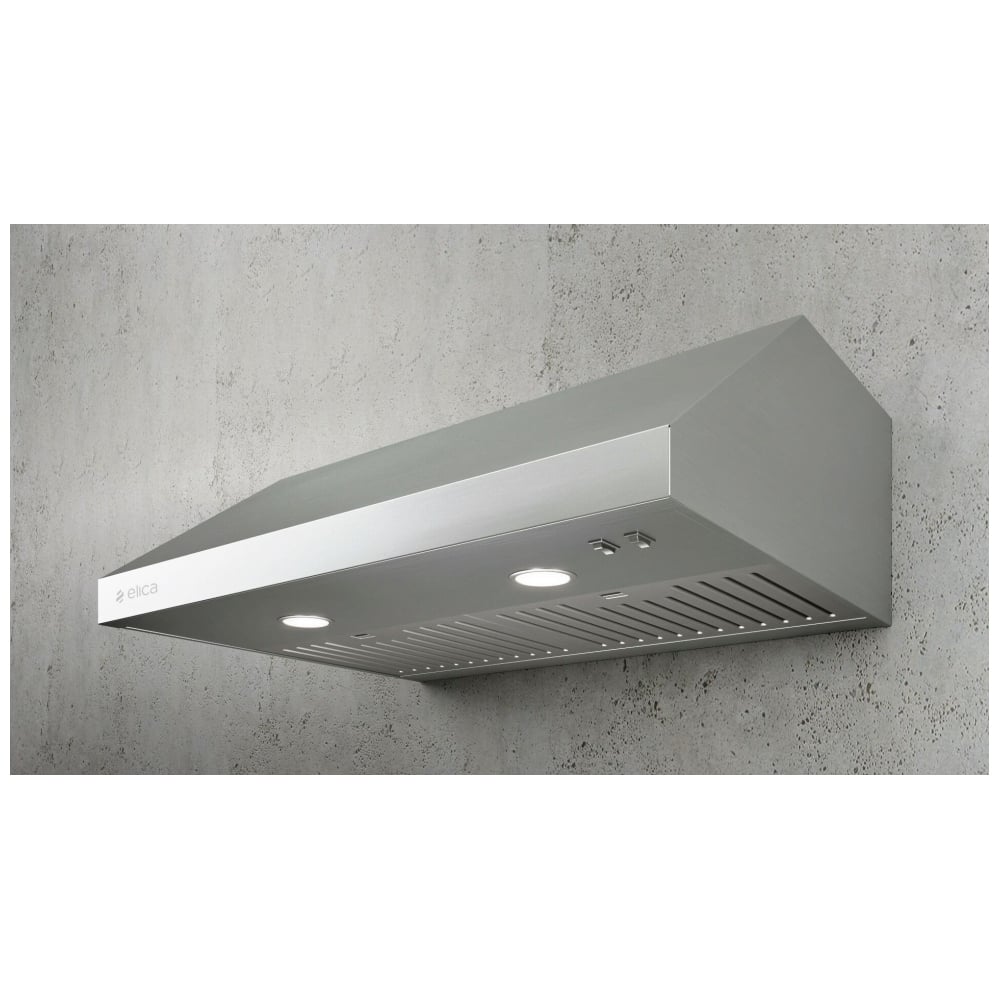

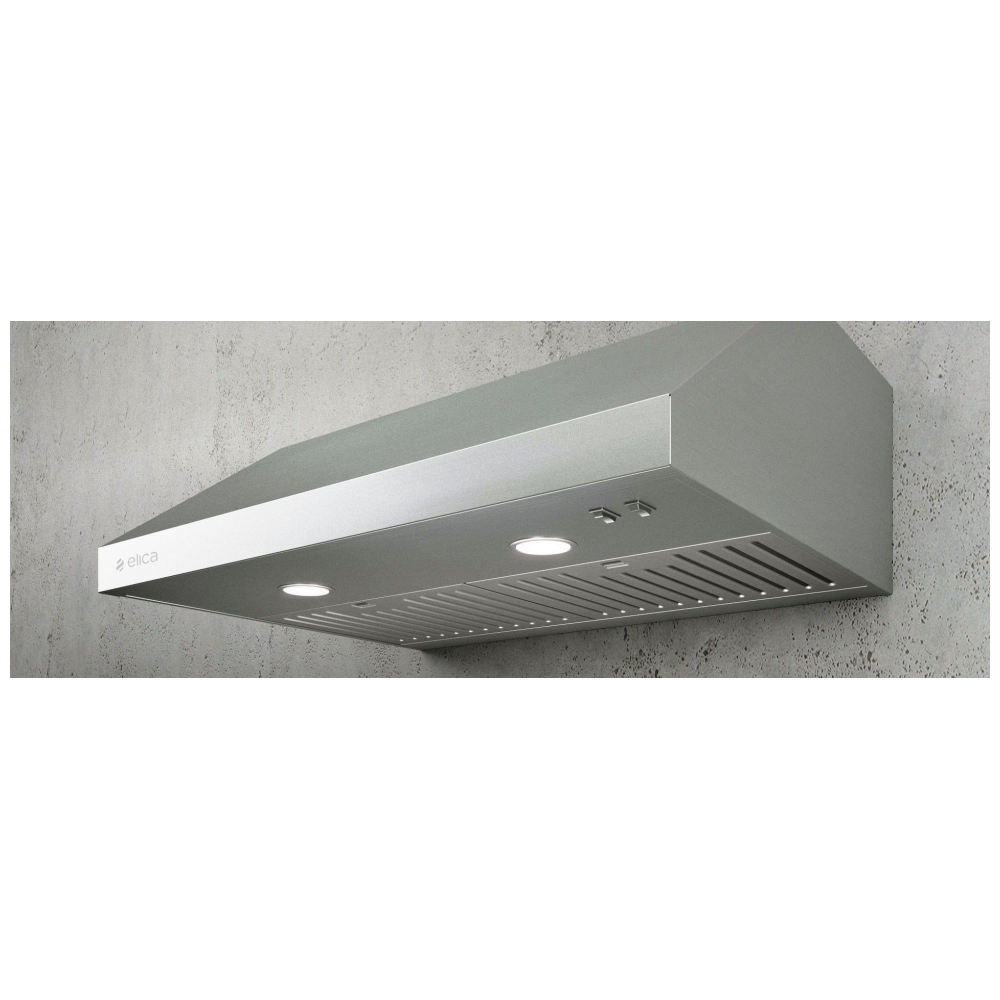

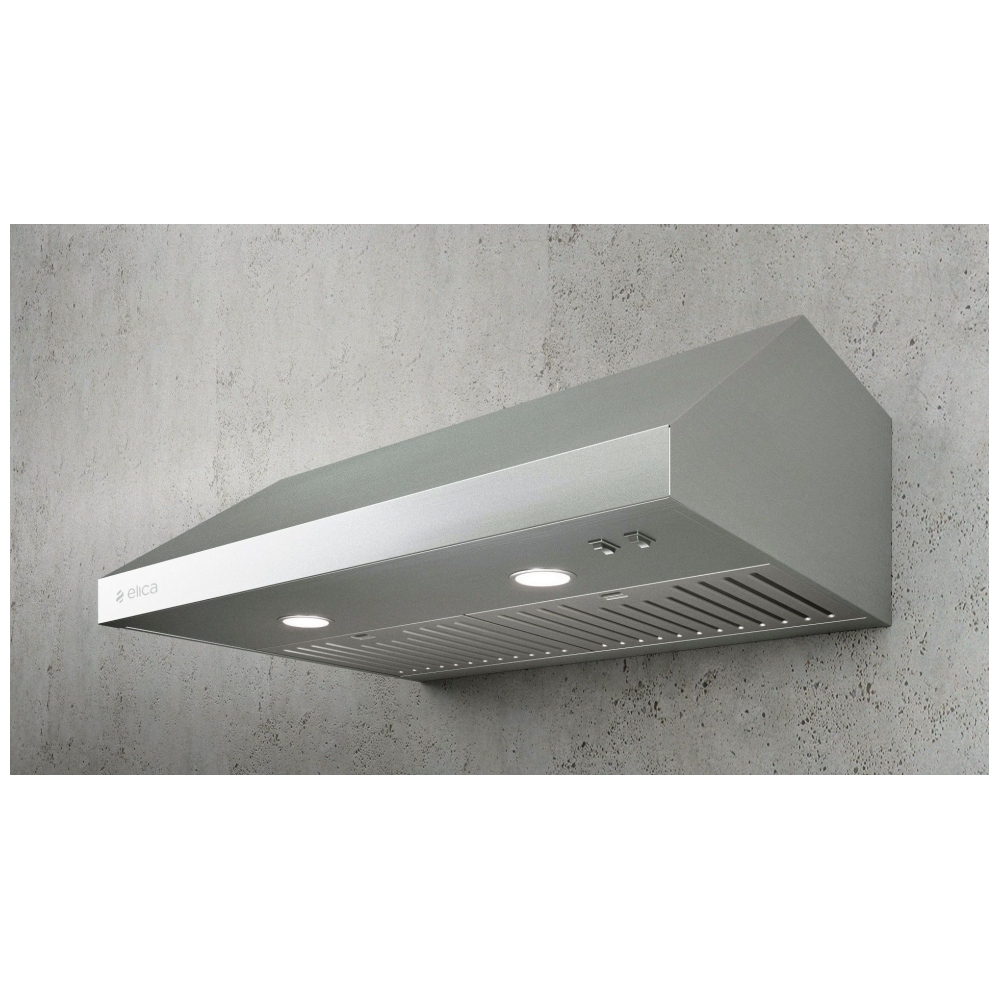

Elica ESR430S1 Range Hood, 30 inch Exterior Width, 3, 400 CFM, LED, Baffle Filter, Stainless Steel colour
