Add a flair of sophistication to your kitchen with this stylish 30-inch stainless steel double electric wall oven with Even-Heat™ True Convection oven for even, consistent cooking results. Prepare meals like a restaurant chef thanks to the unique bow-tie shaped design and convection fan working to promote even cooking results. Kiss burnt edges and undercooked centers good-bye with the powerful even heating of these ovens. Utilize both oven cavities to prepare separate dishes at two different temperatures simultaneously. The temperature probe ensures each dish reaches the desired internal temperature by delivering accurate temperature readings of meats, poultry, and casseroles without opening the oven door. When you are finished cooking, baking, or roasting with your ovens, let KitchenAid take care of the clean up with the self-clean function. Whether you are an avid home chef, or a casual baker, the bold design of the KitchenAid KODE500ESS provides your kitchen with the perfect balance of elegance and functionality.
With KitchenAid’s FIT System, the KitchenAid KODE500ESS double wall oven creates a built-in appearance with its flush to cabinetry installation. KitchenAid took great care and precision when crafting this system, ensuring the new double oven will install into any standard cabinetry cutout. For your convenience, the FIT system is equipped with trim work to seal off any gaps that may be visible after installation.

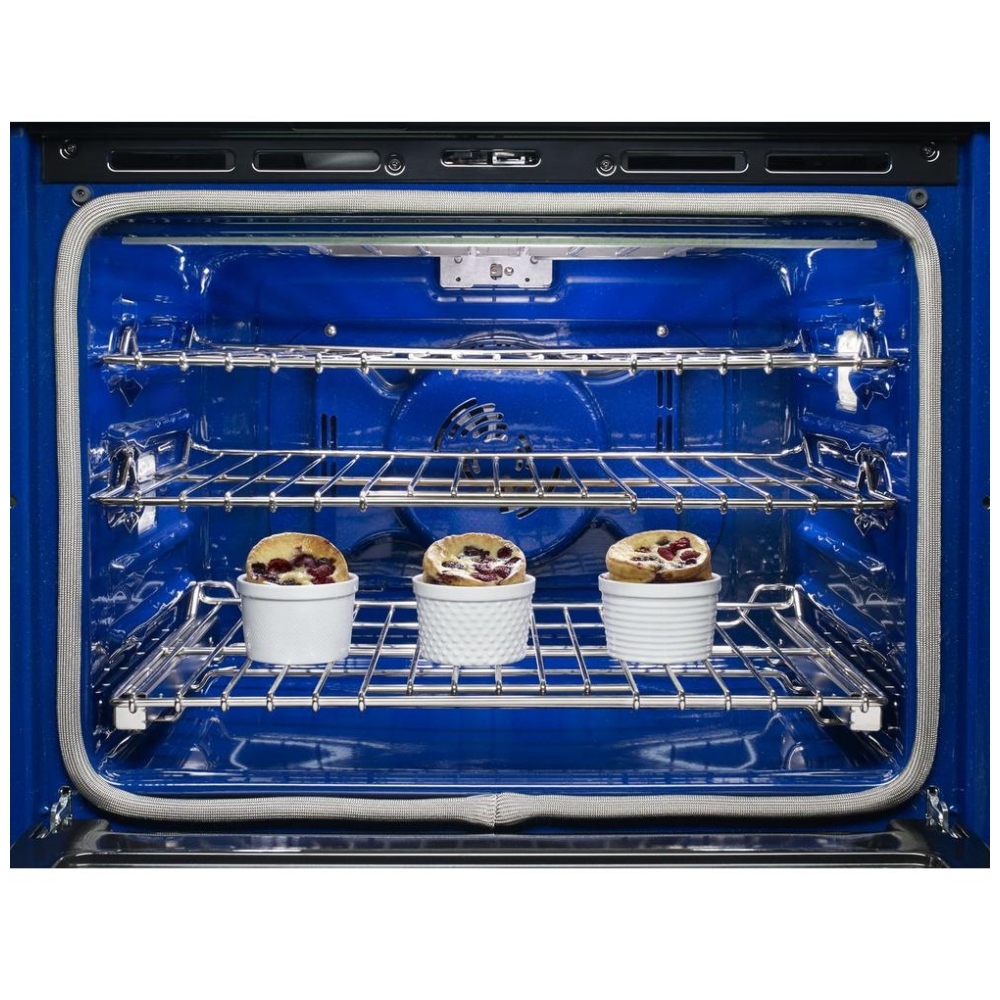

Prepare multiple dishes, or large roasts in a single oven cavity with ease. Each large 5.0 cubic foot capacity oven cavity offers three oven racks and six rack guides, allowing the interior configuration to be adjusted to meet your needs. With this flexible wall oven, you can prepare two separate dishes at different temperatures simultaneously with ease.
KitchenAid creates more usable oven space with its hidden bake element. The hidden bake element is installed under the oven cavity floor, providing more usable cooking, baking, and roasting space, while keeping the oven cavity quick and easy to clean.
No matter which oven cavity you use, you can rest assured each dish and rack will receive the same even heating thanks to KitchenAid’s innovative Even-Heat™ True Convection oven system. The unique bow-tie shape combined with the convection fan ensure heated air is distributed evenly throughout the entire cavity.
If you are not familiar with convection cooking, that is not a problem. The EasyConvect conversion system allows you to enter the traditional conventional cook time and temperature, and then converts it to the appropriate convection cook time and temperature automatically.
To ensure each dish reaches its ideal internal temperature, both ovens feature a temperature probe.
When you finished with your new KitchenAid oven, forget about the harsh cleaning chemicals. Let KitchenAid take care of the hard part with the self-clean function. The self-clean feature uses high-heat temperatures to reduce food particles and spillovers to ash. Cutting the laborsome out of cleaning routine. Once the self-clean cycle ends, simply grab a damp sponge or cloth to wipe the ash from the oven cavity.
- Provides an extra-large cooking capacity that s unsurpassed among 30" wall ovens and is perfect for large turkeys and roasts. It can even make multiple dishes at once.
- Takes the guesswork out of convection cooking by ensuring exceptional results when experimenting with new recipes or familiar favorites.
- Helps remove cold spots to help ensure even baking because the entire oven, including the walls and racks, are heated to the correct temperature.
- features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
- Allows for customization of wall oven installation to match the height of existing cabinets through flexible design elements.
- Gives an intuitive glass touch screen experience that s easy to wipe clean.
- Allows easy loading and features an easy-grip handle, giving you the confidence when cooking with large or heavy dishes.
- uses high temperatures to loosen baked-on food without the need for harsh chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
- Allows accurate measurement of internal temperature of meats, poultry, and casseroles without having to open the oven door.
Manufacturer's Warranty: 1 year
UPC: 883049327327
EAN: 0883049327327
Certifications | |
Cul | Yes |
Energy Rating | 355 |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Type | Glass Touch Digital Display |
Display Color | White |
Electronic Display Type | Digital |
Details | |
Delay Clean | Yes |
Flush Installation Approved | Yes |
Fuel Type | Electric |
Light Control | Oven Light Touch Pad |
Lp Convertible | No |
Oven Automatic Shut-off | Yes |
Oven Configuration | Double Oven |
Oven Selections | Clock; Control Lock; Delay Start; Proofing; Sabbath Mode; Star K; Temperature Probe; Time Bake; Timer |
Oven Type | Double |
Temperature Conversion | Yes |
Dimensions | |
Product Height | 51.25 |
Carton Height | 53.5 |
Gross Weight | 296 |
Upper Oven Capacity | 5 |
Carton Width | 34.8 |
Lower Oven Interior Height | 18 |
Upper Oven Interior Width | 25 |
Product Depth | 27.125 |
Depth With Door Open 90 Degree | 46.75 |
Lower Oven Interior Width | 25 |
Cutout Depth | 24 |
Cutout Height | 50.25 |
Depth Closed Excluding Handles | 24.5 |
Lower Oven Capacity | 5 |
Upper Oven Interior Depth | 19 |
Carton Depth | 30.8 |
Cutout Width | 28.5 |
Upper Oven Interior Height | 18 |
Net Weight | 291 |
Product Width | 30.0 |
Lower Oven Interior Depth | 19 |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Oven Window Size | Extra Large |
Microwave Details | |
Language Conversion | English/French |
Oven Details | |
Bake Element Power | 2,800 W Both |
Broiler Element Power | 4,000 W Both |
Broiler Location | Top of Oven |
Convection Element Power | 3,200 |
Convection Element Type | True |
Convection Functions | Bake Broil Roast Both |
Door Broil Position | Closed |
Door Lock | Yes |
Door Removable | Yes |
Hidden Bake Element | Yes |
Installable Under Cooktop | No |
Interior Coating | Porcelain |
Interior Color | Blue |
Light Type | Halogen |
Lower Oven Number of Oven Lights | 2 |
Number of Bake Elements | 1 |
Number of Broil Elements | 1 |
Number of Lower Oven Racks | 3 |
Number of Lower Rack Guides | 6 |
Number of Upper Oven Racks | 3 |
Number of Upper Rack Guides | 6 |
Oven Cleaning Type | Adjustable Self Cleaning |
Oven Cooking System | Convection Both |
Self-cleaning Oven Racks | No |
Upper Oven Number of Oven Lights | 2 |
CAPACITY
10.00
CUTOUT DEPTH
60.96 cm, 24.0 in
CUTOUT HEIGHT
127.64 cm, 50-1/4 in
CUTOUT WIDTH
72.39 cm, 28-1/2 in
DEPTH
68.90 cm, 27-1/8 in
DEPTH CLOSED EXCLUDING HANDLES
62.23 cm, 24-1/2 in
DEPTH WITH DOOR OPEN 90 DEGREE
118.74 cm, 46-3/4 in
HEIGHT
130.18 cm, 51-1/4 in
LOWER OVEN CAPACITY
141.50 l, 5.0 cu. ft.
UPPER OVEN CAPACITY
141.50 l, 5.0 cu. ft.
WIDTH
76.20 cm, 30.0 in
CUL
Yes
FUEL TYPE
Electric
INSTALLABLE UNDER COOKTOP
No
LP CONVERTIBLE
No
OVEN TYPE
Double
SIZE
76.20 cm, 30 in
AUTOMATIC SHUT-OFF
Yes
BAKE ELEMENT POWER
2800W Both
BROILER LOCATION
Top of Oven
CONVECTION ELEMENT TYPE
True
CONVECTION FUNCTIONS
Bake Broil Roast Both
DELAY CLEAN
Yes
DOOR BROIL POSITION
Closed
DOOR LOCK
Yes
DOOR REMOVABLE
Yes
HIDDEN BAKE ELEMENT
Yes
INTERIOR COATING
Porcelain
INTERIOR COLOR
Blue
LANGUAGE CONVERSION
English/French
LIGHT CONTROL
Oven Light Touch Pad
LIGHT TYPE
Halogen
LOWER OVEN INTERIOR DEPTH
48.26 cm, 19.0 in
LOWER OVEN INTERIOR HEIGHT
45.72 cm, 18.0 in
LOWER OVEN INTERIOR WIDTH
63.50 cm, 25.0 in
LOWER OVEN NUMBER OF OVEN LIGHTS
2
NUMBER OF BAKE ELEMENTS
1
NUMBER OF BROIL ELEMENTS
1
NUMBER OF LOWER OVEN RACKS
3
NUMBER OF LOWER RACK GUIDES
6
NUMBER OF UPPER OVEN RACKS
3
NUMBER OF UPPER RACK GUIDES
6
OVEN COOKING SYSTEM
Convection Both
OVEN RACK 1 TYPE
Heavy Duty
OVEN RACK 2 TYPE
Heavy Duty
OVEN RACK 3 TYPE
Gliding Roll-Out
SELF-CLEANING OVEN RACKS
No
TEMPERATURE CONVERSION
Yes
UPPER OVEN INTERIOR DEPTH
48.26 cm, 19.0 in
UPPER OVEN INTERIOR HEIGHT
45.72 cm, 18.0 in
UPPER OVEN INTERIOR WIDTH
63.50 cm, 25.0 in
UPPER OVEN NUMBER OF OVEN LIGHTS
2
DOOR TYPE
Metal & Glass
FLUSH INSTALLATION APPROVED
Yes
HANDLE COLOR
Stainless Steel
HANDLE MATERIAL
Metal
BAKE ELEMENT POWER
2800W Both
BROILER ELEMENT POWER
4000W Both
CONVECTION ELEMENT POWER
3200
CONVECTION ELEMENT TYPE
True
OVEN CLEANING TYPE
Adjustable Self Cleaning
OVEN RACK 1 TYPE
Heavy Duty
OVEN RACK 2 TYPE
Heavy Duty
OVEN RACK 3 TYPE
Gliding Roll-Out
ENERGY RATING
397
PROP 65
CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
UL
UL
VOLTS
240
DISPLAY COLOR
White
ELECTRONIC DISPLAY TYPE
Digital
OVEN DOOR
Metal & Glass
OVEN WINDOW SIZE
Extra Large
OVEN CONFIGURATION
Double Oven
PRODUCTOUTLETCATEGORIES
Cooking
STATUS BADGE ESPOT CA
New
GPC CODE
10001950
ISINVOICEUNIT
true
ISORDERABLEUNIT
true
PRODUCT TYPE
EA
UDEX
1100400623
ISBASEUNIT
true
ISCONSUMERUNIT
true
