KitchenAid KUIX335HPS
Discontinued
AQ1I74
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Ratings & Reviews
AQ1I74
When will I get this?

Description & Features
Fully Flush Installation lets this automatic ice maker blend in with surrounding cabinetry for a refined built-in look. Its Clear Ice Technology helps produce cubes of uniform clarity, size and shape that are ideal for everyday use. And because it holds 25 pounds of ice, there will always be enough ice for entertaining.

  • Clear Ice Technology
  • provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.
  • Filter-Ready
  • provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.
  • Fully Flush Installation with Articulating Hinge
  • allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.
  • Gravity Drain System
    (Pump Sold Separately)
  • Installs directly over a floor drain or can be adapted to connect to an under-sink drain line within 10 ft with additional purchase of Drain Pump 1901A (sold separately), so you can keep a continuous supply of clear ice nearly anywhere in the home
  • Installs directly over a floor drain or can be adapted to connect to an under-sink drain line within 100 ft with additional purchase of Drain Pump 1901A (sold separately), so you can keep a continuous supply of clear ice nearly anywhere in the home
  • Holds 25 Pounds of Ice
  • ensures a generous supply of fresh ice is conveniently at your fingertips.
  • Max Ice
  • PrintShield™ Finish
  • resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
  • Reversible Door
  • offers flexible installation options by allowing hinge installation on either side of the door.
  • Self Cleaning Cycle
  • Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.

Manufacturer's Warranty: 1 year

Canadian model: KUIX335HPS

Canadian UPC: 883049483252

EAN: 0883049483252

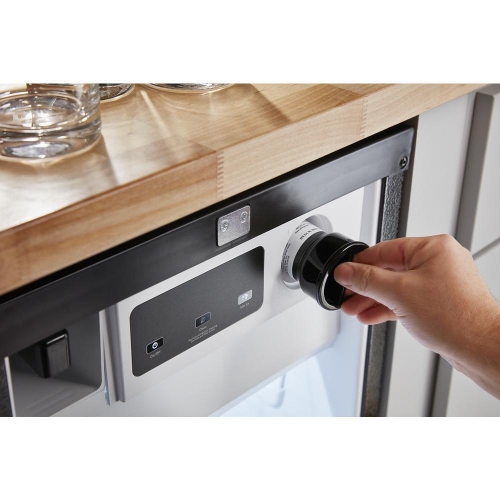

Filter-Ready - KUIX335HPS
Filter-Ready
KUIX335HPS - Filter-Ready
provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.
Fully Flush Installation with Articulating Hinge - KUIX335HPS
Fully Flush Installation with Articulating Hinge
KUIX335HPS - Fully Flush Installation with Articulating Hinge
allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.

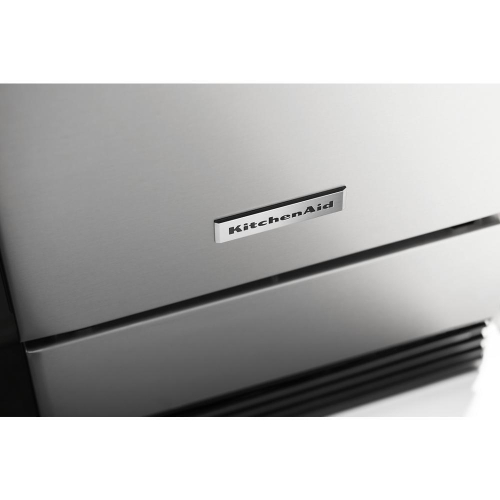

PrintShield™ Finish - KUIX335HPS
PrintShield™ Finish
KUIX335HPS - PrintShield™ Finish
resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
Self Cleaning Cycle - KUIX335HPS
Self Cleaning Cycle
KUIX335HPS - Self Cleaning Cycle
Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.

Specs
Certifications
Ada Compliant No
Prop65 Standard
Ul Yes
Controls
Ambient Temperature Range 55F to 110F
Control Location Interior Up Front
Control Type Electronic Touch
Details
Door Opening Direction Right
Drain Connection Rear Access 5/8in. OD
Drain Pump No - Gravity Drain
Ice Capacity Storage 25
Stainless Steel Cutting Grid 3/4in. x 3/4in. Cubes
Water Inlet Connection 1/4in. OD PEX Tubing
Water Supply Pressure 30 - 120 psi
Dimensions
Product Height 34.95
Height To Top of Door Hinge 34.063
Carton Height 36.07
Gross Weight 107
Height To Top of Cabinet 33.625
Carton Width 17.25
Product Depth 26.26
Cutout Depth 25
Cutout Height 34.5
Carton Depth 28.37
Cutout Width 15
Net Weight 96.5
Product Width 14.07
Exterior Details
Cabinet Finish Textured
Cabinet Material Prepainted Steel
Handle Color Stainless Steel
Handle Location Horizontal
Handle Material Metal
Handle Type Towel Bar
Reversible Door Yes
Filter Details
Water Filter Indicator/reset Yes
Water Filter Location Interior
Water Filter Part Number F2WC9I1
Freezer Details
Defrost Type Automatic Defrost
Icemaker Details
Ice Maker On/off Yes
Oven Details
Interior Light LED
Refrigerator Details
Interior Liner Finish Plastic
Liner Color White

Dimensions
Depth 26 1/16
Cabinet Width 14 7/8
Carton Depth 28 3/8
Carton Height 36 1/8
Carton Width 17 1/4
Cutout Depth 25
Cutout Height 34 1/2
Cutout Width 15
Depth Closed Excluding Handles 24 5/8
Depth Closed Including Handles 26 1/16
Depth Excluding Doors 22 1/16
Depth With Door Open 90 Degree 39 9/16
Gross Weight 107
Height To Top Of Cabinet 33 5/8
Height To Top Of Door Hinge 34 1/16
Net Weight 96.5

Certifications
Prop 65 Standard
ADA Compliant No
UL UL
CEE Tier Not Rated
Energy Star® Qualified No

Configuration
Refrigeration Configuration Ice Maker

Refinement
Style Ice Makers

Controls
Ice Maker On/Off Yes
Defrost Type Automatic Defrost
Control Type Electronic Touch
Control Location Interior Up Front

Appearance
Cabinet Finish Textured
Handle Material Metal
Reversible Door Yes
Handle Location Horizontal

Exterior
Handle Type Towel Bar
Door Opening Right
Handle Color Stainless Steel
Cabinet Material Prepainted Steel

Ice Maker Features
Selections Articulating Hinge,Clear Ice Technology,Easy Access Filter Install,Ice Scoop,Max Ice,True Flush Installable

Filters
Water Filter Part Number F2WC9I1

Details
Ambient Temperature Range 55F to 110F
Drain Connection Rear Access 5/8" OD
Drain Pump No, Gravity Drain
Ice Capacity Storage (lbs) 25
Liner Color White
Liner Finish Plastic
Interior Light LED
Stainless Steel Cutting Grid 3/4" x 3/4" Cubes
Water Inlet Connection 1/4" OD PEX Tubing
Water Supply Pressure psi 30 - 120 psi

Electrical
Amps 15 or 20
Volts 115/120

Filter Details
Water Filter Indicator/Reset Yes
Water Filter Location Interior
