Brand	Zephyr
Manufacturer	Zephyr
Category	Range Hood
Sub-Category	Insert
Vent Type	Ducted
UPC	646328002625
GTIN	00646328002625
Country of Origin	Taiwan
Model Group	AK93
Model Name	Monsoon II
Collection	Pro Collection
Replacement Model	AK9340BS
Blower Included	Yes
Internal Blower 1 CFM	1200
Internal Blower 1 Min. Sones	3.5
Internal Blower 1 Max Sones	9
Minimum CFM	450
Installation Type	Insert
Installation Type	Insert
For Outdoor Use	No
Color	Stainless Steel
Controls Type	Electronic
Blower Speeds	6
Automatic Delay-Off	Yes
Clean Air Function	Yes
Lighting Type	Halogen
Lights Quantity	2
Watts Per Bulb	35
Lights Levels	2
Grease Filter Type	Pro baffle
Compatible Mesh or Baffle Filter Part Number	50210013
Duct Discharge	Vertical
Duct Size; Horizontal; IN	N/A
Duct Size; Vertical; IN	10
Mounting Height Above Cooktop; IN	26 - 36
Voltage	120
Maximum Amperage	7
ADA Compliant	Yes
Warranty Parts / Labor	3 / 1
Compatible Appliances	MUA010A, Z0B0040, 14000005
Bluetooth Connected	No
Wi-Fi Connected	No
Remote Included	Yes
Remote Optional	No
Energy Star Certified	No
Alexa & Google Home Compatible	No
CEC Title 20 Compliant	Yes
Primary Material	Stainless Steel
Wattage	840
Certification	UL
Nominal Width; IN	42
Net Width; IN	40.375
Net Depth; IN	22.5
Net Height; IN	12
Weight; LBS	60.2
Ceiling Height Minimum	8 ft.
Ceiling Height Maximum	12 ft.
Shipping Length; IN	17.09
Shipping Width; IN	43.94
Shipping Height; IN	28.82
Shipping Weight; LBS	73.8
Shipping Method	LTL
Freight Class	300
Duct Type	Vertical
Duct Type	Vertical

Performance
Internal Min-Max Blower CFM:	450 - 1200
Internal Min-Max Sones:	3.5 - 9
Features
Controls:	Electronic Touch
Speed Levels:	6
Auto Delay-Off:	Yes
Clean Air Mode:	Yes
Lighting:	(2) 35 W Halogen Bulbs
Dual Level Lighting:	Yes
Filters:	SS Pro-Baffle
Removable Grease Tray:	Yes
RF Remote Control:	Yes
Recirculating Option:	No
Size:	42"
AC Input:	120 V
AC Power:	Max 703 W at 5.9 A
Mounting Height:	26 - 36"
Duct Specifications
Internal Blower - Vertical:	10" Round
Internal Blower - Horizontal:	N/A
Warranty
Parts:	3 Years
Labor:	1 Year
Dimensions
Width:	40 3/8"
Depth:	22 1/2"
Height:	12"

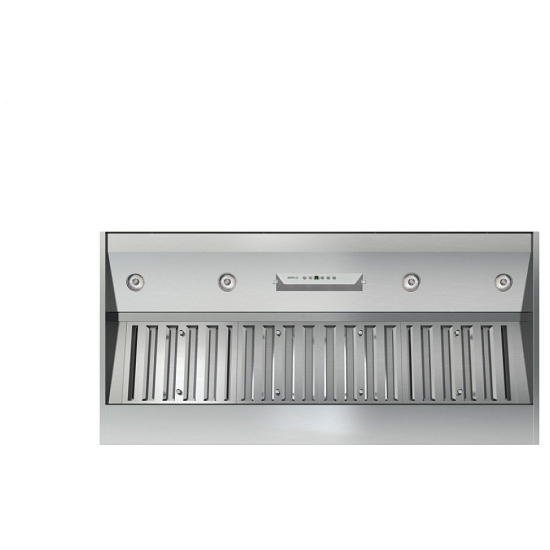

Zephyr AK9340AS

Zephyr AK9340AS

Zephyr AK9340AS Cabinet Insert, 40 inch Exterior Width, 1,200 CFM, Halogen , Baffle Filter, Stainless Steel colour
