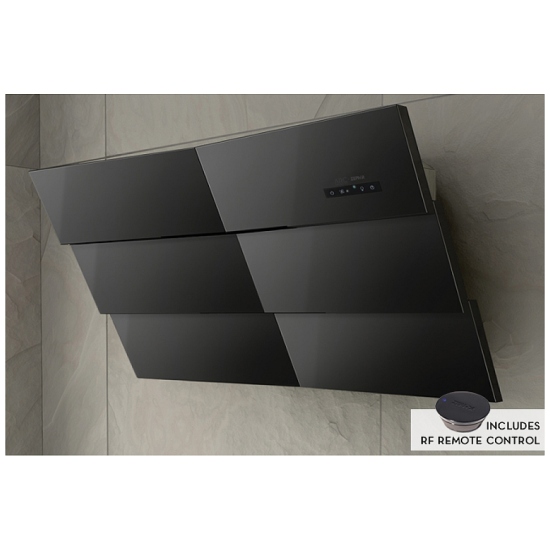

Zephyr ATIM90ABX
Discontinued
ADNDGS
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $187.12 for 18 months
Ratings & Reviews
ADNDGS
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $187.12 for 18 months
Description & Features

A contemporary sculpture for the kitchen, Tilt's sextet of subtly angled panels meet in a layered array to form a hinged range-hood canopy like no other. An upwardly mobile front panel lifts for convenient blower access without heavy lifting whenever cleaning or service is required. Dual halogen lamps provide the perfect accent to this powerful wall-mounted statement, clad in your choice of all-stainless steel or stainless underscored with a sleek, black powder coat.

•3 Speed Touch Glass Controls
•Decorative Mesh Filters
•CleanAir Function
•Delay Off
•2 Halogen Lights
•Tri-Level Lighting
•RF Remote Control
•6" or 8" Round Vertical and Horizontal Ducting
•3-1/4" x 10" Rectangular Horizontal Ducting
•10" round duct connects to external or in-line blower
•Must transition from 10" to 8" before duct passes through ceiling
•10" to 8" adapter included with in-line and external blowers


Manufacturer's Warranty: 1 year

Canadian model: ATIM90ABX

Specs
Models ATI-M90ABX
Size 36"
CFM 290, 600, 1000
Recirculating yes
Ducting Vertical and Horizontal
Features
Controls: Memory Touch Glass
Speed Levels: 3
Delay-Off: Auto
CleanAir Function: Yes
Remote Control: Yes, RF
Lighting: Halogen, 20W x 2
Tri-Level Lighting: Yes
Filters: Decorative Mesh x 1
Recirculating: Optional
Duct Cover Extension: Optional
AC Input: 120V - 60Hz
AC Power - Hood Only: Max. 40W, 0.33 Amps
Performance (Blowers Sold Separately)
Internal Blower: 290 CFM, 3.2 Sones Max. (CBI290A)
Internal Blower: 600 CFM, 6.0 Sones Max. (CBI600A)
In-Line Blower: 1000 CFM, Sones NA (PBN1000A)
External Blower: 1000 CFM, Sones NA (CBE1000)
Duct Specifications
Vertical - Internal: 6"
Horizontal - Internal: 6"
Vertical/Horizontal - In-Line/External: 10" to 8"
Note: 10" round duct connects to external and in-line blower. Must transition from 10" to 8" before duct passes through ceiling. A 10" to 8" adapter is included with external and in-line blowers.
Dimensions
Overall Width: 35 3/8"
Overall Depth: 19 1/4"
Overall Height: 18 3/4"
Height with Duct Cover Extension (Short): 35" Min. to 52" Max.
Height with Duct Cover Extension (Long): 51" Min. to 85" Max.
Mounting Height from Cooking Surface: 22" Min. to 32" Max.
